Nissan Altima HL32 Hybrid. Manual - part 226





HOMELINK UNIVERSAL TRANSCEIVER

DLK-125

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

HOMELINK UNIVERSAL TRANSCEIVER

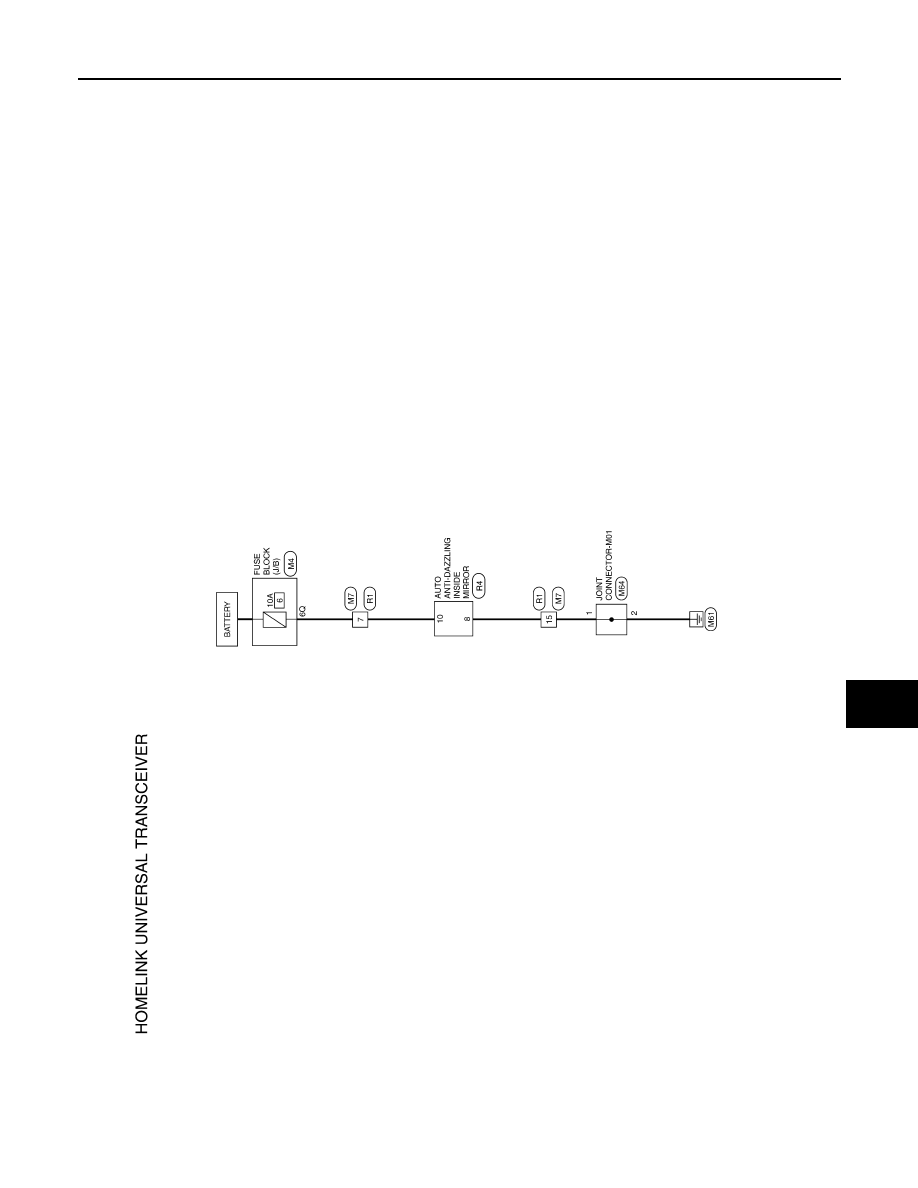

Wiring Diagram

INFOID:0000000004215755

ABKWA0220GB

DLK-126

< COMPONENT DIAGNOSIS >

HOMELINK UNIVERSAL TRANSCEIVER

Description

INFOID:0000000004215756

Homelink universal transceiver can store and transmit a maximum of 3 radio signals.

Allows operation of garage doors, gates, home and office lighting, entry door locks and security system, etc.

Homelink universal transceiver power supply uses vehicle battery, which enables it to maintain every program

in case battery is discharged or removed.

ABKIA0718GB

HOMELINK UNIVERSAL TRANSCEIVER

DLK-127

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

Component Function Check

INFOID:0000000004215757

1.

CHECK FUNCTION

Check that system receiver (garage door opener, etc.) operates with original hand-held transmitter.
Is the inspection result normal?

YES

>> GO TO 2

NO

>> Receiver or hand-held transmitter is malfunctioning.

2.

CHECK ILLUMINATE

1. Turn ignition switch “OFF”.

2. Press each of the transmitter buttons and watch for the red light to illuminate with each button.
Is the inspection result normal?

YES

>> GO TO 3

NO

>> Refer to

DLK-127, "Diagnosis Procedure"

.

3.

CHECK TRANSMITTER

Check transmitter with Tool*.

*:For details, refer to Technical Service Bulletin.
Is the inspection result normal?

YES

>> Receiver or hand-held transmitter malfunction, not vehicle related.

NO

>> Replace auto anti-dazzling inside mirror (homelink universal transceiver). Refer to

MIR-15,

"Removal and Installation"

.

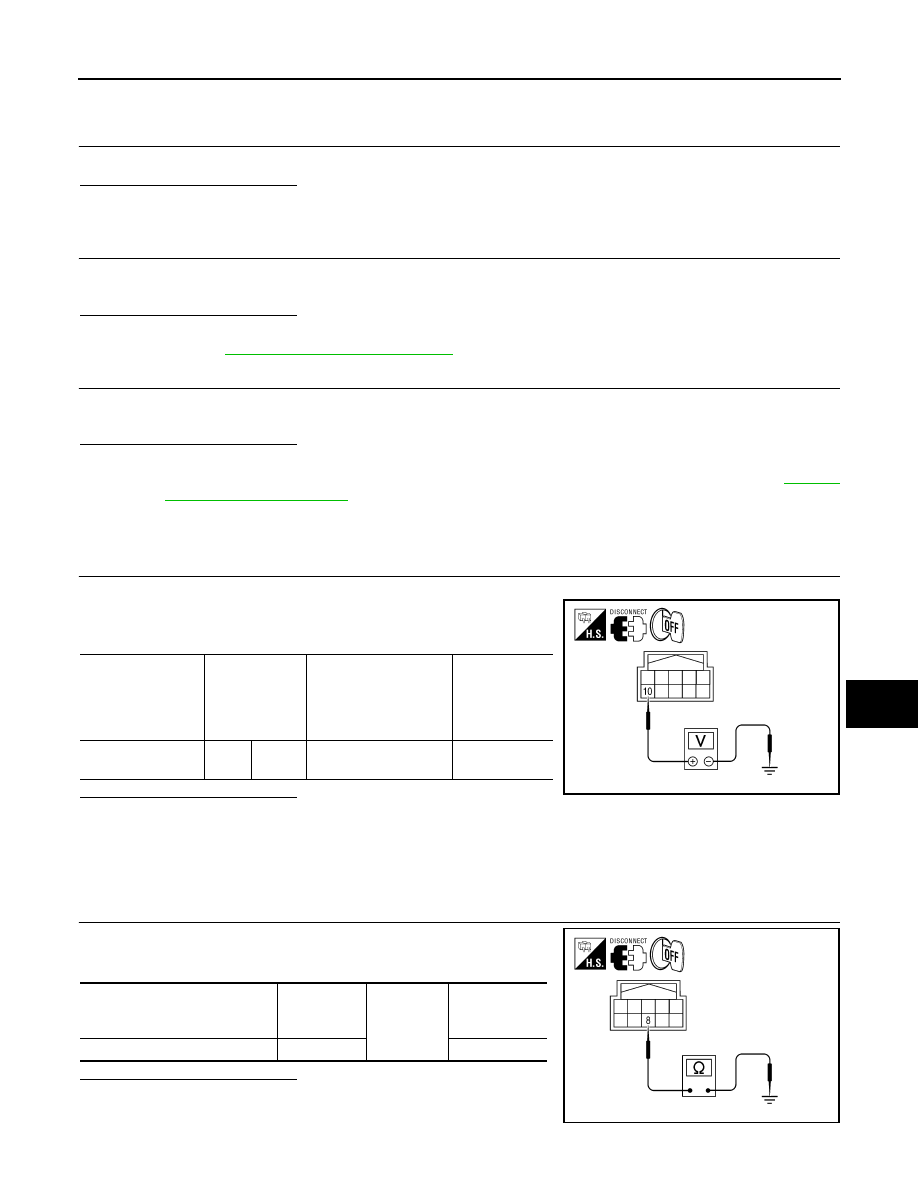

Diagnosis Procedure

INFOID:0000000004215758

1.

CHECK POWER SUPPLY

1. Disconnect auto anti-dazzling inside mirror (homelink universal transceiver) connector.

2. Check voltage between auto anti-dazzling inside mirror

(homelink universal transceiver) harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 2

NO

>> Check the following.

• 10A fuse [No. 6 located in the fuse block (J/B)]

• Harness for open or short between fuse and auto anti-dazzling inside mirror (homelink universal

transceiver).

2.

CHECK GROUND CIRCUIT

Check continuity between auto anti-dazzling inside mirror (homelink

universal transceiver) harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 3

NO

>> Repair harness.

Auto anti-dazzling

inside mirror

(Homelink universal

transceiver) con-

nector

Terminal Condition

Voltage (V)

(Approx.)

R4

10

Ground

Ignition switch position:
LOCK

Battery voltage

ALKIA0426ZZ

Auto anti-dazzling inside mirror

(Homelink universal transceiver)

connector

Terminal

Ground

Continuity

R4

8

Yes

ALKIA0427ZZ

DLK-128

< COMPONENT DIAGNOSIS >

HOMELINK UNIVERSAL TRANSCEIVER

3.

CHECK INTERMITTENT INCIDENT

Refer to

GI-42, "Intermittent Incident"

.

>> Inspection End.
