REMOTE KEYLESS ENTRY RECEIVER

DLK-113

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

REMOTE KEYLESS ENTRY RECEIVER

Description

INFOID:0000000004215732

Receives Intelligent Key operation and transmits to BCM.

Component Function Check

INFOID:0000000004215733

1.

CHECK FUNCTION

With CONSULT-III

Check remote keyless entry receiver RKE OPE COUN1 in "DATA MONITOR" mode with CONSULT-III.

Is the inspection result normal?

YES

>> Remote keyless entry receiver is OK.

NO

>> Refer to

DLK-113, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000004215734

1.

CHECK REMOTE KEYLESS ENTRY RECEIVER OUTPUT SIGNAL

1. Turn ignition switch OFF.

2. Check signal between remote keyless entry receiver connector

and ground with oscilloscope.

Monitor item

Condition

RKE OPE COUN1

Checks whether value changes when operating Intelligent Key.

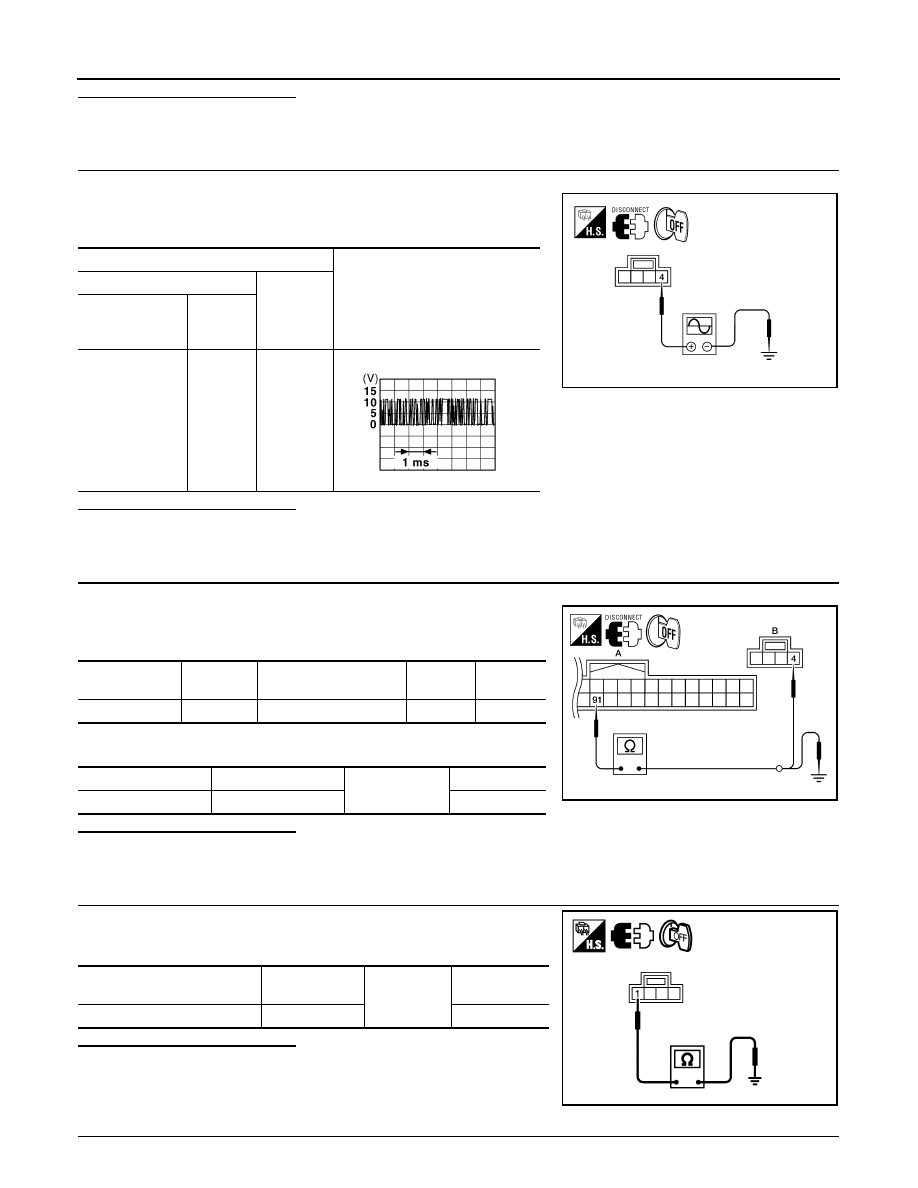

PIIB6457E

Terminals

Condition

Signal

(Reference value)

(+)

(–)

Remote keyless

entry receiver

connector

Terminal

M27

2

Ground

Waiting

(All doors closed)

When signal is received

(All doors closed)

JMKIA0064GB

JMKIA0065GB

DLK-114

< COMPONENT DIAGNOSIS >

REMOTE KEYLESS ENTRY RECEIVER

Is the inspection result normal?

YES

>> GO TO 7

NO

>> GO TO 2

2.

CHECK REMOTE KEYLESS ENTRY RECEIVER POWER SUPPLY

1. Disconnect remote keyless entry receiver connector.

2. Check signal between remote keyless entry receiver connector

and ground with oscilloscope.

Is the inspection result normal?

YES

>> GO TO 4

NO

>> GO TO 3

3.

CHECK REMOTE KEYLESS ENTRY RECEIVER CIRCUIT 1

1. Disconnect BCM connector.

2. Check continuity between BCM connector M19 (A) terminal 91

and remote keyless entry receiver connector M27 (B) terminal 4.

3. Check continuity between BCM connector and ground.

Is the inspection result normal?

YES

>> Reconnect BCM, GO TO 4

NO

>> Repair or replace harness between BCM and remote keyless entry receiver.

4.

CHECK REMOTE KEYLESS ENTRY RECEIVER GROUND CIRCUIT

Check continuity between remote keyless entry receiver connector

and ground.

Is the inspection result normal?

YES

>> GO TO 6

NO

>> GO TO 5

5.

CHECK REMOTE KEYLESS ENTRY RECEIVER CIRCUIT 2

Terminals

Signal

(Reference value)

(+)

(–)

Remote keyless

entry receiver

connector

Terminal

M27

4

Ground

ALKIA0414ZZ

JMKIA0064GB

BCM connector

Terminal

Remote keyless entry

receiver connector

Terminal

Continuity

A: M19

91

B: M27

4

Yes

BCM connector

Terminal

Ground

Continuity

A: M19

91

No

ALKIA0415ZZ

Remote keyless entry receiver

connector

Terminal

Ground

Continuity

M27

1

Yes

PIIB6460E

REMOTE KEYLESS ENTRY RECEIVER

DLK-115

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

Check continuity between BCM connector and remote keyless entry

receiver connector.

Is the inspection result normal?

YES

>> GO TO 7

NO

>> Repair or replace harness between BCM and remote

keyless entry receiver.

6.

CHECK REMOTE KEYLESS ENTRY RECEIVER CIRCUIT 3

1. Check continuity between BCM connector and remote keyless

entry receiver connector.

2. Check continuity between BCM connector and ground.

Is the inspection result normal?

YES

>> GO TO 7

NO

>> Repair or replace harness between BCM and remote keyless entry.

7.

CHECK INTERMITTENT INCIDENT

Refer to

GI-42, "Intermittent Incident"

.

>> Inspection End.

BCM connector

Terminal

Remote keyless entry

receiver connector

Terminal

Continuity

A: M18

45

B: M27

1

Yes

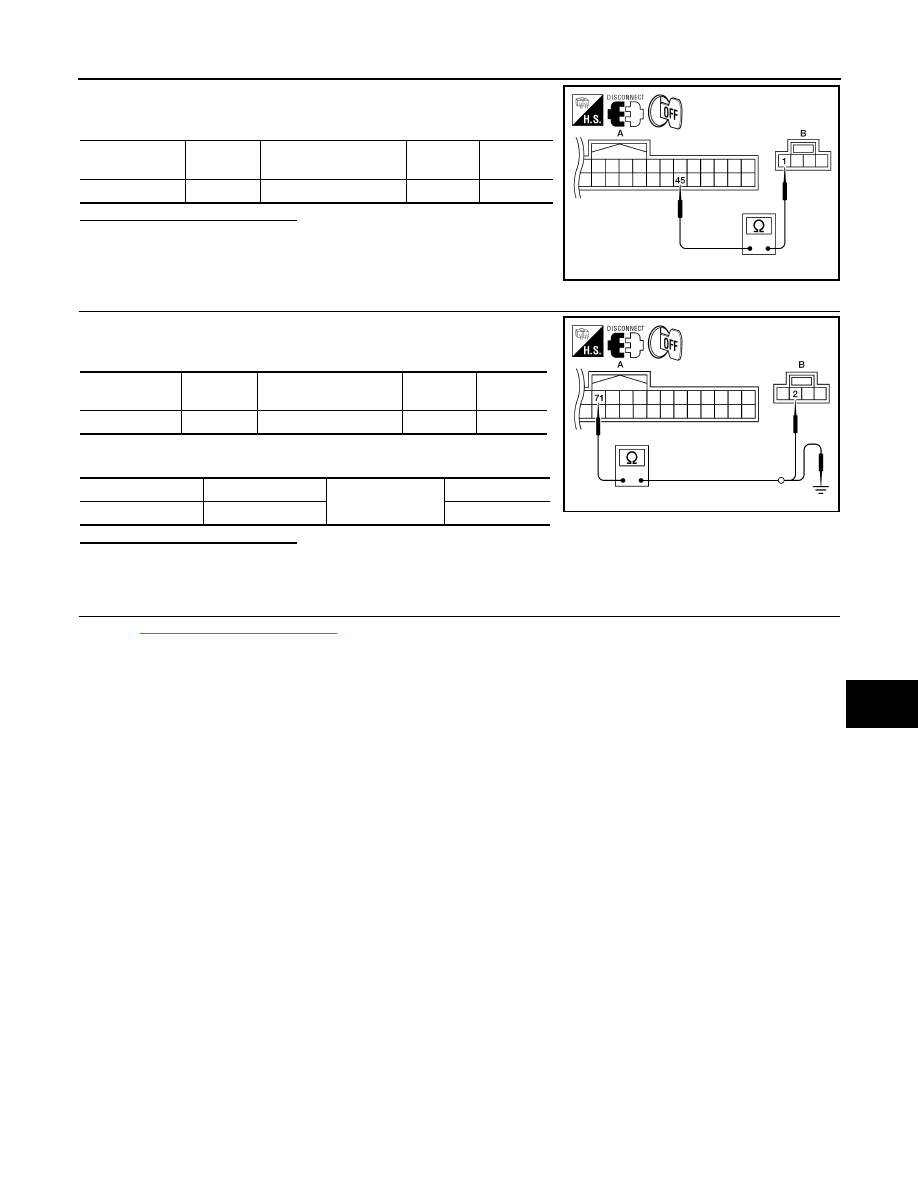

ALKIA0416ZZ

BCM connector

Terminal

Remote keyless entry

receiver connector

Terminal

Continuity

A: M19

71

B: M27

2

Yes

BCM connector

Terminal

Ground

Continuity

A: M19

71

No

ALKIA0417ZZ

DLK-116

< COMPONENT DIAGNOSIS >

INTELLIGENT KEY BATTERY AND FUNCTION

INTELLIGENT KEY BATTERY AND FUNCTION

Description

INFOID:0000000004215735

The following functions are available when having and carrying electronic ID.

• Door lock/unlock

• Trunk open

Remote control entry function and panic alarm function are available when operating the remote buttons.

Component Function Check

INFOID:0000000004215736

1.

CHECK FUNCTION

With CONSULT-III

Check remote keyless entry receiver RKE OPE COUN1 in Data Monitor mode with CONSULT-III.

Is the inspection result normal?

YES

>> Intelligent Key is OK.

NO

>> Refer to

DLK-116, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000004466884

1.

CHECK INTELLIGENT KEY FUNCTION

Check keyfob function using Remote Keyless Entry Tester J-43241.
Does the test pass?

YES

>> Intelligent Key is OK.

NO

>> GO TO 2

2.

 CHECK INTELLIGENT KEY COMPONENTS

1. Release the lock knob at the back of the Intelligent Key and remove the mechanical key.

2. Insert a flat-blade screwdriver (A) wrapped with a cloth into the

slit of the corner and twist it to separate the upper part from the

lower part.

CAUTION:

• Do not touch the circuit board or battery terminal.

• The keyfob is water-resistant. However, if it does get wet,

immediately wipe it dry.

3. Remove the Intelligent Key battery.

CAUTION:

• Keep dirt, grease, and other foreign materials off the elec-

trode contact area.

4. Visually inspect keyfob internal components.
Is the inspection result normal?

YES

>> GO TO 3

NO

>> Repair or replace malfunctioning parts.

3.

CHECK INTELLIGENT KEY BATTERY

Monitor item

Condition

RKE OPE COUN1

Check that the numerical value is changing while operating on the Intelligent Key.

LEL946A

PIIB6221E
