Nissan Altima HL32 Hybrid. Manual - part 198

DOOR LOCK FUNCTION

DLK-13

< FUNCTION DIAGNOSIS >

DLK

DOOR LOCK FUNCTION

DOOR LOCK AND UNLOCK SWITCH
DOOR LOCK AND UNLOCK SWITCH : System Diagram

INFOID:0000000004215611

DOOR LOCK AND UNLOCK SWITCH : System Description

INFOID:0000000004215612

DOOR LOCK FUNCTION

Functions Available by Operating the Door Lock and Unlock Switches on Driver Door and Passenger Door

• Interlocked with the locking operation of door lock and unlock switch, door lock actuators of all door lock

actuators are locked.

• Interlocked with the unlocking operation of door lock and unlock switch, door lock actuators of all door lock

actuators are unlocked.

Functions Available by Operating the Key Cylinder Switch on Driver Door

• Interlocked with the locking operation of door key cylinder, door lock actuators of all door lock actuators are

locked.

Selective Unlock Operation

• When door key cylinder is unlocked, door lock actuator driver side is unlocked.

• When door key cylinder is unlocked for the second time within 5 seconds after the first operation, door lock

actuators on all doors are unlocked.

Select unlock operation mode can be changed using DOOR LOCK-UNLOCK SET mode in “WORK SUP-

PORT”. Refer to

DLK-52, "DOOR LOCK : CONSULT-III Function (BCM - DOOR LOCK)"

Key Reminder System

Refer to

DLK-46, "System Description"

ALKIA0178GB

Switch

Input/output signal to BCM

BCM function

Actuator

Main power window and door
lock/unlock switch

Door lock/unlock signal

Door lock/unlock control

Door lock actuator

Power window and door lock/
unlock switch

Door key cylinder switch

DLK-14

< FUNCTION DIAGNOSIS >

DOOR LOCK FUNCTION

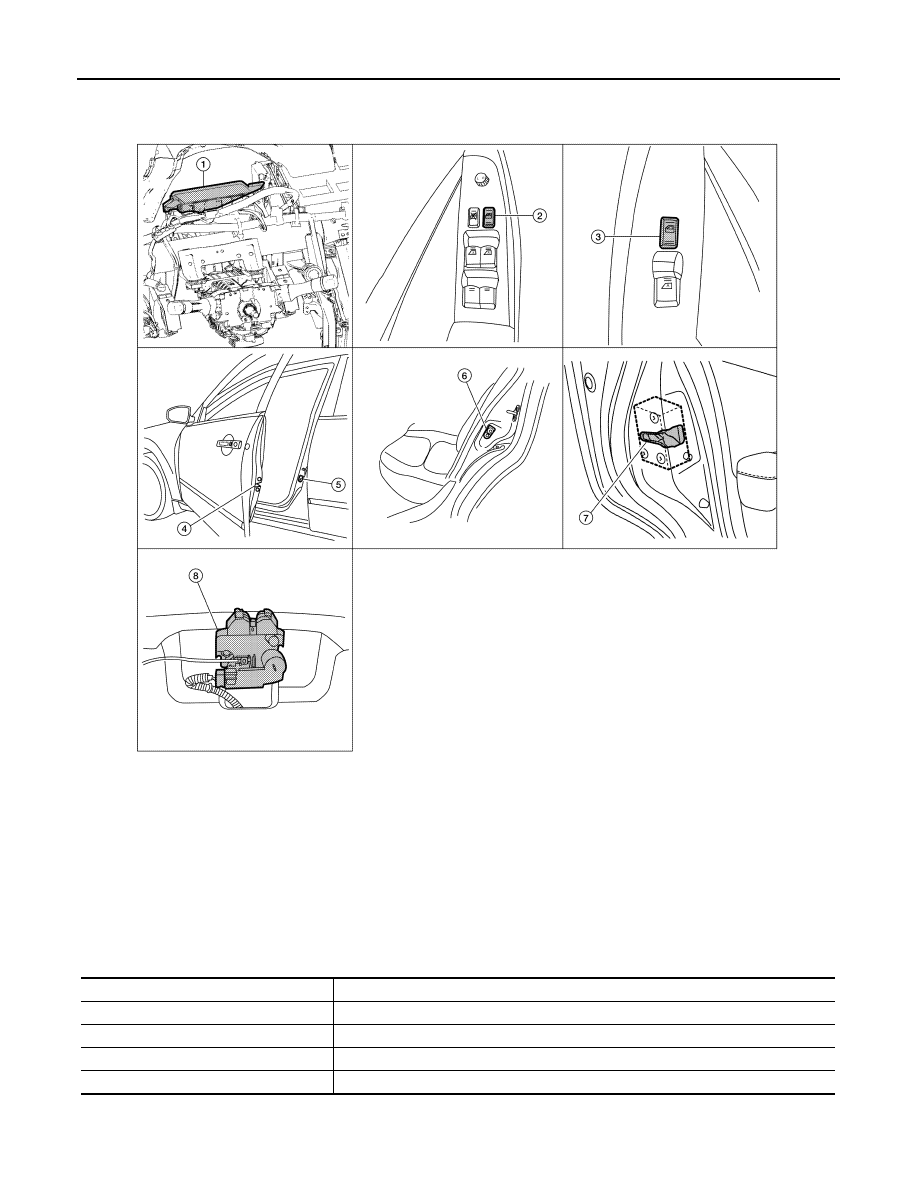

DOOR LOCK AND UNLOCK SWITCH : Component Parts Location

INFOID:0000000004215613

DOOR LOCK AND UNLOCK SWITCH : Component Description

INFOID:0000000004215614

DOOR REQUEST SWITCH

BCM M16, M17, M18, M19, M21
(view with instrument panel removed)

Main power window and door lock/un-
lock switch D7, D8

Power window and door lock/un-
lock switch RH D105

Front door lock assembly LH (key cylin-
der switch) D10
Front door lock actuator RH D108

Front door switch
LH B8
RH B108

Rear door switch
LH B18
RH B116

Rear door lock actuator
LH D205
RH D305

Trunk lamp switch and trunk release
solenoid B28

ALKIA0079ZZ

Item

Function

BCM

Controls the door lock function and room lamp function.

Door lock and unlock switch

Transmits lock or unlock signal to BCM.

Door lock actuator

Receives lock/unlock signal from BCM and locks/unlocks each door.

Door switch

Transmits door open/close condition to BCM.

DOOR LOCK FUNCTION

DLK-15

< FUNCTION DIAGNOSIS >

DLK

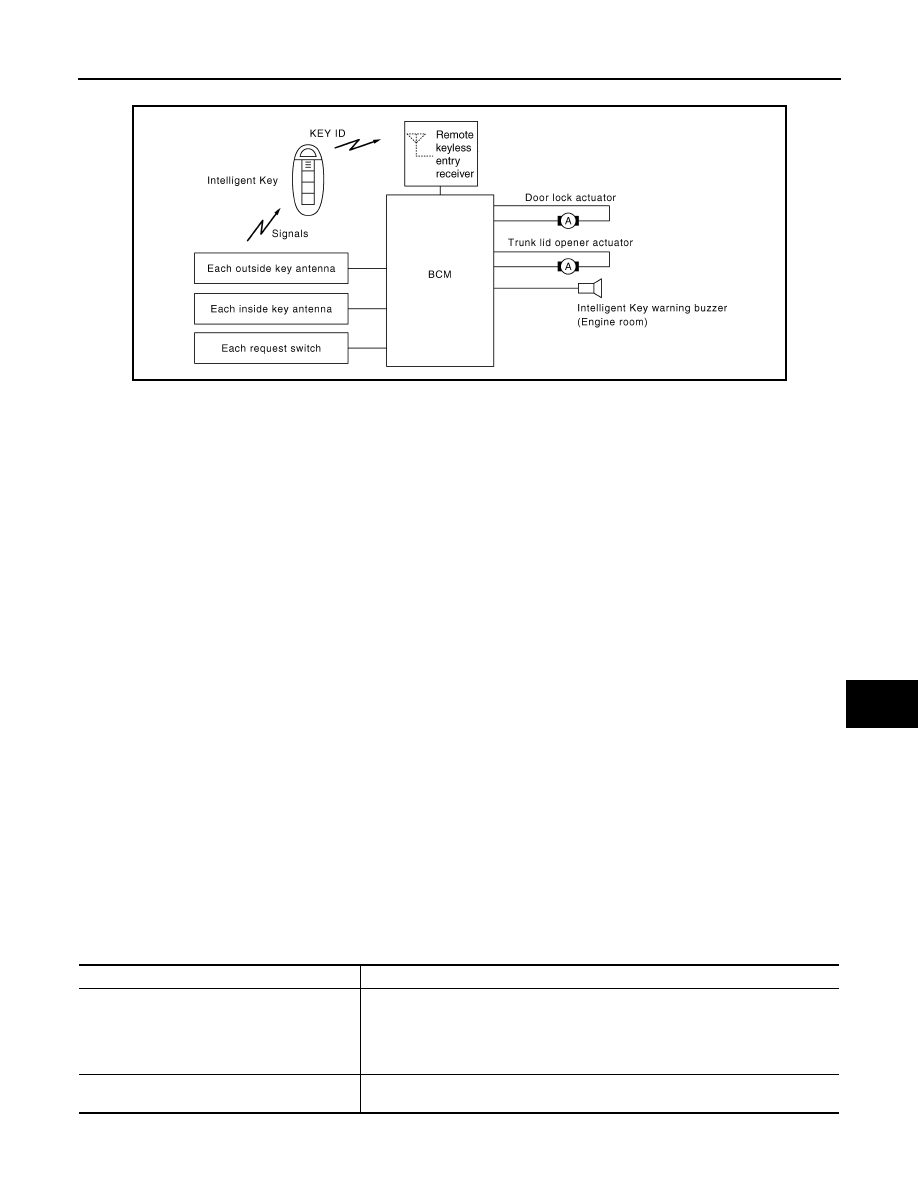

DOOR REQUEST SWITCH : System Diagram

INFOID:0000000004215615

DOOR REQUEST SWITCH : System Description

INFOID:0000000004215616

Only when pressing the request switch, it is possible to lock and unlock the door by carrying the Intelligent

Key.

• The Intelligent Key system is a system that makes it possible to lock and unlock the door locks (door lock/

unlock function) by carrying the Intelligent Key, which operates based on the results of electronic ID verifica-

tion using two-way communications between the Intelligent Key and the vehicle (BCM).

CAUTION:

The driver should always carry the Intelligent Key

• If an action that does not meet the operating conditions of the Intelligent Key system is taken, the buzzer

goes off to inform the driver (Warning chime function).

• When a door lock is locked, unlocked or trunk open with request switch or remote controller button opera-

tion, the hazard lamps flash and the Intelligent Key warning buzzer or horn sounds (Hazard and buzzer/horn

reminder function).

• The settings for each function can be changed with the CONSULT-III.

• If an Intelligent Key is lost, a new Intelligent Key can be registered. A maximum of 4 Intelligent Keys can be

registered.

• It is possible to perform a diagnosis on the system and register an Intelligent Key with the CONSULT-III.

OPERATION DESCRIPTION/DOOR LOCK/UNLOCK

• When the BCM detects that each door request switch is pressed, it starts the outside key antenna and inside

key antenna corresponding to the pressed door request switch and transmits the request signal to the Intelli-

gent Key. And then, check that the Intelligent Key is near the door.

• If the Intelligent Key is within the outside key antenna detection area, it receives the request signal and

transmits the key ID signal to the BCM via remote keyless entry receiver.

• BCM receives the key ID signal and compares it with the registered key ID.

• BCM sends the door lock/unlock signal and sounds Intelligent Key buzzer warning (lock: 2 time, unlock: 1

times) at the same time as a reminder.

OPERATION CONDITION

If the following conditions are not satisfied, door lock/unlock operation is not performed even if the request

switch is operated.

ALKIA0082GB

Each request switch operation

Operation condition

Lock operation

• All doors are closed
• Ignition switch is in OFF position
• Intelligent Key is out of key slot
• Intelligent Key is outside the vehicle
• Intelligent Key is within outside key antenna detection area

Unlock Operation

• Intelligent Key is outside the vehicle
• Intelligent Key is within outside key antenna detection area *

DLK-16

< FUNCTION DIAGNOSIS >

DOOR LOCK FUNCTION

*: Even with a registered Intelligent Key remaining inside the vehicle, door locks can be unlocked from outside of the vehicle with a spare
Intelligent Key as long as key IDs are different.

OUTSIDE KEY ANTENNA DETECTION AREA

The outside key antenna detection area of door lock/unlock function

is in the range of approximately 80 cm (31.50 in) surrounding the

driver and passenger door handles (1).

SELECTIVE UNLOCK FUNCTION

When an LOCK signal is sent from door request switch (driver side or passenger side), all doors will be locked.

When an UNLOCK signal is sent from door request switch (driver side or passenger side) once, driver's door

will be unlocked.

Then, if an UNLOCK signal is sent from door request switch (driver side and passenger side) again within 5

seconds, all other door will be unlocked.

HAZARD AND BUZZER REMINDER FUNCTION

During lock, unlock, or trunk opening operation by each request switch, the hazard warning lamps and Intelli-

gent Key warning buzzer will blink or honk as a reminder.

When doors are locked, unlocked by each request switch, IPDM E/R honks Intelligent Key warning buzzer as

a reminder and transmits hazard request signal to BCM via CAN communication line.

BCM flashes hazard warning lamps as a reminder.

Operating function of hazard warning lamps and buzzer reminder

How to change hazard and buzzer reminder mode

Refer to

DLK-52, "INTELLIGENT KEY : CONSULT-III Function (BCM - INTELLIGENT KEY)"

AUTO DOOR LOCK FUNCTION

When all doors are locked, ignition switch is in OFF position and key switch is OFF (Intelligent Key is not

inserted in key slot), doors are unlocked with door request switch

When BCM does not receive the following signals within 60 seconds, all doors are locked.

• Door switch is ON (door is opened)

• Door is locked

• Ignition switch is ON (ignition switch is pressed)

• Key switch is ON (Intelligent Key is inserted in key slot)

Auto door lock mode can be changed by “AUTO LOCK SET” mode in “WORK SUPPORT”. Refer to

DLK-52,

"INTELLIGENT KEY : CONSULT-III Function (BCM - INTELLIGENT KEY)"

ROOM LAMP OPERATION

When the following conditions are met:

• Condition of interior lamp switch is in DOOR position

• Door switch OFF (all the doors are closed)

Intelligent Key system turns on interior lamp (for up to 30 seconds maximum) by receiving UNLOCK signal

from door request switch. For detailed description, refer to

DLK-13, "DOOR LOCK AND UNLOCK SWITCH :

System Description"

LIST OF OPERATION RELATED PARTS

Parts marked with

× are the parts related to operation.

JMKIA0103GB

Operation

Hazard warning lamps flash

Intelligent Key warning buzzer honk

Unlock

Once

Lock

Twice

Trunk open

—

Four times
