Nissan Altima HL32 Hybrid. Manual - part 178





RADIATOR

CO-15

< ON-VEHICLE REPAIR >

[QR25DE]

C

D

E

F

G

H

I

J

K

L

M

A

CO

N

P

O

11. Remove the refrigerant pressure sensor for installation on new radiator, condenser and liquid tank assem-

bly. Refer to

HA-38, "Removal and Installation for Refrigerant Pressure Sensor"

.

12. Remove both radiator, condenser and liquid tank assembly clips.
13. Remove radiator, condenser and liquid tank assembly.

CAUTION:

• Do not damage or scratch the radiator, condenser and liquid tank assembly and sub radiator core

when removing.

• When removing refrigerant components from a vehicle, immediately cap (seal) the component to

minimize the entry of moisture from the atmosphere.

• When installing refrigerant components to vehicle, never remove the caps (unseal) until just before

connecting the components. Connect all refrigerant loop components as quickly as possible to min-

imize the entry of moisture into system

INSTALLATION

Installation is in the reverse order of removal.

INSPECTION

Radiator, Condenser and Liquid Tank Assembly

1. Check radiator, condenser and liquid tank assembly for mud or clogging. If necessary, clean radiator, con-

denser and liquid tank assembly as follows:

• Be careful not to bend or damage the radiator, condenser and liquid tank assembly fins.

• When radiator, condenser and liquid tank assembly is cleaned without removal, remove all surrounding

parts such as radiator fan assembly and horns. Then tape the harness and electrical connectors to pre-

vent water from entering.

a. Apply water by hose to the back side of the radiator, condenser and liquid tank assembly core, point the

hose vertically downward.

b. Apply water again to all radiator, condenser and liquid tank assembly core surfaces once per minute.
c. Stop washing when no more dirt flows off the radiator, condenser and liquid tank assembly.
d. Blow air into the back side of radiator, condenser and liquid tank assembly core, point the air hose verti-

cally downward.
• Use compressed air lower than 490 kPa (5 kg/cm

2

, 71 psi) and keep distance more than 30 cm (11.8 in).

e.  Blow air again into all the radiator, condenser and liquid tank assembly core surfaces once per minute

until no water sprays out.

CO-16

< ON-VEHICLE REPAIR >

[QR25DE]

COOLING FAN

COOLING FAN

Removal and Installation

INFOID:0000000004211292

REMOVAL

1. Disconnect the 12-volt battery negative terminal.
2. Drain engine coolant from radiator, condenser and liquid tank assembly. Refer to

CO-11, "Changing

Engine Coolant"

.

CAUTION:

Perform when engine and inverter are cold.

3. Remove inverter upper bracket.
4. Drain inverter coolant from sub-radiator. Refer to

HBC-636, "Replacement"

.

5. Remove air cleaner duct (front). Refer to

EM-24, "Removal and Installation"

.

6. Disconnect radiator upper hose.
7. Remove sub radiator coolant reservoir tank.
8. Disconnect ECM.
9. Remove ECM and bracket assembly.
10. Disconnect radiator cooling fan controller.
11. Remove radiator cooling fan assembly.

INSTALLATION

Installation is in the reverse order of removal.

• Radiator cooling fan is controlled by ECM. For details, refer to

EC-55, "System Description"

.

Disassembly and Assembly

INFOID:0000000004211293

DISASSEMBLY

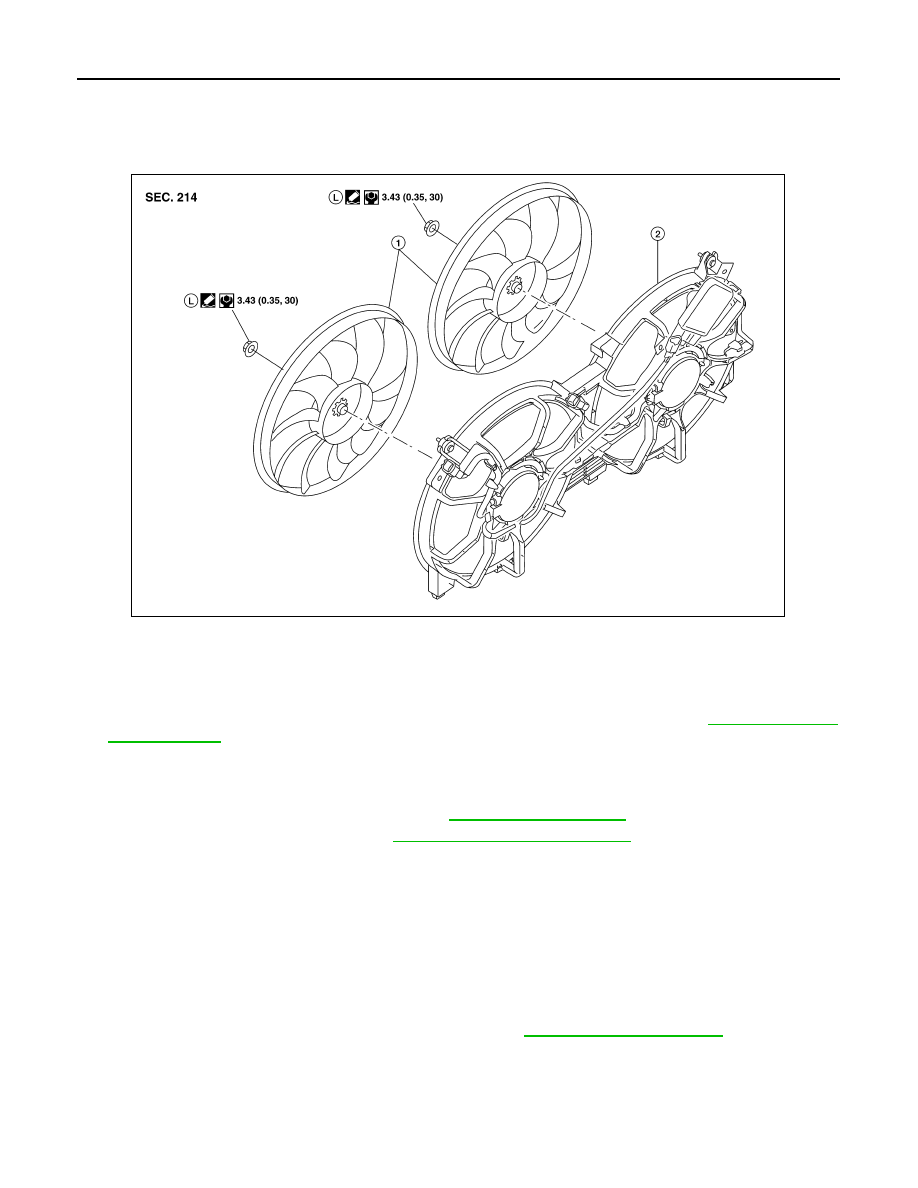

1. Remove fan blades from fan motors.

1.

Fan blade

2.

Radiator cooling fan shroud and motor assembly

AWBIA0055GB

COOLING FAN

CO-17

< ON-VEHICLE REPAIR >

[QR25DE]

C

D

E

F

G

H

I

J

K

L

M

A

CO

N

P

O

2. Remove the fan motors from the shroud.

ASSEMBLY

Assembly is in the reverse order of disassembly.

CO-18

< ON-VEHICLE REPAIR >

[QR25DE]

WATER PUMP

WATER PUMP

Removal and Installation

INFOID:0000000004211294

WARNING:

Never remove the radiator cap when the engine is hot. Serious burns could occur from high pressure

coolant escaping from the radiator.

REMOVAL

1. Drain engine coolant from radiator, condenser and liquid tank assembly. Refer to

CO-11, "Changing

Engine Coolant"

.

CAUTION:

Perform when the engine is cold.

2. Remove drive belt. Refer to

EM-14, "Removal and Installation of Drive Belt"

.

3. Remove engine cover using power tools.
4. Remove air cleaner duct (front). Refer to

EM-24, "Removal and Installation"

.

5. Remove engine coolant reservoir.
6. Remove RH wheel and tire assembly. Refer to

WT-62, "Adjustment"

.

7. Remove fender protector. Refer to

EXT-18, "Removal and Installation"

.

8. Remove engine ground strap.
9. Remove idler pulley bracket.
10. Remove the water pump.

CAUTION:

• Handle the water pump vane so that it does not contact any other parts.

• Water pump cannot be disassembled and should be replaced as an assembly.

NOTE:

If necessary, the exhaust manifold and three way catalyst assembly must be removed to remove the

water pipe. Refer to

EM-29, "Removal and Installation"

.

INSPECTION AFTER REMOVAL

AWBIA0004GB

1.

Water pump

2.

Gaskets

3.

Water pump housing

4.

Water pipe

5.

O-ring
