ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)

BRC-161

< ECU DIAGNOSIS >

[VDC/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

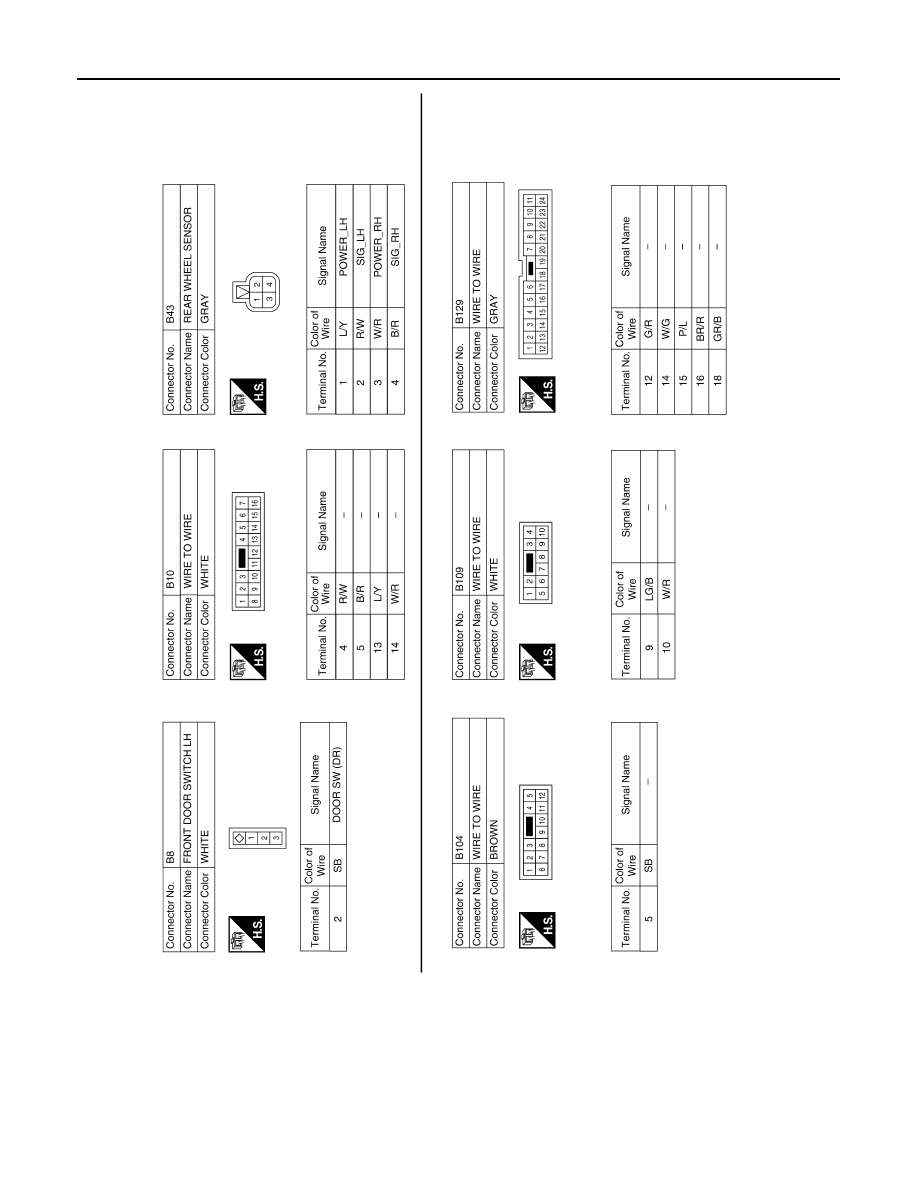

ABFIA0128GB

BRC-162

< ECU DIAGNOSIS >

[VDC/TCS/ABS]

ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)

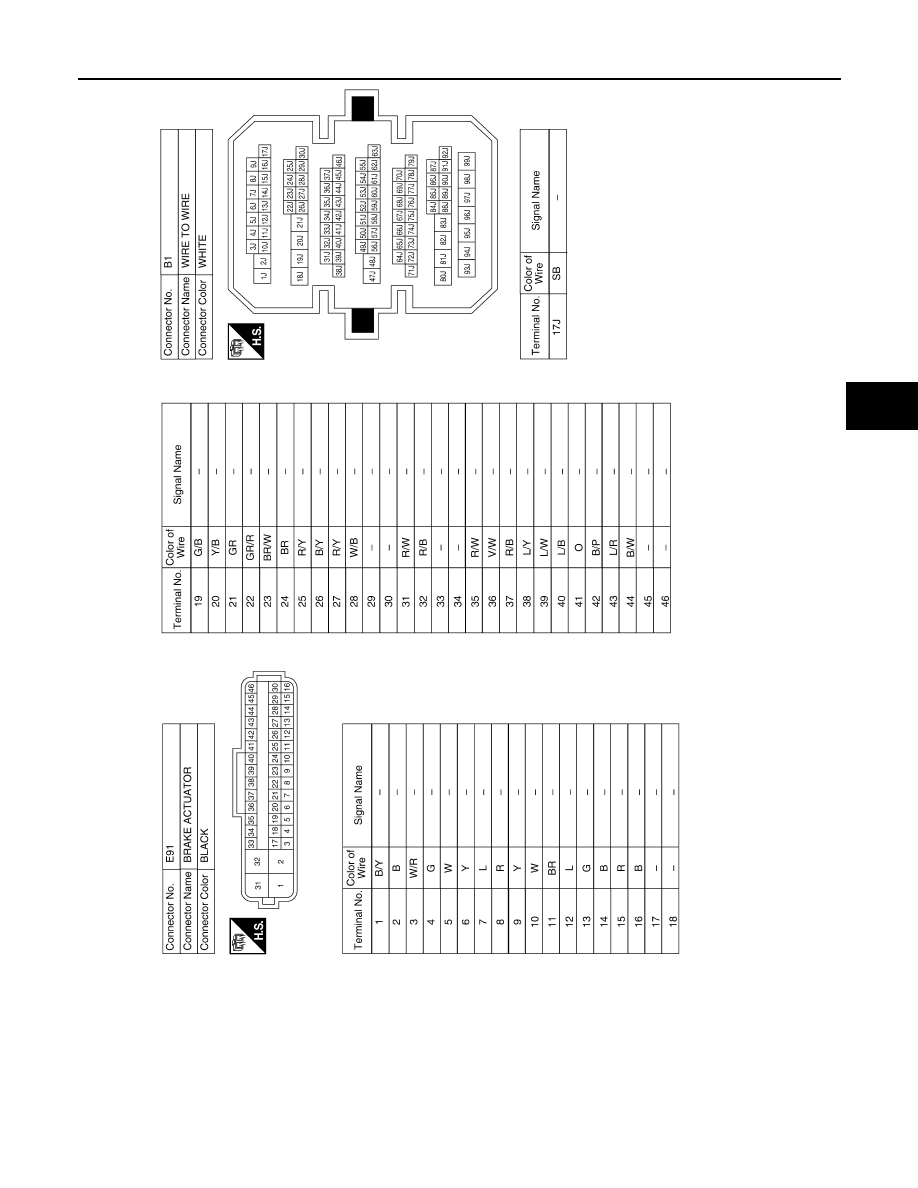

ABFIA0129GB

ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)

BRC-163

< ECU DIAGNOSIS >

[VDC/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

DTC Index

INFOID:0000000004212740

NOTE:

• If a trouble code is displayed during the DTC check, check the circuit indicated by the DTC. For details of

each code, turn to the page for the respective DTC Code in the DTC chart.

• Inspect the fuse and relay before investigation the trouble areas as shown in the table below.
1. Drive the vehicle at the speed of 50 km/h (31 MPH) and depress the brake pedal strongly for approxi-

mately 3 seconds.

ABFIA0130GB

BRC-164

< ECU DIAGNOSIS >

[VDC/TCS/ABS]

ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)

2. Repeat the above operation 3 times or more and check that the ABS warning lamp goes OFF.
3. Clear DTC.

NOTE:

• In some case, the CONSULT-III cannot be used when the ABS warning lamp remains ON.

• When U0073, U0123, U0124, U0126, or U0293 is output, inspect and repair the trouble areas indicated

by these codes first.

DTC chart of ABS:

DTC code

Detection item

INF code

Trouble area

Reference page

C0200

FR RH SENSOR

251
252
253
254
255
262

1.

Front wheel sensor RH

2.

Wheel sensor circuit

3.

Sensor installation

4.

Wheel sensor rotor

5.

Brake ECU

BRC-57, "Description"

C0205

FR LH SENSOR

264
265
266
267
268
275

1.

Front wheel sensor LH

2.

Wheel sensor circuit

3.

Sensor installation

4.

Wheel sensor rotor

5.

Brake ECU

BRC-57, "Description"

C0210

RR RH SENSOR

277
278
279
280
281
288

1.

Rear wheel sensor RH

2.

Wheel sensor circuit

3.

Sensor installation

4.

Wheel sensor rotor

5.

Brake ECU

BRC-62, "Description"

C0215

RR LH SENSOR

290
291
292
293
294
301

1.

Rear wheel sensor LH

2.

Wheel sensor circuit

3.

Sensor installation

4.

Wheel sensor rotor

5.

Brake ECU

BRC-62, "Description"

C1235

FR SPD FRAGMENT

302

1.

Front wheel sensor RH

2.

Wheel sensor circuit

3.

Sensor installation

4.

Wheel sensor rotor

5.

Brake ECU

BRC-77, "Description"

C1236

FL SPD FRAGMENT

303

1.

Front wheel sensor LH

2.

Wheel sensor circuit

3.

Sensor installation

4.

Wheel sensor rotor

5.

Brake ECU

BRC-77, "Description"

C1238

RR SPD FRAGMENT

304

1.

Rear wheel sensor RH

2.

Wheel sensor circuit

3.

Sensor installation

4.

Wheel sensor rotor

5.

Brake ECU

BRC-77, "Description"

C1239

RL SPD FRAGMENT

305

1.

Rear wheel sensor LH

2.

Wheel sensor circuit

3.

Sensor installation

4.

Wheel sensor rotor

5.

Brake ECU

BRC-77, "Description"

C1243

G SEN STUC

317

Yaw rate/side/decel G sensor

BRC-68, "Description"

C1244

G SENSOR

314

1.

Yaw rate/side/decel G sensor

2.

Sensor installation

BRC-68, "Description"

C1245

G SEN OUTPUT

313

1.

Yaw rate/side/decel G sensor

2.

Sensor installation

BRC-68, "Description"

C1336

G SEN CALIB

1.

Brake ECU

2.

Yaw rate/side/decel G sensor

3.

Zero point calibration undone

BRC-73, "Description"
