SLIP indicator lamp

Blinks to inform the driver that ABS, TCS and VDC are operating.

VDC warning lamp

• Comes on to inform the driver that a malfunction in VDC system have occurred.
• Zero point of steering angle sensor is dislocated.
• Remove the auxiliary battery.

Components

Functions

BRC-26

< FUNCTION DIAGNOSIS >

[VDC/TCS/ABS]

EBD

EBD

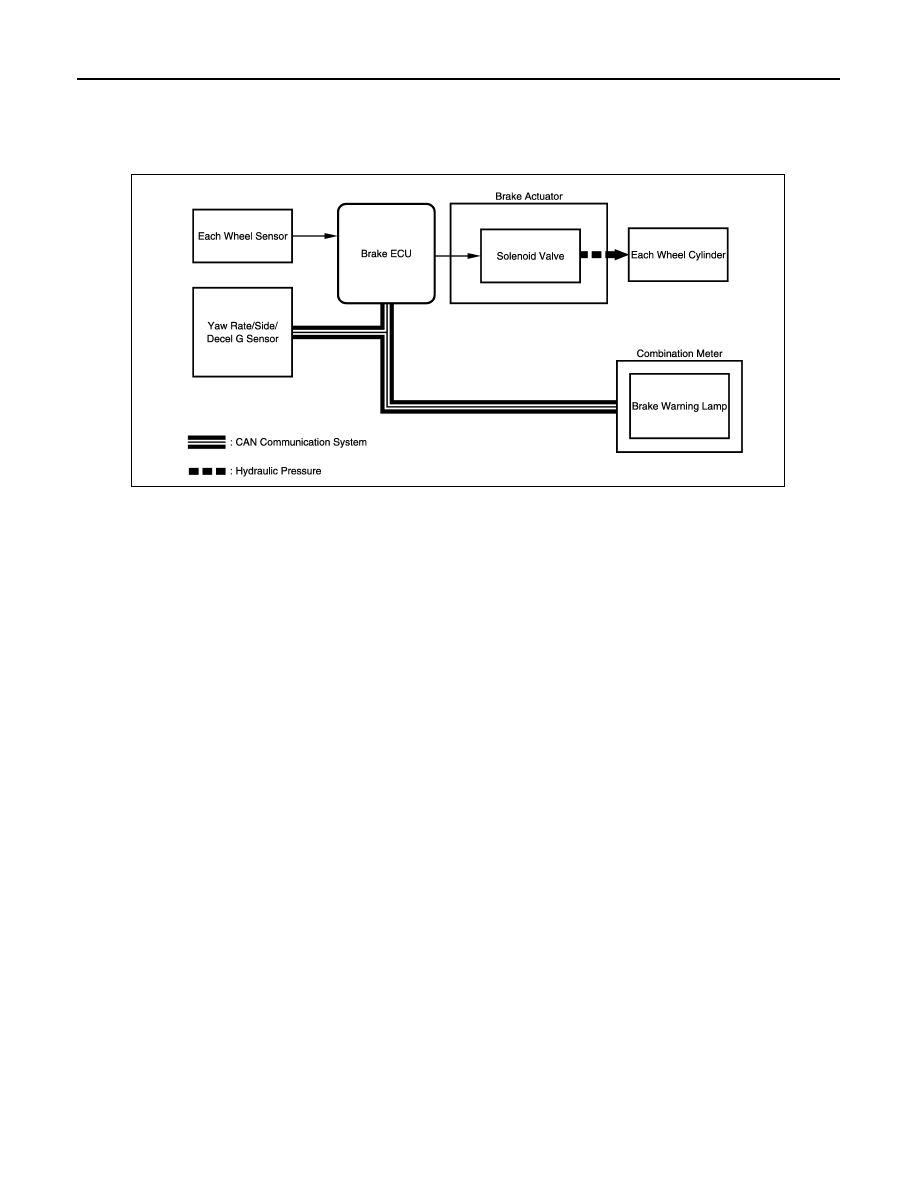

System Diagram

INFOID:0000000004212621

System Description

INFOID:0000000004212622

SYSTEM DESCRIPTION

The EBD (Electric Brake force Distribution) control utilizes ABS, performing proper brake force distribution

between the front and rear wheels in accordance with driving conditions. When braking while cornering, it also

controls the brake forces of the right and left wheels, helping to maintain vehicle behavior.

OPERATION DESCRIPTION

The brake ECU receives a speed signal from each wheel sensor, G sensor signals and uses these signals to

detect locking of the wheels. The ECU uses this information in order to determine appropriate control of the

solenoid valves. The solenoid valves control the hydraulic pressure applied to the brake cylinder at each

wheel. In this way, the solenoid valves are used to control the brake power split between the front and rear,

and left and right wheels. The brake warning lamp will come ON if there is a malfunction in the EBD system.

JSFIA0058GB

EBD

BRC-27

< FUNCTION DIAGNOSIS >

[VDC/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

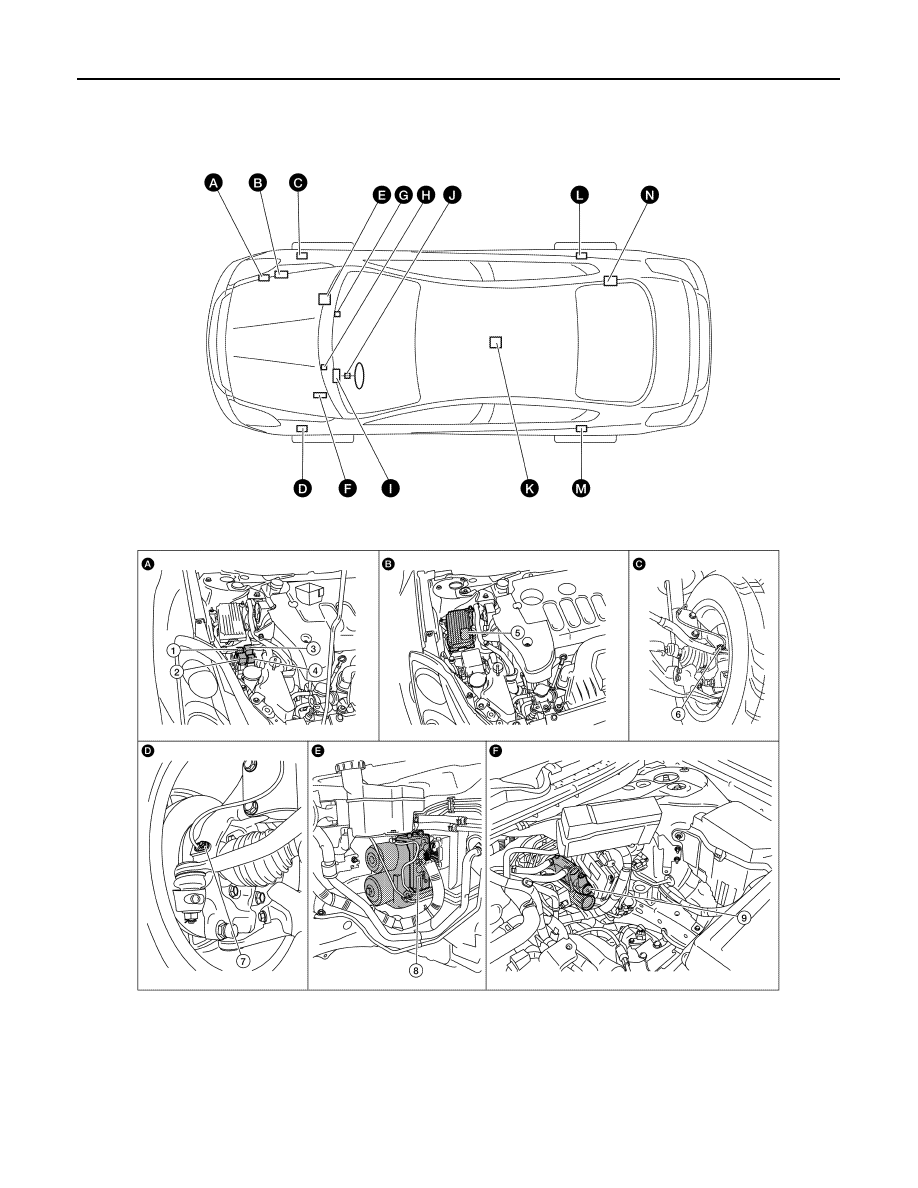

Component Parts Location

INFOID:0000000004469726

BRC-28

< FUNCTION DIAGNOSIS >

[VDC/TCS/ABS]

EBD

ALFIA0001ZZ
