< ON-VEHICLE REPAIR >

INTAKE SENSOR

INTAKE SENSOR

Removal and Installation

INFOID:0000000004215239

REMOVAL

1. Remove the evaporator. Refer to

VTL-21, "Removal and Instal-

lation"

.

2. Release the intake sensor clip and then remove the intake sen-

sor.

CAUTION:

• Mark the mounting position of the intake sensor.

• Do not damage the evaporator core.

INSTALLATION

Installation is in the reverse order of removal.

WJIA0100E

BLOWER UNIT

VTL-13

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

BLOWER UNIT

Removal and Installation

INFOID:0000000004215240

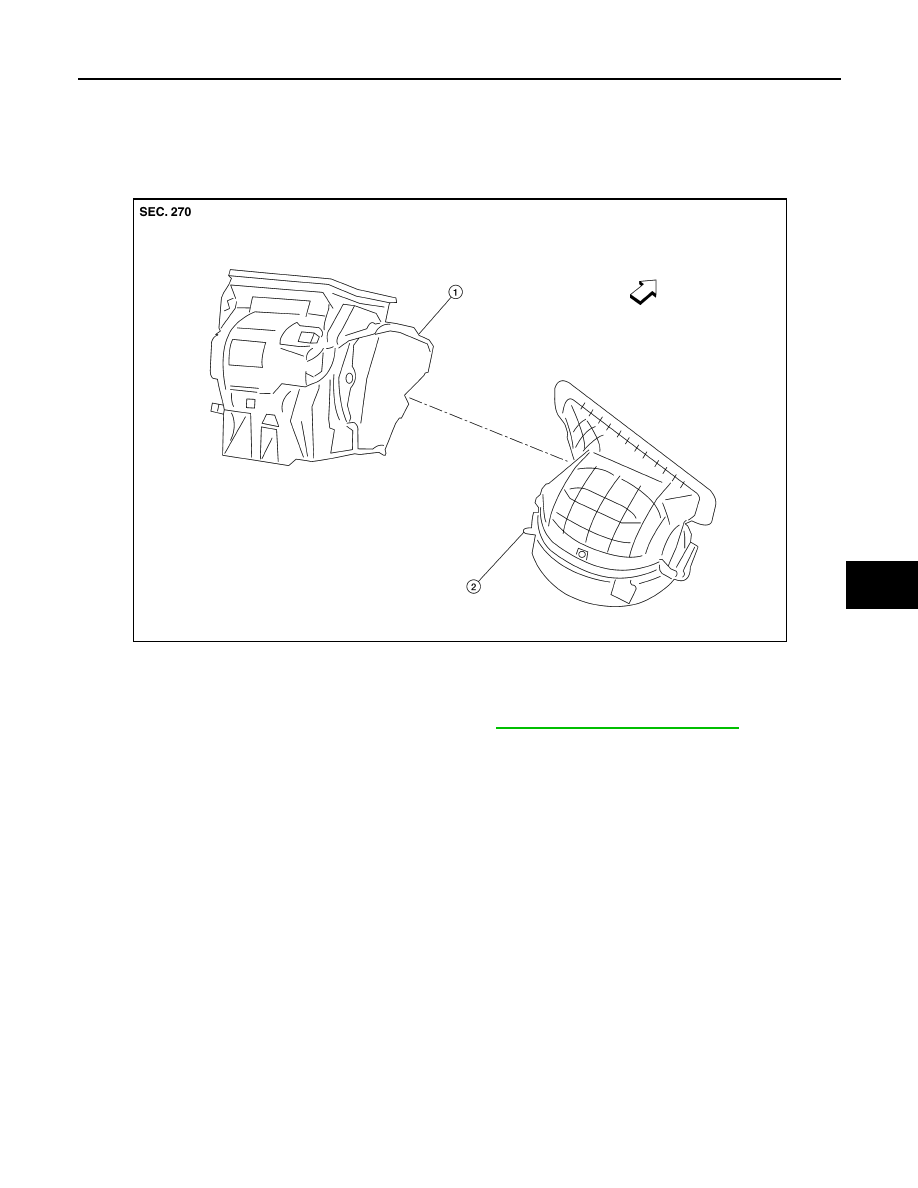

COMPONENTS

REMOVAL

1. Remove the heater and cooling unit assembly. Refer to

VTL-17, "Removal and Installation"

.

2. Disconnect the blower motor connector.
3. Remove the screws from the blower unit, then remove the blower unit.

INSTALLATION

Installation is in the reverse order of removal.

1.

Heater and cooling unit

2.

Blower unit

⇐

Front

ALIIA0013ZZ

VTL-14

< ON-VEHICLE REPAIR >

BLOWER MOTOR

BLOWER MOTOR

Removal and Installation

INFOID:0000000004215241

REMOVAL

1. Remove the glove box. Refer to

IP-12, "Removal and Installation"

.

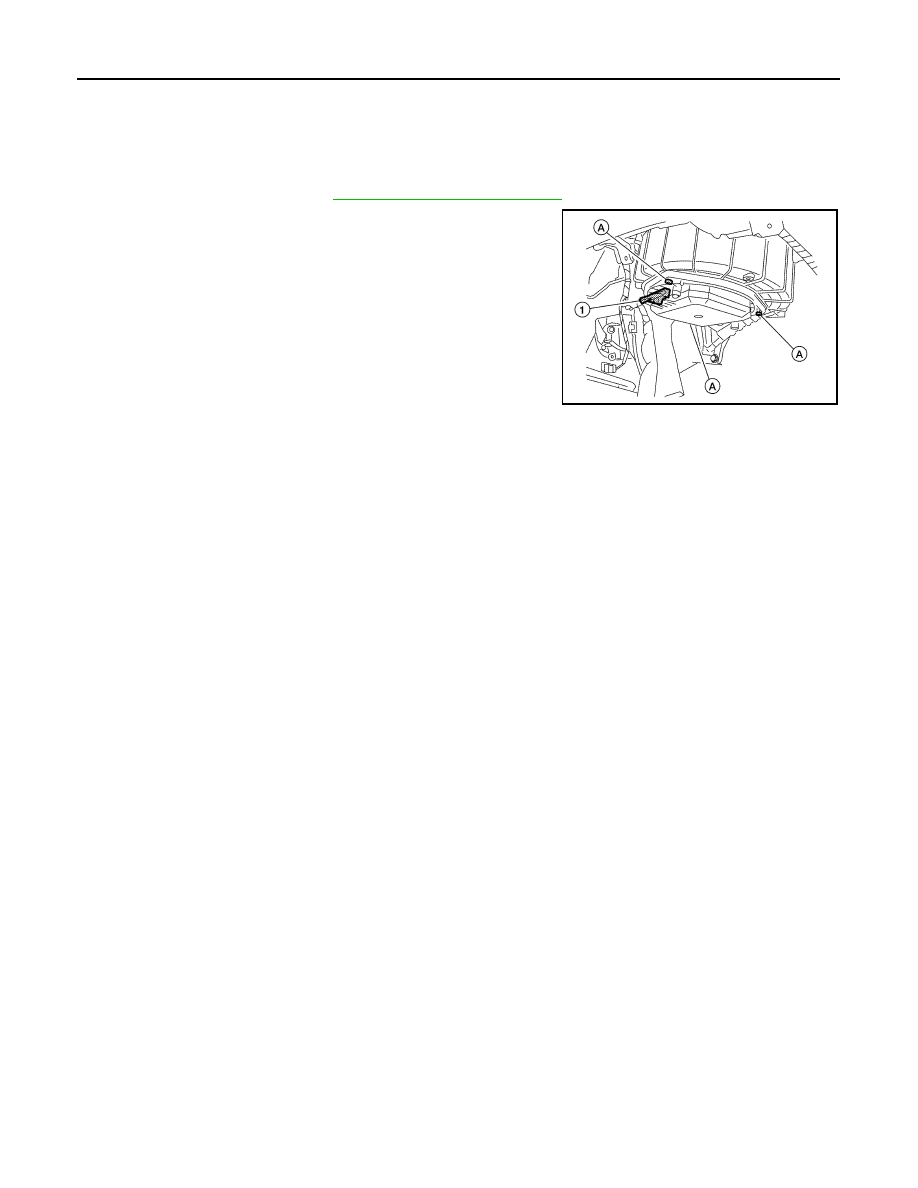

2. Disconnect the blower motor connector (1).
3. Remove the three blower motor screws (A) and remove the

blower motor from the blower unit.

INSTALLATION

Installation is in the reverse order of removal.

ALIIA0014ZZ

FAN CONTROL AMPLIFIER

VTL-15

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

FAN CONTROL AMPLIFIER

Removal and Installation

INFOID:0000000004215242

The fan control amplifier is part of the blower motor. Refer to

VTL-14, "Removal and Installation"

.
