EPS CONTROL UNIT

STC-59

< ON-VEHICLE REPAIR >

C

D

E

F

H

I

J

K

L

M

A

B

STC

N

O

P

8. Remove the wiper motor and connecting rod assembly. Refer to

WW-92, "FRONT WIPER DRIVE

ASSEMBLY : Removal and Installation"

.

9. Disconnect the 12-volt battery negative terminal.
10. Remove the left cowl extension.
11. Disconnect the MAF sensor connector.
12. Remove the air cleaner duct, blow-by hose and air cleaner duct hose. Refer to

EM-24, "Removal and

Installation"

.

13. Remove the fuse and fusible link box.
14. Disconnect the harness clips.

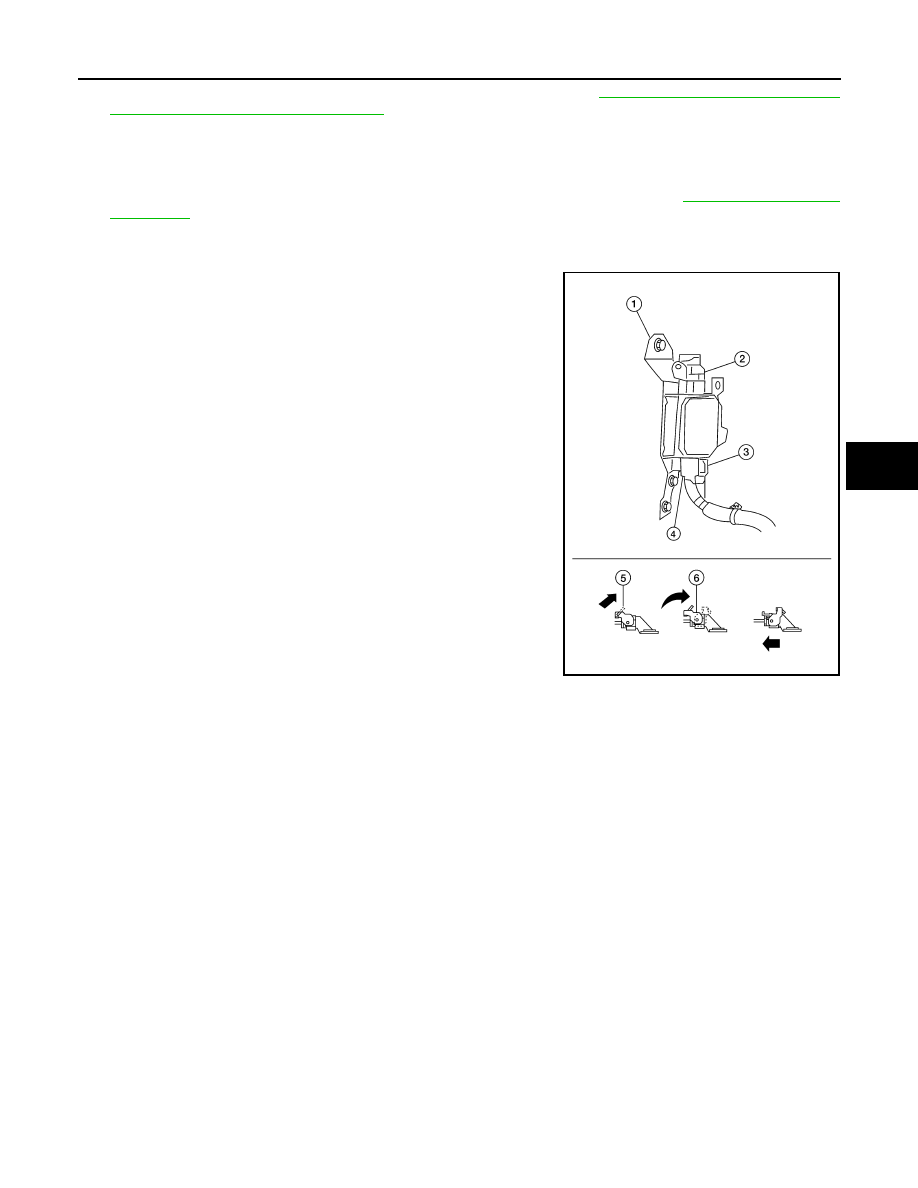

15. Disconnect the EPS DC/DC converter connector (2), EPS sen-

sor connector (3), and EPS motor connector (4) from the EPS

ECU (1).

NOTE:

For EPS DC/DC converter connector (2) and EPS motor con-

nector (4), perform the following:

• Pull lock plate (5) up until it stops.

• Turn the lock lever (6) until it stops.

• Pull the connector to disconnect it.

16. Remove the EPS control unit nut and bolts and EPS control unit.

Installation

Installation is in the reverse order of removal.

ALGIA0021ZZ

STC-60

< ON-VEHICLE REPAIR >

EPS DC/DC CONVERTER

EPS DC/DC CONVERTER

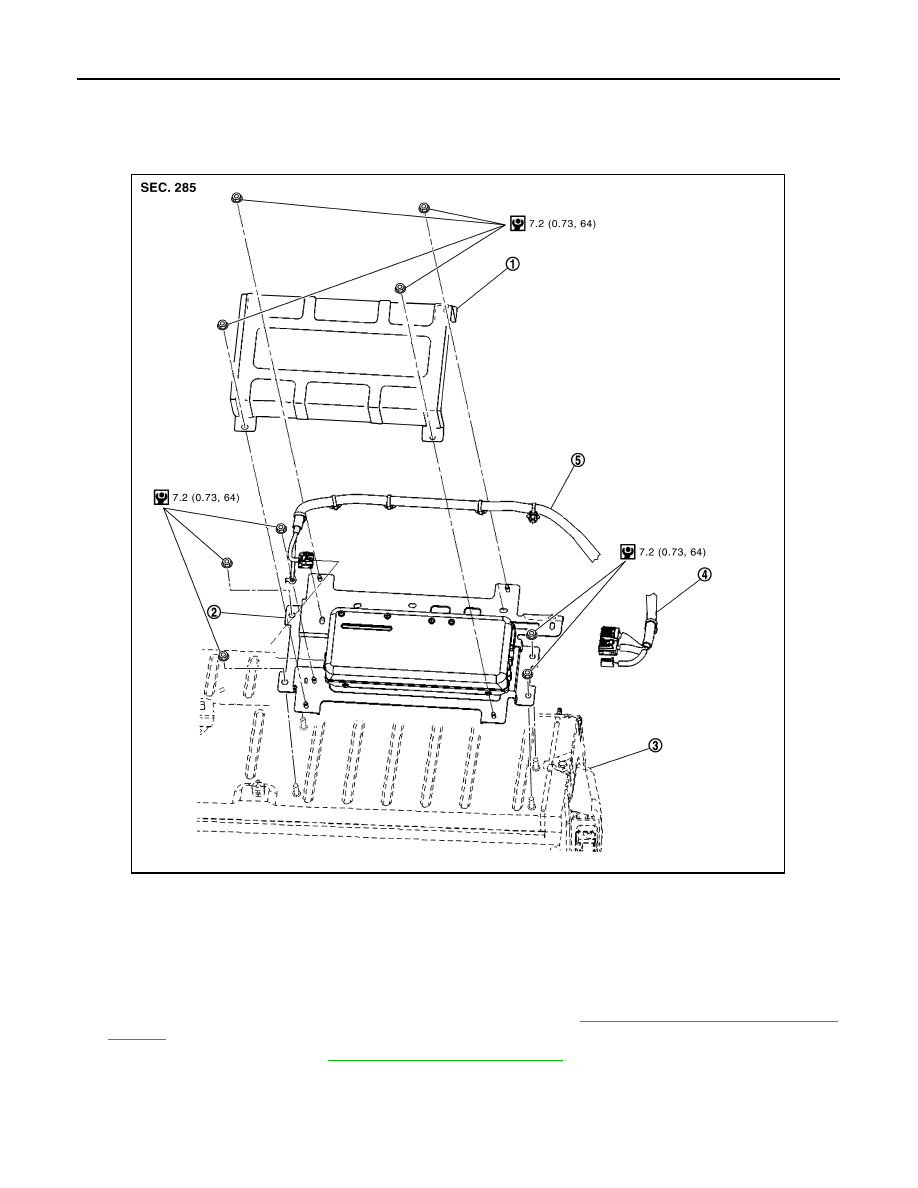

Exploded View

INFOID:0000000004212894

Removal and Installation

INFOID:0000000004212895

Removal

1. Pull the service plug to disconnect the high voltage battery. Refer to

GI-24, "Precautions For High-Voltage

System"

.

2. Remove the rear seat. Refer to

SE-22, "Removal and Installation"

3. Remove the EPS DC/DC converter cover nuts and remove the cover.
4. Remove the shield earth nut.
5. Disconnect the EPS motor power line (245 V) connector and clip.

1.

EPS DC/DC converter cover

2.

EPS DC/DC converter

3.

High voltage battery assembly

4.

EPS motor power line (42 V)

5.

EPS motor power line (245 V)

JSGIA0170GB

EPS DC/DC CONVERTER

STC-61

< ON-VEHICLE REPAIR >

C

D

E

F

H

I

J

K

L

M

A

B

STC

N

O

P

6. Disconnect the EPS motor power line ground.
7. Disconnect the EPS motor power line (42 V) connector and clip.
8. Remove the EPS DC/DC converter nuts and remove the EPS DC/DC converter.

Installation

Installation is in the reverse order of removal.

CAUTION:

Do not install an EPS DC/DC converter if it has been dropped or shocked, replace with a new one.
