ST-14

< DISASSEMBLY AND ASSEMBLY >

STEERING COLUMN

DISASSEMBLY AND ASSEMBLY

STEERING COLUMN

Disassembly and Assembly

INFOID:0000000004212806

The steering column assembly is not serviceable and must be replaced as an assembly.

STEERING GEAR AND LINKAGE

ST-15

< DISASSEMBLY AND ASSEMBLY >

C

D

E

F

H

I

J

K

L

M

A

B

ST

N

O

P

STEERING GEAR AND LINKAGE

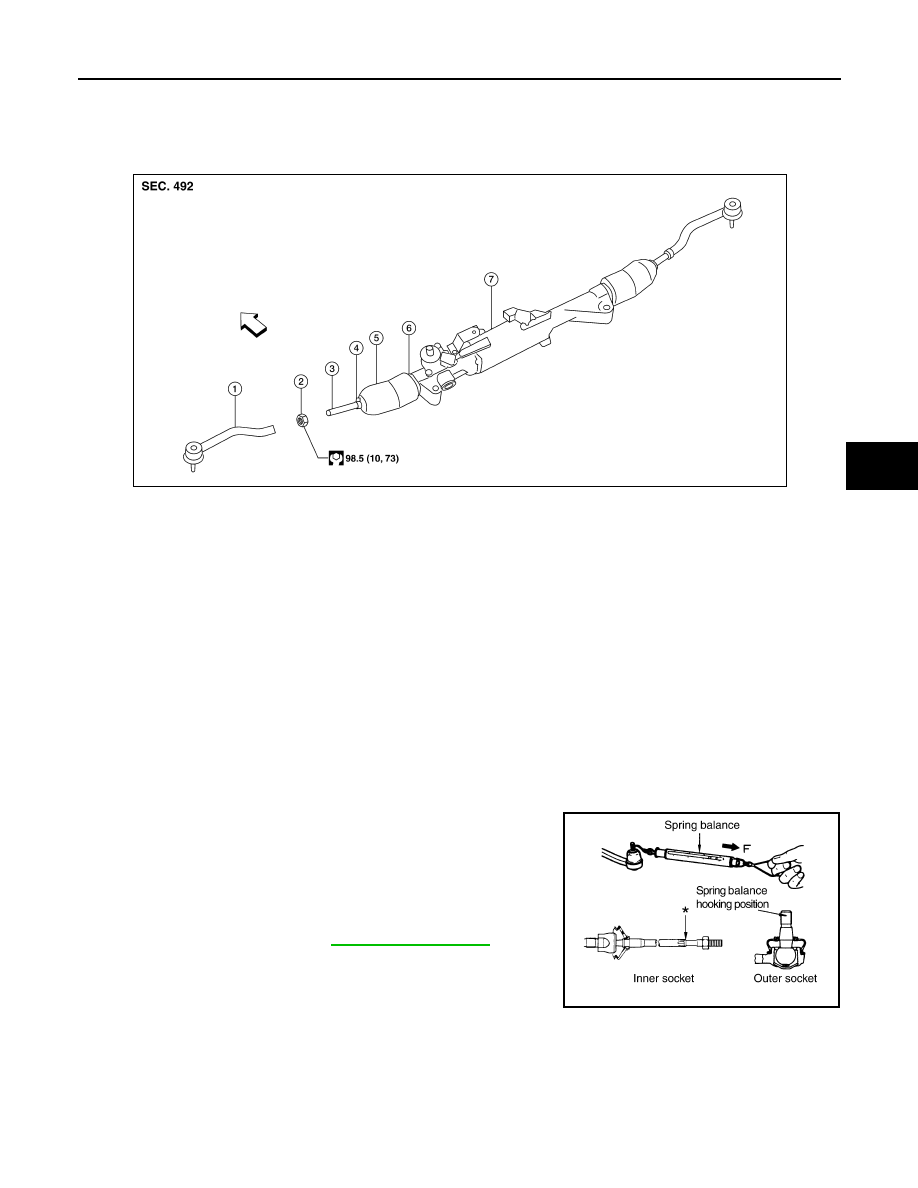

Exploded View

INFOID:0000000004212807

Disassembly

INFOID:0000000004212808

Remove outer socket locknut and outer socket.

NOTE:

Only outer socket can be disassembled. Do not disassemble steering gear assembly.

Inspection

INFOID:0000000004212809

INSPECTION AFTER DISASSEMBLY

Boot

Check the boot for cracks and replace as necessary.

Outer Socket and Inner Socket

1. Ball joint swinging torque

• Hook Tool (spring balance) at the hooking position (cotter pin

hole) as shown. Pull on Tool (spring balance) and make sure

that Tool (spring balance) reads the specified value when

outer socket ball stud and inner socket (at measuring point * )

start to move. Replace outer socket and steering gear assem-

bly (part of inner socket) if the readings are outside the stan-

dard specified value. Refer to

ST-18, "Steering Gear"

.

1.

Outer socket

2.

Lock nut

3.

Inner socket

4.

Small boot clamp

5.

Boot

6.

Large boot clamp

7.

Gear assembly

⇐

Front

AWGIA0068GB

Tool number

: — (J-44372)

SGIA0896E

ST-16

< DISASSEMBLY AND ASSEMBLY >

STEERING GEAR AND LINKAGE

2. Ball joint rotating torque

• Make sure that the reading is within the following specified

range using Tool as shown. Replace outer socket if the read-

ing is outside the specified value. Refer to

ST-18, "Steering

Gear"

.

3. Ball joint axial end play

• Apply an axial load of 490 N (50 kg-f, 111 lb-f) to ball stud.

Measure amount of stud movement using a dial gauge, and

then make sure that the value is within the specified range.

Replace outer socket and inner socket if the measured value

is outside the standard. Refer to

ST-18, "Steering Gear"

.

Assembly

INFOID:0000000004212810

Assembly is in the reverse order of disassembly.

• Adjust inner socket to standard length (L), and then tighten lock nut

to the specified torque. Refer to

ST-15, "Exploded View"

. Check

length of inner socket (L) again after tightening lock nut. Make sure

that the length is the standard.

CAUTION:

Adjust toe-in after assembly. Inner socket length achieved

after toe-in adjustment should not exceed the maximum spec-

ification.

Tool number

: ST31227S000 (J-25765-A)

WGIA0132E

SGIA0057E

Inner socket length (L), Standard

: 43.9 mm (1.728 in)

Inner socket length (L), Maximum

: 48.9 mm (1.925 in)

SGIA0167E

SERVICE DATA AND SPECIFICATIONS (SDS)

ST-17

< SERVICE DATA AND SPECIFICATIONS (SDS)

C

D

E

F

H

I

J

K

L

M

A

B

ST

N

O

P

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Steering Wheel

INFOID:0000000004212811

Steering Angle

INFOID:0000000004212812

Unit: degree minute (decimal degree)

Steering Column

INFOID:0000000004212813

STEERING COLUMN LENGTH

Unit: mm (in)

STEERING COLUMN ROTATING TORQUE

Unit: N·m (kg-m, in-lb)

TILT MECHANISM OPERATING RANGE

Steering wheel axial end play

0 mm (0 in)

Steering wheel play

0 - 35 mm (0 - 1.38 in)

Steering wheel turning force

39 N (4 kg-f, 9 lb-f) or less

Inner wheel (Angle: A)

Minimum

35

° 30′ (35.5°)

Nominal

38

° 30′ (38.5°)

Maximum

39

° 30′ (39.5°)

Outer wheel (Angle: B)

Nominal

31

°′ (31.5°)

SGIA0055E

Steering column length (L)

Telescopic maximum

513 - 543 (20.20 - 21.38)

Telescopic minimum

503 - 513 (19.80 - 20.20)

SGIA1177E

Steering column rotating torque

0 - 0.2 (0 - 0.2, 0 - 1)
