SRS-12

< ON-VEHICLE REPAIR >

SIDE CURTAIN AIR BAG MODULE

SIDE CURTAIN AIR BAG MODULE

Exploded View

INFOID:0000000004490976

Removal and Installation

INFOID:0000000004490977

REMOVAL

CAUTION:

• Before servicing, turn ignition switch OFF, disconnect both 12-volt battery terminals and wait at least

3 minutes.

• Do not use air tools or electric tools for servicing.

• Always work from the side of air bag module. Do not work from the front of it.

• Always place the curtain air bag module with air bag deployment side facing upward.

• Do not cause impact to the air bag module by dropping etc. Replace the air bag module if it has been

dropped or sustained an impact.

1. Disconnect the 12-volt battery negative and positive terminals, then wait at least 3 minutes.
2. Remove the headlining. Refer to

INT-23, "Removal and Installation"

.

3. Disconnect the side curtain air bag module connector.

• For installing/removing direct-connect SRS connectors, refer

to

SRC-9, "Direct-connect SRS Component Connectors"

.

4. Remove the bolts, then remove side curtain air bag module.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Be careful not to damage the air bag harness.

• After the work is completed, make sure no system malfunction is detected by air bag warning lamp.

• In case a malfunction is detected by the air bag warning lamp, reset by the self-diagnosis function

and delete the memory by CONSULT-lIl.

AWHIA0097GB

1.

Side curtain air bag module connector 2.

Side curtain air bag module A.

Side curtain air bag module bolt

Vehicle front

PHIA0953J

SIDE CURTAIN AIR BAG MODULE

SRS-13

< ON-VEHICLE REPAIR >

C

D

E

F

G

I

J

K

L

M

A

B

SRS

N

O

P

• If a malfunction is still detected after the above operation, perform self-diagnosis to repair malfunc-

tions. Refer to

SRC-12, "SRS Operation Check"

.

• Make sure the side curtain air bag module is not twisted at any point along the vehicle when

installed.

SRS-14

< ON-VEHICLE REPAIR >

CRASH ZONE SENSOR

CRASH ZONE SENSOR

Exploded View

INFOID:0000000004490978

Removal and Installation

INFOID:0000000004490979

REMOVAL

CAUTION:

• Before servicing, turn ignition switch OFF, disconnect both 12-volt battery terminals and wait at least

3 minutes.

• Do not use air tools or electric tools for servicing.

• Do not use old fixing nuts after removal; replace with new nuts.

• Do not cause impact to the crash zone sensor by dropping etc. Replace the crash zone sensor if it

has been dropped or sustained an impact.

• Replace the crash zone sensor of deployed SRS driver air bag and deployed SRS front passenger air

bag.

1. Disconnect the 12-volt battery negative and positive terminals, then wait at least 3 minutes.
2. Remove the cover and the air duct.
3. Remove the center clamp screw for upper radiator hose and position aside.
4. Disconnect the crash zone sensor harness connector.
5. Remove the nuts, then remove crash zone sensor.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Be careful not to damage the crash zone sensor harness.

• After the work is completed, make sure no system malfunction is detected by air bag warning lamp.

• In case a malfunction is detected by the air bag warning lamp, reset by the self-diagnosis function

and delete the memory by CONSULT

−lIl.

• If a malfunction is still detected after the above operation, perform self-diagnosis to repair  malfunc-

tions. Refer to

SRC-12, "SRS Operation Check"

.

1.

Crash zone sensor harness connec-
tor

2.

Crash zone sensor

A.

Crash zone sensor nuts

Vehicle front

ALHIA0018GB

SIDE AIR BAG (SATELLITE) SENSOR

SRS-15

< ON-VEHICLE REPAIR >

C

D

E

F

G

I

J

K

L

M

A

B

SRS

N

O

P

SIDE AIR BAG (SATELLITE) SENSOR

Exploded View

INFOID:0000000004490980

Removal and Installation

INFOID:0000000004490981

REMOVAL

CAUTION:

• Before servicing, turn ignition switch OFF, disconnect both 12-volt battery terminals and wait at least

3 minutes.

• Do not use air tools or electric tools for servicing.

• Do not use old fixing nuts after removal; replace with new nuts.

• Do not cause impact to the side air bag (satellite) sensor by dropping etc. Replace the side air bag

(satellite) sensor if it has been dropped or sustained an impact.

• Replace the satellite sensor of deployed SRS front side air bag and deployed SRS side curtain air

bag.

1. Disconnect the 12-volt battery negative and positive terminals, then wait at least 3 minutes.
2. Remove the front seat belt retractor. Refer to

SB-7, "Removal and Installation"

.

3. Disconnect the side air bag (satellite) sensor harness connector.
4. Remove the nuts, then remove side air bag (satellite) sensor.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Be careful not to damage the satellite sensor harness.

• After the work is completed, make sure no system malfunction is detected by air bag warning lamp.

• In case a malfunction is detected by the air bag warning lamp, reset by the self-diagnosis function

and delete the memory by CONSULT

−lIl.

• If a malfunction is still detected after the above operation, perform self-diagnosis to repair  malfunc-

tions. Refer to

SRC-12, "SRS Operation Check"

.

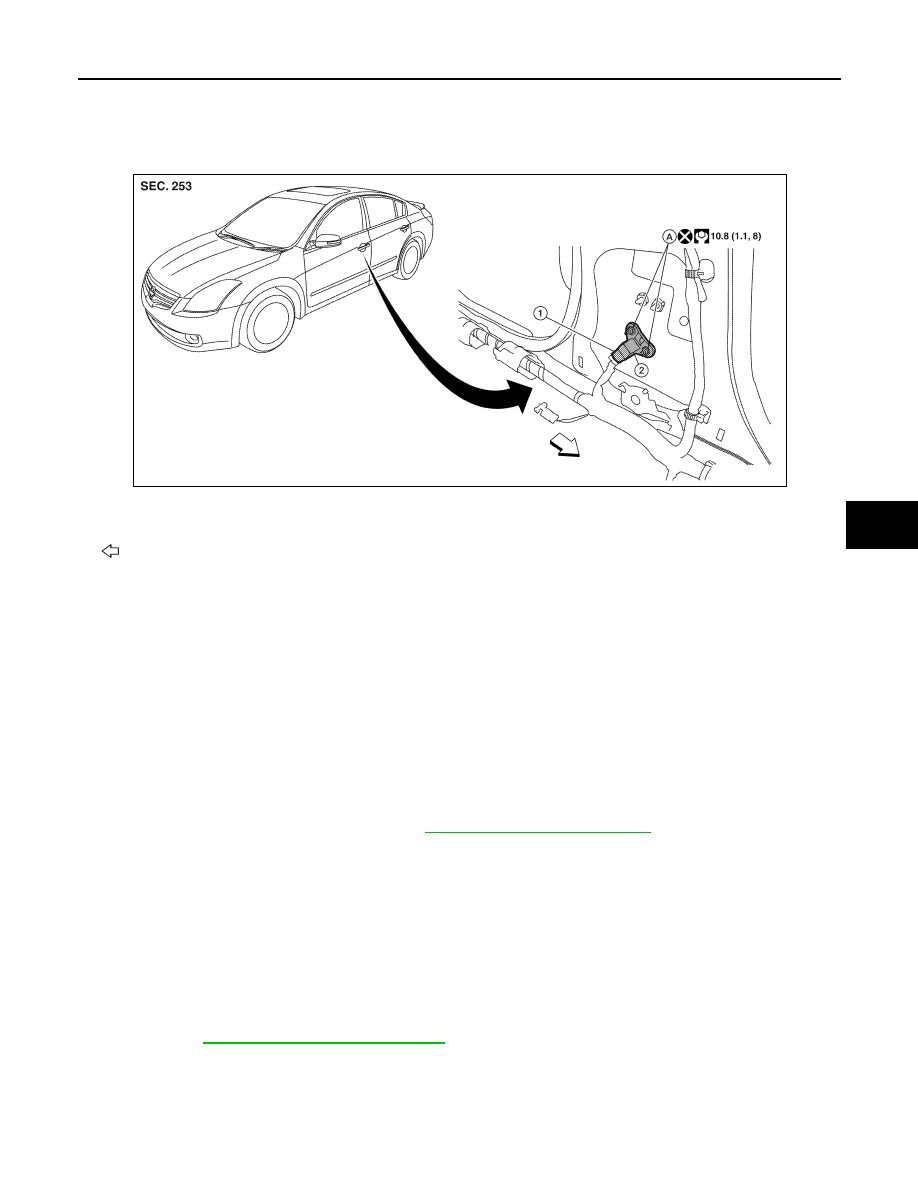

1.

Side air bag (satellite) sensor har-
ness connector

2.

Side air bag (satellite) sensor

A.

Side air bag (satellite) sensor nuts

Vehicle front

ALHIA0019GB
