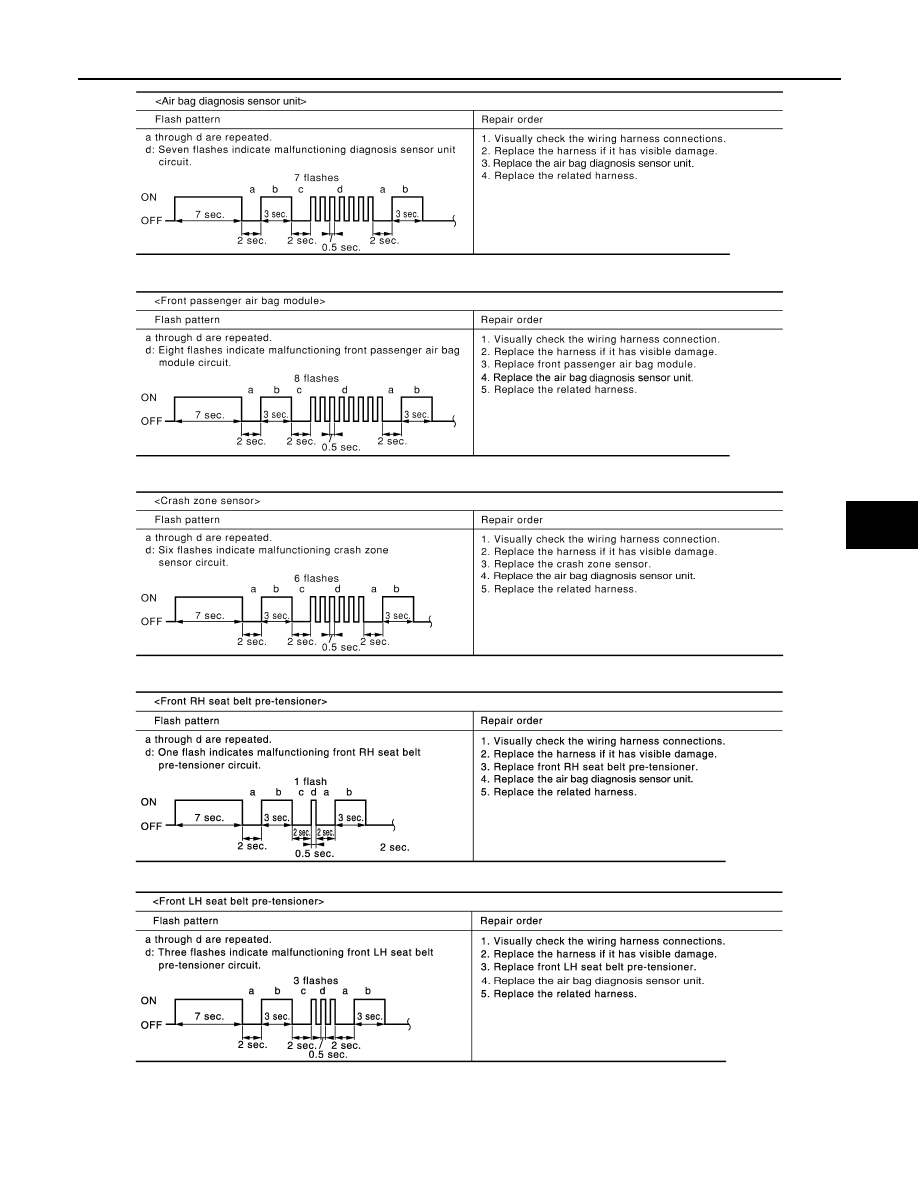

DIAGNOSIS SENSOR UNIT SRC-69 < ECU DIAGNOSIS > C D E F G I J K L M A B SRC N O P SIDE MODULE RH [OPEN] B1129 Front RH side air bag module circuit is 1. Visually check the wiring harness connection. 2. Replace the harness if it has visible damage. 3. Replace the front RH seat back assembly. 4. Replace the air bag diagnosis sensor unit. 5. Replace the related harness. SIDE MODULE RH [VB-SHORT] B1130 Front RH side air bag module circuit is SIDE MODULE RH [GND-SHORT] B1131 Front RH side air bag module circuit is SIDE MODULE RH [SHORT] B1132 Front RH side air bag module circuits CURTAIN MODULE LH [OPEN] B1150 LH side curtain air bag module circuit is 1. Visually check the wiring harness connection. 2. Replace the harness if it has visible damage. 3. Replace the LH side curtain air bag module. 4. Replace the air bag diagnosis sensor unit. 5. Replace the related harness. CURTAIN MODULE LH [VB-SHORT] B1151 LH side curtain air bag module circuit is CURTAIN MODULE LH [GND-SHORT] B1152 LH side curtain air bag module circuit is CURTAIN MODULE LH [SHORT] B1153 LH side curtain air bag module circuits CURTAIN MODULE RH [OPEN] B1145 RH side curtain air bag module circuit is 1. Visually check the wiring harness connection. 2. Replace the harness if it has visible damage. 3. Replace the RH side curtain air bag module. 4. Replace the air bag diagnosis sensor unit. 5. Replace the related harness. CURTAIN MODULE RH [VB-SHORT] B1146 RH side curtain air bag module circuit is CURTAIN MODULE RH [GND-SHORT] B1147 RH side curtain air bag module circuit is CURTAIN MODULE RH [SHORT] B1148 RH side curtain air bag module circuits PRE-TEN FRONT LH [OPEN] B1086 LH seat belt pre-tensioner circuit is 1. Visually check the wiring harness connection. 2. Replace the harness if it has visible damage. 3. Replace the front LH seat belt pre-tensioner. 4. Replace the air bag diagnosis sensor unit. 5. Replace the related harness. PRE-TEN FRONT LH [VB-SHORT] B1087 LH seat belt pre-tensioner circuit is PRE-TEN FRONT LH [GND-SHORT] B1088 LH seat belt pre-tensioner circuit is PRE-TEN FRONT LH [SHORT] B1089 LH seat belt pre-tensioner circuits are PRE-TEN FRONT RH [OPEN] B1081 RH seat belt pre-tensioner circuit is 1. Visually check the wiring harness connection. 2. Replace the harness if it has visible damage. 3. Replace the front RH seat belt pre-tensioner. 4. Replace the air bag diagnosis sensor unit. 5. Replace the related harness. PRE-TEN FRONT RH [VB-SHORT] B1082 RH seat belt pre-tensioner circuit is PRE-TEN FRONT RH [GND-SHORT] B1083 RH seat belt pre-tensioner circuit is PRE-TEN FRONT RH [SHORT] B1084 RH seat belt pre-tensioner circuits are CRASH ZONE SEN [UNIT FAIL] B1033 Crash zone sensor has malfunctioned. 1. Visually check the wiring harness connection. 2. Replace the harness if it has visible damage. 3. Replace the crash zone sensor. 4. Replace the air bag diagnosis sensor unit. 5. Replace the related harness. B1034 CRASH ZONE SEN [COMM FAIL] B1035 Crash zone sensor communication er- SATELLITE SENS LH [UNIT FAIL] B1118 LH side air bag satellite sensor has mal- 1. Visually check the wiring harness connection. 2. Replace the harness if it has visible damage. 3. Replace the LH side air bag satellite sensor. 4. Replace the air bag diagnosis sensor unit. 5. Replace the related harness. B1119 SATELLITE SENS LH [COMM FAIL] B1120 LH side air bag satellite sensor commu- SATELLITE SENS RH [UNIT FAIL] B1113 RH side air bag satellite sensor has mal- 1. Visually check the wiring harness connection. 2. Replace the harness if it has visible damage. 3. Replace the RH side air bag satellite sensor. 4. Replace the air bag diagnosis sensor unit. 5. Replace the related harness. B1114 SATELLITE SENS RH [COMM FAIL] B1115 RH side air bag satellite sensor commu- CONSULT-III name DTC DTC detecting condition Repair order |
