B1209 – B1210 COLLISION DETECTION

SRC-57

< COMPONENT DIAGNOSIS >

C

D

E

F

G

I

J

K

L

M

A

B

SRC

N

O

P

B1209 – B1210 COLLISION DETECTION

Description

INFOID:0000000004528719

DTC B1209 - B1210 COLLISION DETECTION

The air bag diagnosis sensor unit will set this DTC if it has detected a collision which has resulted in a frontal

or side deployment of one or more air bags or pre-tensioners.  If this DTC is detected after a SRS repair, the

air bag diagnosis sensor unit has not yet been replaced.  This DTC can not be erased.  If the air bag diagnosis

sensor unit detects a frontal collision, it will send an air bag deployment signal to the hybrid vehicle control

ECU.  The hybrid vehicle control ECU will then shut down the entire high voltage power supply.

PART LOCATION

Refer to

SRC-7, "SRS Component Parts Location"

.

DTC Logic

INFOID:0000000004496018

DTC DETECTION LOGIC

With CONSULT-lll

DTC CONFIRMATION PROCEDURE (With CONSULT-lll)

1.

INSPECTION START

Turn ignition switch ON.

>> GO TO 2.

2.

CHECK SELF-DIAG RESULT

Check for the DTC on CONSULT-lll.
Is the DTC detected?

YES

>> Refer to

SRC-57, "Diagnosis Procedure (Component Diagnosis)"

.

NO

>> Inspection End.

Diagnosis Procedure (Component Diagnosis)

INFOID:0000000004496019

Refer to

SRS-19, "For Frontal Collision"

 or

SRS-20, "For Side and Rollover Collision"

.

CONSULT-III name

DTC

DTC detecting condition

Repair order

FRONTAL COLLISION

DETECTION

B1209

Driver and/or front passenger air bag mod-
ules are deployed.

Refer to

SRS-19, "For Frontal Collision"

.

SIDE COLLISION DE-

TECTION

B1210

Side and/or curtain air bag modules are
deployed.

Refer to

SRS-20, "For Side and Rollover Collision"

.

SRC-58

< ECU DIAGNOSIS >

DIAGNOSIS SENSOR UNIT

ECU DIAGNOSIS

DIAGNOSIS SENSOR UNIT

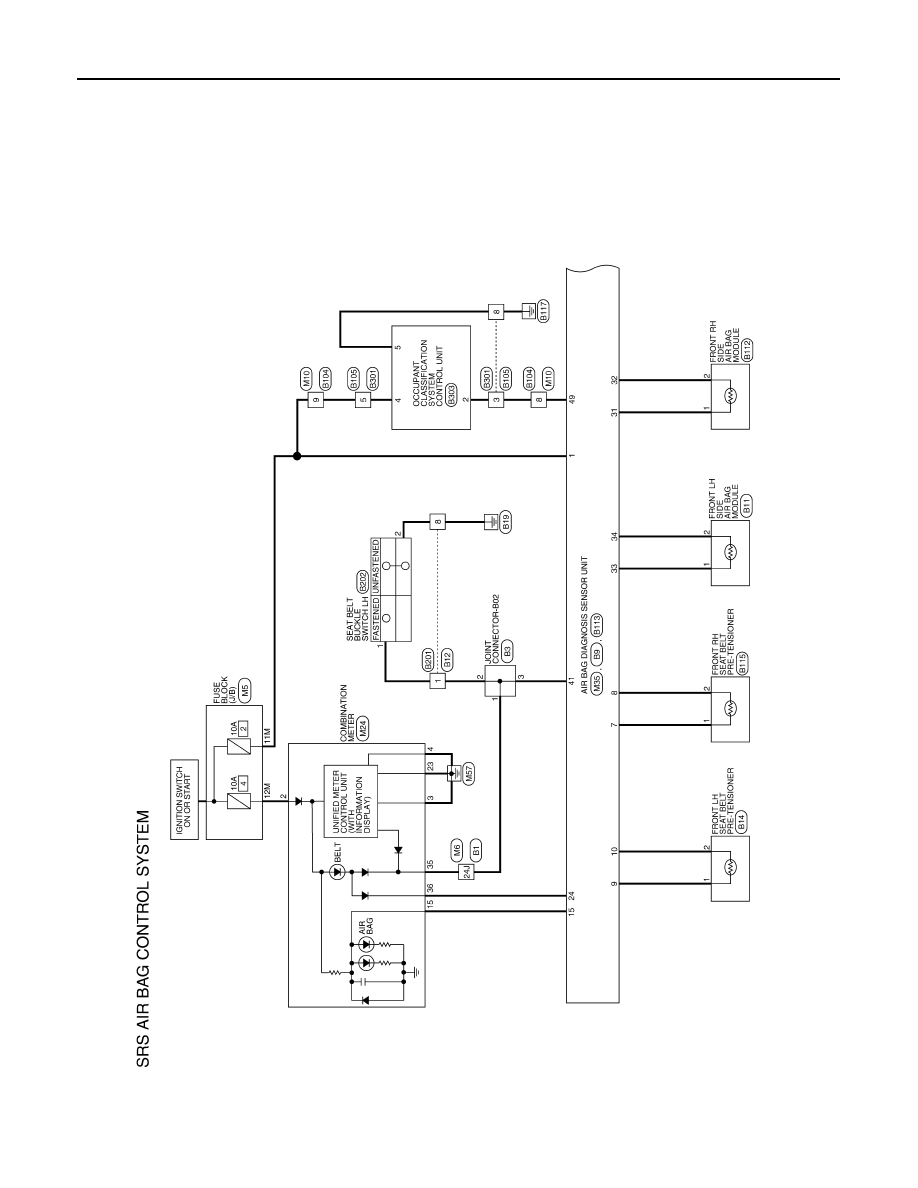

Wiring Diagram

INFOID:0000000004215219

AWHWA0023G

DIAGNOSIS SENSOR UNIT

SRC-59

< ECU DIAGNOSIS >

C

D

E

F

G

I

J

K

L

M

A

B

SRC

N

O

P

ABHWA0028GB

SRC-60

< ECU DIAGNOSIS >

DIAGNOSIS SENSOR UNIT

ABHIA0105GB
