OIL PUMP

LU-33

< UNIT DISASSEMBLY AND ASSEMBLY >

[VQ40DE]

C

D

E

F

G

H

I

J

K

L

M

A

LU

N

P

O

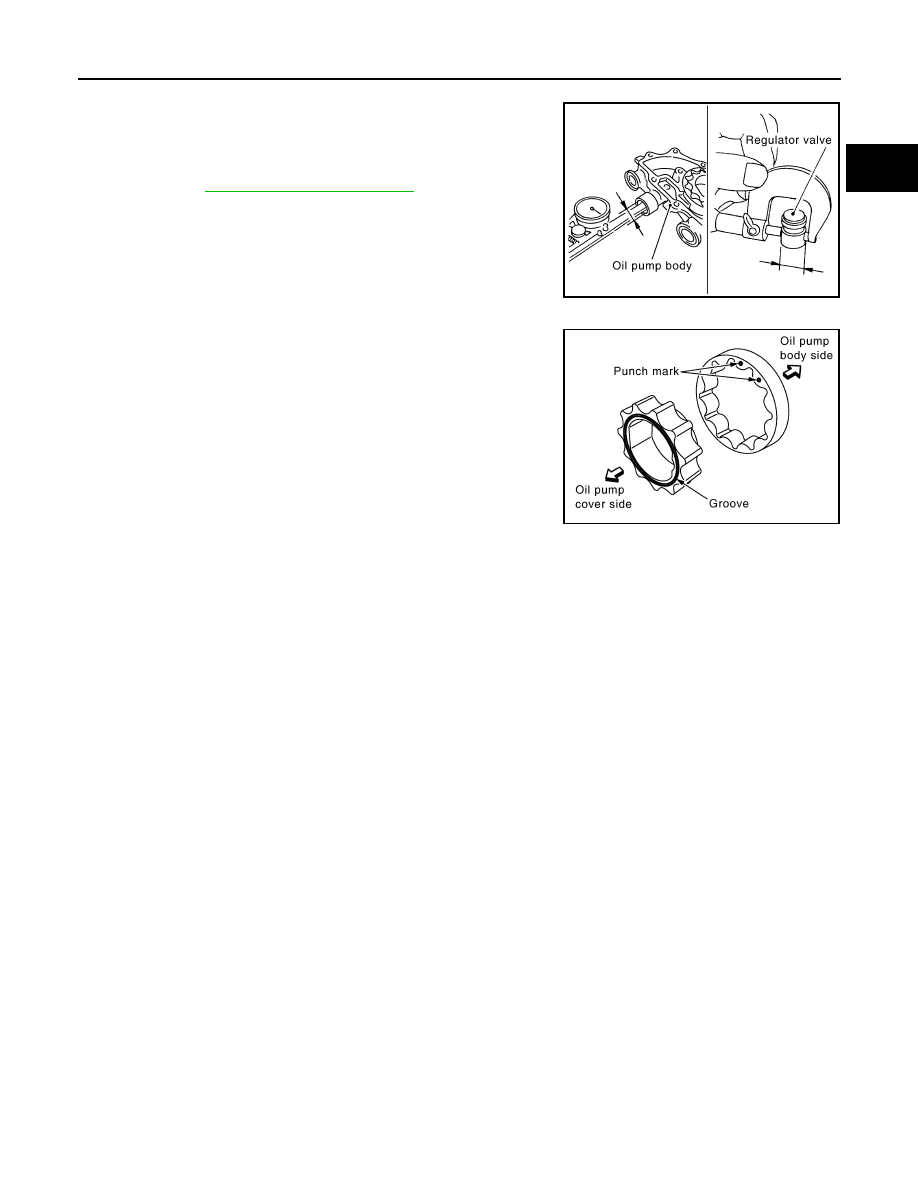

Check regulator valve to oil pump cover clearance using the following formula.

• (Clearance) = D

1

 (Valve hole diameter) - D

2

 (Outer Diameter of

valve)

CAUTION:

• Coat regulator valve with engine oil.

• Check that it falls smoothly into the regulator valve hole by its

own weight.

ASSEMBLY

Installation is in the reverse order of removal.

NOTE:

• Install oil pump inner rotor with the groove facing the oil pump

cover side.

• Install the oil pump outer rotor with the punch mark facing the oil

pump cover side.

Regulator valve to oil pump cover
: Refer to

LU-34, "Standard and Limit"

.

PBIC2829E

PBIC2830E

LU-34

< SERVICE DATA AND SPECIFICATIONS (SDS)

[VQ40DE]

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Standard and Limit

INFOID:0000000009479909

OIL PRESSURE

Unit: kPa (kg/cm

2, psi)

*: Engine oil temperature at 80

°C (176°F)

OIL PUMP

Unit: mm (in)

REGULATOR VALVE

Unit: mm (in)

ENGINE OIL CAPACITY (APPROXIMATE)

Unit:   (US qt, Imp qt)

Engine speed

Approximate discharge oil pressure*

Idle speed

More than 98 (1.0, 14)

2,000 rpm

More than 294 (3.0, 43)

6,000 rpm

More than 392 (4.0, 56.8)

Body to outer rotor (Position 1)

0.120 - 0.195 (0.0047 - 0.0077)

Inner rotor to outer rotor tip (Position 2)

0.060 - 0.160 (0.0024 - 0.0063)

Body to inner rotor (Position 3)

0.030 - 0.070 (0.0012 - 0.0028)

Body to outer rotor (Position 4)

0.050 - 0.090 (0.0020 - 0.0035)

Inner rotor to brazed portion of housing

0.045 - 0.091 (0.0018 - 0.0036)

Regulator valve to oil pump cover

0.025 - 0.070 (0.0010 - 0.0028)

Drain and refill

With oil filter change

5.1 (5-3/8, 4-1/2)

Without oil filter change

4.8 (5-1/8, 4-1/4)

Dry engine (Overhaul)

6.3 (6-5/8, 5-1/2)
