INTERIOR ROOM LAMP

INL-63

< REMOVAL AND INSTALLATION >

[WITH POWER DOOR LOCKS]

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

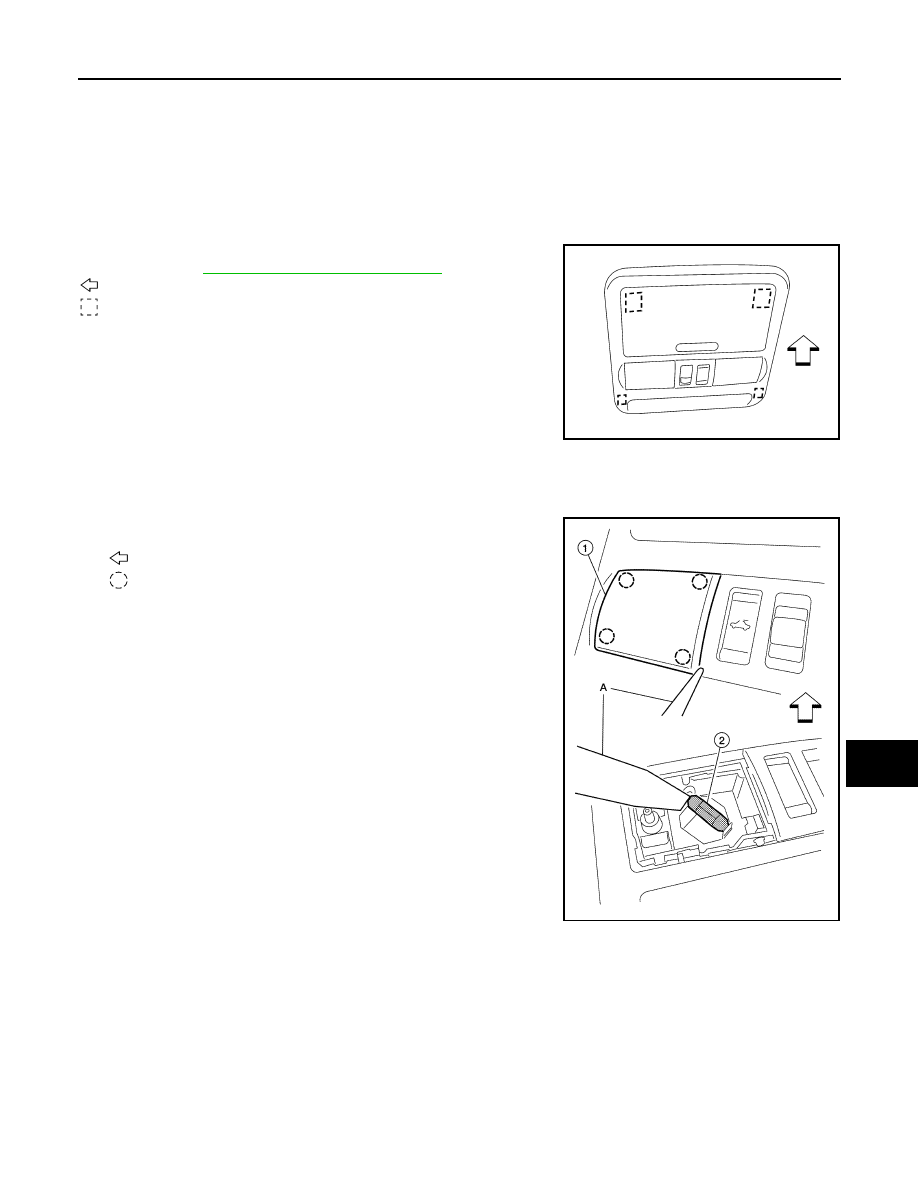

REMOVAL AND INSTALLATION

INTERIOR ROOM LAMP

Removal and Installation

INFOID:0000000009480160

FRONT ROOM/MAP LAMP ASSEMBLY

Removal

The front room/map lamp assembly is replaced as part of the roof

console. Refer to

INT-25, "Removal and Installation"

.

: Front
: Metal clip

Installation

Installation is in the reverse order of removal.

Bulb or Lens Replacement

1. Using a suitable tool (A), remove the front room/map lamp RH

and/or LH lenses (1) as necessary.

: Front

: Pawl

2. Release one side of the bulb (2) from the tab using a suitable

tool, then pull straight downward to remove.

3. Install the new bulb into the socket tabs.
4. Install the front room/map lamp lens(es).

VANITY LAMP

Removal

AWLIA0867ZZ

Front room/
map lamp as-
sembly bulb

: 12V - 8W

AWLIA1667ZZ

INL-64

< REMOVAL AND INSTALLATION >

[WITH POWER DOOR LOCKS]

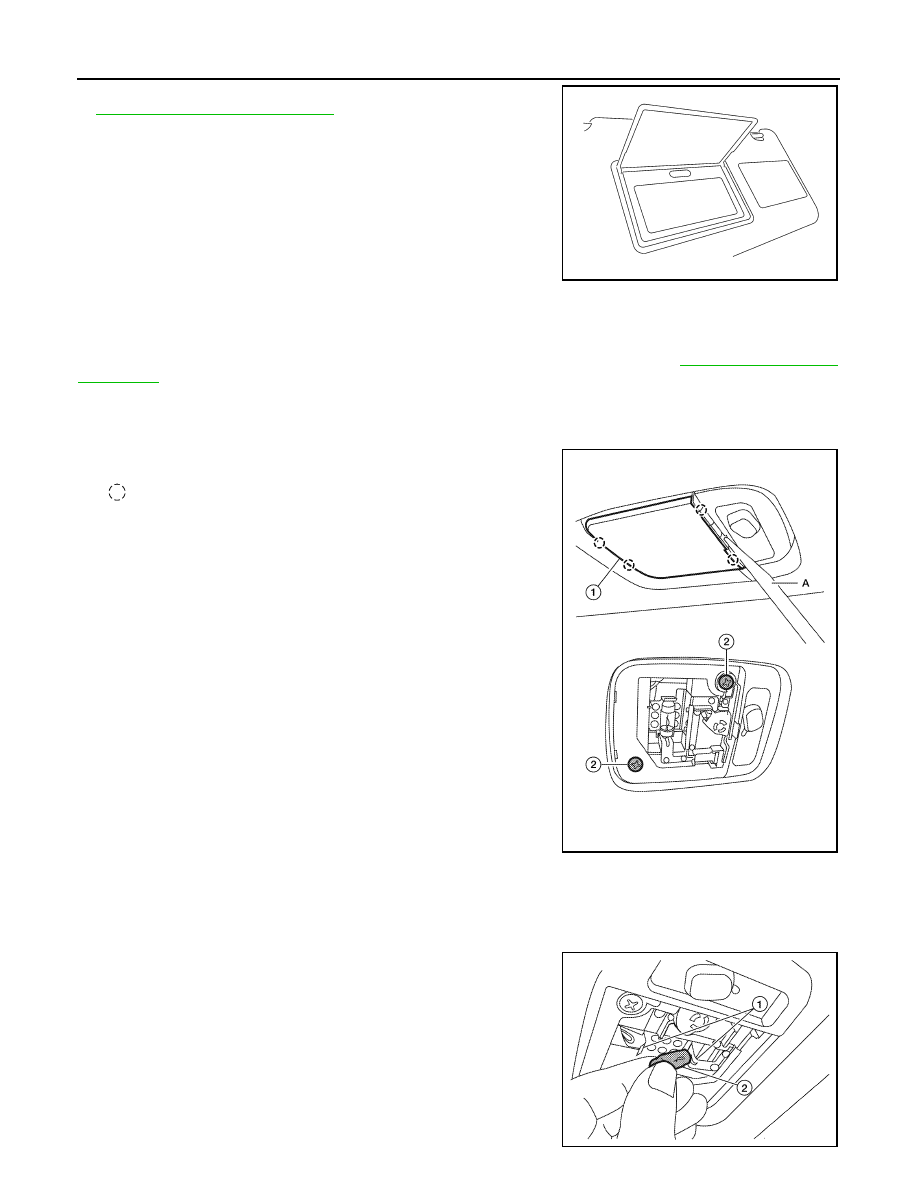

INTERIOR ROOM LAMP

The vanity lamp is replaced as part of the sun visor assembly. Refer

to

INT-25, "Removal and Installation"

.

Installation

Installation is in the reverse order of removal.

Bulb Replacement

The vanity mirror lamp bulb is replaced as part of the sun visor assembly. Refer to

INT-25, "Removal and

Installation"

.

ROOM LAMP 2ND ROW

Removal

1. Using a suitable tool (A), release the pawls and remove the

room lamp lens (1).

: Pawl

2. Remove room lamp screws (2).
3. Disconnect the harness connector from the room lamp and

remove.

Installation

Installation is in the reverse order of removal.

Bulb or Lens Replacement

1. Using a suitable tool, release the pawls and remove the room lamp lens.
2. Release the room lamp bulb retainers (1), then pull bulb (2)

straight out to remove.

3. Install the bulb (2) securely into the room lamp bulb retainers (1).

ALLIA0583ZZ

AWLIA1680ZZ

Room lamp bulb

: 12V - 8W

ALLIA0326ZZ

INTERIOR ROOM LAMP

INL-65

< REMOVAL AND INSTALLATION >

[WITH POWER DOOR LOCKS]

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

4. Install the room lamp lens.

INL-66

< REMOVAL AND INSTALLATION >

[WITH POWER DOOR LOCKS]

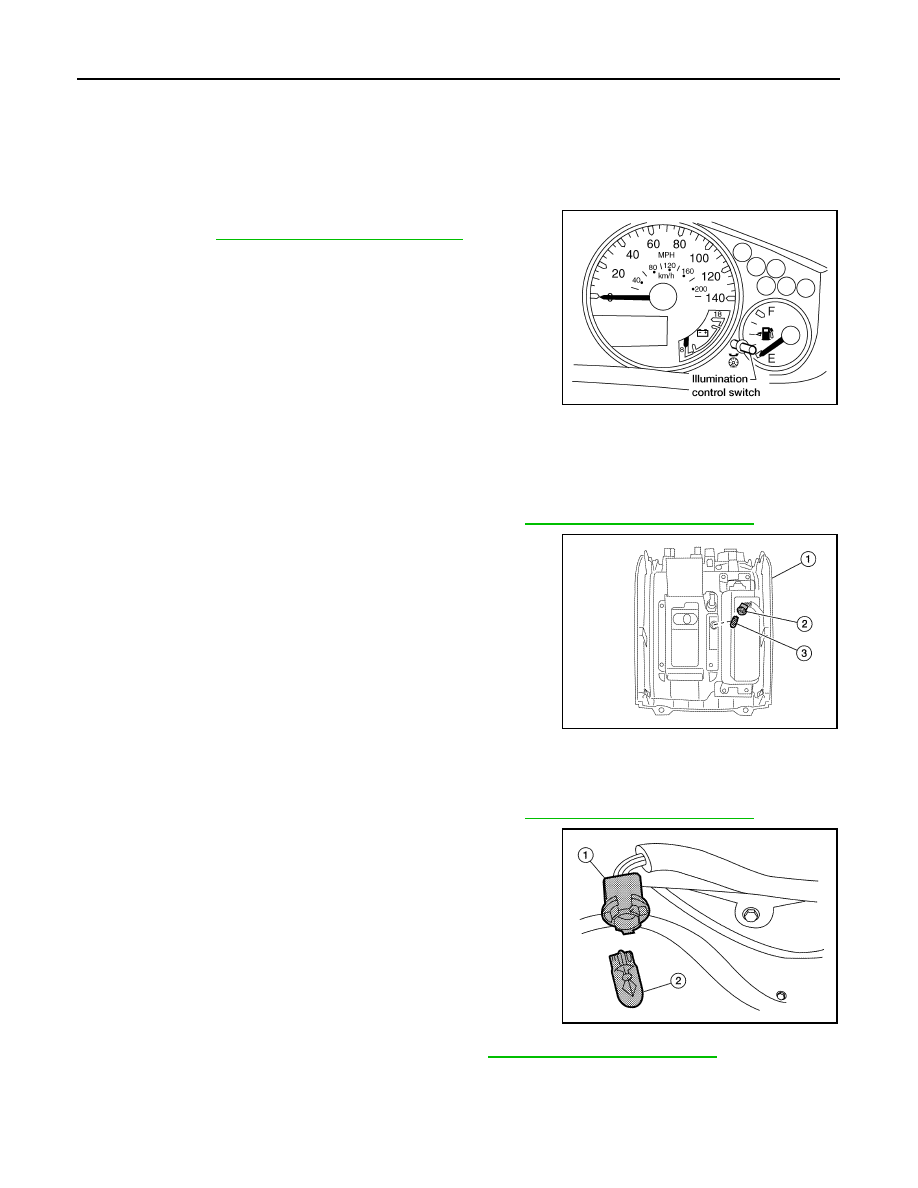

ILLUMINATION

ILLUMINATION

Removal and Installation

INFOID:0000000009480161

ILLUMINATION CONTROL SWITCH

Removal

The illumination control switch is replaced as a part of the combina-

tion meter. Refer to

MWI-90, "Removal and Installation"

.

Installation

Installation is in the reverse order of removal.

SHIFT SELECTOR FINISHER LAMP

Removal

1. Remove shift selector finisher from center console. Refer to

IP-25, "Removal and Installation"

.

2. Rotate shift selector finisher lamp socket (2) with bulb (3) coun-

terclockwise, then pull away from finisher (1).

Installation

Installation is in the reverse order of removal.

Bulb Replacement

1. Remove shift selector finisher from center console. Refer to

IP-25, "Removal and Installation"

.

2. Remove shift selector finisher lamp socket (1), then pull bulb (2)

straight out away from socket.

3. Install the bulb (2) into the shift selector finisher socket (1).

4. Install shift selector finisher in center console. Refer to

IP-25, "Removal and Installation"

.

LKIA0579E

ALLIA0590ZZ

AT finisher lamp bulb

: 12V - 3W
