Nissan Frontier. Manual - part 901





HAC-158

< BASIC INSPECTION >

[MANUAL A/C (TYPE 2)]

DIAGNOSIS AND REPAIR WORKFLOW

DIAGNOSIS AND REPAIR WORKFLOW

How to Perform Trouble Diagnosis For Quick And Accurate Repair

INFOID:0000000009478372

WORK FLOW

1.

LISTEN TO CUSTOMER COMPLAINT

Listen to customer complaint. Get detailed information about the conditions and environment when the symp-

tom occurs.

>> GO TO 2

2.

CHECK FOR SERVICE BULLETINS

Check for any service bulletins.

>> GO TO 3.

3.

VERIFY THE SYMPTOM WITH OPERATIONAL CHECK

Verify the symptom with operational check. Refer to

HAC-159, "Operational Check"

Can a symptom be duplicated?

YES

>> Go to trouble diagnosis. Refer to

HAC-208, "Symptom Matrix Chart"

.

NO

>> System OK.

INSPECTION AND ADJUSTMENT

HAC-159

< BASIC INSPECTION >

[MANUAL A/C (TYPE 2)]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

INSPECTION AND ADJUSTMENT

Operational Check

INFOID:0000000009478373

The purpose of the operational check is to confirm that the system operates properly.

CHECKING BLOWER

1. Turn blower control dial clockwise. Blower should operate on low speed.
2. Turn the blower control dial again, and continue checking each blower speed until all speeds are checked.
3. Leave blower on speed 4.
If NG, go to trouble diagnosis procedure for

HAC-183, "Front Blower Motor Diagnosis Procedure"

.

If OK, continue with next check.

CHECKING DISCHARGE AIR

1. Turn the mode switch to each position.

2. Confirm that discharge air comes out according to the air distribution table. Refer to

HAC-166, "Discharge

Air Flow"

.

Mode door position is checked in the next step.

If NG, go to trouble diagnosis procedure for

HAC-173, "Mode Door Motor Diagnosis Procedure"

.

If OK, continue with next check.

NOTE:

Confirm that the A/C compressor clutch is engaged (sound or visual inspection) and intake door position is at
fresh when the DEF (

) or D/F (

) is selected.

CHECKING RECIRCULATION

1. Press recirculation (

) switch one time. Recirculation indicator should illuminate.

2. Press recirculation (

) switch one more time. Recirculation indicator should go off.

3. Listen for intake door position change (blower sound should change slightly).
If NG, go to trouble diagnosis procedure for

HAC-181, "Intake Door Motor Diagnosis Procedure"

.

If OK, continue with next check.

NOTE:

Confirm that the compressor clutch is engaged (sound or visual inspection) and intake door position is at fresh

when the DEF or D/F is selected.

CHECKING TEMPERATURE DECREASE

1. Rotate temperature control dial counterclockwise.
2. Check for cold air at appropriate discharge air outlets.
If NG, listen for sound of air mix door motor operation if OK, go to trouble diagnosis procedure for

HAC-209,

"Component Function Check"

. If air mix door motor appears to be malfunctioning, go to

HAC-177, "Air Mix

Door Motor Component Function Check"

.

If OK, continue with next check.

CHECKING TEMPERATURE INCREASE

1. Rotate temperature control dial clockwise.
2. Check for hot air at appropriate discharge air outlets.
If NG, listen for sound of air mix door motor operation. If OK, go to trouble diagnosis procedure for

HAC-217,

"Component Function Check"

If air mix door motor (front) appears to be malfunctioning, go to

HAC-177, "Air

Mix Door Motor Component Function Check"

.

If OK, continue with next check.

CHECK A/C SWITCH

1. Press A/C switch with the blower switch ON.
2. A/C switch indicator will turn ON.

• Confirm that the compressor clutch engages (sound or visual inspection).

Conditions

: Engine running and at normal operating temperature

HAC-160

< BASIC INSPECTION >

[MANUAL A/C (TYPE 2)]

INSPECTION AND ADJUSTMENT

If NG, go to trouble diagnosis procedure for

HAC-188, "Magnet Clutch Diagnosis Procedure"

.

If OK, continue with next check.

MANUAL A/C IDENTIFICATION TABLE

HAC-161

< SYSTEM DESCRIPTION >

[MANUAL A/C (TYPE 2)]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

SYSTEM DESCRIPTION

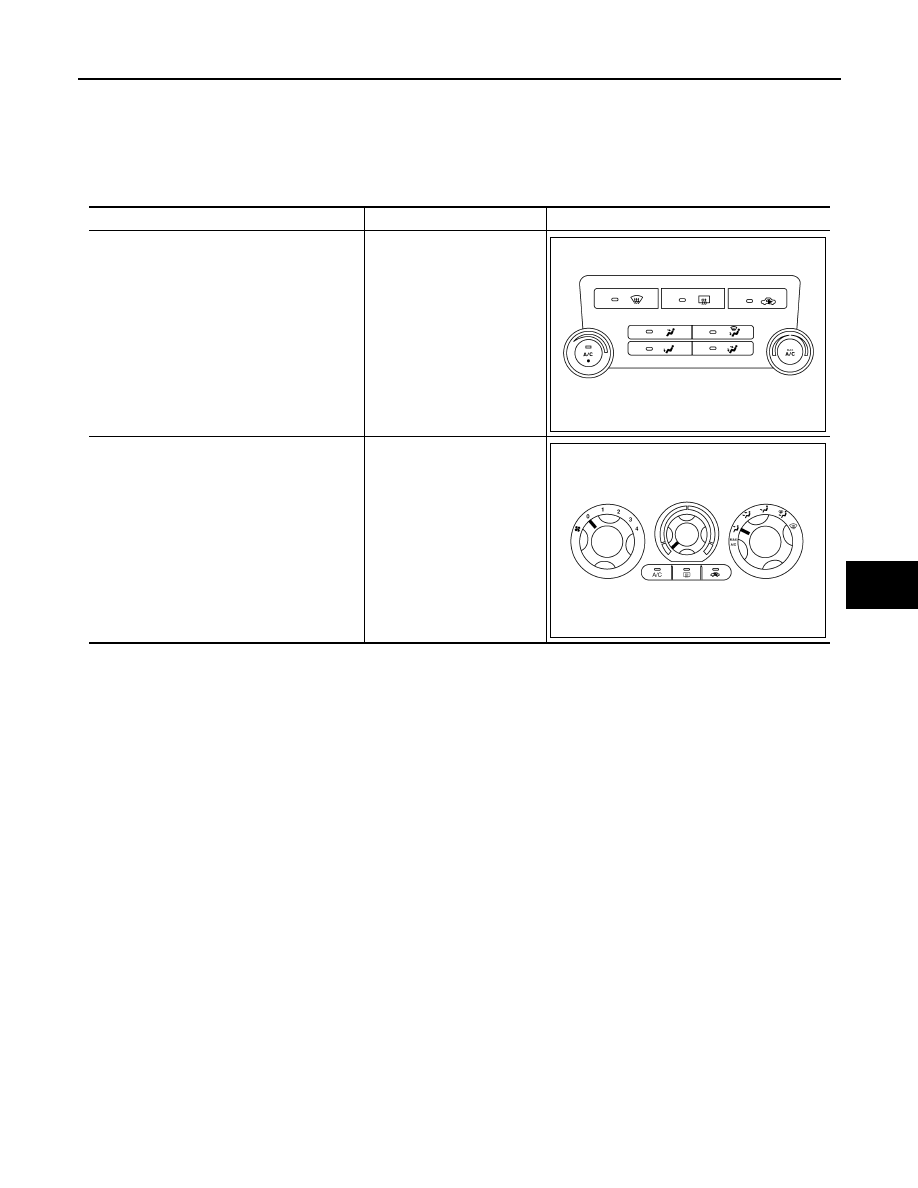

MANUAL A/C IDENTIFICATION TABLE

Application Table

INFOID:0000000009478374

Manual A/C Type

Description

Visual Identification

Manual A/C (Type 1)

Two Control Dial System

[with variable blower control

(VBC)]

Manual A/C (Type 2)

Three Control Dial System

[without variable blower con-

trol (VBC)]

AWIIA0481ZZ

AWIIA1228ZZ
