BLOWER MOTOR

1. Turn ignition switch ON.

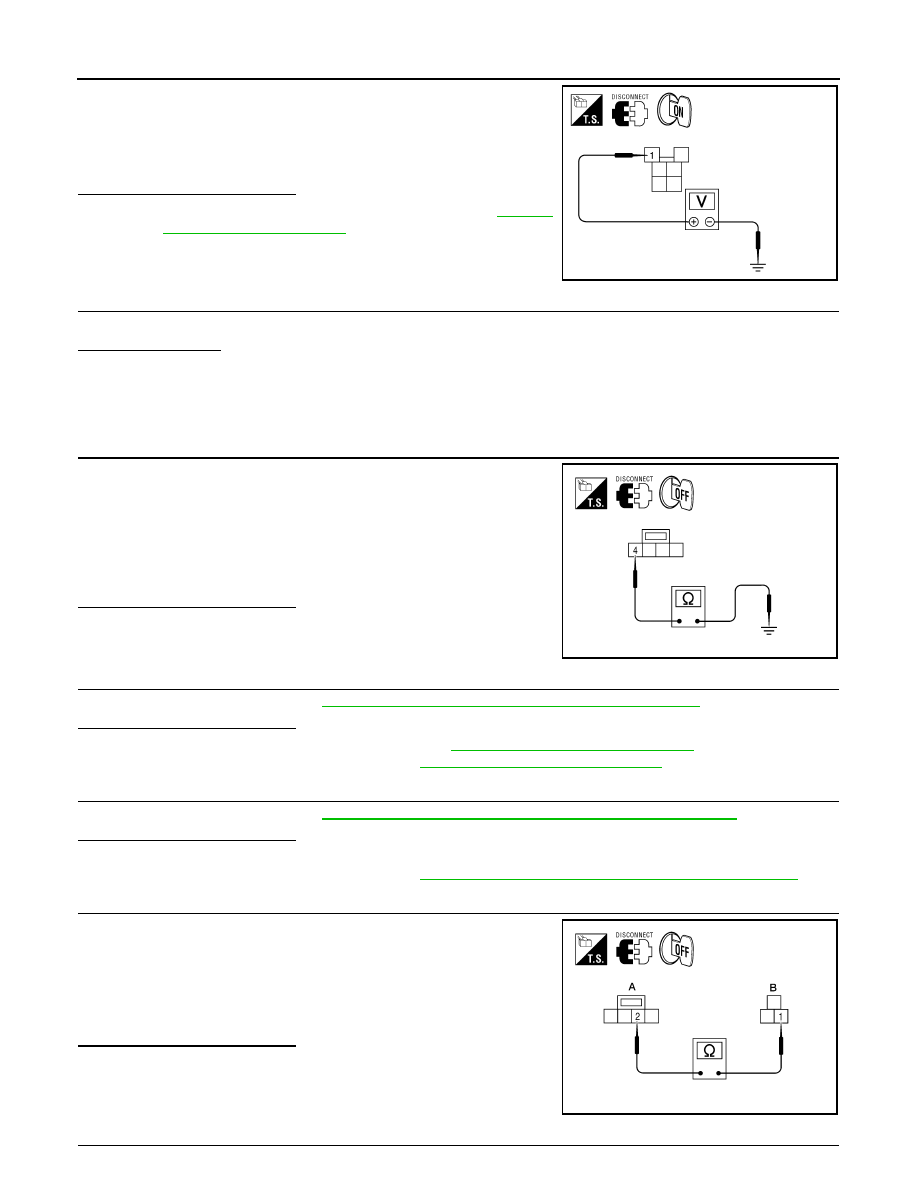

2. Check voltage between front blower motor relay harness con-

nector E54 terminal 1 and ground.

Is the inspection result normal?

YES

>> Replace variable blower control. Refer to

VTL-12,

"Removal and Installation"

.

NO

>> Repair front blower motor ground circuit or connector.

9.

REPLACE FUSES

Replace fuses.
Does the fuse blow?

YES

>> • If fuse blows without activating the front blower motor, repair short between fuse and front

blower motor relay.

• If fuse blows activating the front blower motor, GO TO 10.

NO

>> Inspection End.

10.

CHECK FRONT BLOWER MOTOR POWER SUPPLY CIRCUIT FOR SHORT

1. Turn ignition switch OFF.

2. Disconnect front blower motor connector and variable blower

control connector.

3. Check continuity between variable blower control harness con-

nector M121 terminal 4 and ground.

Is the inspection result normal?

YES

>> GO TO 11.

NO

>> Repair harness or connector.

11.

CHECK FRONT BLOWER MOTOR

Check front blower motor. Refer to

HAC-119, "Front Blower Motor Component Inspection"

.

Is the inspection result normal?

YES

>> Replace variable blower control. Refer to

VTL-12, "Removal and Installation"

.

NO

>> Replace front blower motor. Refer to

VTL-11, "Removal and Installation"

.

12.

CHECK FRONT BLOWER MOTOR

Check front blower motor. Refer to

HAC-115, "Front Blower Motor Component Function Check"

.

Is the inspection result normal?

YES

>> GO TO 13.

NO

>> Replace front blower motor. Refer to

HAC-119, "Front Blower Motor Component Inspection"

.

13.

CHECK BLOWER MOTOR GROUND CIRCUIT

1. Disconnect variable blower control harness connector.

2. Check continuity between front blower motor harness connector

M62 (B) terminal 1 and variable blower control harness connec-

tor M121 (A) terminal 2.

Is the inspection result normal?

YES

>> GO TO 14.

NO

>> Repair harness or connector.

14.

CHECK VARIABLE BLOWER CONTROL POWER SUPPLY CIRCUIT FOR OPEN

1 - Ground

: Battery voltage

WJIA1991E

4 - Ground

: Continuity should not exist.

AWIIA0177ZZ

1 - 2

: Continuity should exist.

AWIIA0179ZZ

BLOWER MOTOR

HAC-119

< DTC/CIRCUIT DIAGNOSIS >

[MANUAL A/C (TYPE 1)]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

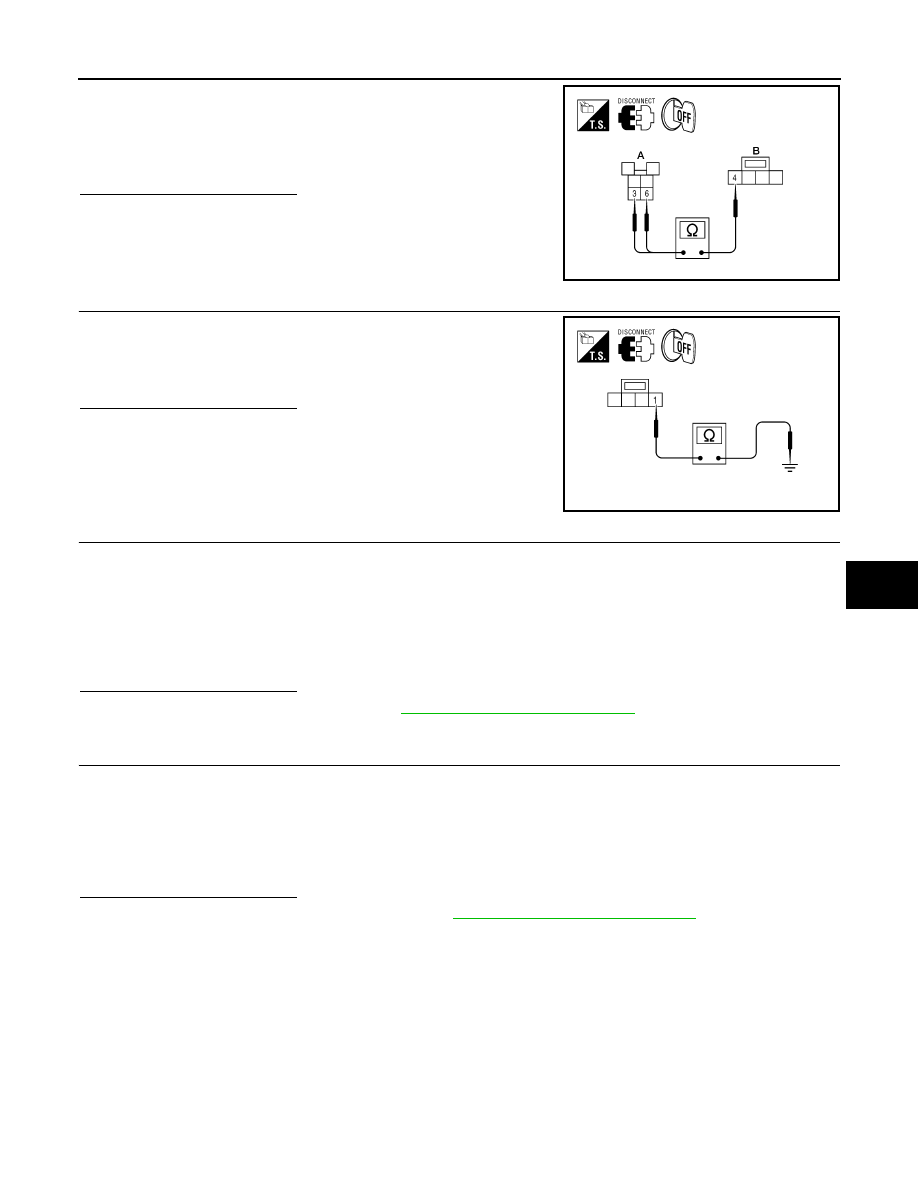

Check continuity between front blower motor relay harness connec-

tor E54 (A) terminals 3, 6 and variable blower control harness con-

nector M121 (B) terminal 4.

Is the inspection result normal?

YES

>> GO TO 15.

NO

>> Repair harness or connector.

15.

CHECK VARIABLE BLOWER CONTROL GROUND CIRCUIT

Check continuity between variable blower control harness connector

M121 terminal 1 and ground.

Is the inspection result normal?

YES

>> GO TO 16.

NO

>> Repair harness or connector.

16.

CHECK VARIABLE BLOWER CONTROL SIGNAL CIRCUIT

1. Reconnect all disconnected component connectors.

2. Disconnect front air control connector.

3. Turn ignition switch ON.

4. Turn blower control dial to maximum speed.

5. check voltage between front air control harness connector M50 terminal 13 and ground.

Is the inspection result normal?

YES

>> Replace front air control. Refer to

VTL-7, "Removal and Installation"

.

NO

>> GO TO 17.

17.

CHECK VARIABLE BLOWER CONTROL SIGNAL CIRCUIT

1. Turn ignition switch OFF.

2. Disconnect variable blower control.

3. Check continuity between front air control harness connector M50 terminal 13 and variable blower control

harness connector M121 terminal 3.

Is the inspection result normal?

YES

>> Replace variable blower control. Refer to

VTL-12, "Removal and Installation"

.

NO

>> Repair harness or connector.

Front Blower Motor Component Inspection

INFOID:0000000009478347

COMPONENT INSPECTION

Front Blower Motor Relay

3, 6 - 4

: Continuity should exist.

AWIIA1212ZZ

1 - Ground

: Continuity should exist.

AWIIA0180ZZ

13 - Ground

Approx.: 4.5V

13 - 3

: Continuity should exist.

HAC-120

< DTC/CIRCUIT DIAGNOSIS >

[MANUAL A/C (TYPE 1)]

BLOWER MOTOR

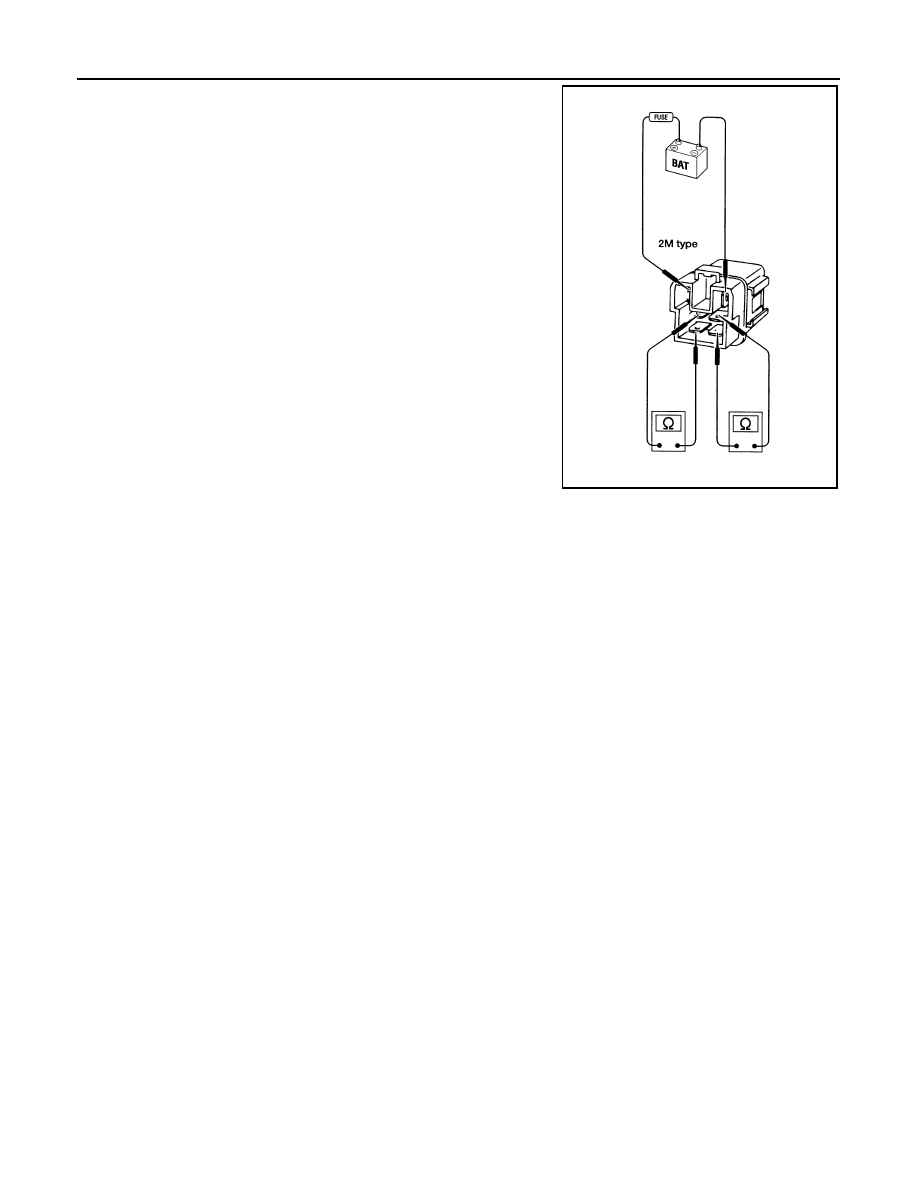

Check continuity between terminals 3 and 5 and terminals 7 and 6

by supplying 12 volts and ground to coil side terminals 1 and 2 of the

relay.

Front Blower Motor

Confirm smooth rotation of the blower motor.

• Ensure that there are no foreign particles inside the blower unit.

• Apply 12 volts to terminal 2 and ground to terminal 1 and verify that the motor operates freely and quietly.

LJIA0068E

MAGNET CLUTCH

HAC-121

< DTC/CIRCUIT DIAGNOSIS >

[MANUAL A/C (TYPE 1)]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

MAGNET CLUTCH

System Description

INFOID:0000000009478348

SYSTEM DESCRIPTION

The front air control controls compressor operation based on intake temperature and a signal from ECM.

Low Temperature Protection Control

The front air control will turn the compressor ON or OFF as determined by a signal detected by the intake sen-

sor.

When intake air temperature is higher than 3.5

°C (38.3°F), the compressor turns ON. The compressor turns

OFF when intake air temperature is lower than 2.5

°C (36.5°F).

Magnet Clutch Component Function Check

INFOID:0000000009478349

SYMPTOM: Magnet clutch does not engage.

INSPECTION FLOW

1.

CONFIRM SYMPTOM BY PERFORMING OPERATIONAL CHECK - MAGNET CLUTCH

1. Rotate blower control dial clockwise.
2. Press the vent (

) mode switch.

3. Press A/C switch. Confirm that the compressor clutch engages (sound or visual inspection).
Is the inspection result normal?

YES

>> Inspection End.

NO

>> Go to diagnosis procedure. Refer to

HAC-121, "Magnet Clutch Diagnosis Procedure"

.

Magnet Clutch Diagnosis Procedure

INFOID:0000000009478350

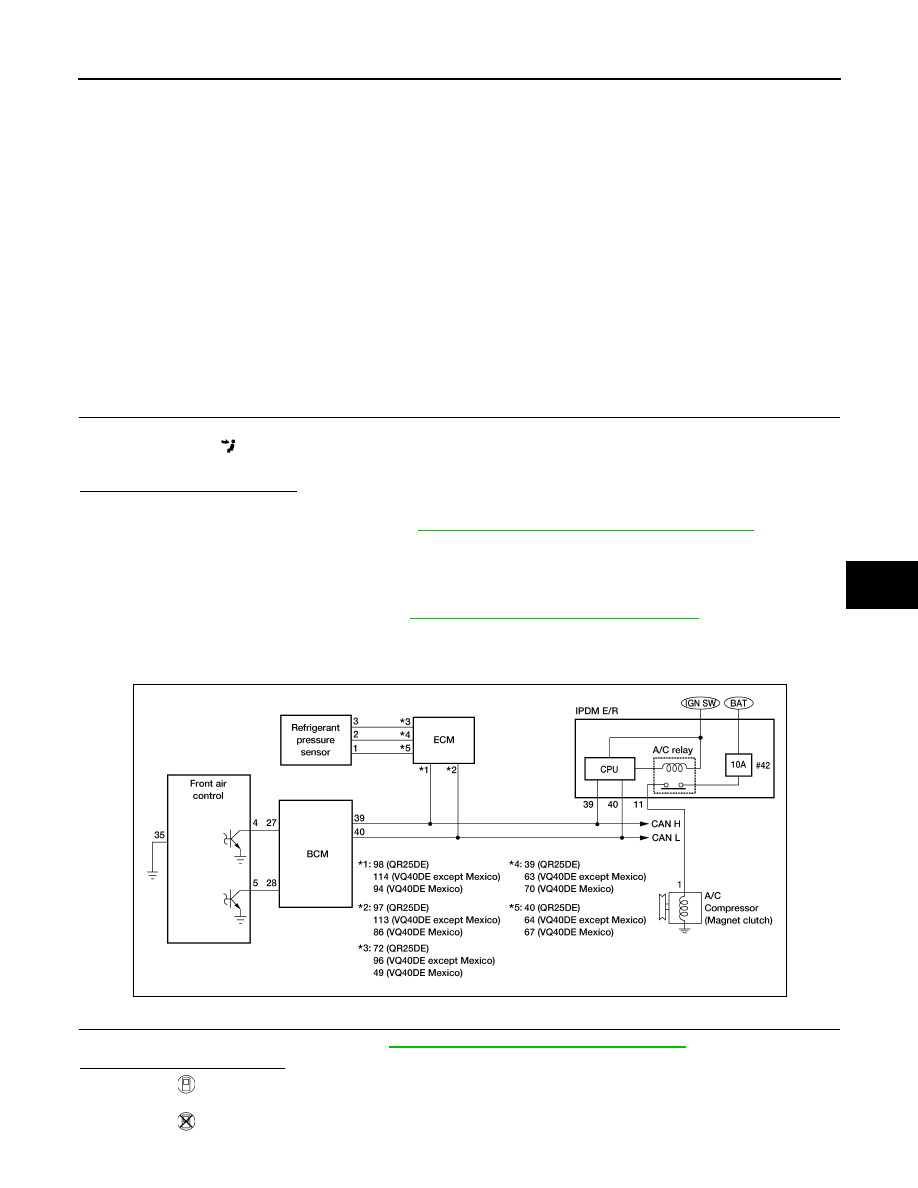

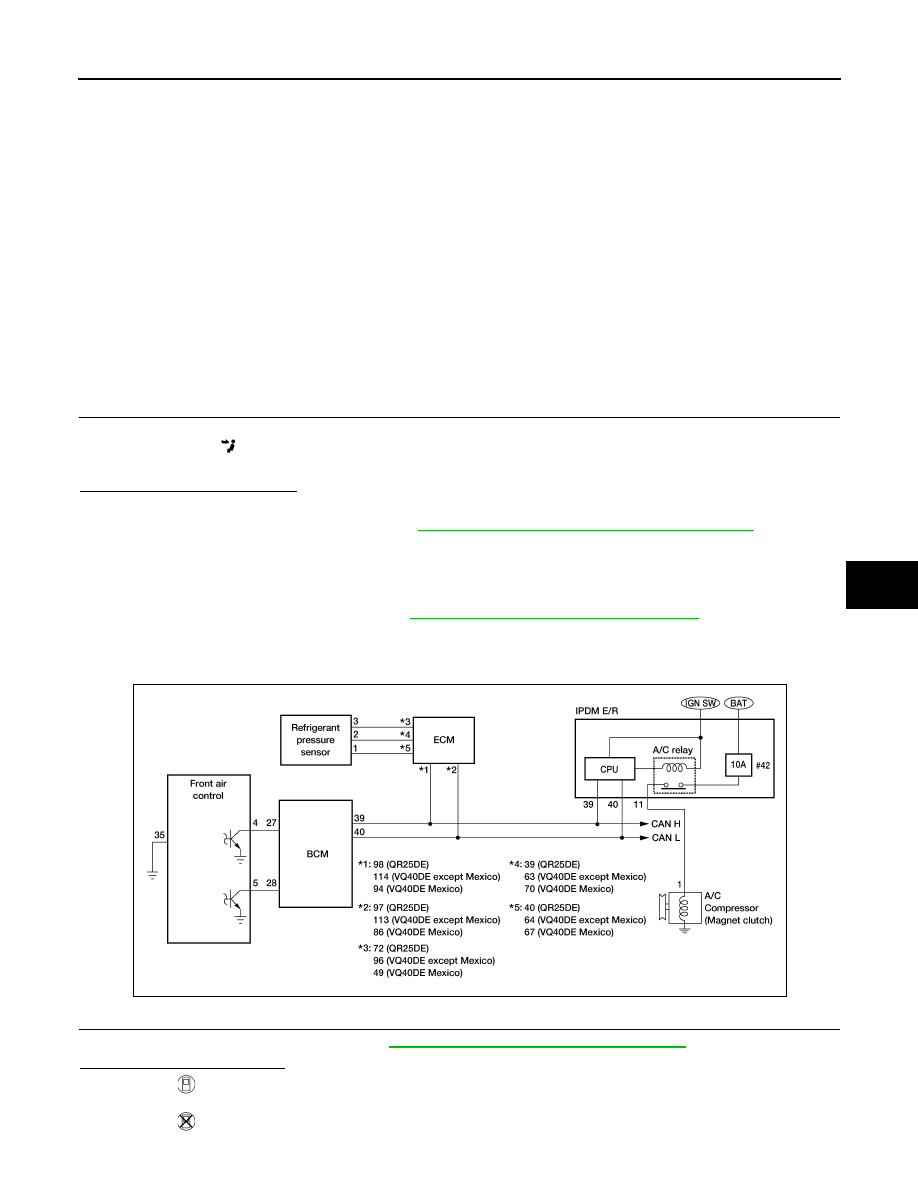

Regarding Wiring Diagram information, refer to

HAC-133, "Wiring Diagram - With Type 1"

.

DIAGNOSTIC PROCEDURE FOR MAGNET CLUTCH

SYMPTOM: Magnet clutch does not engage when A/C switch is ON.

1.

PERFORM IPDM E/R AUTO ACTIVE TEST

Perform IPDM E/R auto active test. Refer to

PCS-11, "CONSULT Function (IPDM E/R)"

.

Does magnet clutch operate?

YES

>> •

WITH CONSULT

GO TO 2.

•

WITHOUT CONSULT

AWIIA1785GB
