FSU-16

< UNIT REMOVAL AND INSTALLATION >

UPPER LINK

UPPER LINK

Removal and Installation

INFOID:0000000009478842

REMOVAL

1. Remove the wheel and tire using power tool. Refer to

WT-48, "Adjustment"

.

2. Support the lower link using a suitable jack.

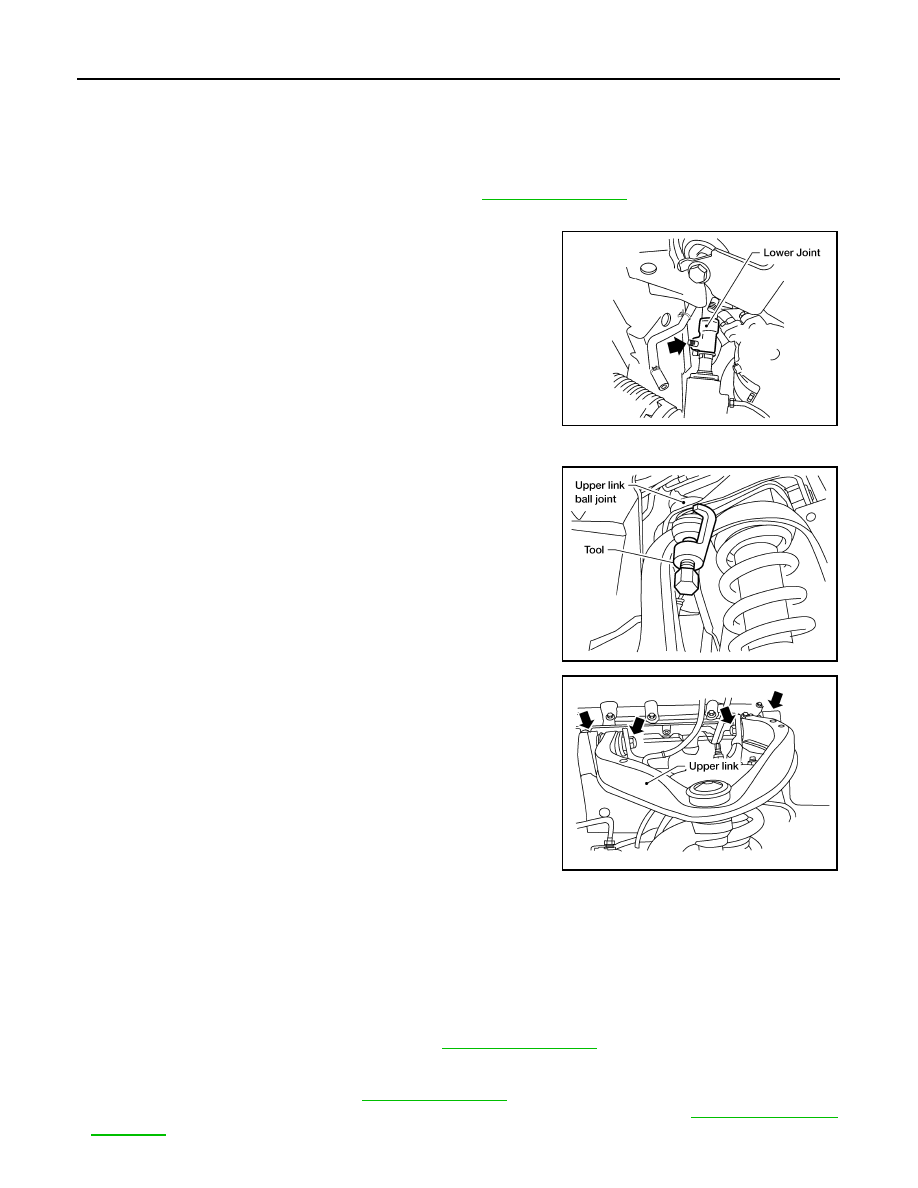

3. For the LH side only, remove the pinch bolt from the lower joint

shaft at the steering gear, and position the lower joint shaft out of

the way.

CAUTION:

Do not damage the lower joint.

4. Remove cotter pin and nut from upper link ball joint.
5. Separate upper link ball joint stud from steering knuckle using

Tool.

6. Remove upper link bolts and nuts.

INSPECTION AFTER REMOVAL

Upper Link

Check for deformation and cracks. Replace if necessary.

Upper Link Ball Joint

Check for distortion and damage. Replace if necessary.

INSTALLATION

Installation is in the reverse order of removal.

• Tighten all nuts and bolts to specification. Refer to

FSU-13, "Component"

.

CAUTION:

Always replace drive shaft lock nut and cotter pin.

• When installing wheel and tire, refer to

WT-48, "Adjustment"

.

• After installation, check that the front wheel alignment is within specification. Refer to

FSU-6, "Front Wheel

Alignment"

.

LGIA0029E

Tool number

: ST29020001 (J-24319-01)

WEIA0119E

WEIA0120E

LOWER LINK

FSU-17

< UNIT REMOVAL AND INSTALLATION >

C

D

F

G

H

I

J

K

L

M

A

B

FSU

N

O

P

LOWER LINK

Removal and Installation

INFOID:0000000009478843

REMOVAL

1. Remove the wheel and tire using power tool. Refer to

WT-48, "Adjustment"

.

2. Remove lower shock absorber bolt.
3. Remove stabilizer bar connecting rod lower nut using power tool, then separate connecting rod from lower

link. Refer to

FSU-15, "Removal and Installation"

.

4. On 4WD models, remove the drive shaft. Refer to

FAX-6, "Removal and Installation"

.

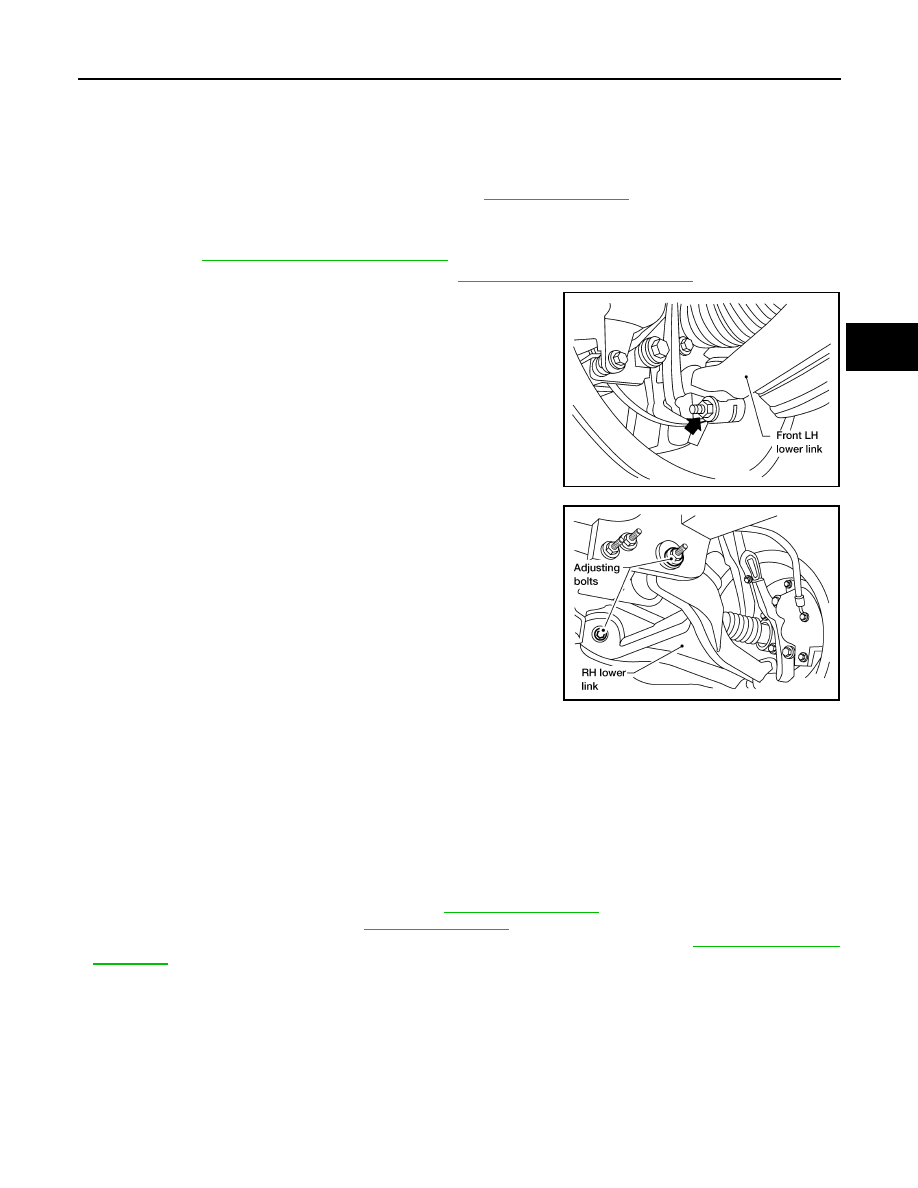

5. Remove pinch bolt from steering knuckle using power tool, then

separate lower link ball joint from steering knuckle.

6. Remove lower link adjusting bolts and nuts, then the lower link.

NOTE:

Some vehicles may be equipped with straight (non-adjustable)

lower link bolts and washers. In order to adjust camber and

caster on these vehicles, first replace the lower link bolts and

washers with adjustable (cam) bolts and washers.

7. Remove the jounce bumper from the lower link.

INSPECTION AFTER REMOVAL

Lower Link

Check for deformation and cracks. Replace if necessary.

Lower Link Bushing

Check for distortion and damage. Replace if necessary.

INSTALLATION

Installation is in the reverse order of removal.

• Tighten all nuts and bolts to specification. Refer to

FSU-13, "Component"

.

• When installing wheel and tire, refer to

WT-48, "Adjustment"

.

• After installation, check that the front wheel alignment is within specification. Refer to

FSU-6, "Front Wheel

Alignment"

.

LEIA0097E

WEIA0115E

FSU-18

< UNIT REMOVAL AND INSTALLATION >

UPPER BALL JOINT AND LOWER BALL JOINT

UPPER BALL JOINT AND LOWER BALL JOINT

Removal and Installation

INFOID:0000000009478844

The ball joints are part of the upper and lower links. Refer to

FSU-16, "Removal and Installation"

 (upper link),

FSU-17, "Removal and Installation"

 (lower link).

KNUCKLE

FSU-19

< UNIT REMOVAL AND INSTALLATION >

C

D

F

G

H

I

J

K

L

M

A

B

FSU

N

O

P

KNUCKLE

Removal and Installation

INFOID:0000000009478845

REMOVAL

1. Remove wheel and tire from vehicle using power tool. Refer to

WT-48, "Adjustment"

.

2. Remove the engine under cover using power tool. Refer to

EXT-15, "Removal and Installation"

.

3. Without disassembling the hydraulic lines, remove brake caliper using power tool. Reposition it aside with

wire. Refer to

BR-35, "Removal and Installation of Brake Caliper and Disc Rotor"

.

NOTE:

Avoid depressing brake pedal while brake caliper is removed.

4. Put alignment marks on disc rotor and wheel hub and bearing

assembly, then remove disc rotor.

5. Disconnect wheel sensor and remove bracket from steering knuckle.

CAUTION:

Do not pull on wheel sensor harness.

6. On 4WD models, remove cotter pin, then remove lock nut from drive shaft using power tool. Refer to

FAX-

6, "Removal and Installation"

.

7. Remove steering outer socket cotter pin at steering knuckle, then loosen nut using power tool. Refer to

ST-15, "Removal and Installation"

.

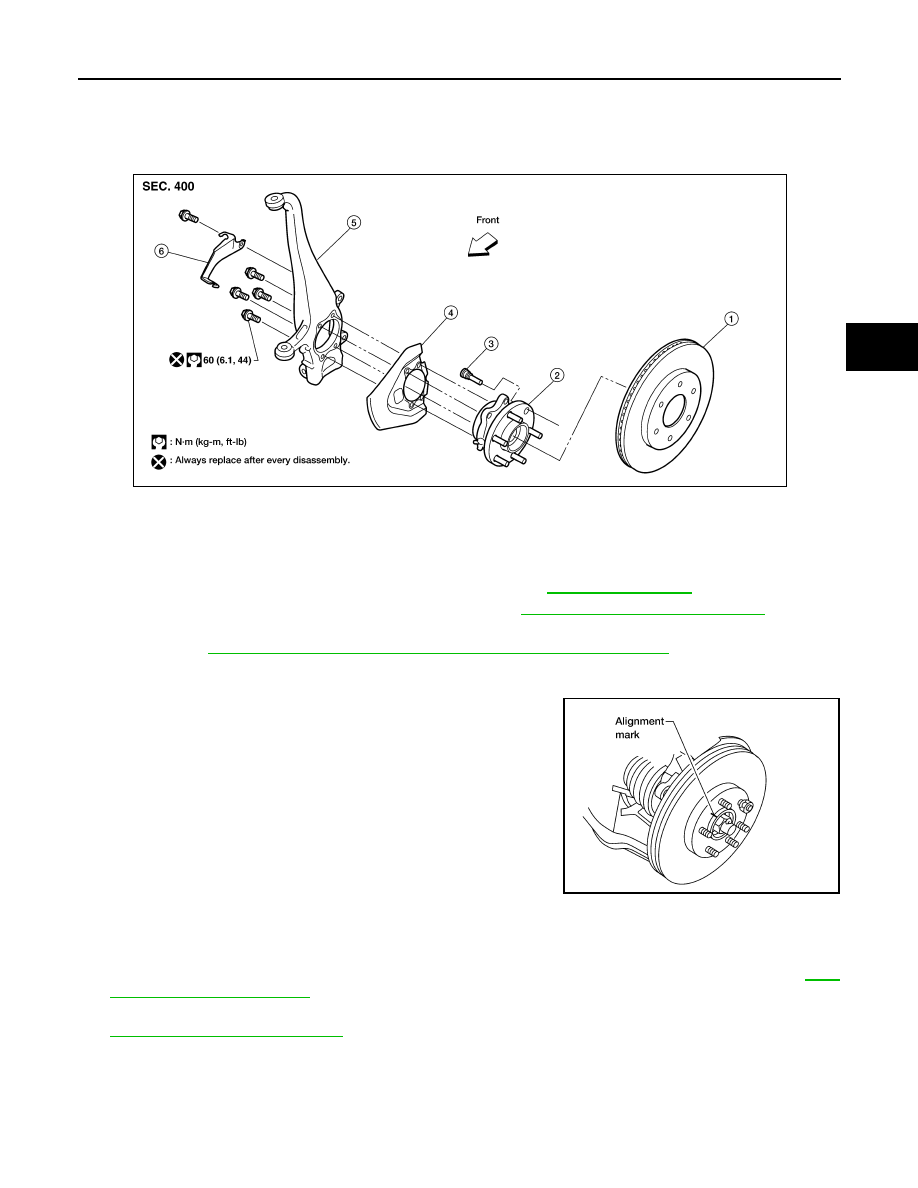

1.

Disc rotor

2.

Wheel hub and bearing assembly

3.

Wheel stud

4.

Splash guard

5.

Steering knuckle

6.

Wheel sensor bracket

WDIA0228E

WDIA0044E
