Nissan Frontier. Manual - part 823





FUEL LEVEL SENSOR UNIT, FUEL FILTER AND FUEL PUMP ASSEMBLY

FL-13

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

M

A

FL

N

P

O

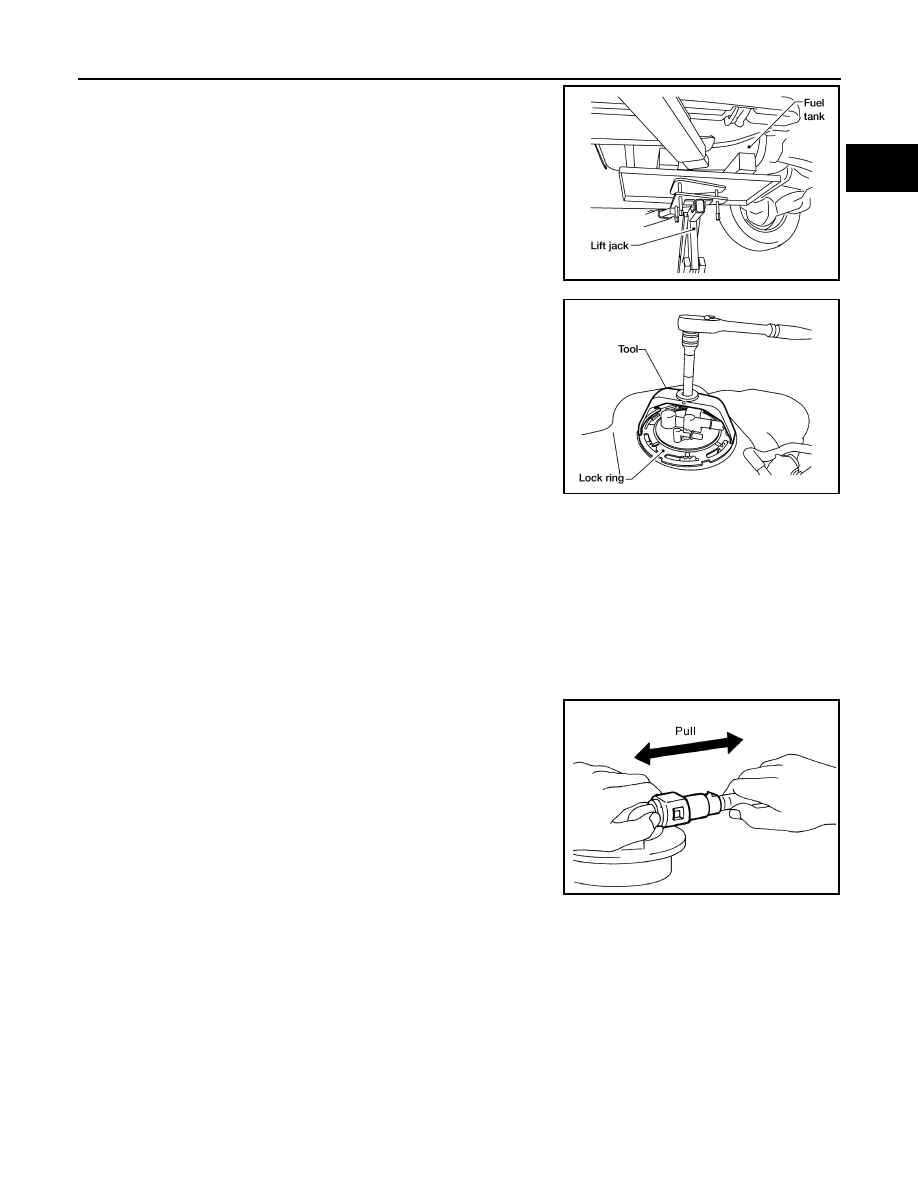

10. Lower the fuel tank using a suitable lift jack and remove it from

the vehicle to gain access to the fuel level sensor, fuel filter, and

fuel pump assembly.

11. Remove the lock ring using Tool as shown.

12. Disconnect the EVAP hose from the molded clip in the top of the

fuel tank.

13. Remove the fuel level sensor, fuel filter, and fuel pump assem-

bly. Remove and discard the O-ring.

CAUTION:

• Do not bend the float arm during removal.

• Avoid impacts such as dropping when handling the com-

ponents.

• Discard the O-ring. Do not reuse the O-ring.

INSTALLATION

Installation is in the reverse order of removal.

• For installation, use a new fuel level sensor, fuel filter, and fuel pump assembly O-ring.

CAUTION:

Do not reuse O-ring.

• Connect the quick connector as follows:

- Check the connection for any damage or foreign materials.

- Align the connector with the pipe, then insert the connector straight into the pipe until a click is heard.

- After connecting the quick connector, make sure that the connec-

tion is secure by checking as follows:

- Pull the tube and the connector to make sure they are securely

connected.

- Visually inspect the connector to make sure the two retainer tabs

are securely connected.

INSPECTION AFTER INSTALLATION

1. Turn the ignition switch ON but do not start engine, then check the fuel pipes and hose connections for

leaks while applying fuel pressure to the system.

2. Start engine, raise idle, and verify there are no fuel leaks at any of the fuel system connections.

LBIA0413E

Tool number

:  — (J-45722) (shown)
: KV101207S0 ( — )

LBIA0436E

PBIC1653E

FL-14

< REMOVAL AND INSTALLATION >

EVAP CANISTER

EVAP CANISTER

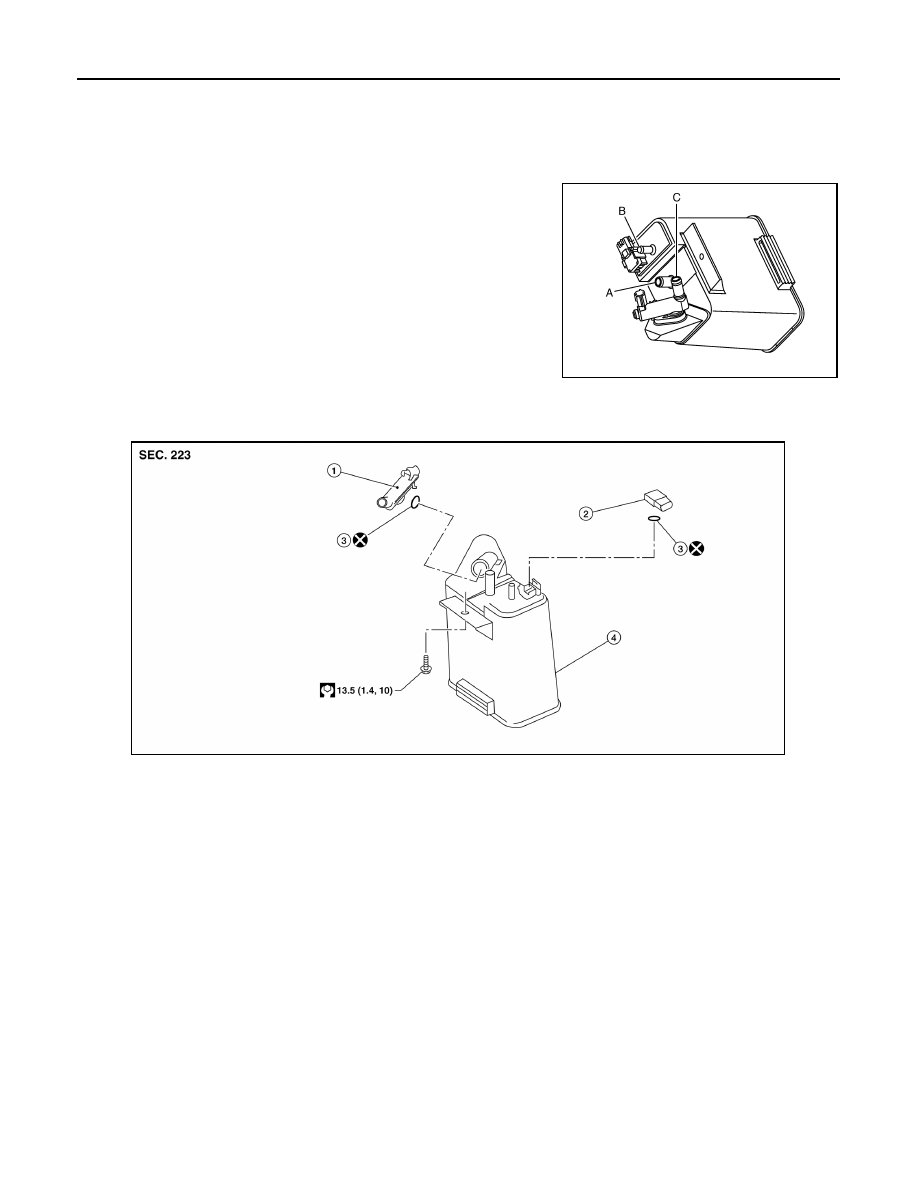

Component Inspection

INFOID:0000000009478797

EVAP CANISTER

Check EVAP canister as follows:
1. Block port (B).
2. Blow air into port (A) and confirm that it flows freely out of port

(C).

3. Release blocked port (B).
4. Apply vacuum pressure to port (B) and confirm that vacuum

pressure exists at the ports (A) and (C).

5. Block port (A) and (B).
6. Apply pressure to port (C) and confirm that there is no leakage.

Removal and Installation

INFOID:0000000009478798

EVAP CANISTER

Removal

1. Disconnect the EVAP control pressure sensor connector.
2. Remove the EVAP control pressure sensor and O-ring.

CAUTION:

Do not reuse O-ring.

3. Disconnect the EVAP canister purge hose.
4. Disconnect the EVAP vent control valve connector.
5. Remove the EVAP canister retaining bolt.
6. Disconnect the fuel tank EVAP breather hose.
7. Disconnect the EVAP vent control valve hose.
8. Remove the EVAP canister.
9. Remove the EVAP vent control valve and O-ring, if necessary.

CAUTION:

Do not reuse O-ring.

PBIB2568E

1.

EVAP canister vent control valve

2.

EVAP canister system pressure sensor 3.

O-ring

4.

EVAP canister

ALBIA0674GB

EVAP CANISTER

FL-15

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

M

A

FL

N

P

O

Installation

Installation is in the reverse order of removal.

CAUTION:

Do not reuse O-ring.

EVAP CANISTER CONTROL PRESSURE SENSOR

Removal

1. Disconnect the EVAP control pressure sensor connector.
2. Remove the EVAP canister control pressure sensor and O-ring.

CAUTION:

Do not reuse O-ring.

Installation

Installation is in the reverse order of removal.

CAUTION:

Do not reuse O-ring.

EVAP CANISTER VENT CONTROL VALVE

Removal

1. Disconnect the EVAP control pressure sensor connector.
2. Disconnect the EVAP canister purge hose.
3. Remove the EVAP canister retaining bolt.
4. Disconnect the fuel tank EVAP breather hose.
5. Disconnect the EVAP vent control valve connector.
6. Disconnect the EVAP vent control valve hose.
7. Reposition the EVAP canister.

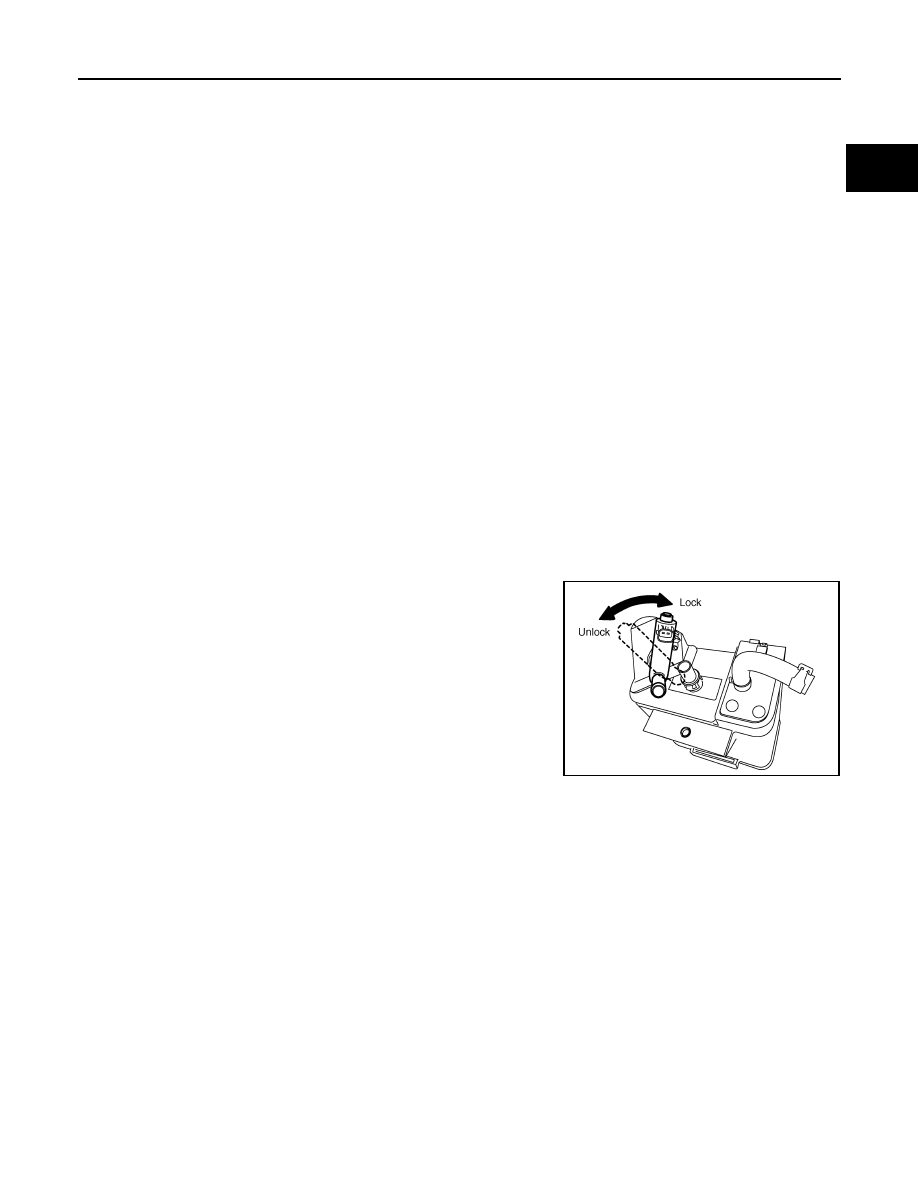

8. Turn EVAP canister vent control valve counterclockwise.
9. Remove the EVAP canister vent control valve and O-ring.

CAUTION:

Do not reuse O-ring.

Installation

Installation is in the reverse order of removal.

CAUTION:

Do not reuse O-ring.

BBIA0567E

FL-16

< UNIT DISASSEMBLY AND ASSEMBLY >

FUEL LEVEL SENSOR UNIT, FUEL FILTER AND FUEL PUMP ASSEMBLY

UNIT DISASSEMBLY AND ASSEMBLY

FUEL LEVEL SENSOR UNIT, FUEL FILTER AND FUEL PUMP ASSEMBLY

Disassembly and Assembly

INFOID:0000000009478799

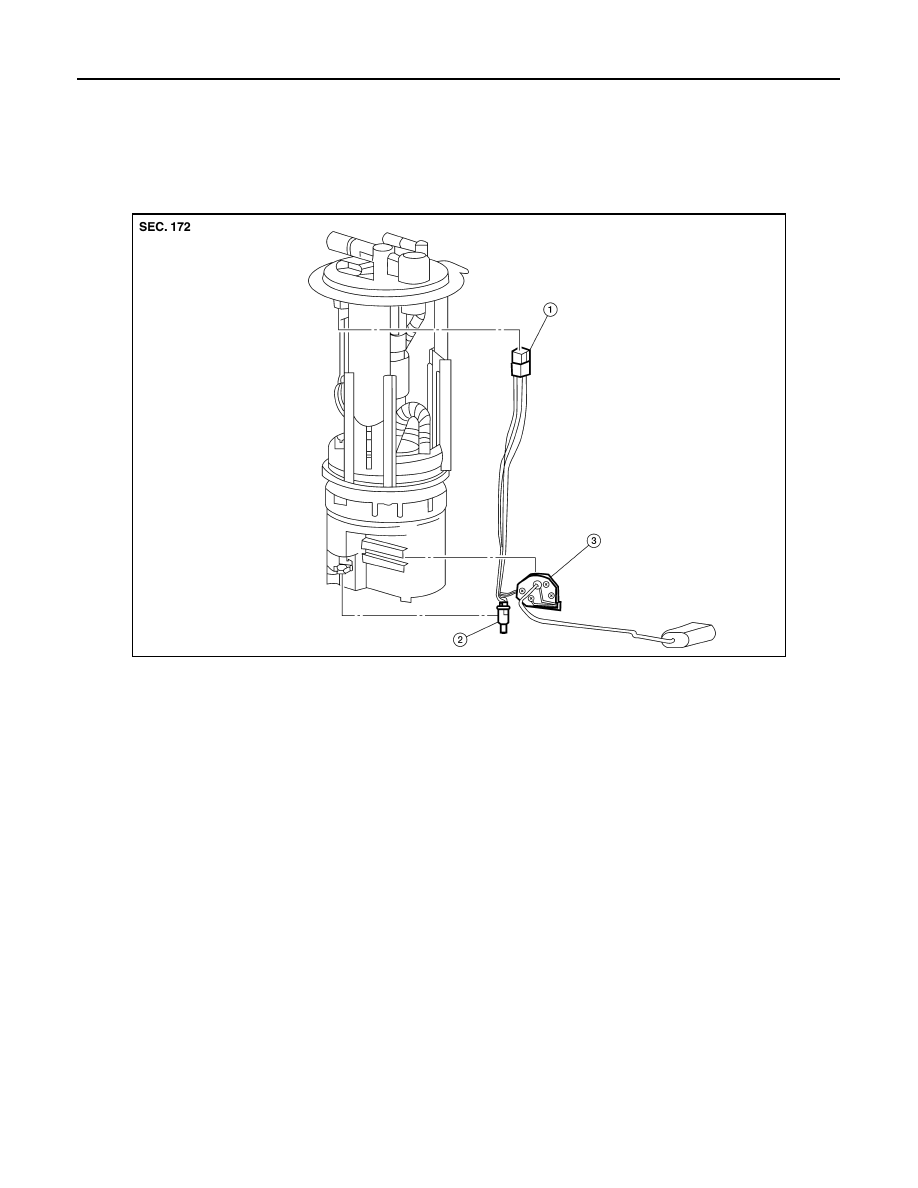

Fuel Level Sensor Unit Assembly

Disassembly

1. Disconnect the harness connector.
2. Remove the fuel tank temperature sensor.
3. Remove the fuel level sensor unit assembly.

Assembly

Assembly is the reverse order of disassembly.

WAIA0114E

1.

Harness connector

2.

Fuel tank temperature sensor

3.

Fuel level sensor unit assembly
