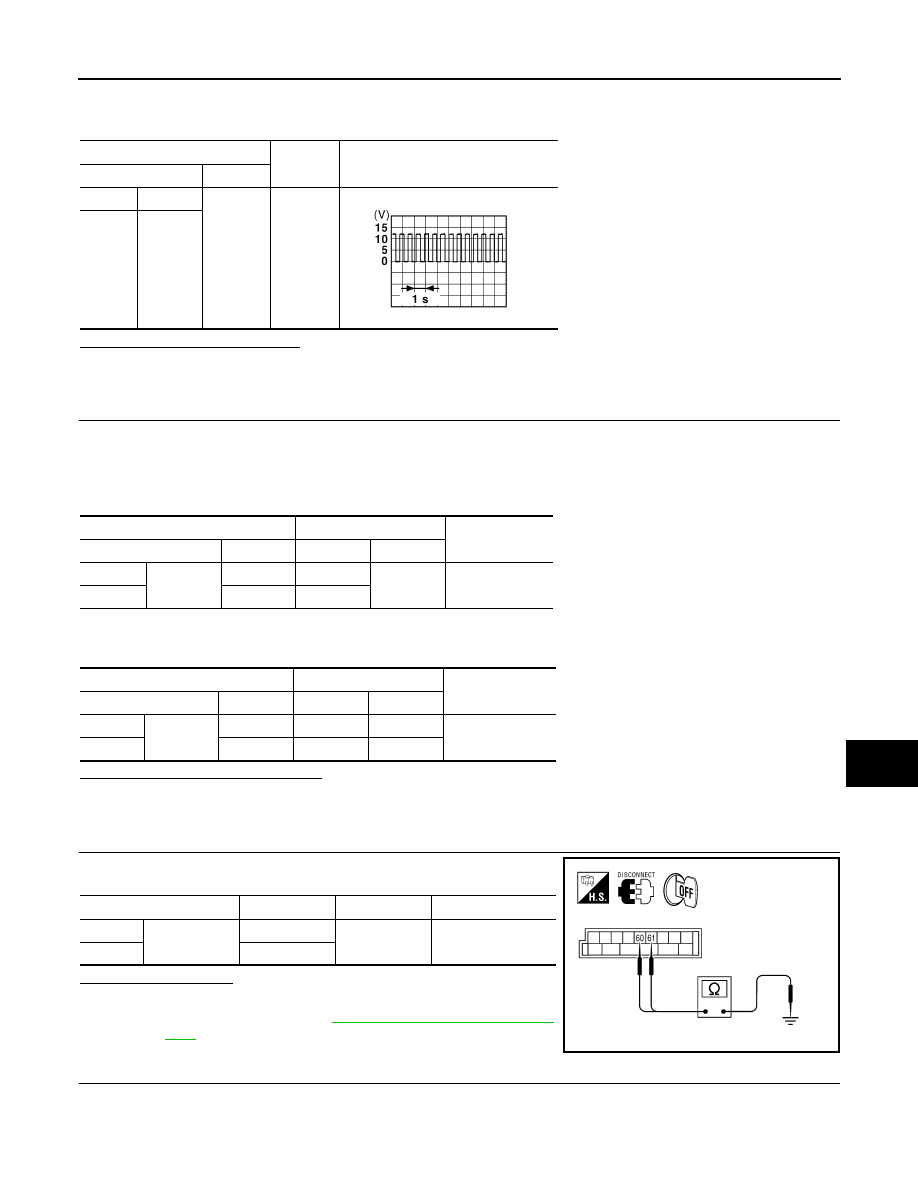

PARKING LAMP CIRCUIT EXL-49 < DTC/CIRCUIT DIAGNOSIS > C D E F G H I J K M A B EXL N O P Are continuity results as specified? YES >> Replace IPDM E/R. Refer to PCS-28, "Removal and Installation of IPDM E/R" . NO >> Repair the harnesses or connectors. 4. CHECK PARKING, LICENSE AND TAIL LAMP GROUND CIRCUITS 1. Check continuity between the front combination lamp harness connector and ground. 2. Check continuity between the front side marker lamp harness connector and ground. 3. Check continuity between the rear combination lamp harness connector and ground. 4. Check continuity between the license plate lamp harness connector and ground. Are continuity results as specified? YES >> Inspect the parking lamp bulb. NO >> Repair the harness. IPDM E/R License plate lamp Continuity Connector Terminal Connector Terminal LH E124 57 C203 1 Yes RH C204 Connector Terminal — Continuity LH E27 4 Ground Yes RH E111 Connector Terminal — Continuity LH E17 8 Ground Yes RH E108 Connector Terminal — Continuity LH C201 2 Ground Yes RH C202 Connector Terminal — Continuity LH C203 2 Ground Yes RH C204 |
