DAYTIME RUNNING LIGHT SYSTEM

EXL-9

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

DAYTIME RUNNING LIGHT SYSTEM

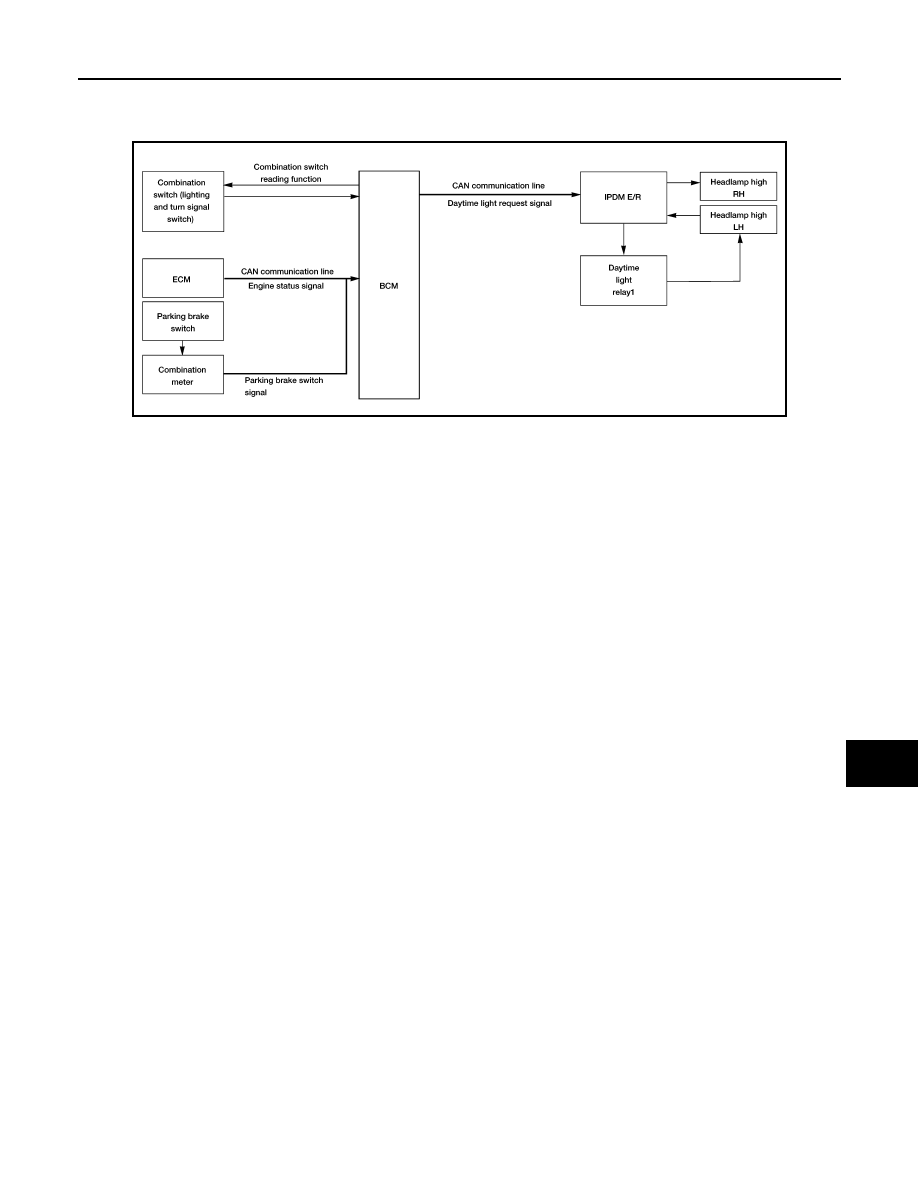

System Diagram

INFOID:0000000009478429

System Description

INFOID:0000000009478430

The headlamp system for Canada vehicles is equipped with a daytime light control that activates the high

beam headlamps at approximately half illumination whenever the engine is operating. If the parking brake is

applied before the engine is started the daytime lights will not be illuminated. The daytime lights will illuminate

once the parking brake is released. Thereafter, the daytime lights will continue to operate when the parking

brake is applied.

OPERATION

The BCM monitors inputs from the parking brake switch and the combination switch (lighting and turn signal

switch) to determine when to activate the daytime light system. The BCM sends a daytime light request to the

IPDM E/R via the CAN communication lines. The IPDM E/R grounds the daytime light relay 1 which in turn,

provides power to the ground side of the LH high beam lamp. Power flows backward through the LH high

beam lamp to the IPDM E/R, through the high beam fuses, through the RH high beam lamp circuit to the RH

high beam lamp and on to ground. The high beam lamps are wired in series which causes them to illuminate

at a reduced intensity.

AWLIA2079GB

EXL-10

< SYSTEM DESCRIPTION >

DAYTIME RUNNING LIGHT SYSTEM

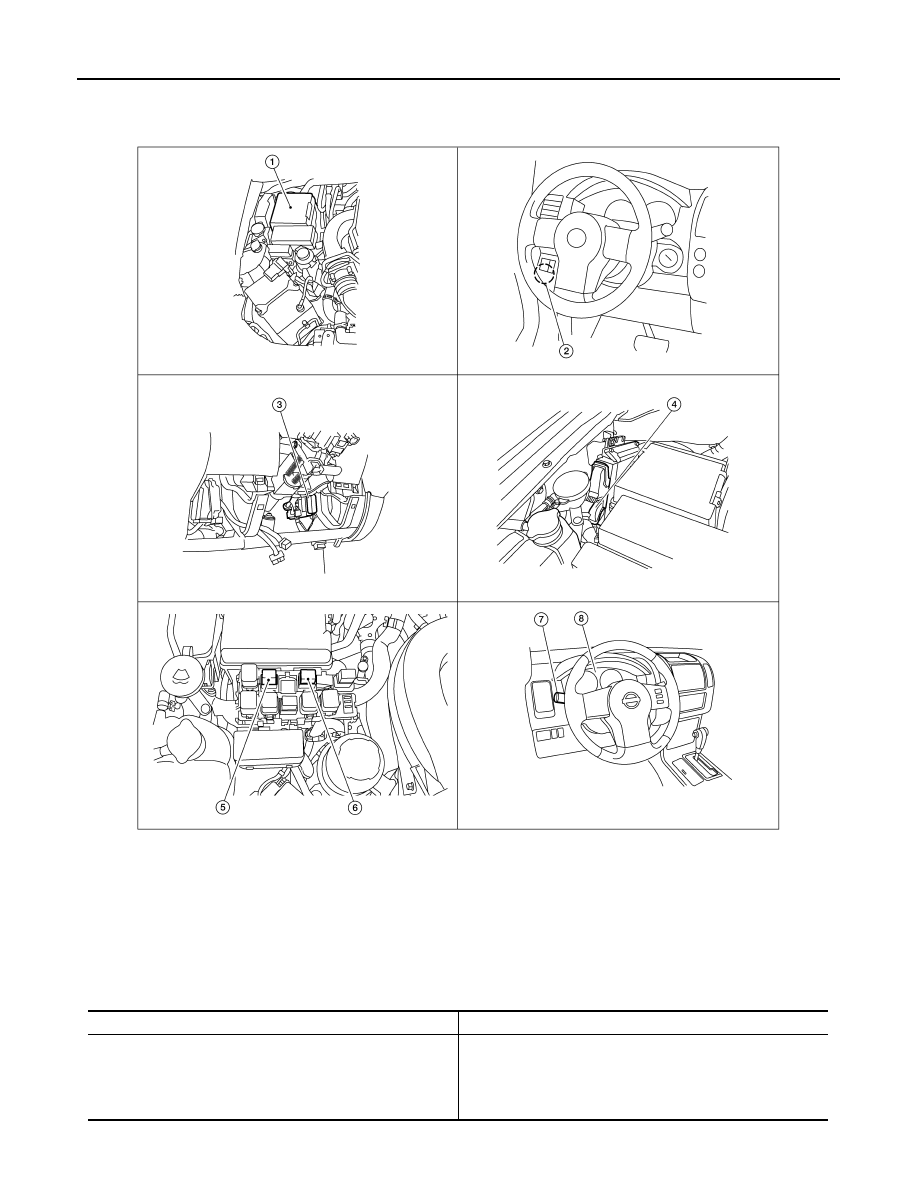

Component Parts Location

INFOID:0000000009478431

Component Description

INFOID:0000000009478432

1.

IPDM E/R E119, E122, E123, E124

2.

Parking brake switch B84

3.

BCM M18, M20 (view with lower instru-
ment panel LH removed)

4.

ECM  (view with ECM cover removed) 5.

Daytime light relay 1 E103

6.

Daytime light relay 2 E104

7.

Combination switch (lighting and turn
signal switch) M28

8.

Combination meter M24

AWNIA0928ZZ

Part name

Description

BCM

• Receives combination switch (lighting and turn signal switch)

inputs via BCM combination switch reading function.

• Receives park brake applied input from the park brake switch.
• Receives engine running status from the ECM via CAN com-

munication.

DAYTIME RUNNING LIGHT SYSTEM

EXL-11

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

IPDM E/R

Receives daytime light request from the BCM and activates the
daytime light relay.

Combination switch (lighting and turn signal switch)

Outputs lighting requests to the BCM.

Parking brake switch

Outputs parking brake status to the combination meter which for-
wards that information to the BCM via CAN communication.

ECM

Outputs engine running status to the BCM.

EXL-12

< SYSTEM DESCRIPTION >

AUTO LIGHT SYSTEM

AUTO LIGHT SYSTEM

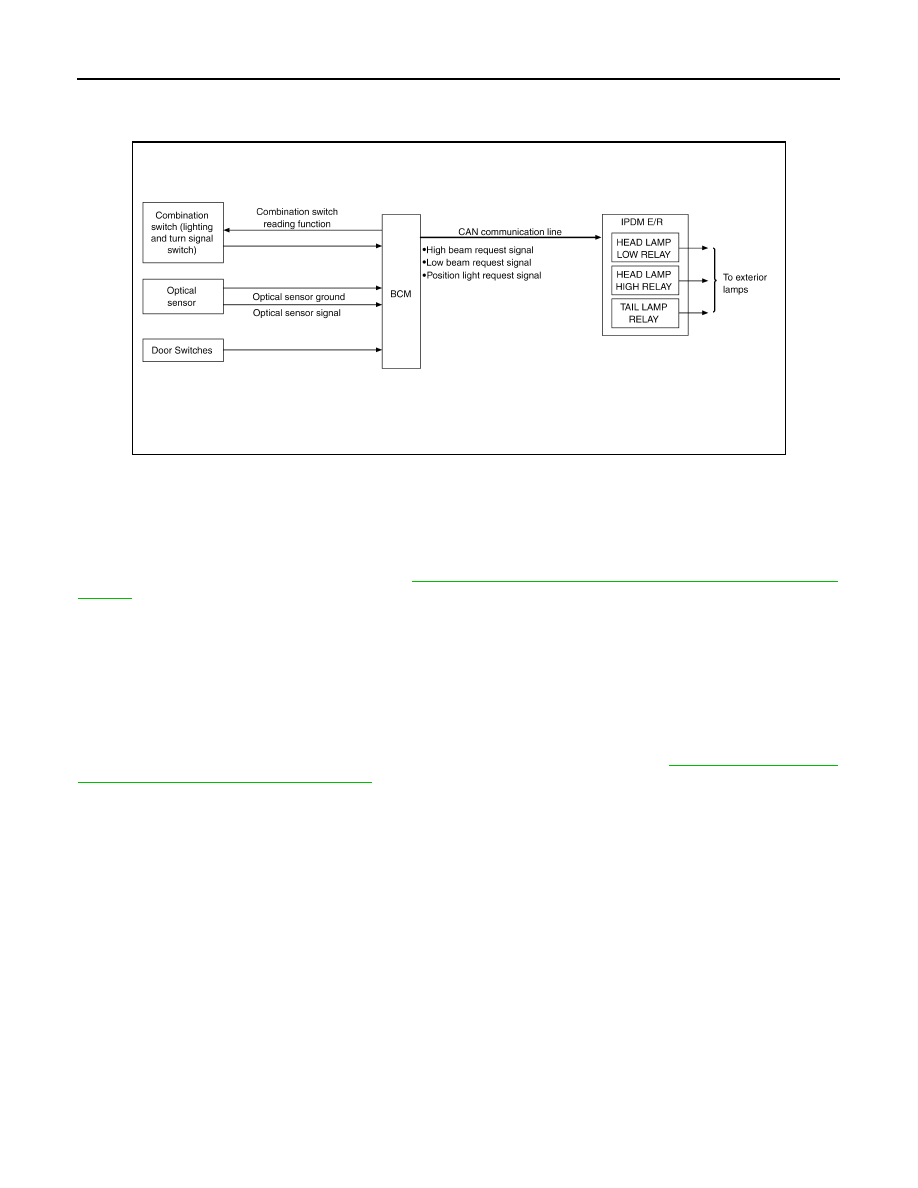

System Diagram

INFOID:0000000009478433

System Description

INFOID:0000000009478434

The auto light control system has an optical sensor that detects outside brightness.

When the combination switch (lighting and turn signal switch) is in AUTO position, it automatically turns ON/

OFF the parking, license plate, tail and headlamps in accordance with the ambient light. Sensitivity can be

adjusted in four steps. For the details, refer to

BCS-18, "HEADLAMP : CONSULT Function (BCM - HEAD-

LAMP)"

.

AUTO LIGHT OPERATION

The auto light system operates the low beam and high beam headlamps, parking lamps, tail lamps and license

plate lamps. The BCM monitors the combination switch (lighting and turn signal switch) position as a part of

the BCM combination switch reading function. When the combination switch (lighting and turn signal switch) is

in the AUTO position, the BCM automatically turns the lamps ON/OFF according to ambient light brightness.

When the key is turned OFF and all doors are closed, the auto light system keeps the headlamps ON for 45

seconds.

NOTE:

Timing for when lamps turn ON/OFF can be changed by the CONSULT. Refer to

BCS-18, "HEADLAMP :

CONSULT Function (BCM - HEADLAMP)"

.

AWLIA2076GB
