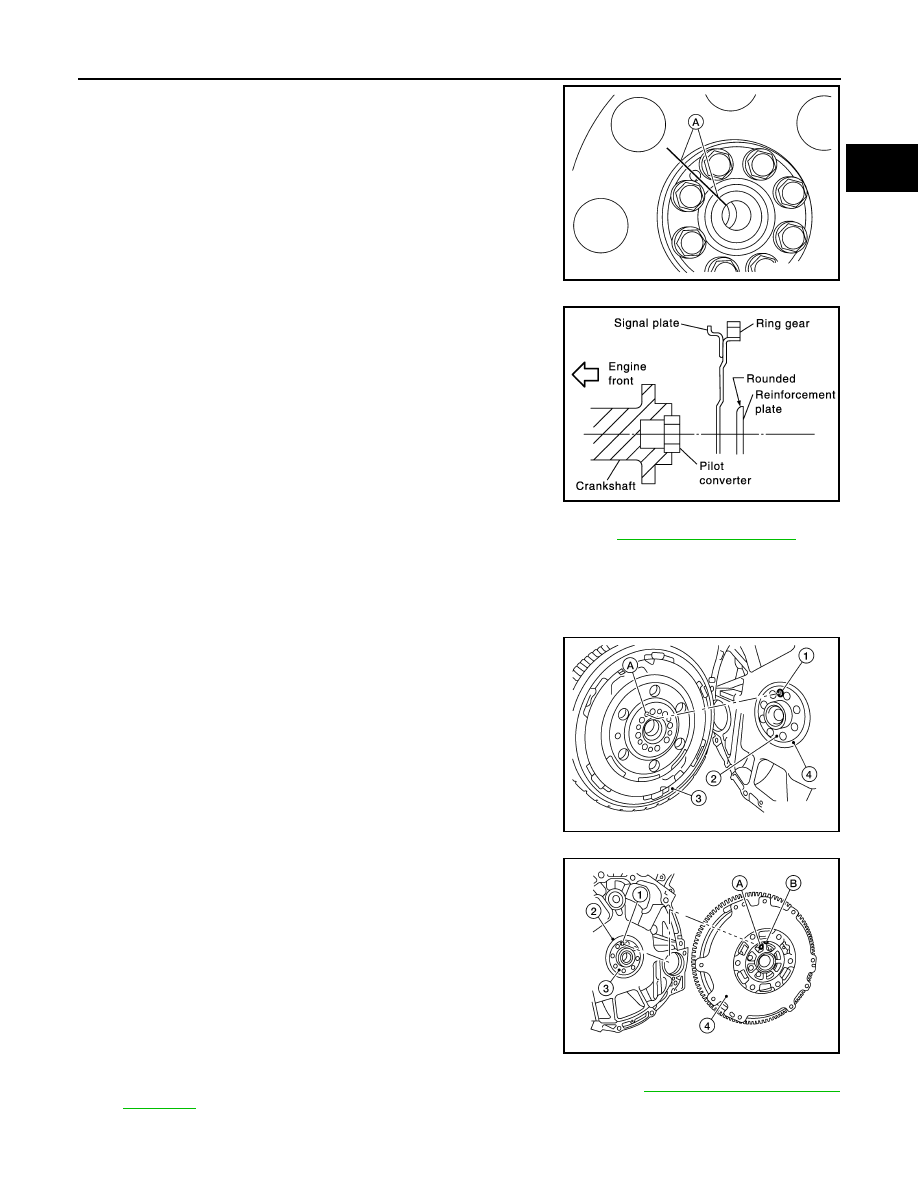

ENGINE UNIT EM-241 < UNIT DISASSEMBLY AND ASSEMBLY > [VQ40DE] C D E F G H I J K L M A EM N P O • When installing the drive plate to the crankshaft, use the match mark (A) as shown to correctly align the crankshaft side dowel pin to the drive plate side dowel pin hole. • Install the drive plate and the reinforcement plate in the direc- tion as shown. • Tighten the drive plate bolts in a diagonal pattern in two steps. Refer to INSTALLATION (M/T models) 1. Installation is in the reverse order of removal after the following. • Be sure the dowel pin is installed in the crankshaft. • When installing the flywheel (3) to the crankshaft (2), be sure to correctly align crankshaft side dowel pin (1) to the flywheel side dowel pin hole (A) as shown. - Oil seal (4) • There is a locator mark (B) on the clutch cover side of the fly- wheel (4). Refer to this for ease of installation. - Crankshaft dowel pin (1) - Oil seal (2) - Crankshaft (3) - Flywheel (4) - Dowel pin hole (A) - Dowel pin locator mark (B) • Tighten the flywheel bolts in a diagonal pattern in two steps. Refer to . ALBIA0522ZZ PBIC0910E AWBIA0539ZZ AWBIA0540ZZ |
