PREPARATION

EM-9

< PREPARATION >

[QR25DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

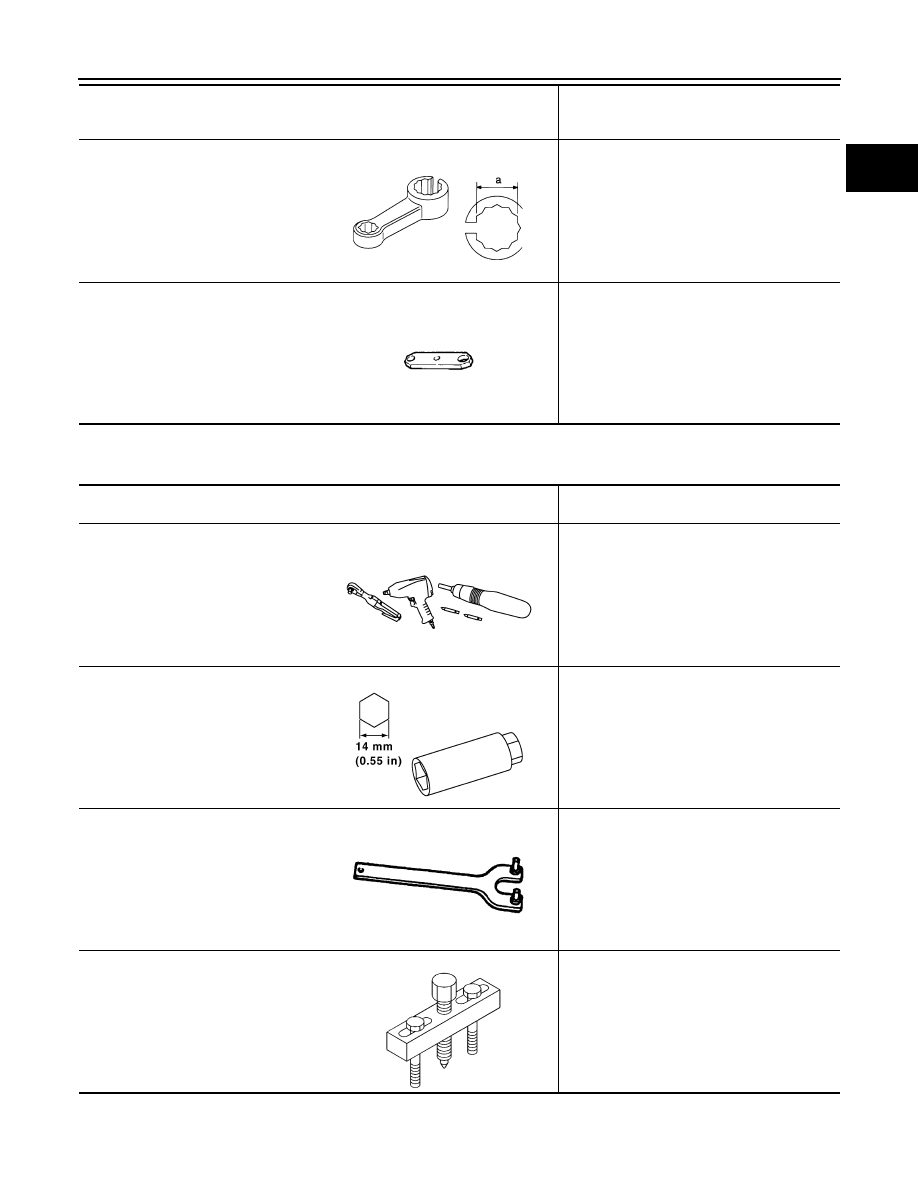

Commercial Service Tool

INFOID:0000000009478036

KV10114400
(J-38365)
Heated oxygen sensor wrench

Loosening or tightening heated oxygen sen-
sor 1
a: 22 mm (0.87 in)

KV11105210
(J-44716)
Stopper plate

Lock drive plate

Tool number
(TechMate No.)
Tool name

Description

NT636

ZZA0009D

(TechMate No.)
Tool name

Description

Power tool

Loosening nuts, screws and bolts

( — )
Spark plug wrench

Removing and installing spark plug

( — )
Pulley holder

Removing and installing crankshaft pulley

( — )
Pulley puller

Removing crankshaft pulley

PIIB1407E

PBIC2982E

ZZA1010D

NT676

EM-10

< PREPARATION >

[QR25DE]

PREPARATION

( — )

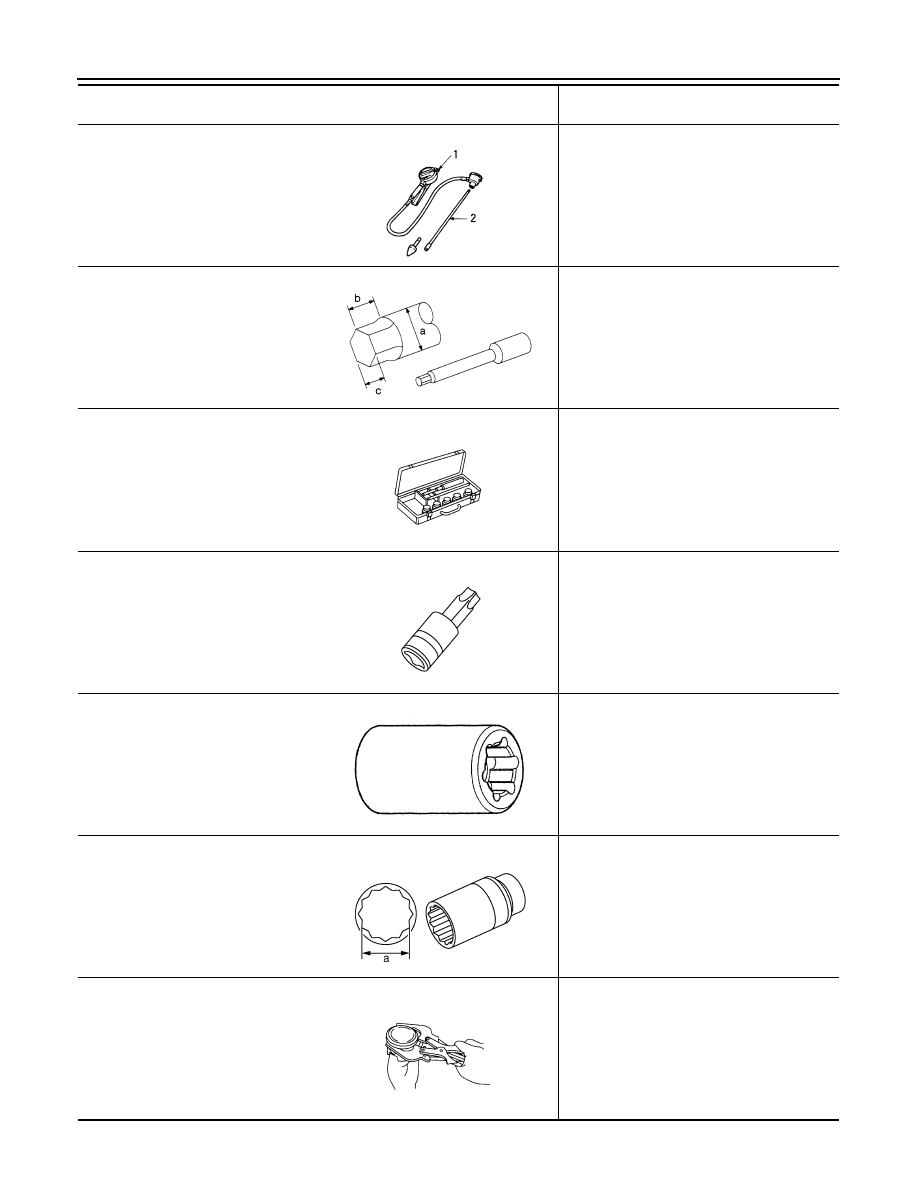

1. Compression tester
2. Adapter

Checking compression pressure

(J-24239-01)
Cylinder head bolt wrench

Loosening and tightening cylinder head bolt,
and used with the angle wrench [SST:
KV10112100 (BT8653-A)]
a: 13 (0.51) dia.
b: 12 (0.47)
c: 10 (0.39)
Unit: mm (in)

( — )
Valve seat cutter set

Finishing valve seat dimensions

Socket

Removing and installing flywheel
Size: T55

(J-45816)
E20 ®Socket

Removing and installing AT drive plate bolts

Deep socket

Removing and installing oil pressure switch
a: 27 mm (1.06 in)

( — )
Piston ring expander

Removing and installing piston ring

(TechMate No.)
Tool name

Description

ZZA0008D

NT583

S-NT048

PBIC1113E

LBIA0285E

PBIC2072E

S-NT030

PREPARATION

EM-11

< PREPARATION >

[QR25DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

( — )

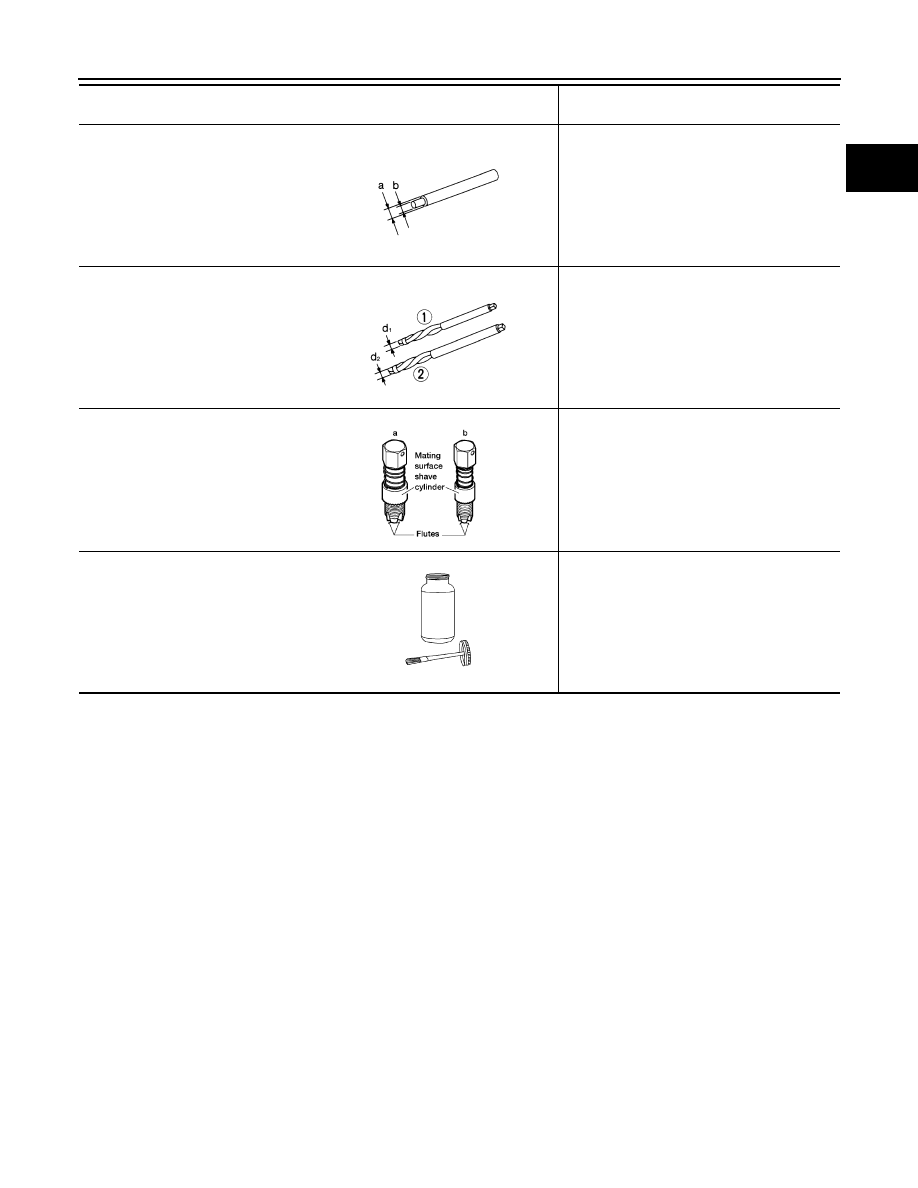

Valve guide drift

Removing and installing valve guide
Intake and Exhaust:
a: 9.5 mm (0.374 in) dia.
b: 5.5 mm (0.217 in) dia.

( — )
Valve guide reamer

1: Reaming valve guide inner hole
2: Reaming hole for oversize valve guide
Intake and Exhaust:
d

1

: 6.0 mm (0.236 in) dia.

d

2

: 10.2 mm (0.402 in) dia.

a: (J-43897-18)
b: (J-43897-12)
Oxygen sensor thread cleaner

Reconditioning the exhaust system threads
before installing a new heated oxygen sensor
(Use with anti-seize lubricant shown below.)
a = 18 mm (0.71 in) dia. for zirconia heated
oxygen sensor
b = 12 mm (0.47 in) dia. for titania heated
oxygen sensor

( — )
Anti-seize lubricant i.e.: (Permatex

TM



133AR or equivalent meeting MIL
specification MIL-A-907)

Lubricating oxygen sensor thread cleaning
tool when reconditioning exhaust system
threads

(TechMate No.)
Tool name

Description

S-NT015

S-NT016

AEM488

AEM489

EM-12

< SYSTEM DESCRIPTION >

[QR25DE]

NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING

SYSTEM DESCRIPTION

NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING

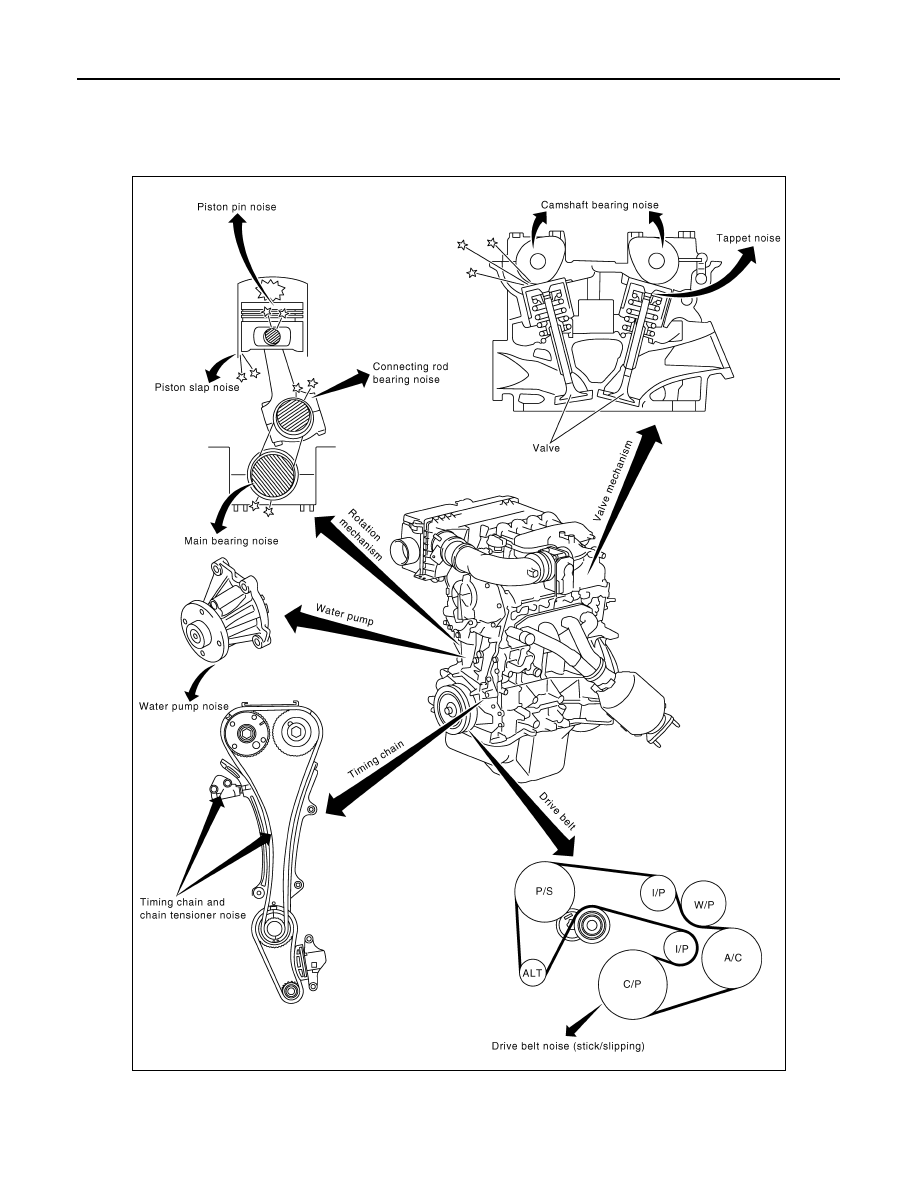

NVH Troubleshooting - Engine Noise

INFOID:0000000009478037

PBIC2983E
