Nissan Frontier. Manual - part 604

COOLING FAN CONTROL

EC-987

< SYSTEM DESCRIPTION >

[VQ40DE FOR MEXICO]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

COOLING FAN CONTROL

Description

INFOID:0000000009481687

SYSTEM DESCRIPTION

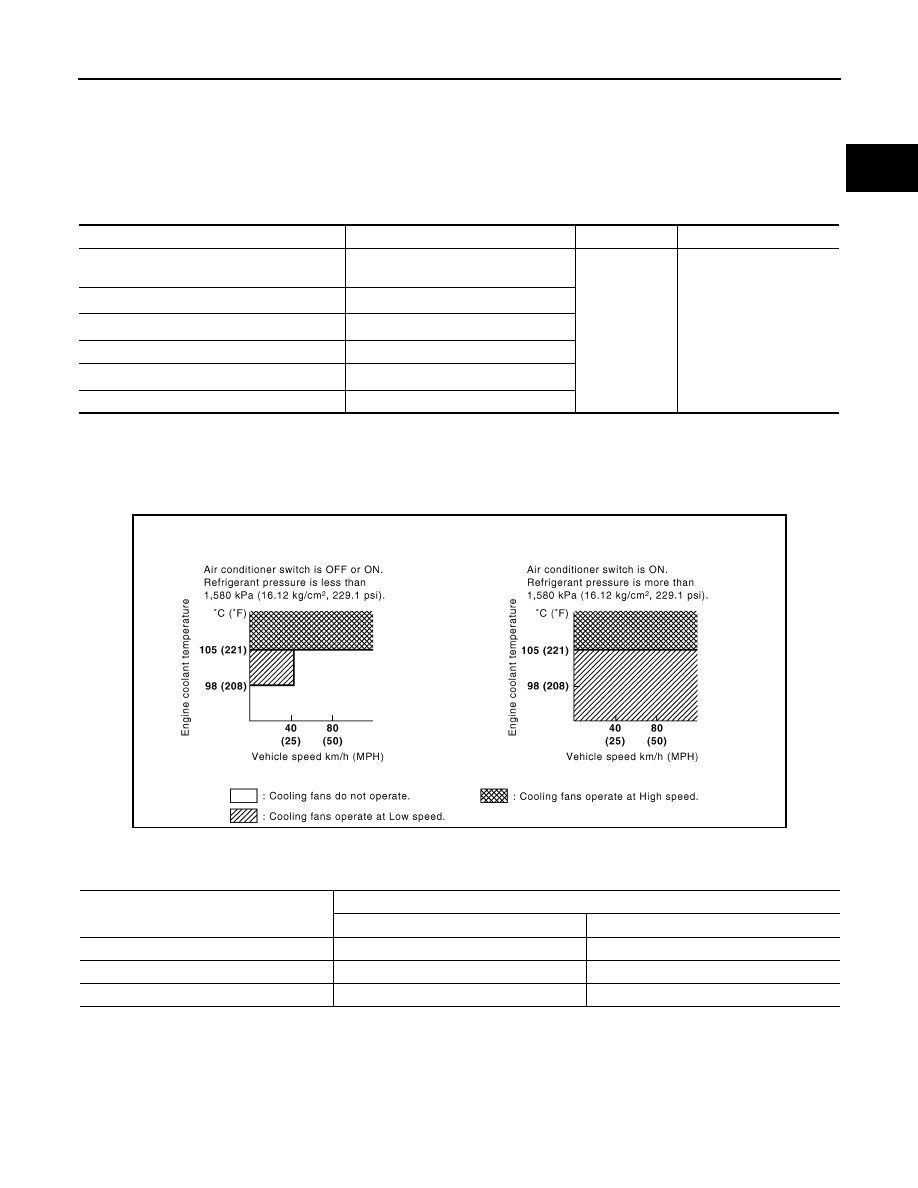

Cooling Fan Control

*1: The ECM determines the start signal status by the signals of engine speed and battery voltage.
*2: This signal is sent to ECM via the CAN communication line.

The ECM controls the cooling fan corresponding to the vehicle speed, engine coolant temperature, refrigerant

pressure, and air conditioner ON signal. The control system has 3-step control [HIGH/LOW/OFF].

Cooling Fan Operation

Cooling Fan Relay Operation

The ECM controls cooling fan relays in the IPDM E/R via the CAN communication line.

Sensor

Input Signal to ECM

ECM function

Actuator

Crankshaft position sensor (POS)
Camshaft position sensor (PHASE)

Engine speed*

1

Cooling fan
control

IPDM E/R
(Cooling fan relays)

Battery

Battery voltage*

1

Wheel sensor

Vehicle speed*

2

Engine coolant temperature sensor

Engine coolant temperature

Air conditioner switch

Air conditioner ON signal*

2

Refrigerant pressure sensor

Refrigerant pressure

PBIB2531E

Cooling fan speed

Cooling fan relay

LO

HI

Stop (OFF)

OFF

OFF

Low (LOW)

ON

OFF

High (HI)

ON

ON

EC-988

< SYSTEM DESCRIPTION >

[VQ40DE FOR MEXICO]

EVAPORATIVE EMISSION SYSTEM

EVAPORATIVE EMISSION SYSTEM

Description

INFOID:0000000009481688

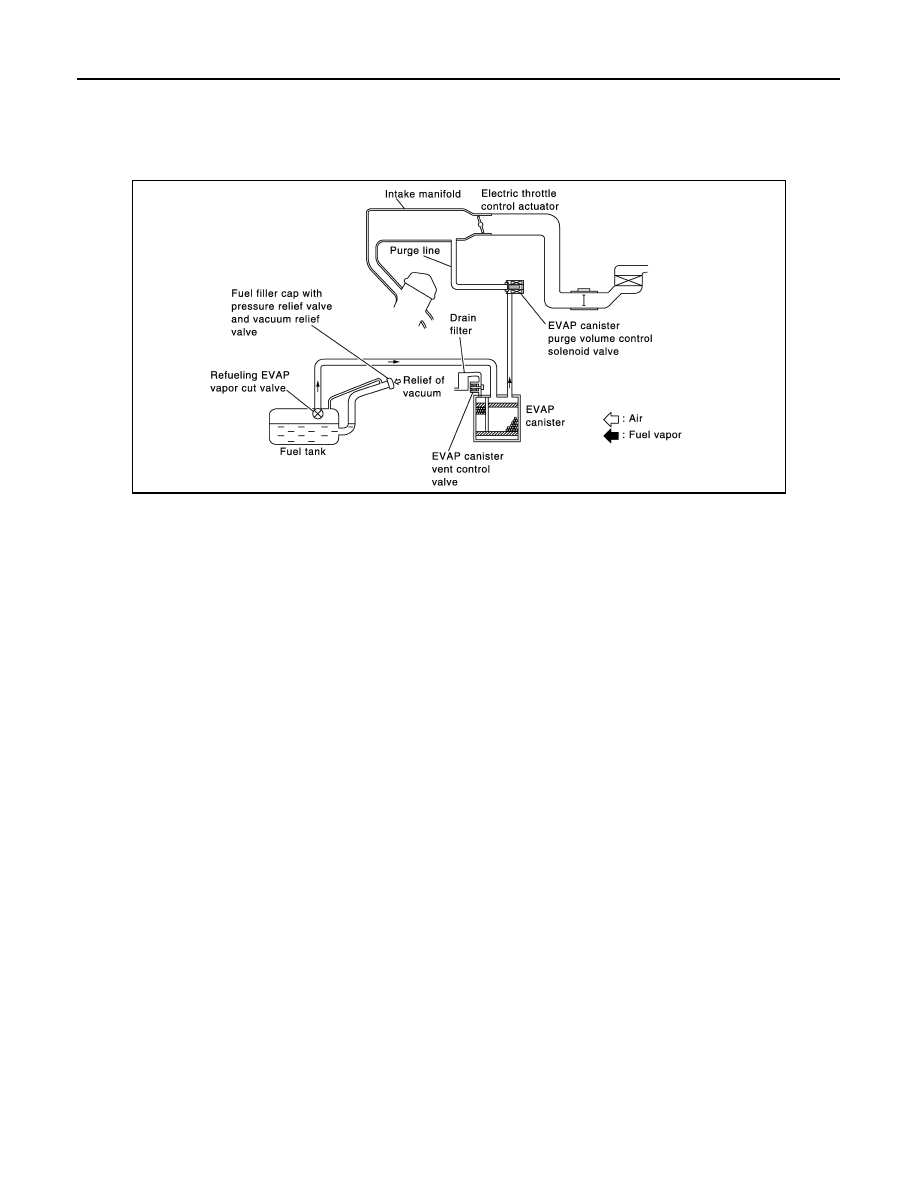

SYSTEM DESCRIPTION

The evaporative emission system is used to reduce hydrocarbons emitted into the atmosphere from the fuel

system. This reduction of hydrocarbons is accomplished by activated charcoals in the EVAP canister.

The fuel vapor in the sealed fuel tank is led into the EVAP canister which contains activated carbon and the

vapor is saved there when the engine is not operating or when refueling to the fuel tank.

The vapor in the EVAP canister is purged by the air through the purge line to the intake manifold when the

engine is operating. EVAP canister purge volume control solenoid valve is controlled by ECM. When the

engine operates, the flow rate of vapor controlled by EVAP canister purge volume control solenoid valve is

proportionally regulated as the air flow increases.

EVAP canister purge volume control solenoid valve also shuts off the vapor purge line during decelerating.

PBIB3639E

EVAPORATIVE EMISSION SYSTEM

EC-989

< SYSTEM DESCRIPTION >

[VQ40DE FOR MEXICO]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

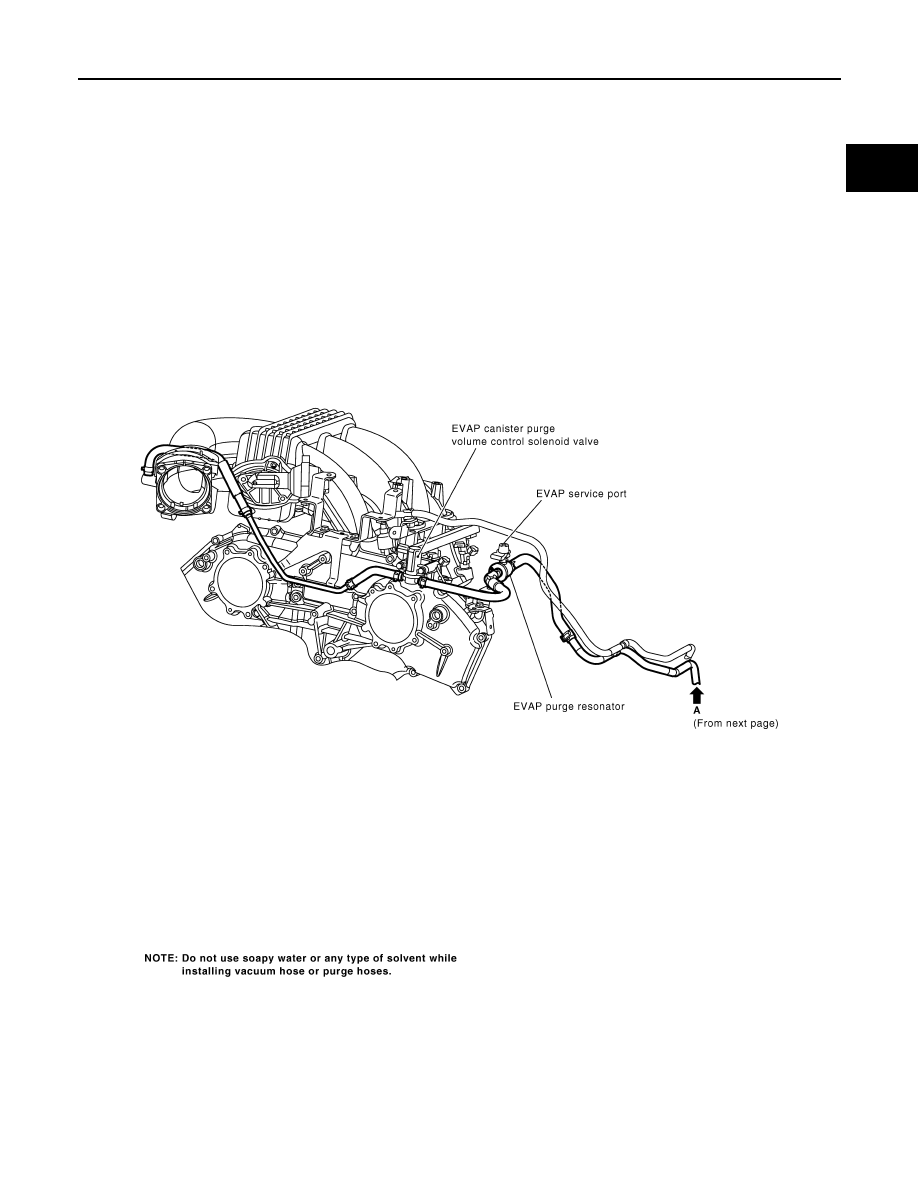

EVAPORATIVE EMISSION LINE DRAWING

PBIB2528E

EC-990

< SYSTEM DESCRIPTION >

[VQ40DE FOR MEXICO]

EVAPORATIVE EMISSION SYSTEM

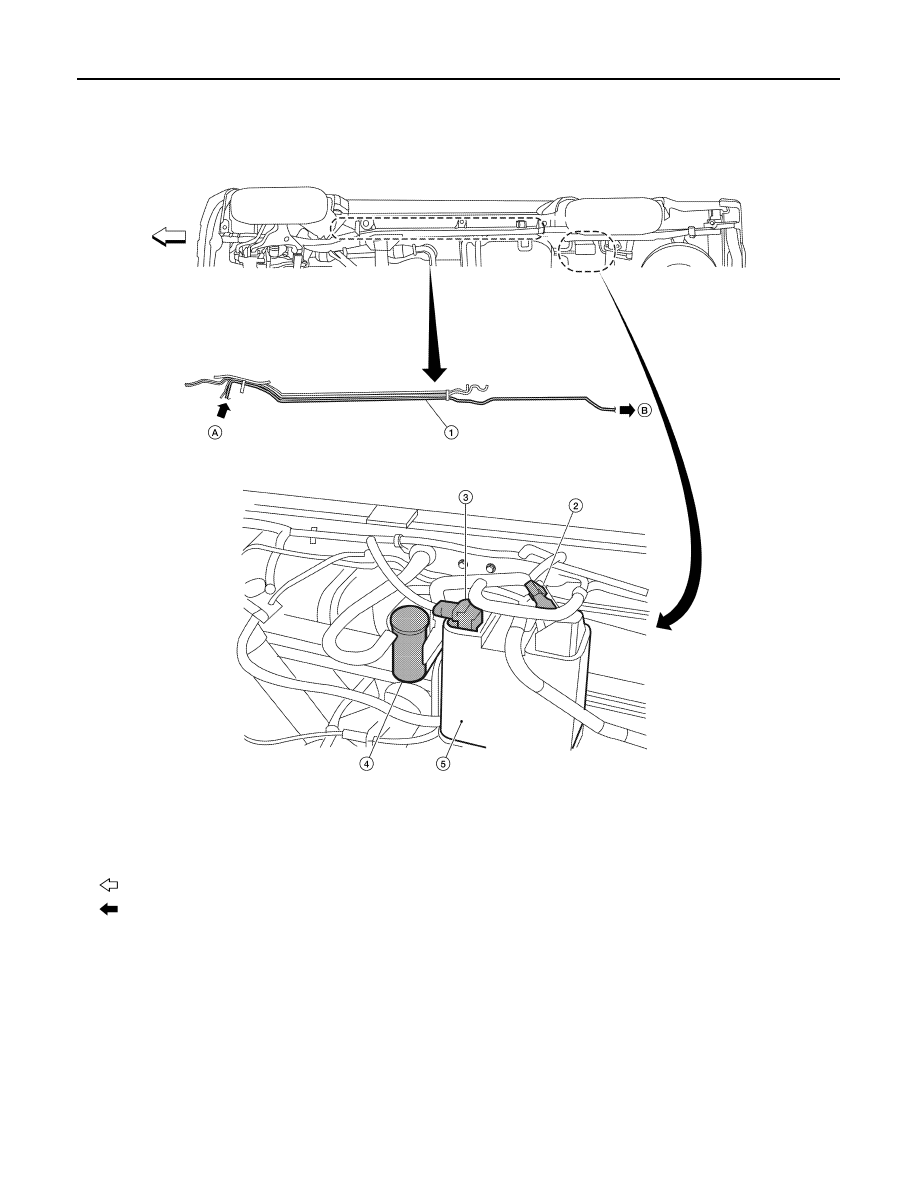

1.

EVAP vapor purge line

2.

EVAP canister vent control valve
(view with bed removed)

3.

EVAP control system pressure sen-
sor

4.

Drain filter

5.

EVAP canister

:Vehicle front

:Previous page

ALBIA0513ZZ
