4.

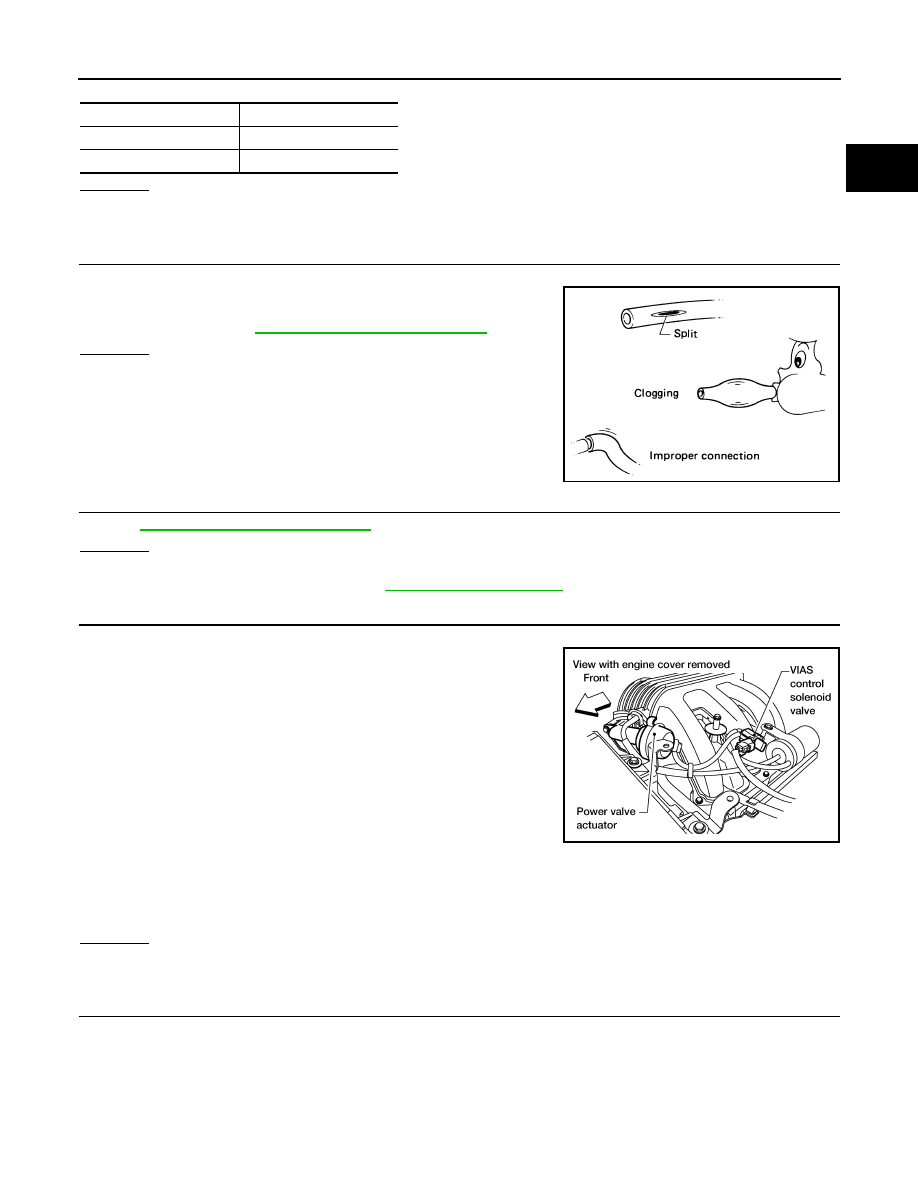

CHECK VACUUM HOSE

1. Stop engine.

2. Check hoses and tubes between intake manifold and power

valve actuator for cracks, clogging, improper connection or dis-

connection. Refer to

EC-506, "Vacuum Hose Drawing"

.

OK or NG

OK

>> GO TO 5.

NG

>> Repair hoses or tubes.

5.

CHECK VACUUM TANK

Refer to

EC-952, "Component Inspection"

.

OK or NG

OK

>> GO TO 6.

NG

>> Replace vacuum tank. Refer to

EM-142, "Exploded View"

.

6.

CHECK VIAS CONTROL SOLENOID VALVE POWER SUPPLY CIRCUIT

1. Turn ignition switch OFF.

2. Disconnect VIAS control solenoid valve harness connector.

3. Turn ignition switch ON.

4. Check voltage between terminal 1 and ground with CONSULT or tester.

OK or NG

OK

>> GO TO 8.

NG

>> GO TO 7.

7.

DETECT MALFUNCTIONING PART

Check the following.

• Harness connectors E2, F32

• Harness for open or short between VIAS control solenoid valve and IPDM E/R

• Harness for open or short between VIAS control solenoid valve and ECM

>> Repair harness or connectors.

Condition

Vacuum

12V direct current supply

Should exist.

No supply

Should not exist.

SEF109L

BBIA0569E

Voltage: Battery voltage

EC-952

< DTC/CIRCUIT DIAGNOSIS >

[VQ40DE FOR USA AND CANADA]

VIAS

8.

CHECK VIAS CONTROL SOLENOID VALVE OUTPUT SIGNAL CIRCUIT FOR OPEN AND SHORT

1. Turn ignition switch OFF.

2. Disconnect ECM harness connector.

3. Check harness continuity between ECM terminal 39 and VIAS control solenoid valve terminal 2.

Refer to Wiring Diagram.

4. Also check harness for short to ground and short to power.
OK or NG

OK

>> GO TO 9.

NG

>> Repair open circuit or short to ground or short to power in harness or connectors.

9.

CHECK VIAS CONTROL SOLENOID VALVE

Refer to

EC-952, "Component Inspection"

.

OK or NG

OK

>> GO TO 10.

NG

>> Replace VIAS control solenoid valve. Refer to

EM-142, "Exploded View"

.

10.

CHECK INTERMITTENT INCIDENT

Refer to

GI-42, "Intermittent Incident"

.

>> INSPECTION END

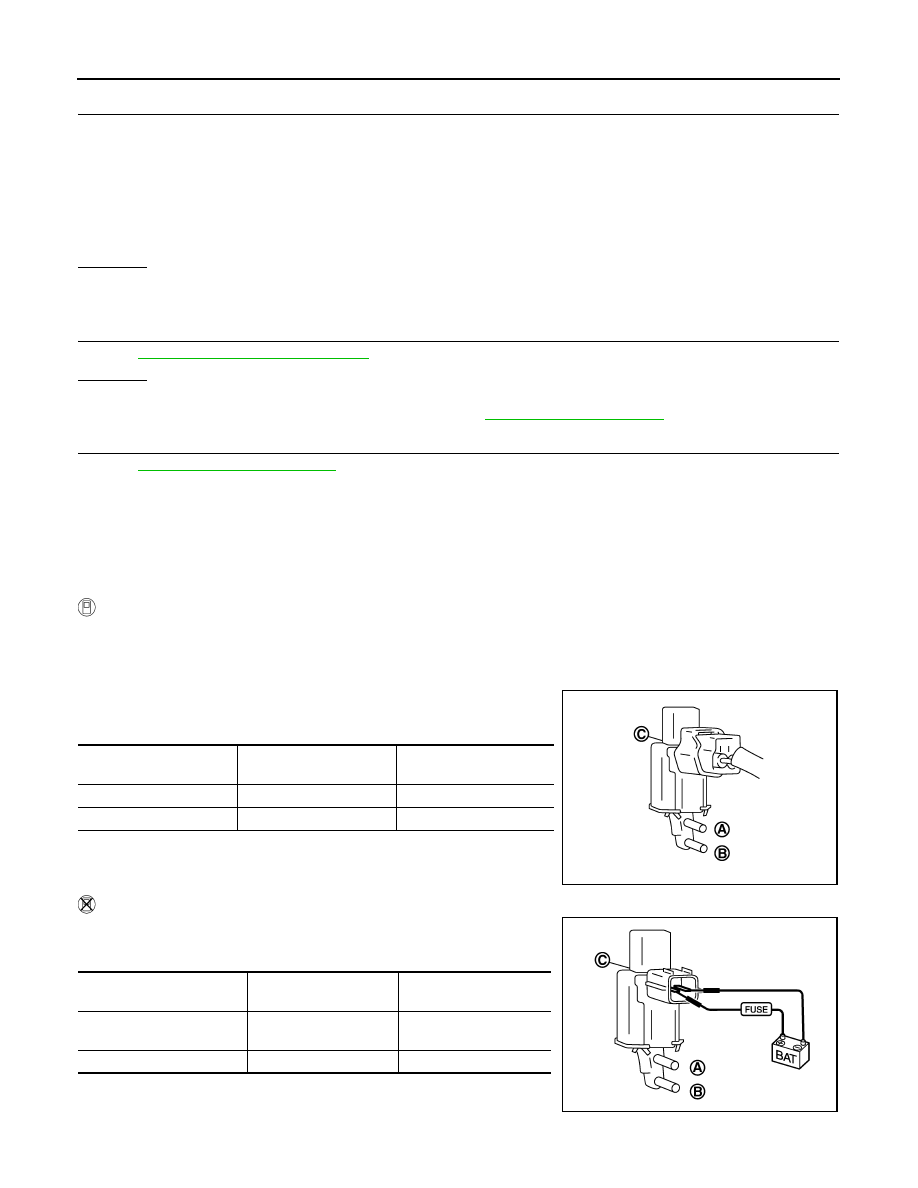

Component Inspection

INFOID:0000000009481654

VIAS CONTROL SOLENOID VALVE

 With CONSULT

1. Reconnect harness connectors disconnected.
2. Turn ignition switch ON.
3. Perform “VIAS S/V-1” in “ACTIVE TEST” mode.
4. Check air passage continuity and operation delay time under the

following conditions.

Operation takes less than 1 second.

 Without CONSULT

Check air passage continuity and operation delay time under the fol-

lowing conditions.

Operation takes less than 1 second.

VACUUM TANK

Continuity should exist.

Condition

VIAS SOL VALVE

Air passage continuity

between (A) and (B)

Air passage continuity

between (A) and (C)

ON

Yes

No

OFF

No

Yes

JMBIA0180ZZ

Condition

Air passage continuity

between (A) and (B)

Air passage continuity

between (A) and (C)

12V direct current supply
between terminals 1 and 2

Yes

No

No supply

No

Yes

PBIB2532E

VIAS

EC-953

< DTC/CIRCUIT DIAGNOSIS >

[VQ40DE FOR USA AND CANADA]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

1. Disconnect vacuum hose connected to vacuum tank.

2. Connect a vacuum pump to the port (A) of vacuum tank.

3. Apply vacuum and make sure that vacuum exists at the port (B).

PBIB0846E
