>> INSPECTION END

Component Inspection

INFOID:0000000009481626

ACCELERATOR PEDAL POSITION SENSOR

1. Reconnect all harness connectors disconnected.
2. Turn ignition switch ON.
3. Check voltage between ECM terminals 97 (APP sensor 1 signal), 98 (APP sensor 2 signal) and ground

under the following conditions.

4. If NG, replace accelerator pedal assembly and go to next step.
5. Perform

EC-590, "Accelerator Pedal Released Position Learning"

.

6. Perform

EC-591, "Throttle Valve Closed Position Learning"

.

7. Perform

EC-591, "Idle Air Volume Learning"

.

Terminal

Accelerator pedal

Voltage

97
 (Accelerator pedal position
sensor 1)

Fully released

0.65 - 0.87V

Fully depressed

More than 4.3V

98
(Accelerator pedal position
sensor 2)

Fully released

0.28 - 0.48V

Fully depressed

More than 2.0V

EC-916

< DTC/CIRCUIT DIAGNOSIS >

[VQ40DE FOR USA AND CANADA]

ASCD BRAKE SWITCH

ASCD BRAKE SWITCH

Component Description

INFOID:0000000009481627

When the brake pedal is depressed, brake pedal position switch is turned OFF and stop lamp switch is turned

ON. ECM detects the state of the brake pedal by two types of input (ON/OFF signal).

Refer to

EC-493, "System Description"

 for the ASCD function.

Diagnosis Procedure

INFOID:0000000009481628

A/T MODELS

1.

CHECK OVERALL FUNCTION-I

 With CONSULT

1. Turn ignition switch ON.

2. Select “BRAKE SW1” in “DATA MONITOR” mode with CONSULT.

3. Check “BRAKE SW1” indication under the following conditions.

 Without CONSULT

1. Turn ignition switch ON.

2. Check voltage between ECM terminal 126 and ground under the following conditions.

OK or NG

OK

>> GO TO 2.

NG

>> GO TO 3.

2.

CHECK OVERALL FUNCTION-II

 With CONSULT

Check “BRAKE SW2” indication in “DATA MONITOR” mode.

 Without CONSULT

Check voltage between ECM terminal 122 and ground under the following conditions.

OK or NG

OK

>> INSPECTION END

NG

>> GO TO 7.

3.

CHECK BRAKE PEDAL POSITION SWITCH POWER SUPPLY CIRCUIT

1. Turn ignition switch OFF.

CONDITION

INDICATION

Brake pedal: Slightly depressed

OFF

Brake pedal: Fully released

ON

CONDITION

VOLTAGE

Brake pedal: Slightly depressed

Approximately 0V

Brake pedal: Fully released

Battery voltage

CONDITION

INDICATION

Brake pedal: Fully released

OFF

Brake pedal: Slightly depressed

ON

CONDITION

VOLTAGE

Brake pedal: Fully released

Approximately 0V

Brake pedal: Slightly depressed

Battery voltage

ASCD BRAKE SWITCH

EC-917

< DTC/CIRCUIT DIAGNOSIS >

[VQ40DE FOR USA AND CANADA]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

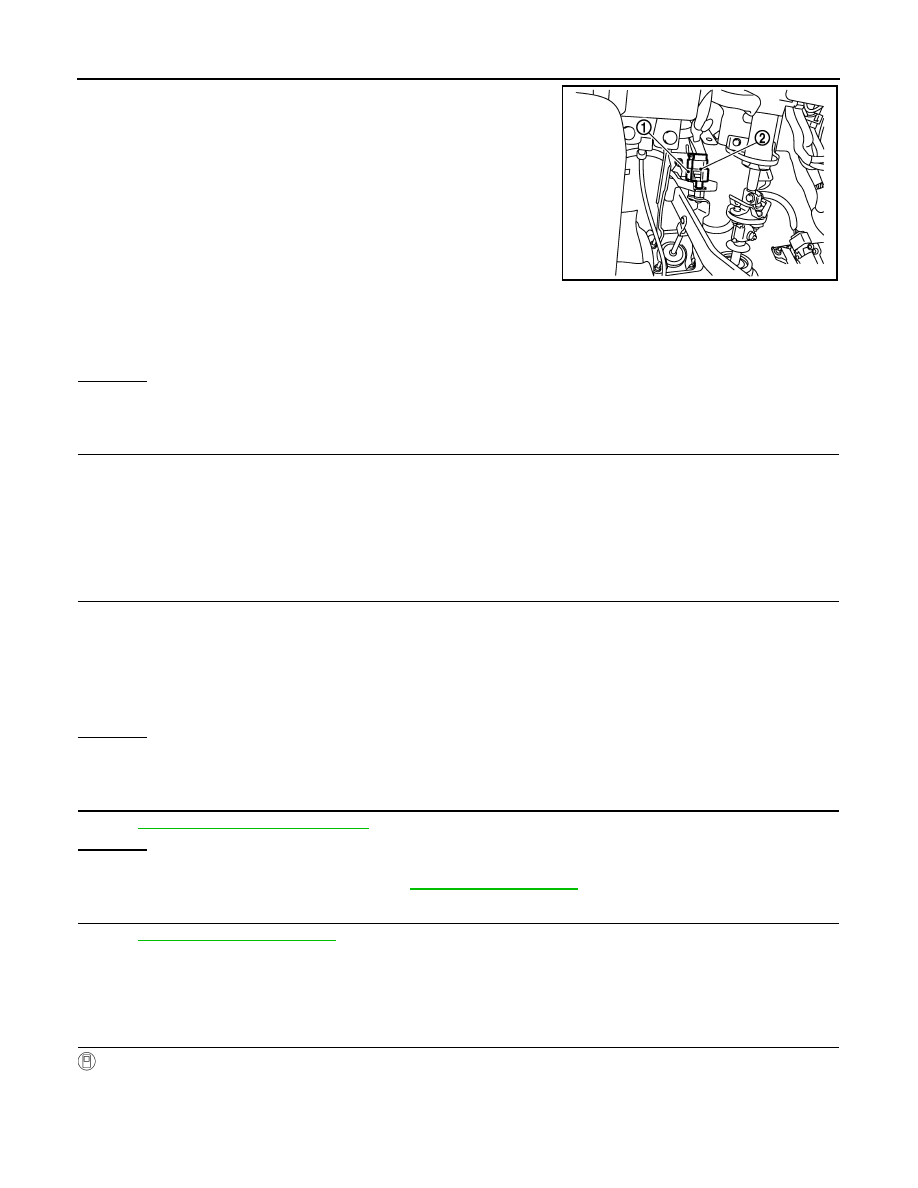

2. Disconnect brake pedal position switch (1) harness connector.

-

Stop lamp switch (2)

3. Turn ignition switch ON.

4. Check voltage between brake pedal position switch terminal 1 and ground with CONSULT or tester.

OK or NG

OK

>> GO TO 5.

NG

>> GO TO 4.

4.

DETECT MALFUNCTIONING PART

Check the following.

• Fuse block (J/B) connector E160

• 10 A fuse (No.12)

• Harness for open or short between brake pedal position switch and fuse

>> Repair open circuit or short to ground in harness or connectors.

5.

CHECK BRAKE PEDAL POSITION SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT

1. Turn ignition switch OFF.

2. Disconnect ECM harness connector.

3. Check harness continuity between ECM terminal 126 and brake pedal position switch terminal 2.

Refer to Wiring Diagram.

4. Also check harness for short to ground and short to power.
OK or NG

OK

>> GO TO 6.

NG

>> Repair open circuit or short to ground or short to power in harness or connectors.

6.

CHECK BRAKE PEDAL POSITION SWITCH

Refer to

EC-922, "Component Inspection"

 .

OK or NG

OK

>> GO TO 11.

NG

>> Replace brake pedal position switch. Refer to

BR-20, "Exploded View"

.

7.

CHECK STOP LAMP SWITCH POWER SUPPLY CIRCUIT

1. Turn ignition switch OFF.

MBIB1214E

Voltage: Battery voltage

Continuity should exist.

EC-918

< DTC/CIRCUIT DIAGNOSIS >

[VQ40DE FOR USA AND CANADA]

ASCD BRAKE SWITCH

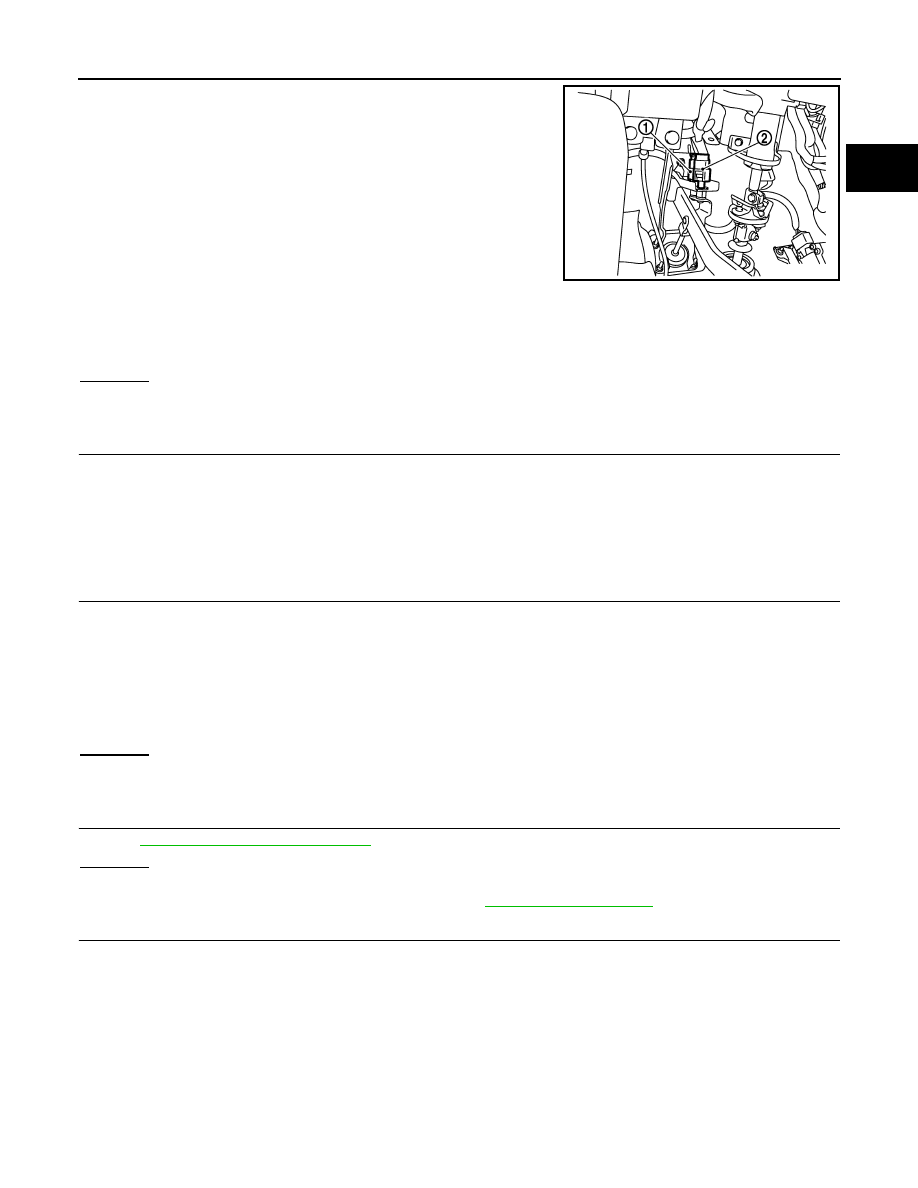

2. Disconnect stop lamp switch (2) harness connector.

-

brake pedal position switch (1)

3. Check voltage between stop lamp switch terminal 1 and ground with CONSULT or tester.

OK or NG

OK

>> GO TO 9.

NG

>> GO TO 8.

8.

DETECT MALFUNCTIONING PART

Check the following.

• Fuse block (J/B) connector E160

• 10 A fuse (No.20)

• Harness for open or short between stop lamp switch and battery

>> Repair open circuit or short to ground or short to power in harness or connectors.

9.

CHECK STOP LAMP SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT

1. Disconnect ECM harness connector.

2. Check harness continuity between ECM terminal 122 and stop lamp switch terminal 2.

Refer to Wiring Diagram.

3. Also check harness for short to ground and short to power.
OK or NG

OK

>> GO TO 10.

NG

>> Repair open circuit or short to ground or short to power in harness or connectors.

10.

CHECK STOP LAMP SWITCH

Refer to

EC-922, "Component Inspection"

.

OK or NG

OK

>> GO TO 11.

NG

>> Replace stop lamp switch. Refer to

BR-20, "Exploded View"

.

11.

CHECK INTERMITTENT INCIDENT

Refer to

GI-42, "Intermittent Incident"

.

>> INSPECTION END

M/T MODELS

1.

CHECK OVERALL FUNCTION-I

 With CONSULT

1. Turn ignition switch ON.

2. Select “BRAKE SW1” in “DATA MONITOR” mode with CONSULT.

3. Check “BRAKE SW1” indication under the following conditions.

MBIB1214E

Voltage: Battery voltage

Continuity should exist.
