Nissan Frontier. Manual - part 558





P0456 EVAP CONTROL SYSTEM

EC-803

< DTC/CIRCUIT DIAGNOSIS >

[VQ40DE FOR USA AND CANADA]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

3.

CHECK FUEL FILLER CAP FUNCTION

Check for air releasing sound while opening the fuel filler cap.
OK or NG

OK

>> GO TO 5.

NG

>> GO TO 4.

4.

CHECK FUEL TANK VACUUM RELIEF VALVE

Refer to

EC-762, "Component Inspection"

.

OK or NG

OK

>> GO TO 5.

NG

>> Replace fuel filler cap with a genuine one.

5.

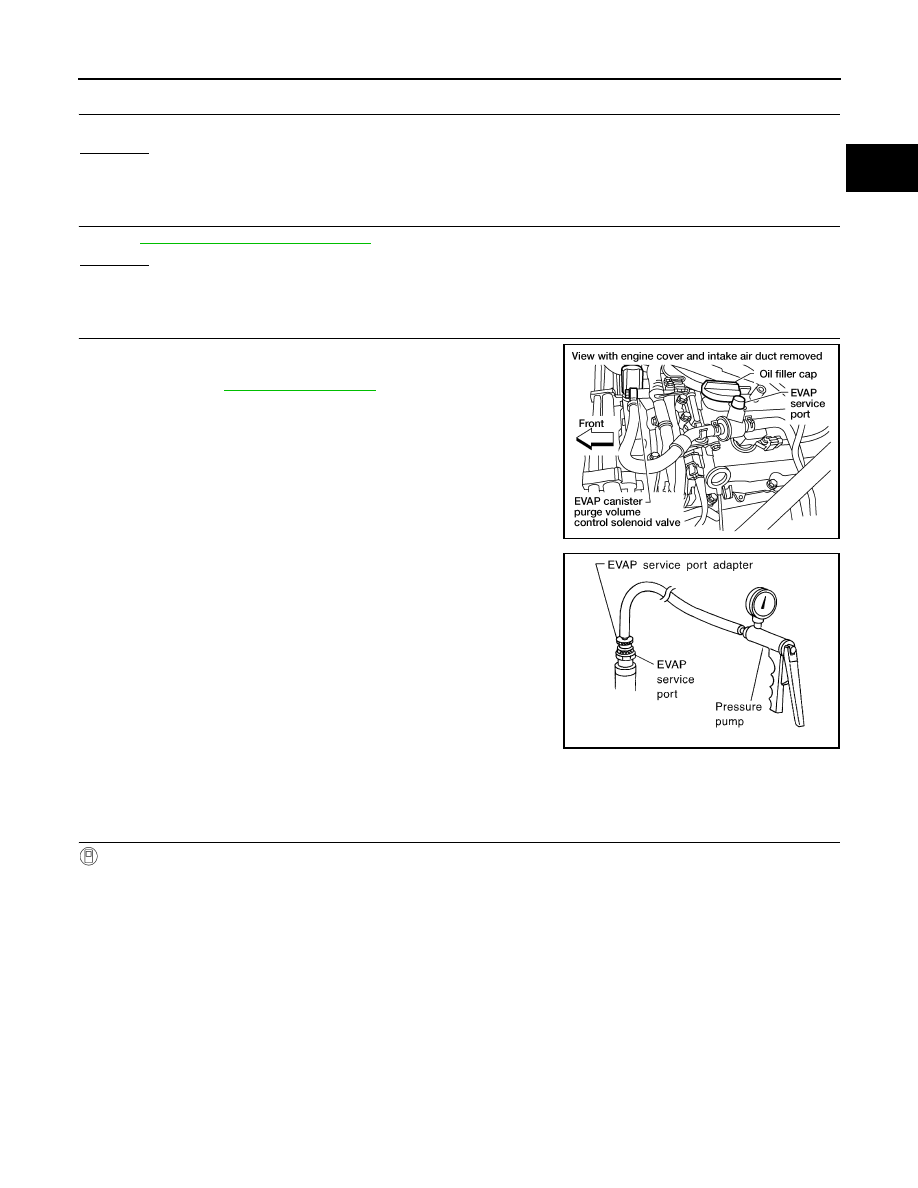

INSTALL THE PRESSURE PUMP

To locate the EVAP leak, install EVAP service port adapter and pres-

sure pump to EVAP service port securely. For the location of EVAP

service port, refer to

EC-497, "Description"

.

NOTE:

Improper installation of the EVAP service port adapter to the

EVAP service port may cause leaking.

With CONSULT>>GO TO 6.

Without CONSULT>>GO TO 7.

6.

CHECK FOR EVAP LEAK

 With CONSULT

1. Turn ignition switch ON.

2. Select “EVAP SYSTEM CLOSE” of “WORK SUPPORT” mode with CONSULT.

3. Touch “START” and apply pressure into the EVAP line until the pressure indicator reaches the middle of

the bar graph.

CAUTION:

• Never use compressed air or a high pressure pump.
• Never exceed 4.12 kPa (0.042 kg/cm

2

, 0.6 psi) of pressure in the system.

BBIA0550E

SEF916U

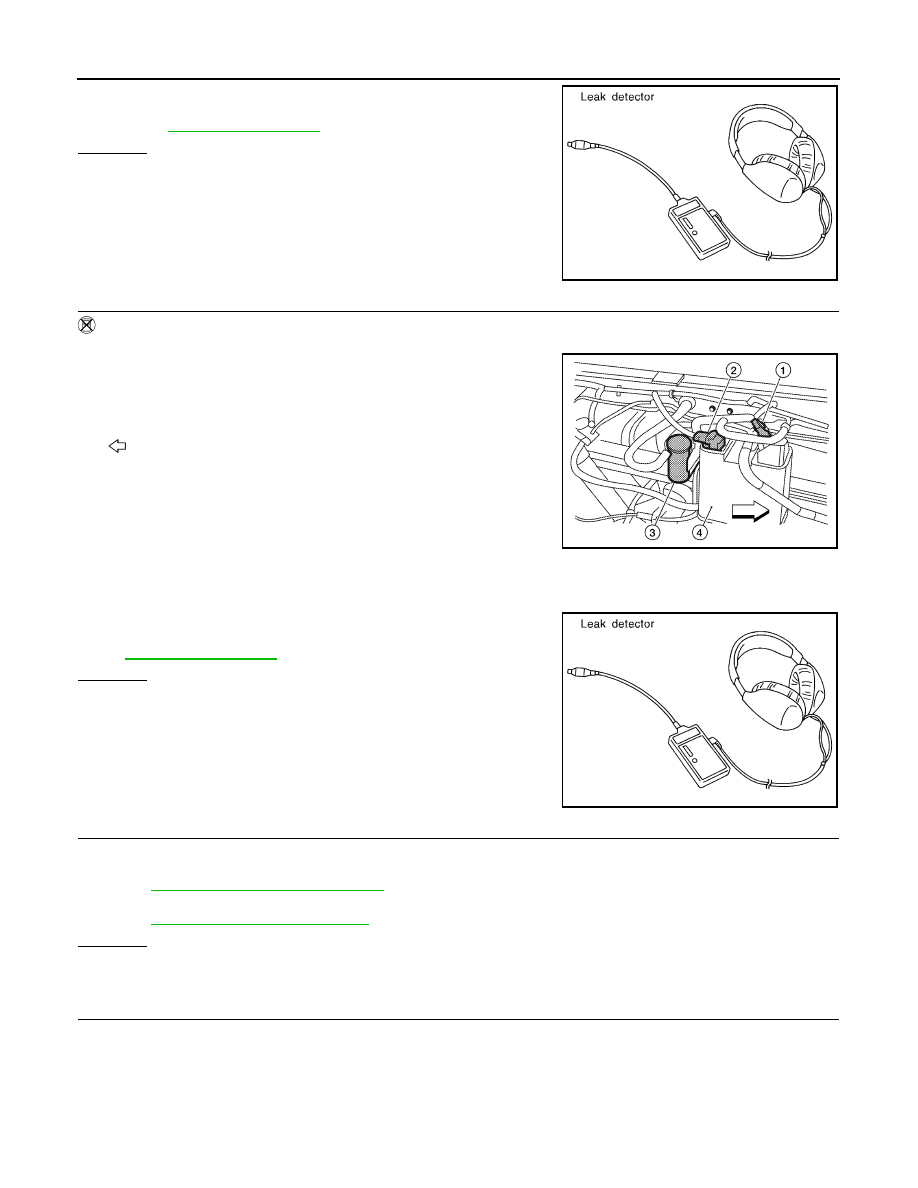

EC-804

< DTC/CIRCUIT DIAGNOSIS >

[VQ40DE FOR USA AND CANADA]

P0456 EVAP CONTROL SYSTEM

4. Using EVAP leak detector, locate the EVAP leak. For the leak

detector, refer to the instruction manual for more details.

Refer to

EC-497, "Description"

.

OK or NG

OK

>> GO TO 8.

NG

>> Repair or replace.

7.

CHECK FOR EVAP LEAK

 Without CONSULT

1. Turn ignition switch OFF.

2. Apply 12 volts DC to EVAP canister vent control valve (1). The

valve will close. (Continue to apply 12 volts until the end of test.)

-

EVAP control system pressure sensor (2)

-

Drain filter (3)

-

EVAP canister (4)

-

: Vehicle front

3. Pressurize the EVAP line using pressure pump with 1.38 to 2.76

kPa (0.014 to 0.028 kg/cm

2

, 0.2 to 0.4 psi), then remove pump

and EVAP service port adapter.

CAUTION:

• Never use compressed air or a high pressure pump.
• Never exceed 4.12 kPa (0.042 kg/cm

2

, 0.6 psi) of pressure

in the system.

4. Using EVAP leak detector, locate the EVAP leak. For the leak

detector, refer to the instruction manual for more details. Refer

to

EC-497, "Description"

.

OK or NG

OK

>> GO TO 8.

NG

>> Repair or replace.

8.

CHECK EVAP CANISTER VENT CONTROL VALVE

Check the following.

• EVAP canister vent control valve is installed properly.

Refer to

FL-14, "Removal and Installation"

.

• EVAP canister vent control valve.

Refer to

FL-14, "Component Inspection"

.

OK or NG

OK

>> GO TO 9.

NG

>> Repair or replace EVAP canister vent control valve and O-ring.

9.

CHECK IF EVAP CANISTER IS SATURATED WITH WATER

1. Remove EVAP canister with EVAP canister vent control valve and EVAP control system pressure sensor

attached.

SEF200U

ALBIA0514ZZ

SEF200U

P0456 EVAP CONTROL SYSTEM

EC-805

< DTC/CIRCUIT DIAGNOSIS >

[VQ40DE FOR USA AND CANADA]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

2. Does water drain from the EVAP canister?
Yes or No

Yes

>> GO TO 10.

No (With CONSULT)>>GO TO 12.

No (Without CONSULT)>>GO TO 13.

10.

CHECK EVAP CANISTER

Weigh the EVAP canister with the EVAP canister vent control valve and EVAP control system pressure sensor

attached.

The weight should be less than 2.0 kg (4.4 lb).
OK or NG

OK (With CONSULT)>>GO TO 12.

OK (Without CONSULT)>>GO TO 13.

NG

>> GO TO 11.

11.

DETECT MALFUNCTIONING PART

Check the following.

• EVAP canister for damage

• EVAP hose between EVAP canister and vehicle frame for clogging or poor connection

>> Repair hose or replace EVAP canister.

12.

CHECK EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE OPERATION

 With CONSULT

1. Disconnect vacuum hose connected to EVAP service purge volume control solenoid valve from EVAP

canister purge volume control solenoid valve.

2. Start engine.

3. Perform “PURG VOL CONT/V” in “ACTIVE TEST” mode.

4. Touch “Qu” on CONSULT screen to increase “PURG VOL CONT/V” opening to 100%.

5. Check vacuum hose for vacuum when revving engine up to 2,000 rpm.
OK or NG

OK

>> GO TO 16.

NG

>> GO TO 14.

13.

CHECK EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE OPERATION

 Without CONSULT

1. Start engine and warm it up to normal operating temperature.

2. Stop engine.

3. Disconnect vacuum hose connected to EVAP service purge volume control solenoid valve from EVAP

canister purge volume control solenoid valve.

4. Start engine and let it idle for at least 80 seconds.

5. Check vacuum hose for vacuum when revving engine up to 2,000 rpm.

OK or NG

OK

>> GO TO 15.

NG

>> GO TO 14.

14.

CHECK VACUUM HOSE

Check vacuum hoses for clogging or disconnection. Refer to

EC-497, "Description"

.

OK or NG

OK

>> GO TO 15.

BBIA0558E

Vacuum should exist.

EC-806

< DTC/CIRCUIT DIAGNOSIS >

[VQ40DE FOR USA AND CANADA]

P0456 EVAP CONTROL SYSTEM

NG

>> Repair or reconnect the hose.

15.

CHECK EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE

Refer to

EC-771, "Component Inspection"

.

OK or NG

OK

>> GO TO 16.

NG

>> Replace EVAP canister purge volume control solenoid valve. Refer to

EM-142, "Exploded View"

.

16.

CHECK FUEL TANK TEMPERATURE SENSOR

Refer to

EC-716, "Component Inspection"

.

OK or NG

OK

>> GO TO 17.

NG

>> Replace fuel level sensor unit. Refer to

FL-10, "Removal and Installation"

.

17.

CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR

Refer to

EC-786, "Component Inspection"

.

OK or NG

OK

>> GO TO 18.

NG

>> Replace EVAP control system pressure sensor. Refer to

FL-14, "Removal and Installation"

.

18.

CHECK EVAP PURGE LINE

Check EVAP purge line (pipe, rubber tube, fuel tank and EVAP canister) for cracks or improper connection.

Refer to

EC-497, "Description"

.

OK or NG

OK

>> GO TO 19.

NG

>> Repair or reconnect the hose.

19.

CLEAN EVAP PURGE LINE

Clean EVAP purge line (pipe and rubber tube) using air blower.

>> GO TO 20.

20.

CHECK EVAP/ORVR LINE

Check EVAP/ORVR line between EVAP canister and fuel tank for clogging, kinks, looseness and improper

connection. For location, refer to

EC-940, "System Description"

.

OK or NG

OK

>> GO TO 21.

NG

>> Repair or replace hoses and tubes.

21.

CHECK RECIRCULATION LINE

Check recirculation line between filler neck tube and fuel tank for clogging, kinks, cracks, looseness and

improper connection.
OK or NG

OK

>> GO TO 22.

NG

>> Repair or replace hose, tube or filler neck tube.

22.

CHECK REFUELING EVAP VAPOR CUT VALVE

Refer to

EC-943, "Component Inspection"

.

OK or NG

OK

>> GO TO 23.

NG

>> Replace refueling EVAP vapor cut valve with fuel tank.  Refer to

FL-14, "Removal and Installa-

tion"

.

23.

CHECK FUEL LEVEL SENSOR

Refer to

MWI-35, "Component Inspection"

.

OK or NG

OK

>> GO TO 24.
