P0128 THERMOSTAT FUNCTION

On Board Diagnosis Logic

INFOID:0000000009481318

NOTE:

If DTC P0128 is displayed with DTC P0300, P0301, P0302, P0303, P0304, P0305 or P0306, first perform

the trouble diagnosis for DTC P0300, P0301, P0302, P0303, P0304, P0305, P0306. Refer to

EC-730,

"DTC Confirmation Procedure"

.

Engine coolant temperature has not risen enough to open the thermostat even though the engine has run long

enough.

This is due to a leak in the seal or the thermostat being stuck open.

DTC Confirmation Procedure

INFOID:0000000009481319

NOTE:

If DTC Confirmation Procedure has been previously conducted, always perform the following before conduct-

ing the next test.

1. Turn ignition switch OFF and wait at least 10 seconds.

2. Turn ignition switch ON.

3. Turn ignition switch OFF and wait at least 10 seconds.

 WITH CONSULT

TESTING CONDITION:

• For best results, perform at ambient temperature of –10

°C (14°F) or higher.

• For best results, perform at engine coolant temperature of –10

°C (14°F) to 58°C (136°F).

• Before performing the following procedure, do not add fuel.
1. Turn A/C switch OFF.
2. Turn blower fan switch OFF.
3. Turn ignition switch ON.
4. Select “COOLAN TEMP/S” in “DATA MONITOR” mode with CONSULT.
5. Check the indication of “COOLAN TEMP/S”.

If it is below 58

°C (136°F), go to following step.

If it is above 58

°C (136°F), cool down the engine to less than 58°C (136°F). Then go to next steps.

6. Start engine and wait at idle for at least 10 minutes under the following conditions.

CAUTION:

Always drive vehicle at a safe speed.

NOTE:

If “COOLAN TEMP/S” increases to more than 71

°C (160°F) within 30 minutes, turn ignition switch

OFF because the test result will be OK.

7. Check 1st trip DTC.
8. If 1st trip DTC is detected, go to

EC-663, "Diagnosis Procedure"

.

 WITH GST

Follow the procedure “WITH CONSULT” above.

Diagnosis Procedure

INFOID:0000000009481320

1.

CHECK ENGINE COOLANT TEMPERATURE SENSOR

Refer to

EC-664, "Component Inspection"

.

OK or NG

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

P0128
0128

Thermostat function

The engine coolant temperature does not
reach to specified temperature even though
the engine has run long enough.

• Thermostat
• Leakage from sealing portion of thermostat
• Engine coolant temperature sensor

VHCL SPEED SE

More than 56 km/h (35MPH)

EC-664

< DTC/CIRCUIT DIAGNOSIS >

[VQ40DE FOR USA AND CANADA]

P0128 THERMOSTAT FUNCTION

OK

>> GO TO 2.

NG

>> Replace engine coolant temperature sensor. Refer to

CO-57, "Exploded View"

.

2.

CHECK THERMOSTAT

Refer to

CO-55, "Removal and Installation"

.

OK or NG

OK

>> INSPECTION END

NG

>> Replace thermostat.

Component Inspection

INFOID:0000000009481321

ENGINE COOLANT TEMPERATURE SENSOR

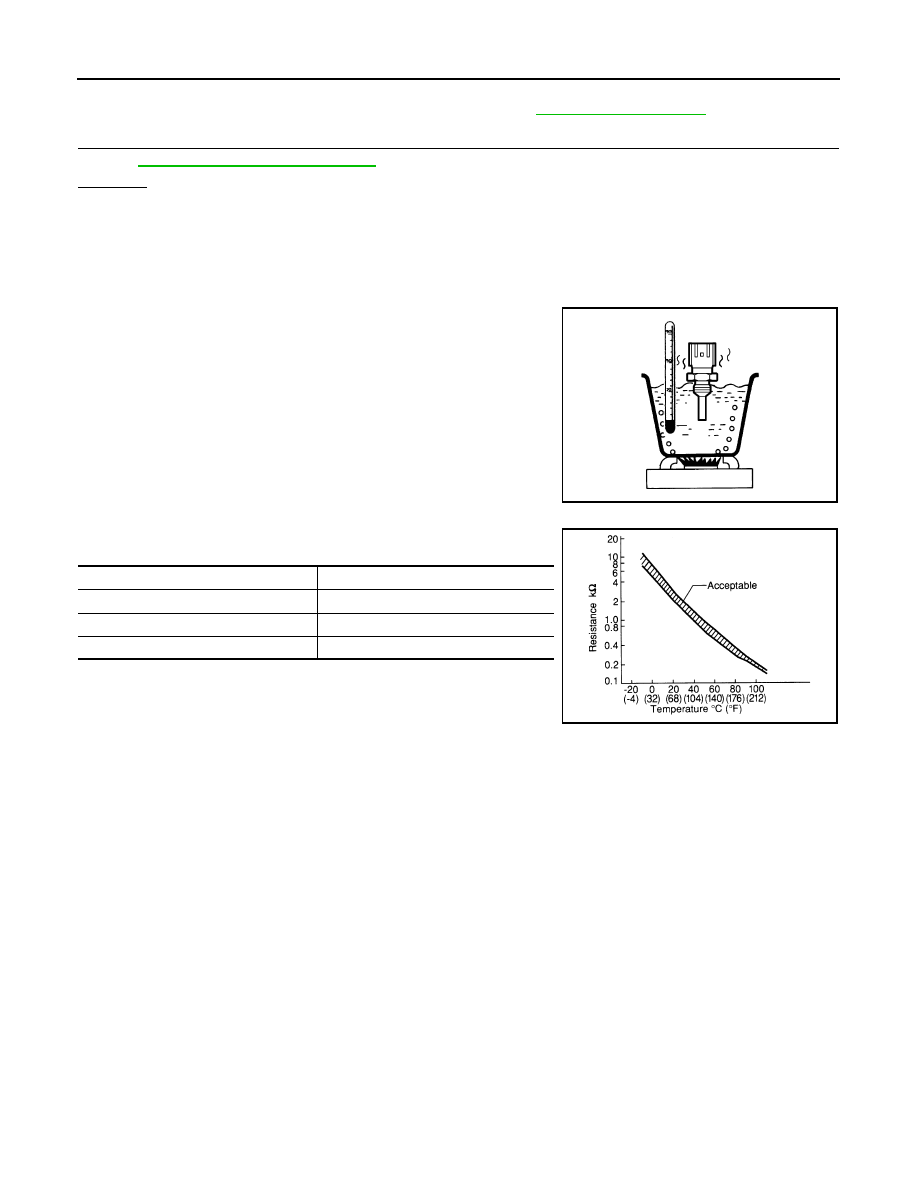

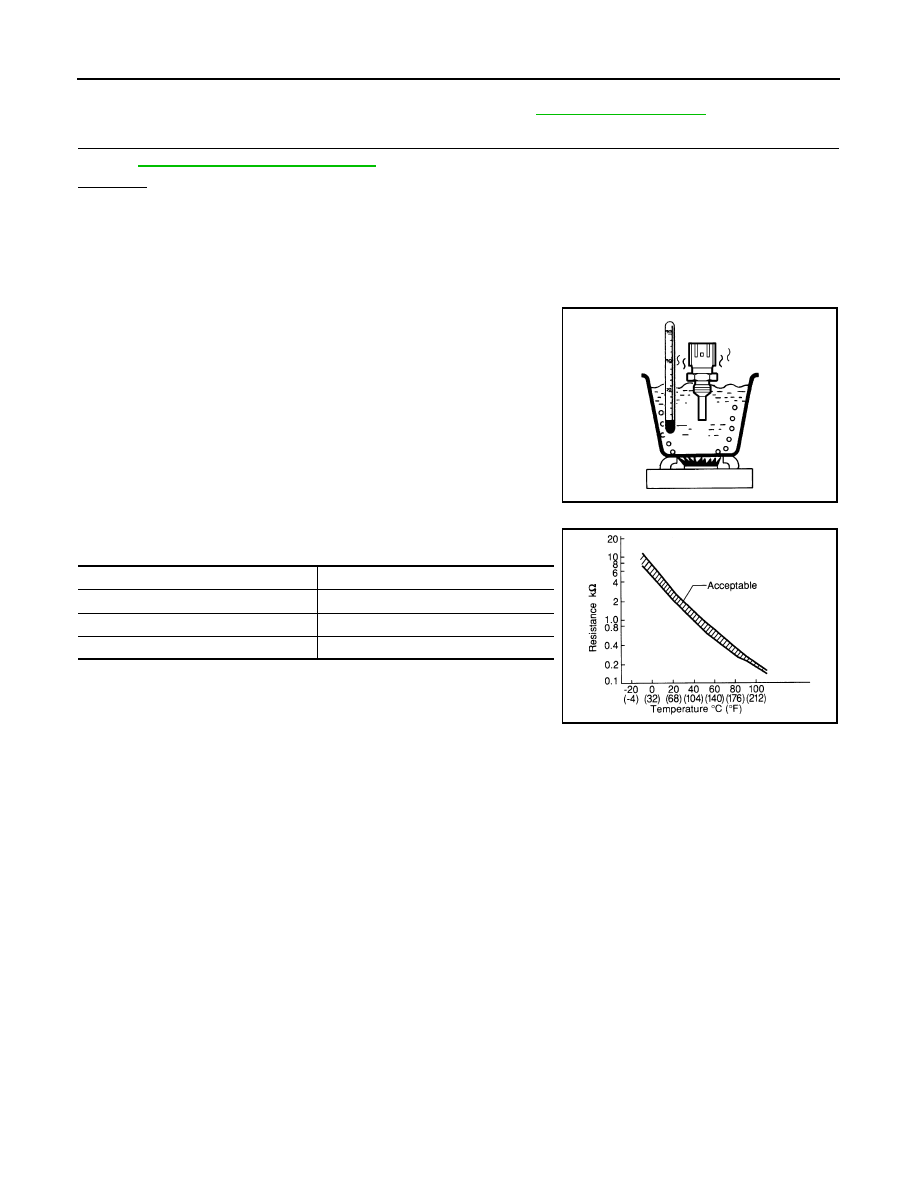

1. Check resistance between engine coolant temperature sensor

terminals 1 and 2 as shown in the figure.

<Reference data>

2. If NG, replace engine coolant temperature sensor.

JMBIA0080ZZ

Engine coolant temperature [

°C (°F)]

Resistance (k

Ω)

20 (68)

2.1 - 2.9

50 (122)

0.68 - 1.00

90 (194)

0.236 - 0.260

SEF012P

P0130, P0150 A/F SENSOR 1

EC-665

< DTC/CIRCUIT DIAGNOSIS >

[VQ40DE FOR USA AND CANADA]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

P0130, P0150 A/F SENSOR 1

Component Description

INFOID:0000000009481322

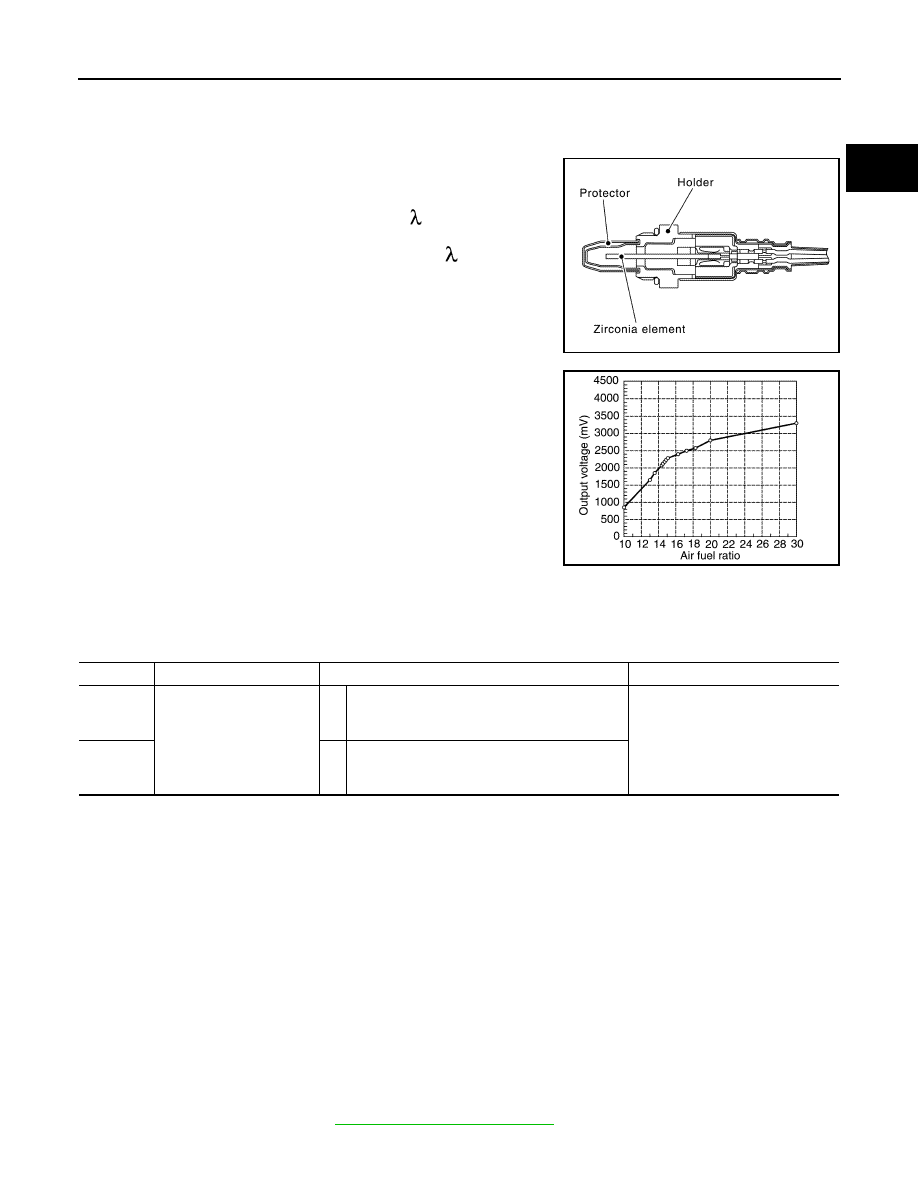

The air fuel ratio (A/F) sensor 1 is a planar one-cell limit current sen-
