P0075, P0081 IVT CONTROL SOLENOID VALVE

EC-631

< DTC/CIRCUIT DIAGNOSIS >

[VQ40DE FOR USA AND CANADA]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

OK or NG

OK

>> GO TO 3.

NG

>> GO TO 2.

2.

DETECT MALFUNCTIONING PART

Check the following.

• Harness connectors E2, F32

• Harness connectors F26, F225 (bank 1)

• Harness for open or short between intake valve timing control solenoid valve and IPDM E/R

• Harness for open or short between intake valve timing control solenoid valve and ECM

>> Repair harness or connectors.

3.

CHECK INTAKE VALVE TIMING CONTROL SOLENOID VALVE OUTPUT SIGNAL CIRCUIT FOR OPEN

AND SHORT

1. Turn ignition switch OFF.

2. Disconnect ECM harness connector.

3. Check harness continuity between ECM terminal 55 (bank 1) or 56 (bank 2) and intake valve timing con-

trol solenoid valve terminal 1. Refer to Wiring Diagram.

4. Also check harness for short to ground and short to power.
OK or NG

OK

>> GO TO 5.

NG

>> GO TO 4.

4.

DETECT MALFUNCTIONING PART

Check the following.

• Harness connectors F26, F225 (bank 1)

• Harness for open and short between ECM and intake valve timing control solenoid valve

>> Repair open circuit or short to ground or short to power in harness or connectors.

5.

CHECK INTAKE VALVE TIMING CONTROL SOLENOID VALVE

Refer to

EC-631, "Component Inspection"

.

OK or NG

OK

>> GO TO 6.

NG

>> Replace malfunctioning intake valve timing control solenoid valve. Refer to

EM-192, "Exploded

View"

.

6.

CHECK INTERMITTENT INCIDENT

Refer to

GI-42, "Intermittent Incident"

.

>> INSPECTION END

Component Inspection

INFOID:0000000009481270

INTAKE VALVE TIMING CONTROL SOLENOID VALVE

1. Disconnect intake valve timing control solenoid valve harness connector.
2. Check resistance between intake valve timing control solenoid valve as follows.

If NG, replace intake valve timing control solenoid valve.

Continuity should exist.

Terminal

Resistance

1 and 2

7.0 - 7.7

Ω at 20°C (68°F)

1 or 2 and ground

∞Ω

(Continuity should not exist.)

EC-632

< DTC/CIRCUIT DIAGNOSIS >

[VQ40DE FOR USA AND CANADA]

P0075, P0081 IVT CONTROL SOLENOID VALVE

If OK, go to next step.

3. Remove intake valve timing control solenoid valve.

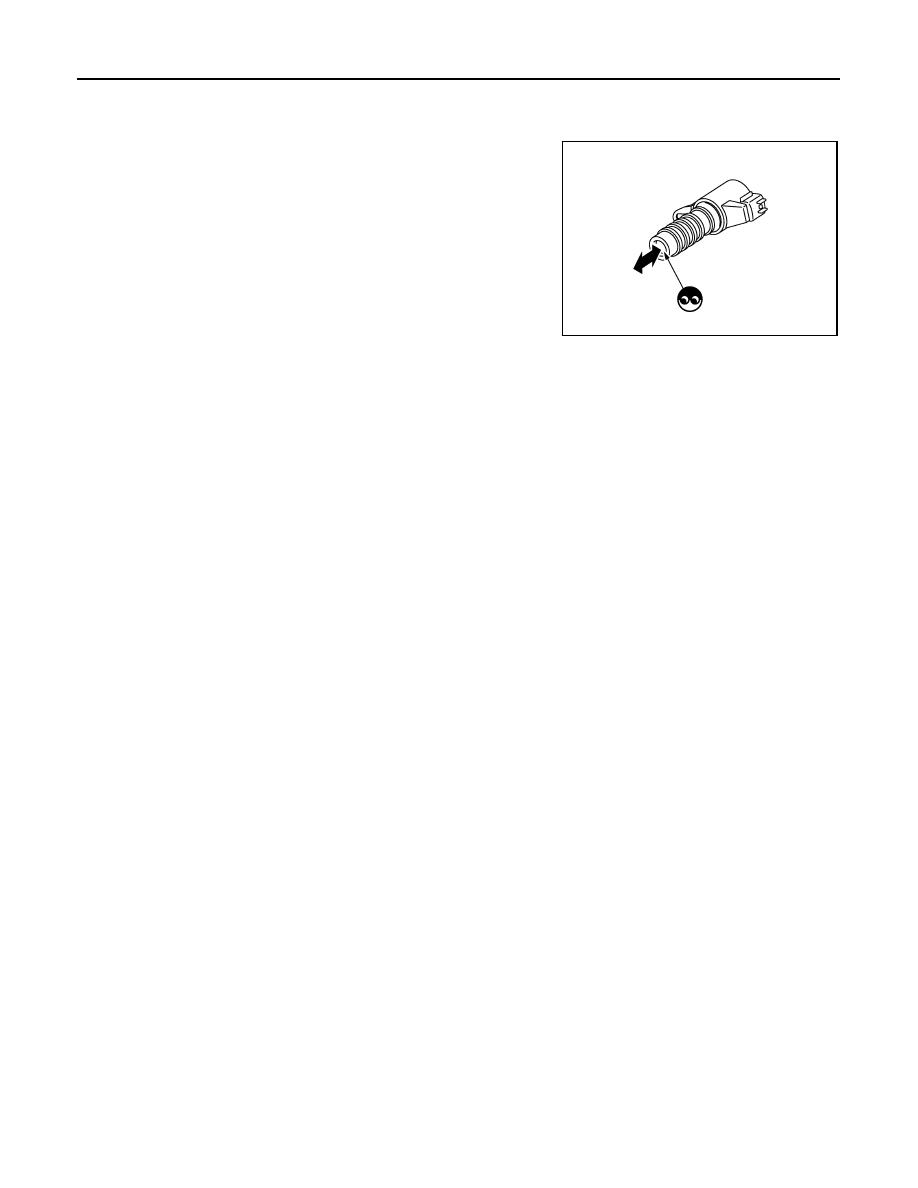

4. Provide 12V DC between intake valve timing control solenoid

valve terminals and then interrupt it. Check that the plunger

moves as shown in the figure.

CAUTION:

Never apply 12V DC continuously for 5 seconds or more.

Doing so may result in damage to the coil in intake valve

timing control solenoid valve.

If NG, replace intake valve timing control solenoid valve.

NOTE:

Always replace O-ring when intake valve timing control

solenoid valve is removed.

JMBIA0079ZZ

P0101 MAF SENSOR

EC-633

< DTC/CIRCUIT DIAGNOSIS >

[VQ40DE FOR USA AND CANADA]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

P0101 MAF SENSOR

Component Description

INFOID:0000000009481271

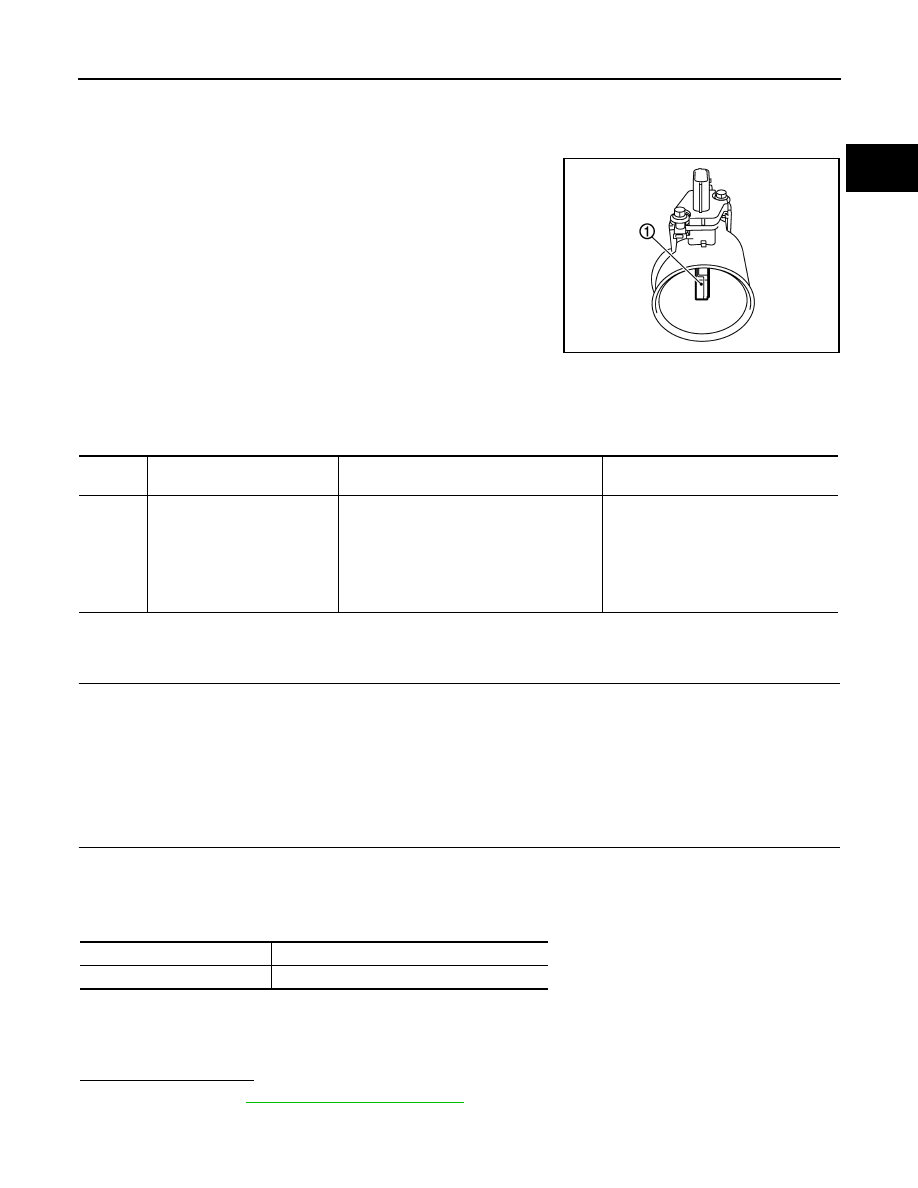

The mass air flow sensor (1) is placed in the stream of intake air. It

measures the intake flow rate by measuring a part of the entire

intake flow. The mass air flow sensor controls the temperature of the

hot wire to a certain amount. The heat generated by the hot wire is

reduced as the intake air flows around it. The greater air flow, the

greater the heat loss.

Therefore, the electric current supplied to hot wire is changed to

maintain the temperature of the hot wire as air flow increases. The

ECM detects the air flow by means of this current change.

On Board Diagnosis Logic

INFOID:0000000009481272

NOTE:

If DTC P0101 is displayed with other DTC, first perform the trouble diagnosis for other DTC.

DTC Confirmation Procedure

INFOID:0000000009481273

1.

PRECONDITIONING

If DTC CONFIRMATION PROCEDURE has been previously conducted, always perform the following proce-

dure before conducting the next test.

1. Turn ignition switch OFF and wait at least 10 seconds.

2. Turn ignition switch ON.

3. Turn ignition switch OFF and wait at least 10 seconds.

>> GO TO 2.

2.

PERFORM DTC CONFIRMATION PROCEDURE

1. Start engine and warm it up to normal operating temperature.

2. Drive the vehicle for at least 5 seconds under the following conditions:

CAUTION:

Always drive vehicle at safe speed.

NOTE:

• The gear must be fixed while driving the vehicle.

• Keep the accelerator pedal as steady as possible during cruising.

3. Check 1st trip DTC.
Is 1st trip DTC detected?

YES

>> Proceed to

EC-634, "Diagnosis Procedure"

.

NO

>> INSPECTION END

PBIA9559J

DTC No.

Trouble diagnosis

(Trouble diagnosis content)

DTC detecting condition

Possible cause

P0101

MAF SEN/CIRCUIT-B1
[Mass air flow (MAF) sensor cir-
cuit range/performance]

• A high voltage from the sensor is sent to

ECM under light load driving condition.

• A low voltage from the sensor is sent to

ECM under heavy load driving condition.

• Harness or connectors

(The sensor circuit is open or short-
ed.)

• Intake air leaks
• MAF sensor
• EVAP control system pressure sensor
• Intake air temperature sensor

Selector lever

Suitable position

Vehicle speed

40 km/h (25 MPH) or more

EC-634

< DTC/CIRCUIT DIAGNOSIS >

[VQ40DE FOR USA AND CANADA]

P0101 MAF SENSOR

Diagnosis Procedure

INFOID:0000000009481274

1.

INSPECTION START

Which malfunction (A or B) is duplicated?
A or B

A

>> GO  TO  3.

B

>> GO  TO  2.

2.

CHECK INTAKE SYSTEM

Check the following for connection.

• Air duct

• Vacuum hoses

• Intake air passage between air duct and intake manifold
OK or NG

OK

>> GO TO 3.

NG

>> Reconnect the parts.

3.

CHECK GROUND CONNECTIONS

1. Turn ignition switch OFF.

2. Loosen and retighten three ground screws on the body. Refer to

EC-617, "Ground Inspection"

.

OK or NG

OK

>> GO TO 4.

NG

>> Repair or replace ground connections.

4.

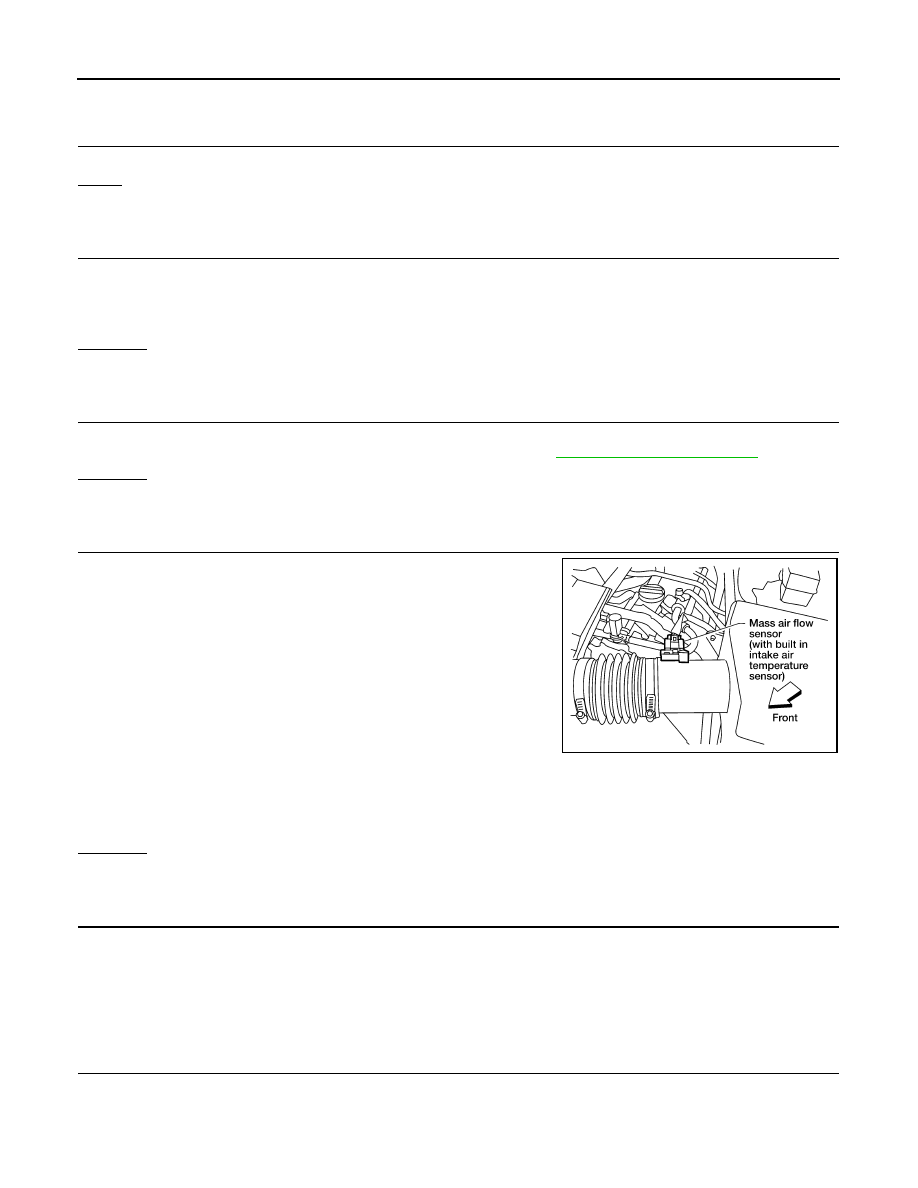

CHECK MAF SENSOR POWER SUPPLY CIRCUIT

1. Disconnect mass air flow (MAF) sensor harness connector.

2. Turn ignition switch ON.

3. Check voltage between MAF sensor terminal 2 and ground with CONSULT or tester.

OK or NG

OK

>> GO TO 6.

NG

>> GO TO 5.

5.

DETECT MALFUNCTIONING PART

Check the following.

• Harness connectors E2, F32

• Harness for open or short between IPDM E/R and mass air flow sensor

• Harness for open or short between mass air flow sensor and ECM

>> Repair harness or connectors.

6.

CHECK MAF SENSOR GROUND CIRCUIT FOR OPEN AND SHORT

1. Turn ignition switch OFF.

2. Disconnect ECM harness connector.

3. Check harness continuity between MAF sensor terminal 3 and ECM terminal 80.

Refer to Wiring Diagram.

BBIA0541E

Voltage: Battery voltage
