DLN-330

< UNIT DISASSEMBLY AND ASSEMBLY >

[REAR FINAL DRIVE: M226 (ELD) ]

REAR FINAL DRIVE

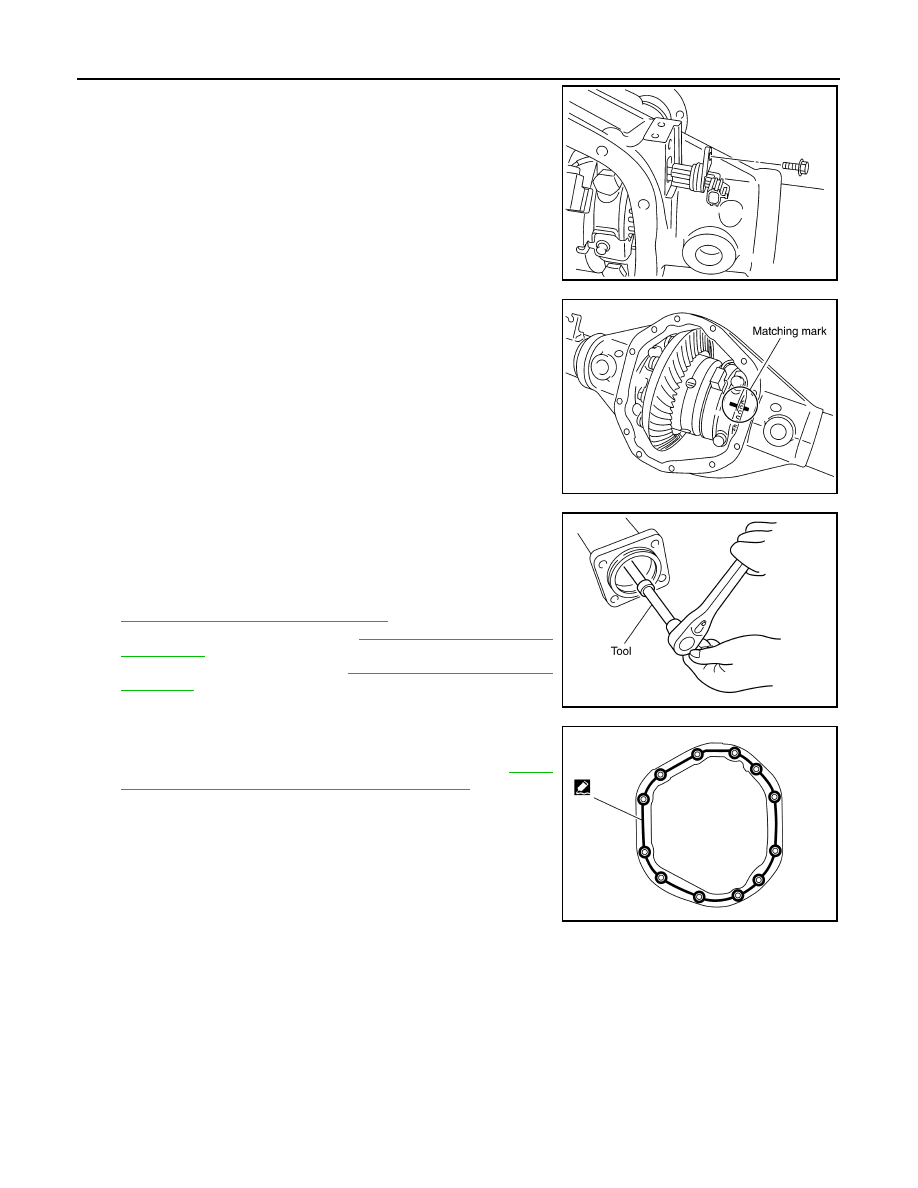

5. Connect differential lock solenoid harness to new sensor con-

nector. Then install new sensor connector to gear carrier and

tighten to the specified torque.

6. Align paint matching mark on side bearing caps with those on

gear carrier and install side bearing caps on gear carrier.

CAUTION:

Do not tighten side bearing cap bolts at this point. This

allows further tightening of side bearing adjusters.

7. Tighten each side bearing adjusters using adjuster tool. Perform

the following adjustments.

• Adjusting backlash of drive gear and drive pinion. Refer to

DLN-331, "Inspection and Adjustment"

.

• Check total preload. Refer to

DLN-331, "Inspection and

Adjustment"

.

• Check tooth contact. Refer to

DLN-321, "Disassembly and

Assembly"

.

8. Apply a bead of sealant to the mating surface of the carrier

cover as shown.

• Use Genuine Silicone RTV or equivalent. Refer to

GI-21,

"Recommended Chemical Products and Sealants"

.

CAUTION:

Remove any old sealant adhering to the mating surfaces.

Also remove any moisture, oil, or foreign material adhering

to the application and mating surfaces.

9. Install the carrier cover to the gear carrier. Tighten the bolts to

the specified torque.

SDIA2585E

SDIA2632E

Tool number

:  —  (C - 4164)

PDIA0337E

PDIA1061E

SERVICE DATA AND SPECIFICATIONS (SDS)

DLN-331

< SERVICE DATA AND SPECIFICATIONS (SDS)

[REAR FINAL DRIVE: M226 (ELD) ]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

General Specification

INFOID:0000000009479878

Inspection and Adjustment

INFOID:0000000009479879

PRELOAD TORQUE

Unit: N·m (kg-m, in-lb)

BACKLASH

Unit: mm (in)

COMPANION FLANGE RUNOUT

Unit: mm (in)

Applied model

VQ40DE

4WD

5A/T

6M/T

Final drive model

M226

Gear ratio

3.357

3.692

Number of teeth (Drive gear / drive pinion)

47/14

48/13

Oil capacity (Approx.)

 (US pt, lmp pt)

2.01 (4-1/4, 3-1/2)

Drive pinion adjustment spacer type

Collapsible

Item

Specification

Drive pinion bearing preload torque

1.7 - 3.1 (0.18 - 0.31, 15 - 27)

Total preload torque
(Total preload torque = drive pinion bearing preload
torque + Side bearing preload torque)

2.38 - 4.46 (0.25 - 0.45, 21 - 39)

Item

Standard

Drive gear to drive pinion gear

0.12 - 0.20 (0.0050 - 0.0078)

Item

Limit

Companion flange face

 0.13 (0.0051) or less

Companion flange inner side
