Nissan Frontier. Manual - part 352

DLN-310

< PERIODIC MAINTENANCE >

[REAR FINAL DRIVE: M226 (ELD) ]

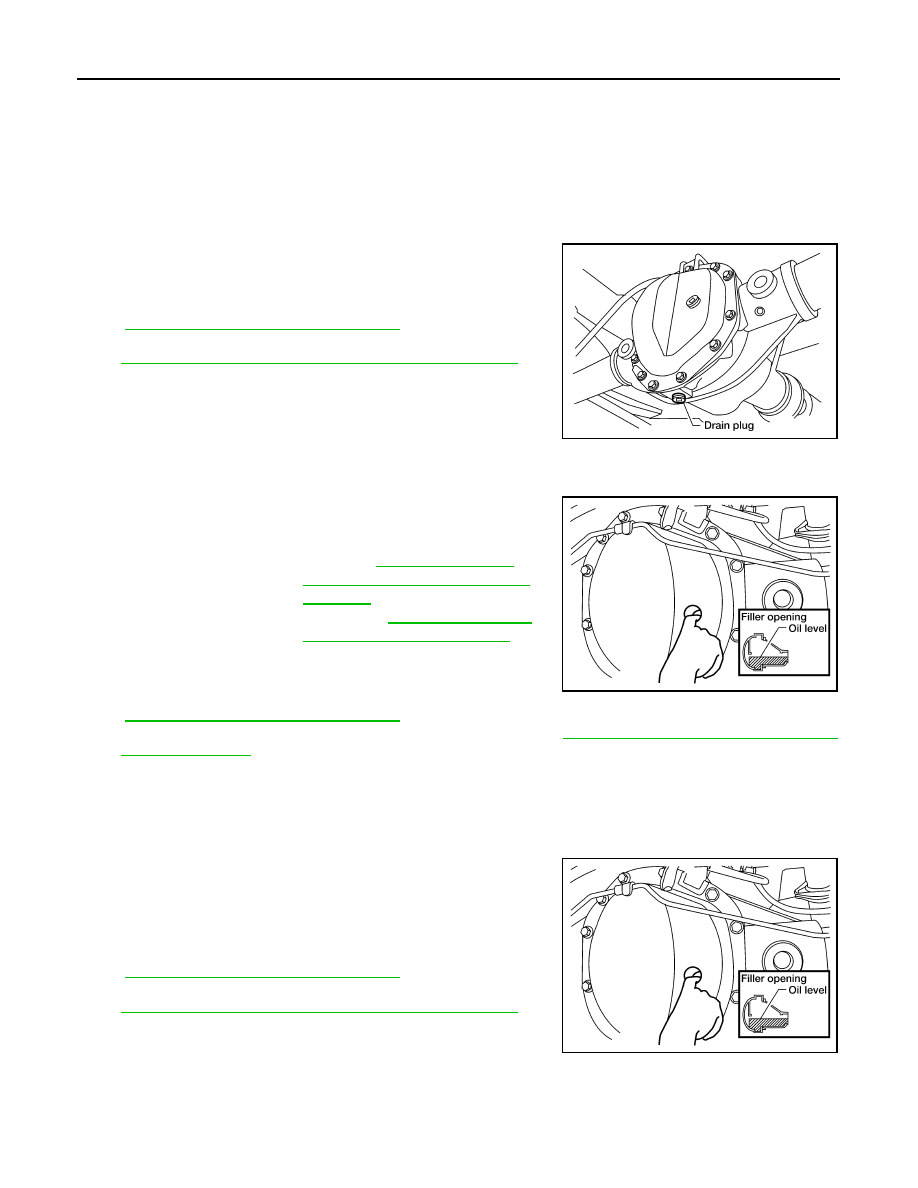

DIFFERENTIAL GEAR OIL

PERIODIC MAINTENANCE

DIFFERENTIAL GEAR OIL

Changing Differential Gear Oil

INFOID:0000000009479870

DRAINING

1. Stop engine.
2. Remove the drain plug from the rear final drive assembly to

drain the differential gear oil.

3. Install the drain plug with sealant applied on the threads to the

rear final drive assembly. Tighten to the specified torque. Refer

to

DLN-321, "Disassembly and Assembly"

.

• Use High Performance Thread Sealant or equivalent. Refer to

GI-21, "Recommended Chemical Products and Sealants"

FILLING

1. Remove the filler plug from the rear final drive assembly.
2. Fill the rear final drive assembly with new differential gear oil

until the level reaches the specified level near the filler plug hole.

3. Install the filler plug with sealant applied on the threads to the

rear final drive assembly. Tighten to the specified torque. Refer

to

DLN-321, "Disassembly and Assembly"

.

• Use High Performance Thread Sealant or equivalent. Refer to

GI-21, "Recommended Chemical Prod-

ucts and Sealants"

.

Checking Differential Gear Oil

INFOID:0000000009479871

DIFFERENTIAL GEAR OIL LEAKAGE AND LEVEL

1. Make sure that differential gear oil is not leaking from the rear final drive assembly or around it.
2. Check the differential gear oil level from the filler plug hole as

shown.

CAUTION:

Do not start engine while checking differential gear oil level.

3. Install the filler plug with sealant applied on the threads to the

rear final drive assembly. Tighten to the specified torque. Refer

to

DLN-321, "Disassembly and Assembly"

.

• Use High Performance Thread Sealant or equivalent. Refer to

GI-21, "Recommended Chemical Products and Sealants"

.

LDIA0183E

Differential gear oil
grade and capacity

: Refer to

MA-16, "FOR USA

AND CANADA : Fluids and Lu-
bricants"

 (United States and

Canada) or

MA-18, "FOR MEXI-

CO : Fluids and Lubricants"



(Mexico).

LDIA0127E

LDIA0127E

DIFFERENTIAL LOCK CONTROL UNIT

DLN-311

< REMOVAL AND INSTALLATION >

[REAR FINAL DRIVE: M226 (ELD) ]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

REMOVAL AND INSTALLATION

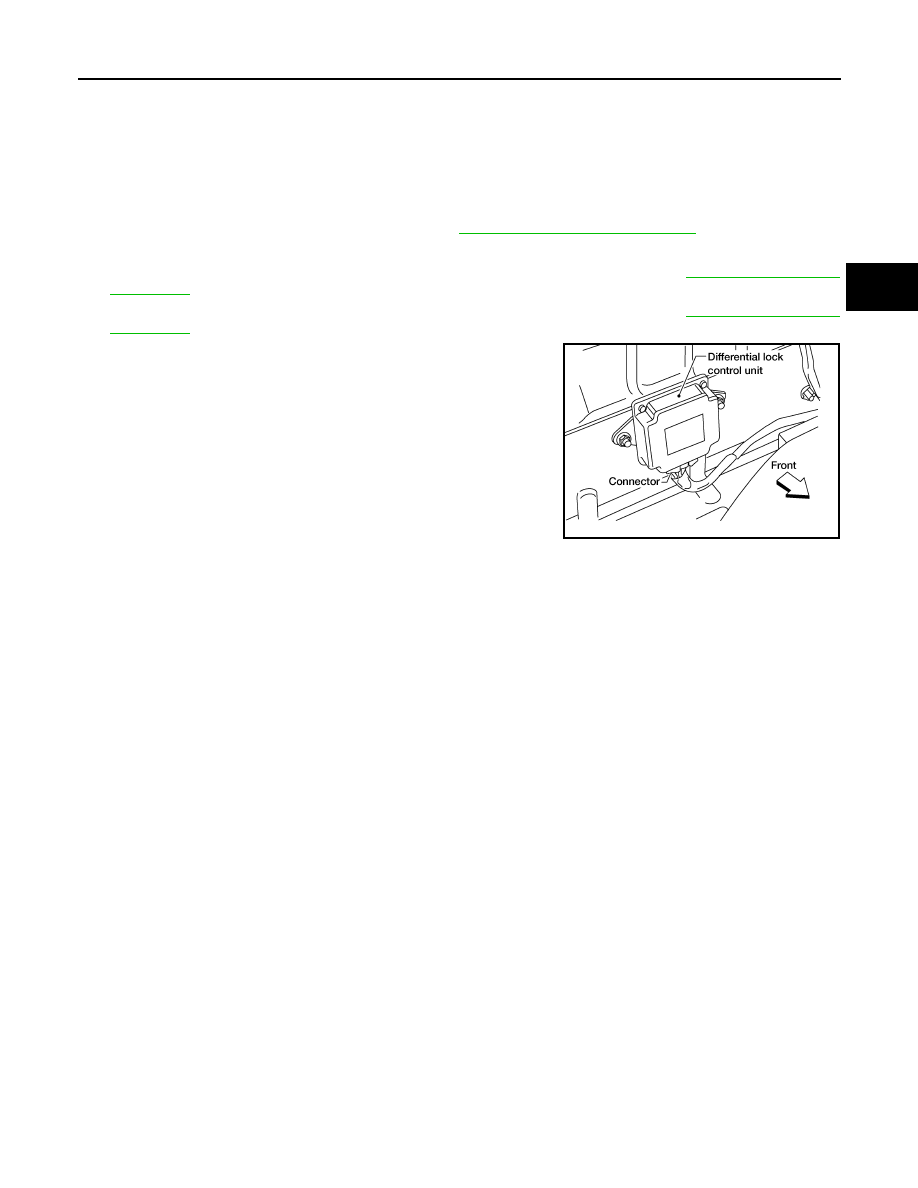

DIFFERENTIAL LOCK CONTROL UNIT

Removal and Installation

INFOID:0000000009479872

REMOVAL

1. Disconnect the battery negative terminal. Refer to

PG-83, "Removal and Installation"

.

2. Remove jack and tools.
3. Remove upper bracket of center seat belt retractor and belt assembly. Refer to

SB-11, "Removal and

Installation"

.

4. Remove the necessary push pins and reposition rear panel out of the way. Refer to

INT-19, "Removal and

Installation"

.

5. Reposition the carpet to access differential lock control unit to

disconnect connector.

6. Remove the two nuts and remove differential lock control unit.

INSTALLATION

Note the following, and installation is in the reverse order of removal.

• When installing differential lock control unit, tighten nuts to the specified torque.

LDIA0156E

Differential lock control unit nuts

: 5.1 N·m (0.52 kg-m, 45 in-lb)

DLN-312

< REMOVAL AND INSTALLATION >

[REAR FINAL DRIVE: M226 (ELD) ]

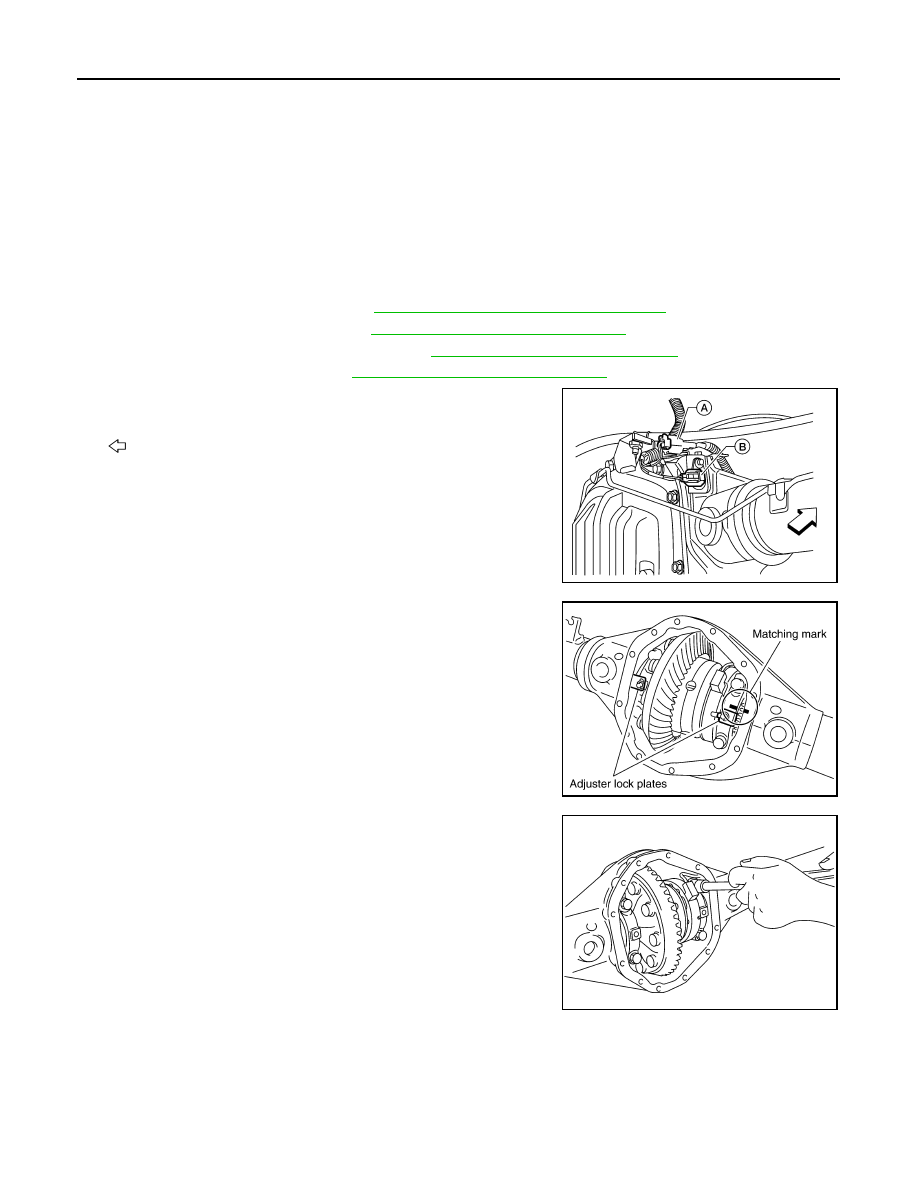

DIFFERENTIAL LOCK POSITION SWITCH

DIFFERENTIAL LOCK POSITION SWITCH

Removal and Installation

INFOID:0000000009479873

REMOVAL

Differential Lock Position Switch

CAUTION:

• Be careful not to damage spline, companion flange and front oil seal when removing propeller shaft.

• Before removing rear final drive assembly or rear axle assembly, disconnect wheel sensor harness

connector from the assembly and move it away from rear final drive assembly/rear axle assembly

area. Failure to do so may result in sensor wires being damaged and sensor becoming inoperative.

1. Drain rear final drive gear oil. Refer to

DLN-310, "Changing Differential Gear Oil"

.

2. Remove rear propeller shaft. Refer to

DLN-143, "Removal and Installation"

.

3. Remove both RH and LH axle shafts. Refer to

RAX-19, "Removal and Installation"

.

4. Remove the carrier cover. Refer to

DLN-318, "Removal and Installation"

.

5. Remove differential lock solenoid harness connector (B) bolt

and disconnect the harness connector from the differential lock

position switch (A).

: Front

6. For installation, apply a paint matching mark on one side of side

bearing cap.

CAUTION:

• Side bearing caps are line-board for initial assembly. The

matching marks are used to install them in their original

positions.

• For matching mark, use paint. Do not damage side bear-

ing cap.

7. Remove adjuster lock plates.

8. Remove side bearing caps.

WDIA0331E

SDIA2583E

SDIA2587E

DIFFERENTIAL LOCK POSITION SWITCH

DLN-313

< REMOVAL AND INSTALLATION >

[REAR FINAL DRIVE: M226 (ELD) ]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

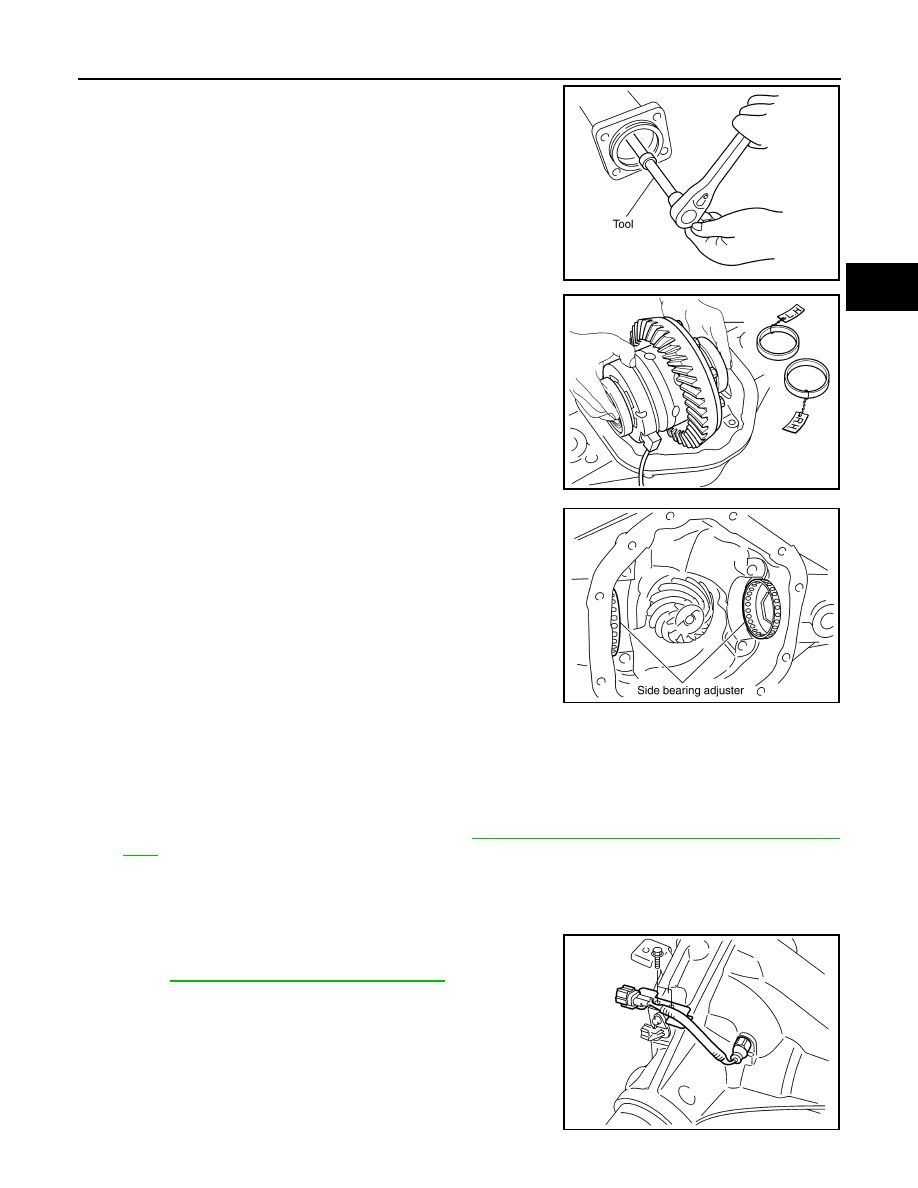

9. Loosen the side bearing adjusters using Tool.

10. Remove the differential case assembly, keep side bearing outer

races together with inner races. Do not mix them up. Also, keep

side bearing adjusters together with bearing.

11. Remove side bearing adjusters from gear carrier.

12. Remove bracket for the differential lock position switch harness connector and bolts.
13. Remove differential lock position switch.

INSTALLATION

1. Apply sealant to threads of differential lock position switch.

• Use Genuine Silicone RTV or equivalent. Refer to

GI-21, "Recommended Chemical Products and Seal-

ants"

.

CAUTION:

Remove old sealant adhering to gear carrier and differential lock position switch. Also remove any

moisture, oil, or foreign material adhering to application and gear carrier and differential lock posi-

tion switch.

2. Install differential lock position switch on gear carrier and tighten

differential lock position switch bolts with the specified torque.

Refer to

DLN-321, "Disassembly and Assembly"

.

Tool number

:

—

 (C - 4164)

PDIA0337E

SDIA2588E

PDIA0381E

SDIA2633E
