DLN-62

< ECU DIAGNOSIS INFORMATION >

[TRANSFER: TX15B]

TRANSFER CONTROL UNIT

NOTE:
If actuator position switch” or transfer control device” is displayed, first erase self-diagnostic results. (They may be displayed after install-
ing transfer control unit or transfer assembly.)

Repeats flickering

every 2 to 5 sec.

—

Circuits that the self-diagnosis covers have no
malfunction.

—

No flickering

PNP switch (M/T mod-
els), transmission
range switch (A/T mod-
els) or 4WD shift switch

PNP switch (M/T models), transmission range
switch (A/T models) or 4WD shift switch circuit
is shorted or open.

DLN-38

 (M/T models),

DLN-37

 (A/T

models) or

DLN-31

Flashing pattern

Item

Diagnostic item is detected when...

Reference

PART TIME 4WD SYSTEM

DLN-63

< WIRING DIAGRAM >

[TRANSFER: TX15B]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

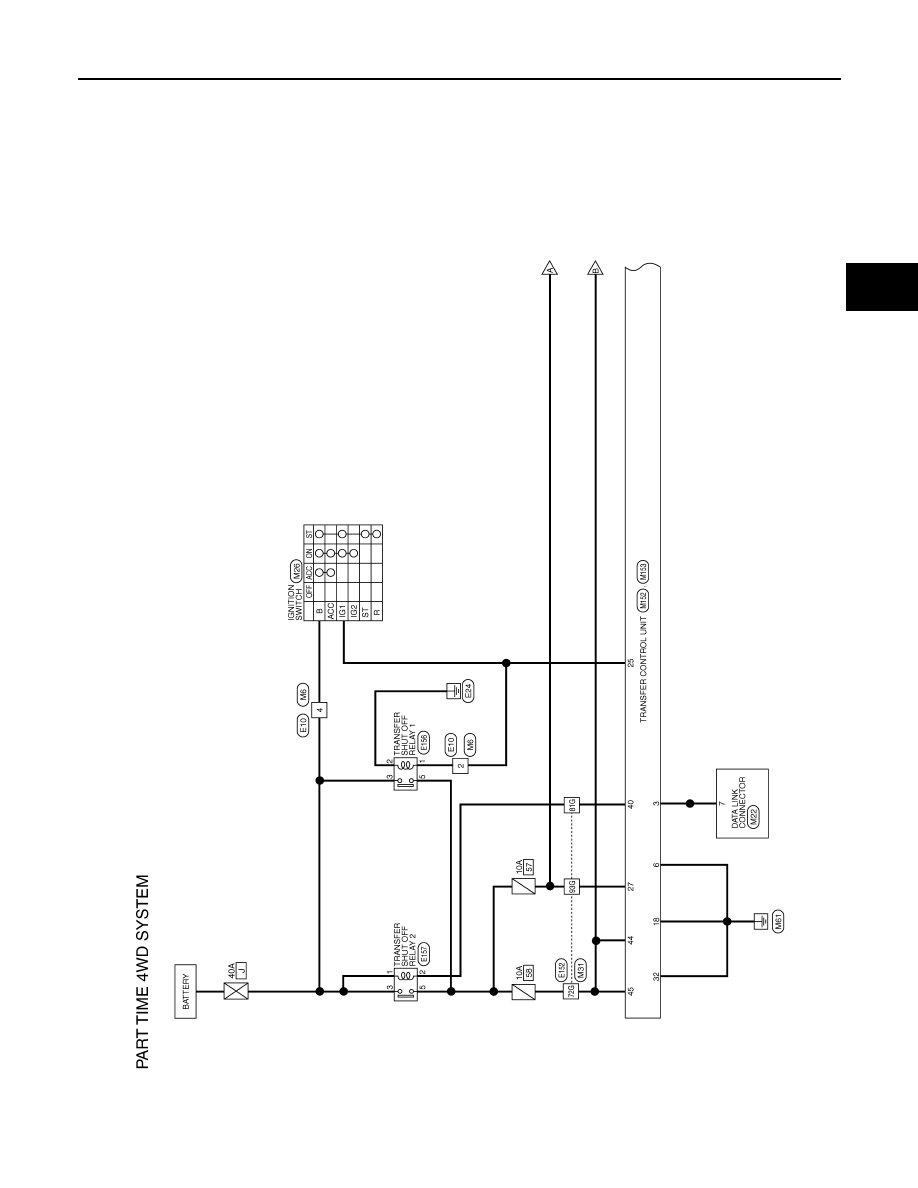

WIRING DIAGRAM

PART TIME 4WD SYSTEM

Wiring Diagram

INFOID:0000000009479687

ABDWA0733GB

DLN-64

< WIRING DIAGRAM >

[TRANSFER: TX15B]

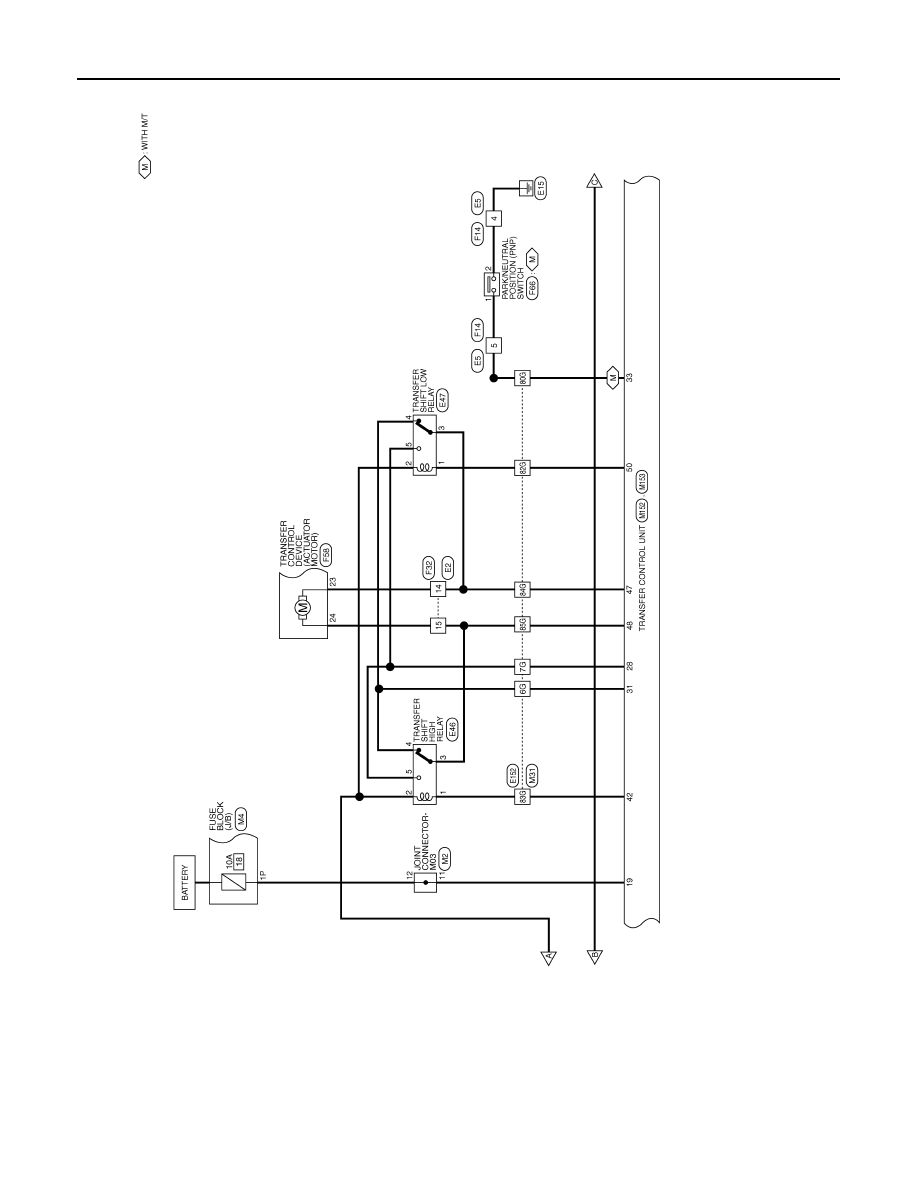

PART TIME 4WD SYSTEM

ABDWA0734GB

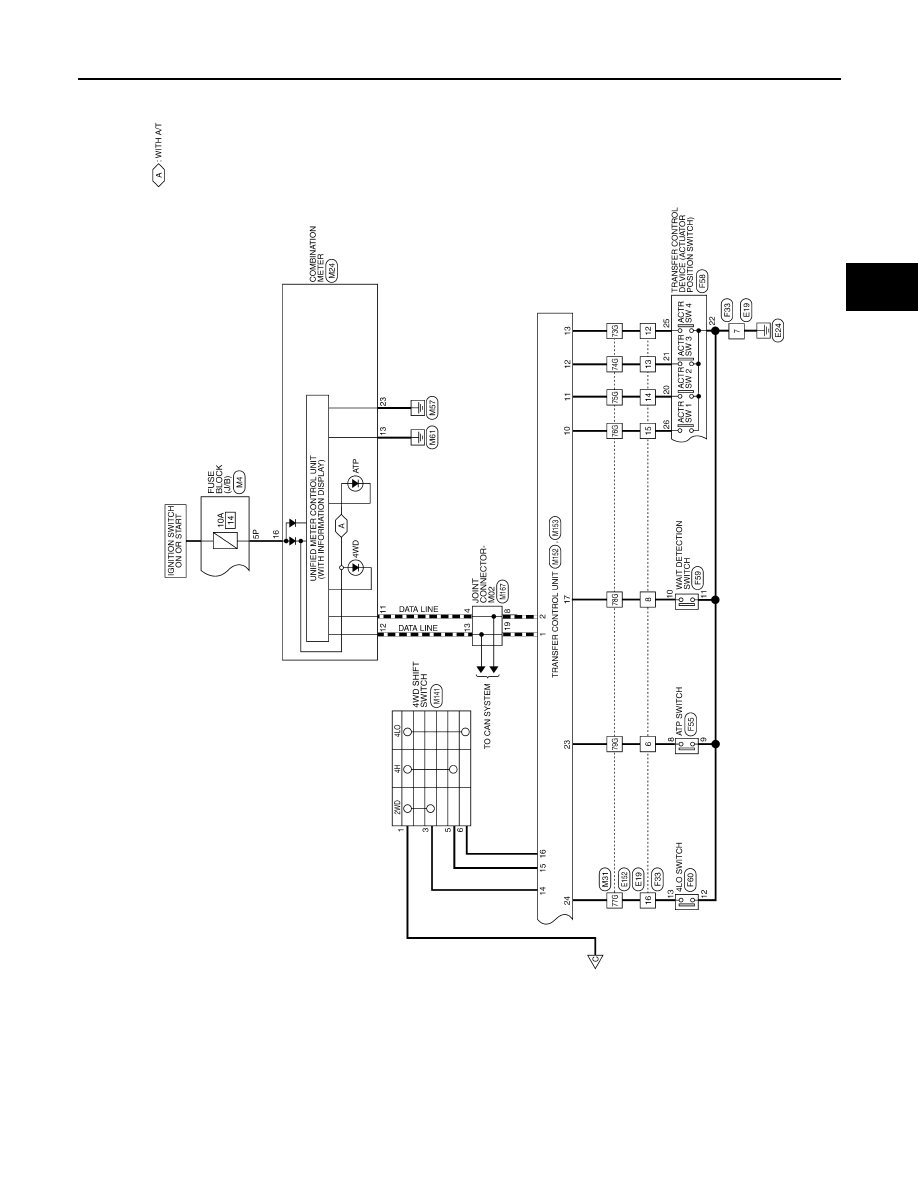

PART TIME 4WD SYSTEM

DLN-65

< WIRING DIAGRAM >

[TRANSFER: TX15B]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

ABDWA0735GB
