P1801, P1811 POWER SUPPLY CIRCUIT FOR TRANSFER CONTROL UNIT

4. Turn ignition switch “ON”. (Do not start engine.)

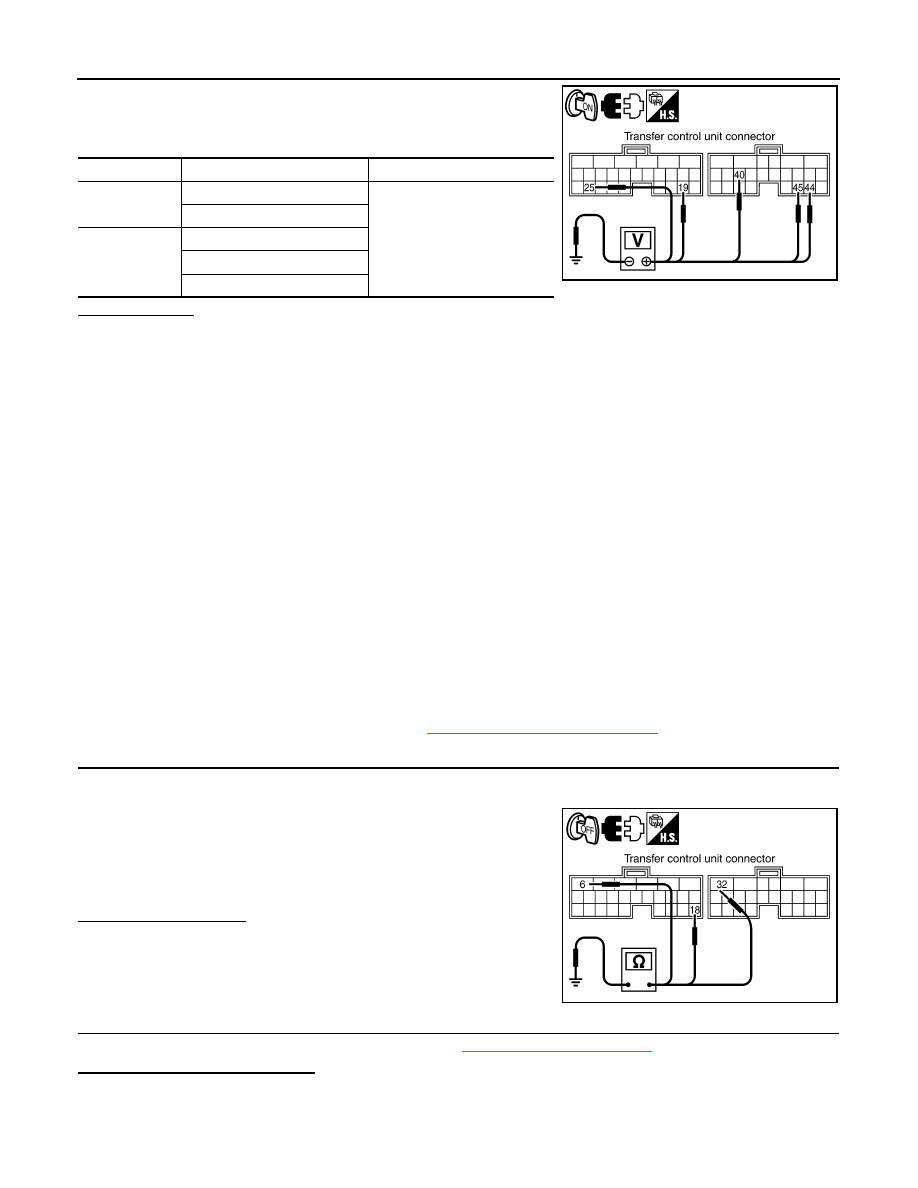

5. Check voltage between transfer control unit harness connector

terminals and ground.

Is there voltage?

YES

>> GO TO 2.

NO

>> Check the following. If any items are damaged, repair or replace damaged parts.

• 40A fuse (No. J, located in the fuse and fusible link box).

• 10A fuses (No. 18, located in the fuse block (J/B) and No. 58 located in the fuse and relay box).

• Harness for short or open between battery and transfer control unit harness connector M152

terminal 19.

• Harness for short or open between battery and transfer shut off relay 2 harness connector E157

terminal 1 and 3.

• Harness for short or open between battery and transfer shut off relay 1 harness connector E156

terminal 3.

• Harness for short or open between ignition switch and transfer control unit harness connector

M152 terminal 25.

• Harness for short or open between ignition switch and transfer shut off relay 1 harness connec-

tor E156 terminal 1.

• Harness for short or open between transfer shut off relay 2 harness connector E157 terminal 5

and transfer control unit harness connector M153 terminals 44, 45.

• Harness for short or open between transfer shut off relay 1 harness connector E156 terminal 5

and transfer control unit harness connector M153 terminals 44, 45.

• Harness for short or open between transfer shut off relay 2 harness connector E157 terminal 2

and transfer control unit harness connector M153 terminal 40.

• Harness for open between transfer shut off relay 1 harness connector E156 terminal 2 and

ground.

• Battery and ignition switch.

• Transfer shut off relay 1, 2. Refer to

DLN-23, "Component Inspection"

.

2.

CHECK GROUND CIRCUIT

1. Turn ignition switch “OFF”.

2. Disconnect transfer control unit harness connector.

3. Check continuity between transfer control unit harness connec-

tor M152 terminals 6 and 18, and M153 terminal 32 and ground.

Also check harness for short to power.

Do you have continuity?

YES

>> GO TO 3.

NO

>> Repair open circuit or short to power in harness or con-

nectors.

3.

CHECK TRANSFER CONTROL UNIT

Check transfer control unit input/output signal. Refer to

DLN-56, "Reference Value"

.

Are the inspection results normal?

YES

>> GO TO 4.

NO

>> Check transfer control unit pin terminals for damage or loose connection with harness connector.

If any items are damaged, repair or replace damaged parts.

Connector

Terminal

Voltage (Approx.)

M152

19 - Ground

Battery voltage

25 - Ground

M153

40 - Ground

44 - Ground

45 - Ground

SDIA3361E

Continuity should exist.

SDIA3362E

P1801, P1811 POWER SUPPLY CIRCUIT FOR TRANSFER CONTROL UNIT

DLN-23

< DTC/CIRCUIT DIAGNOSIS >

[TRANSFER: TX15B]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

4.

CHECK DTC

Drive vehicle and then perform Self-diagnosis.
Do DTCs P1801 or P1811 display?

YES

>> Replace transfer control unit. Refer to

DLN-92, "Removal and Installation"

.

NO

>> Inspection End.

Component Inspection

INFOID:0000000009479637

1. Turn ignition switch “OFF”. (Stay for at least 5 seconds.)
2. Remove transfer shut off relay 1 and transfer shut off relay 2. Refer to

DLN-13, "Component Parts Loca-

tion"

.

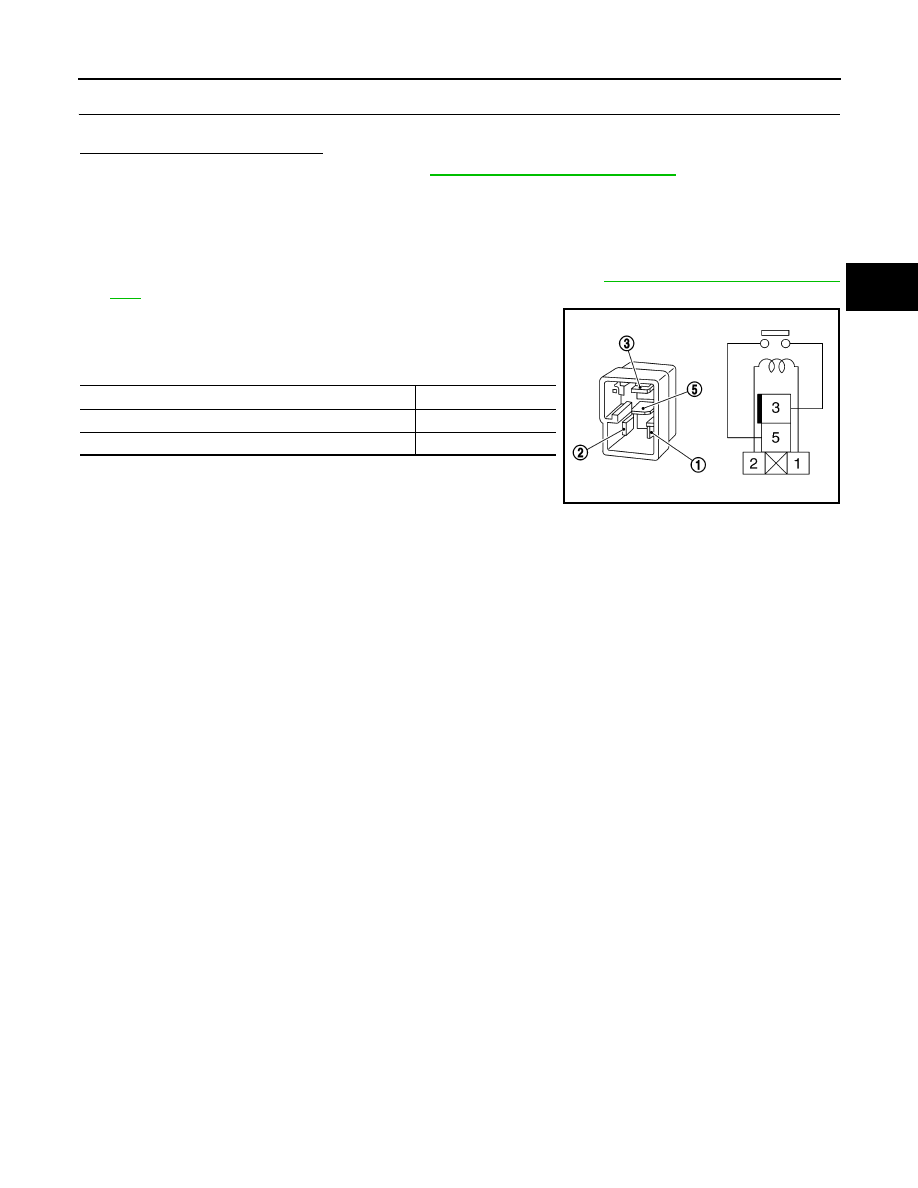

3. Apply 12V direct current between transfer shut off relay termi-

nals 1 and 2.

4. Check continuity between relay terminals 3 and 5.

5. If inspection results are not normal, replace the transfer shut off

relay 1 or 2.

Condition

Continuity

12V direct current supply between terminals 1 and 2

Yes

OFF

No

SCIA1245E
