Nissan Frontier. Manual - part 267

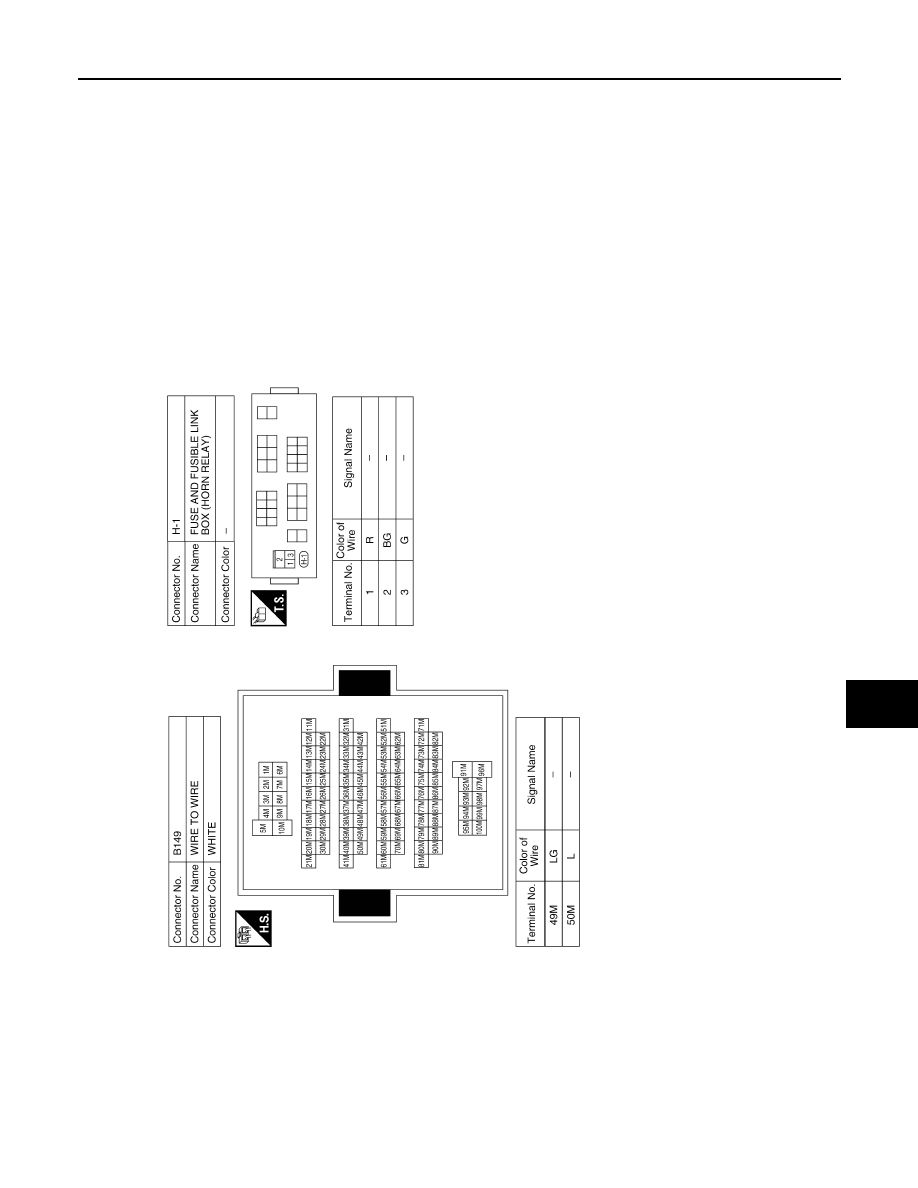

DLK-114

< WIRING DIAGRAM >

REMOTE KEYLESS ENTRY SYSTEM

ABKIA5182GB

REMOTE KEYLESS ENTRY SYSTEM

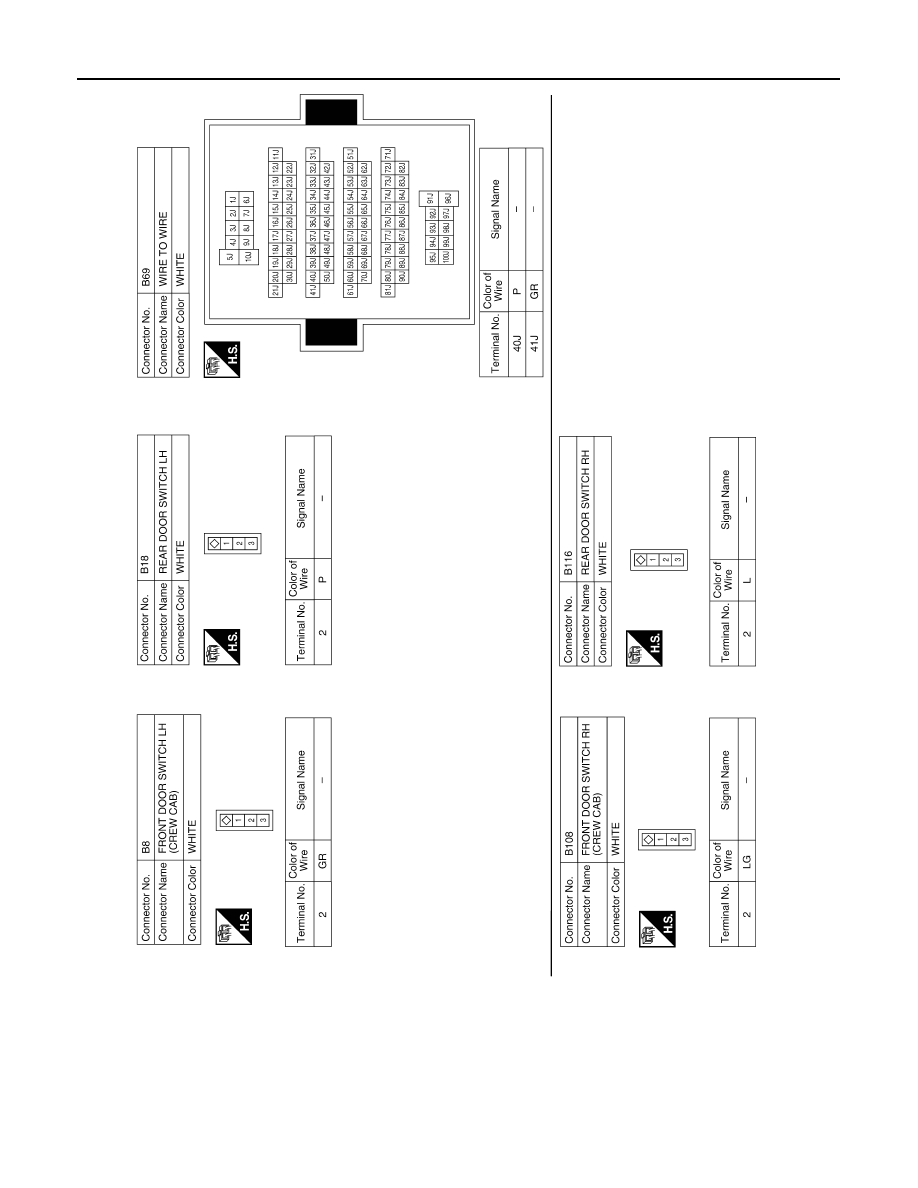

DLK-115

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

ABKIA5217GB

DLK-116

< SYMPTOM DIAGNOSIS >

DOOR LOCK

SYMPTOM DIAGNOSIS

DOOR LOCK

Symptom Table

INFOID:0000000009478943

DOOR LOCK SYSTEM

NOTE:

• Before performing the diagnosis in the following table, check “Work flow”. Refer to

DLK-4, "Work Flow"

.

• If the following symptoms” are detected, check systems shown in the “Diagnosis/service procedure” column

in this order.

Symptom

Repair order

Refer to page

Key reminder door function does not operate prop-
erly.

1a. Door switch check (king cab)

DLK-27

1b. Door switch check (crew cab)

DLK-29

2. Key switch (Insert) check

DLK-42

3. Replace BCM.

BCS-49

Power door lock does not operate with door lock and
unlock switch on main power window and door lock/
unlock switch or power window and door lock/un-
lock switch RH.

1a. Door lock/unlock switch check (driver side) (king cab)

DLK-32

1b. Door lock/unlock switch check (driver side) (crew cab)

DLK-35

2a. Door lock/unlock switch check (passenger side) (king cab)

DLK-32

2b. Door lock/unlock switch check (passenger side) (crew cab)

DLK-35

Specific door lock actuator does not operate.

1. Door lock actuator check (driver side)

DLK-43

2. Door lock actuator check (passenger side)

DLK-44

3. Door lock actuator check (Rear LH) (crew cab)

DLK-45

4. Door lock actuator check (Rear RH) (crew cab)

DLK-47

Power door lock does not operate with front door
key cylinder LH.

1. Front door lock assembly LH (key cylinder switch) check

DLK-39

2. Replace BCM.

BCS-49

Power door lock does not operate.

1. BCM power supply and ground circuit check

BCS-27

2a. Door lock/unlock switch check (driver) (king cab)

DLK-32

2b. Door lock/unlock switch check (driver) (crew cab)

DLK-35

3a. Door lock/unlock switch check (passenger) (king cab)

DLK-32

3b. Door lock/unlock switch check (passenger) (crew cab)

DLK-35

Vehicle speed sensing auto LOCK operation does
not operate.

1. Ensure automatic door lock/unlock function (lock operation)
is enabled.

BCS-15

2. Check combination meter vehicle speed signal.

MWI-30

3. Check intermittent incident.

GI-42

Ignition OFF interlock door UNLOCK function does
not operate.

1. Ensure automatic door lock/unlock function (unlock opera-
tion) is enabled.

BCS-15

2. Check BCM for DTCs.

BCS-40

3. Check intermittent incident.

GI-42

REMOTE KEYLESS ENTRY SYSTEM

DLK-117

< SYMPTOM DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

REMOTE KEYLESS ENTRY SYSTEM

Symptom Table

INFOID:0000000009478944

REMOTE KEYLESS ENTRY SYSTEM

Symptom

Diagnoses/service procedure

Reference

page

All functions of remote keyless entry system do not
operate.

1. Keyfob battery and function check (use Remote Keyless Entry
Tester J-43241 or Signal Tech II Tool J-50190)
NOTE:
If the result of keyfob function check is OK, keyfob is not malfunc-
tioning.

DLK-51

2. Check BCM and remote keyless entry receiver.

DLK-49

The new ID of keyfob cannot be entered.

1. Keyfob battery and function check (use Remote Keyless Entry
Tester J-43241 or Signal Tech II Tool J-50190)
NOTE:
If the result of keyfob function check is OK, keyfob is not malfunc-
tioning.

DLK-51

2. Key switch (insert) check

DLK-42

3a. Door switch check (king cab)

DLK-27

3b. Door switch check (crew cab)

DLK-29

4. ACC power check

BCS-27

5. Replace BCM.

BCS-49

Door lock or unlock does not function.
(If the power door lock system does not operate
manually, check power door lock system)

1. Keyfob battery and function check (use Remote Keyless Entry
Tester J-43241 or Signal Tech II Tool J-50190)
NOTE:
If the result of keyfob function check is OK, keyfob is not malfunc-
tioning.

DLK-51

2. Replace BCM.

BCS-49

Hazard and horn reminder does not activate properly
when pressing lock or unlock button of keyfob.

1. Check hazard and horn reminder mode with CONSULT
NOTE:
Hazard and horn reminder mode can be changed.
First check the hazard and horn reminder mode setting.

DLK-15

2a. Door switch check (king cab)

DLK-27

2b. Door switch check (crew cab)

DLK-29

3. Replace BCM.

BCS-49

Hazard reminder does not activate properly when
pressing lock or unlock button of keyfob.
(Horn reminder OK)

1. Check hazard reminder mode with CONSULT
NOTE:
Hazard reminder mode can be changed.
First check the hazard reminder mode setting.

DLK-15

2. Check hazard function with hazard switch

3. Replace BCM.

BCS-49

Horn reminder does not activate properly when
pressing lock or unlock button of keyfob.
(Hazard reminder OK)

1. Check horn reminder mode with CONSULT
NOTE:
Horn reminder mode can be changed.
First check the horn reminder mode setting.

DLK-15

2. Check horn function with horn switch

3. IPDM E/R operation check

DLK-53

4. Replace BCM.

BCS-49
