BCM (BODY CONTROL MODULE)

C1716: [PRESSDATA ERR] FL

—

X

WT-19

C1717: [PRESSDATA ERR] FR

—

X

WT-19

C1718: [PRESSDATA ERR] RR

—

X

WT-19

C1719: [PRESSDATA ERR] RL

—

X

WT-19

C1720: [CODE ERR] FL

—

X

WT-17

C1721: [CODE ERR] FR

—

X

WT-17

C1722: [CODE ERR] RR

—

X

WT-17

C1723: [CODE ERR] RL

—

X

WT-17

C1724: [BATT VOLT LOW] FL

—

X

WT-17

C1725: [BATT VOLT LOW] FR

—

X

WT-17

C1726: [BATT VOLT LOW] RR

—

X

WT-17

C1727: [BATT VOLT LOW] RL

—

X

WT-17

C1729: VHCL SPEED SIG ERR

—

X

WT-21

C1735: IGNITION SIGNAL

—

X

WT-22

CONSULT display

Fail-safe

Low tire pressure
warning lamp ON

Reference page

INTEGRATED HOMELINK TRANSMITTER

DLK-75

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

WIRING DIAGRAM

INTEGRATED HOMELINK TRANSMITTER

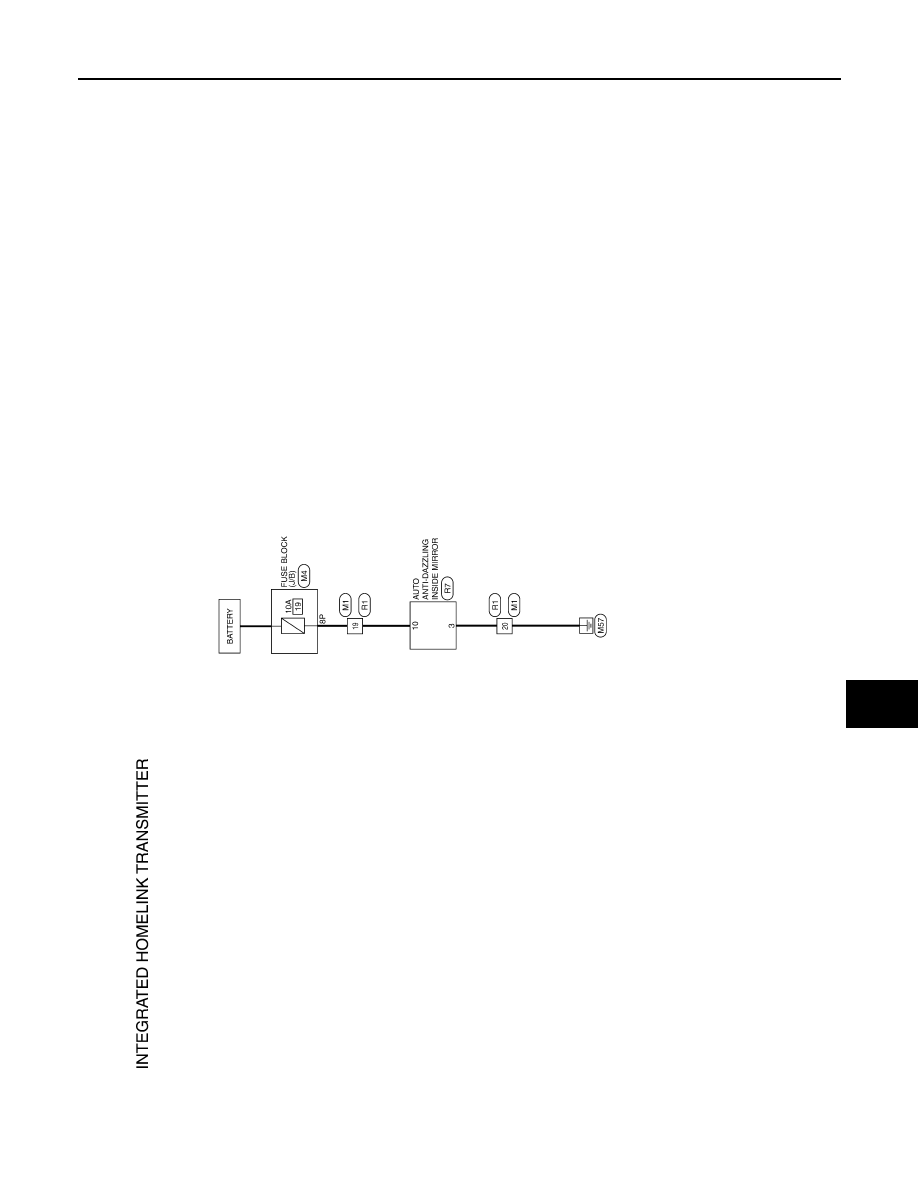

Wiring Diagram

INFOID:0000000009478938

AWKWA0054GB

DLK-76

< WIRING DIAGRAM >

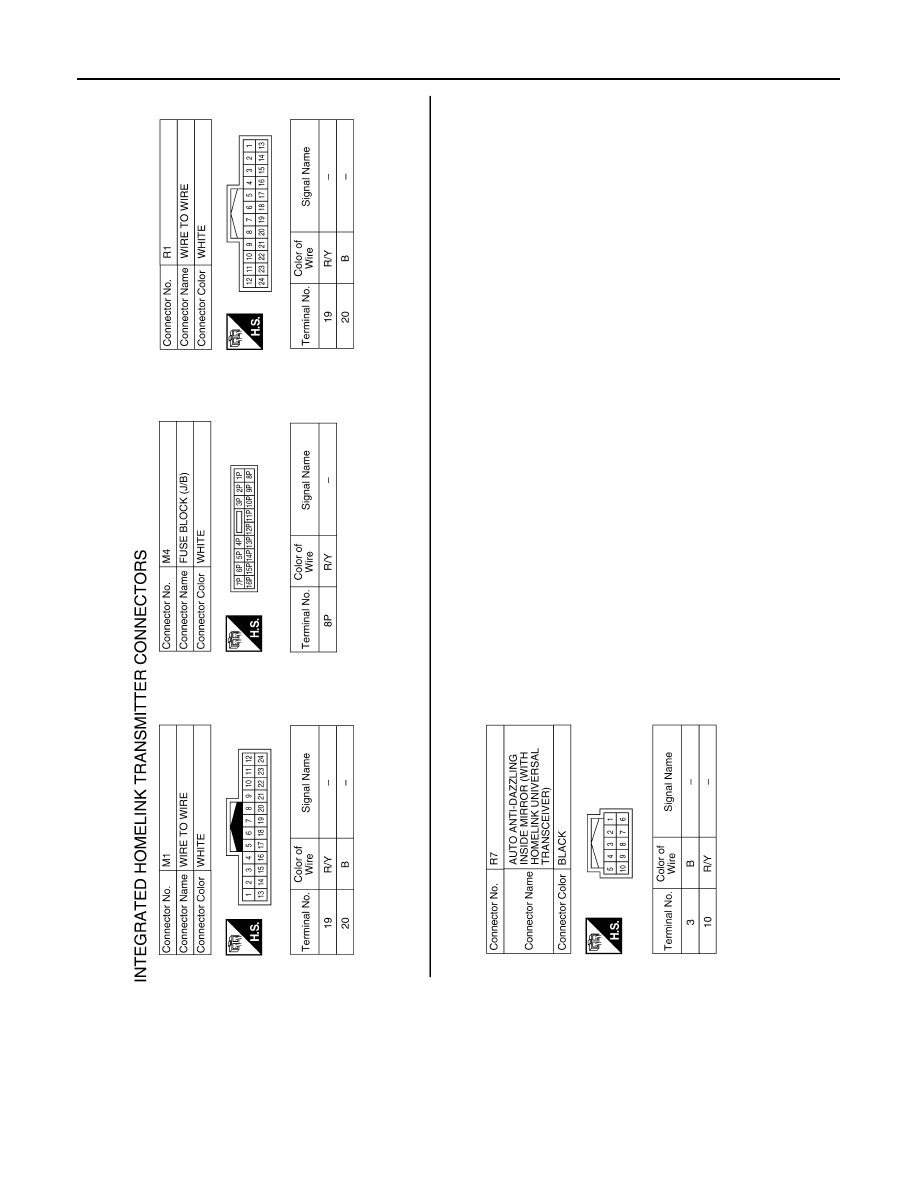

INTEGRATED HOMELINK TRANSMITTER

ABKIA4346GB

POWER DOOR LOCK SYSTEM

DLK-77

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

POWER DOOR LOCK SYSTEM

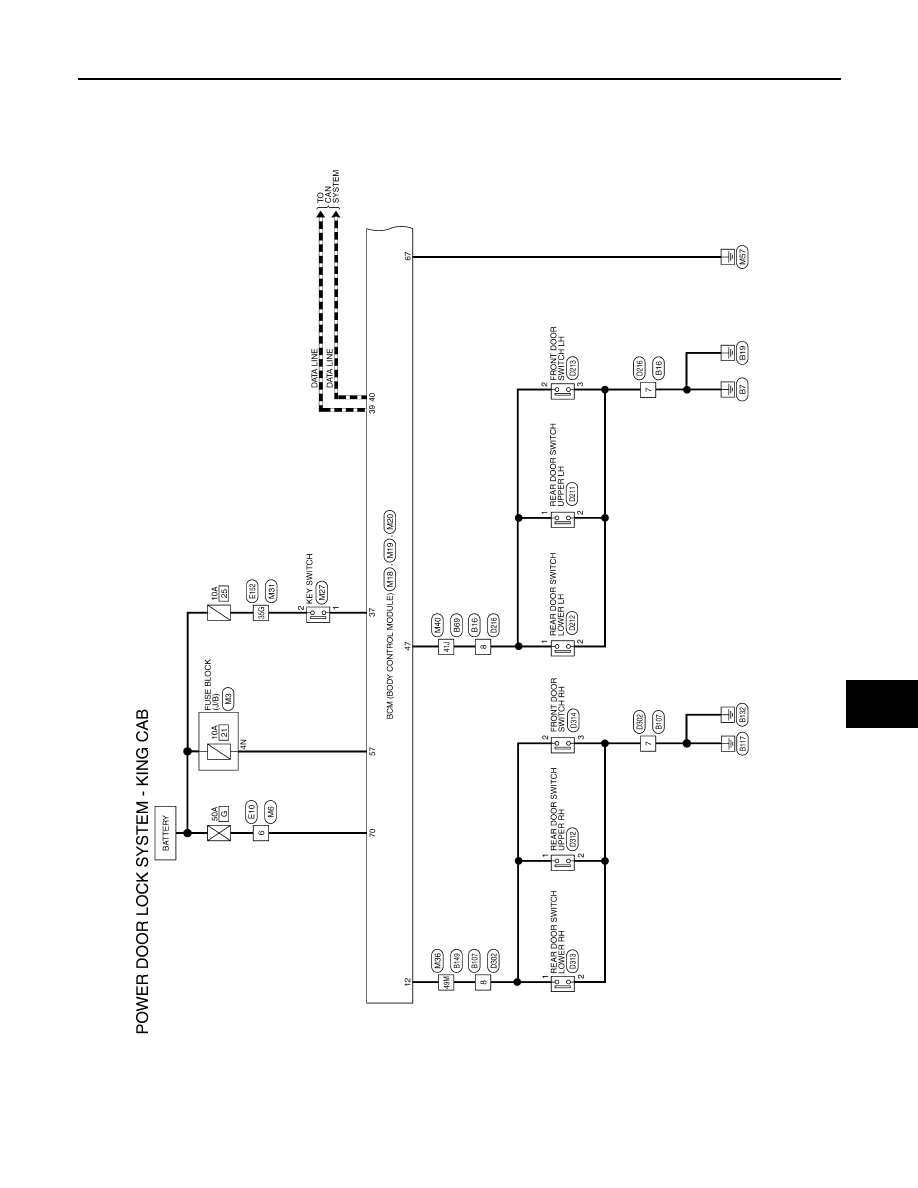

Wiring Diagram - King Cab

INFOID:0000000009478939

ABKWA2322GB
