DEF-32

< WIRING DIAGRAM >

REAR WINDOW DEFOGGER

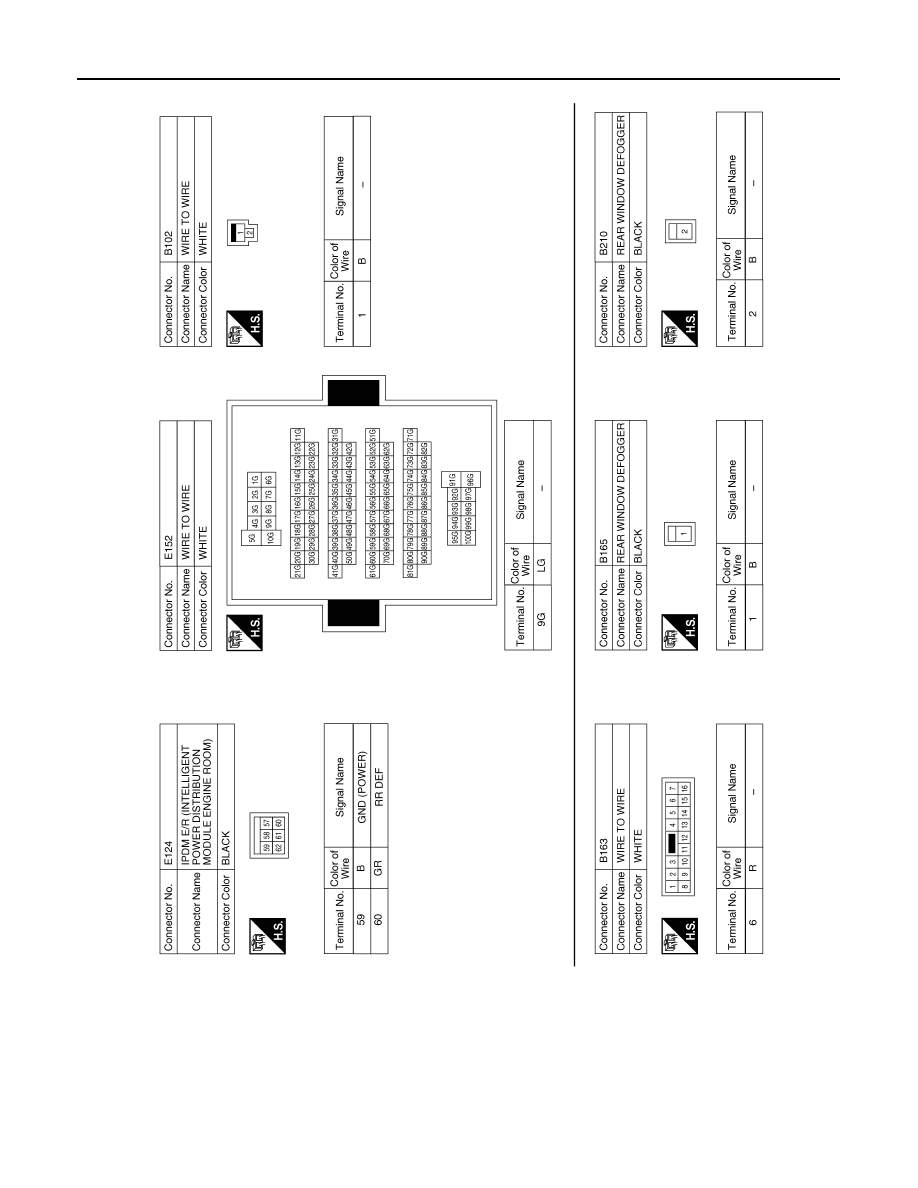

ABLIA5761GB

REAR WINDOW DEFOGGER

DEF-33

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

M

A

B

DEF

N

O

P

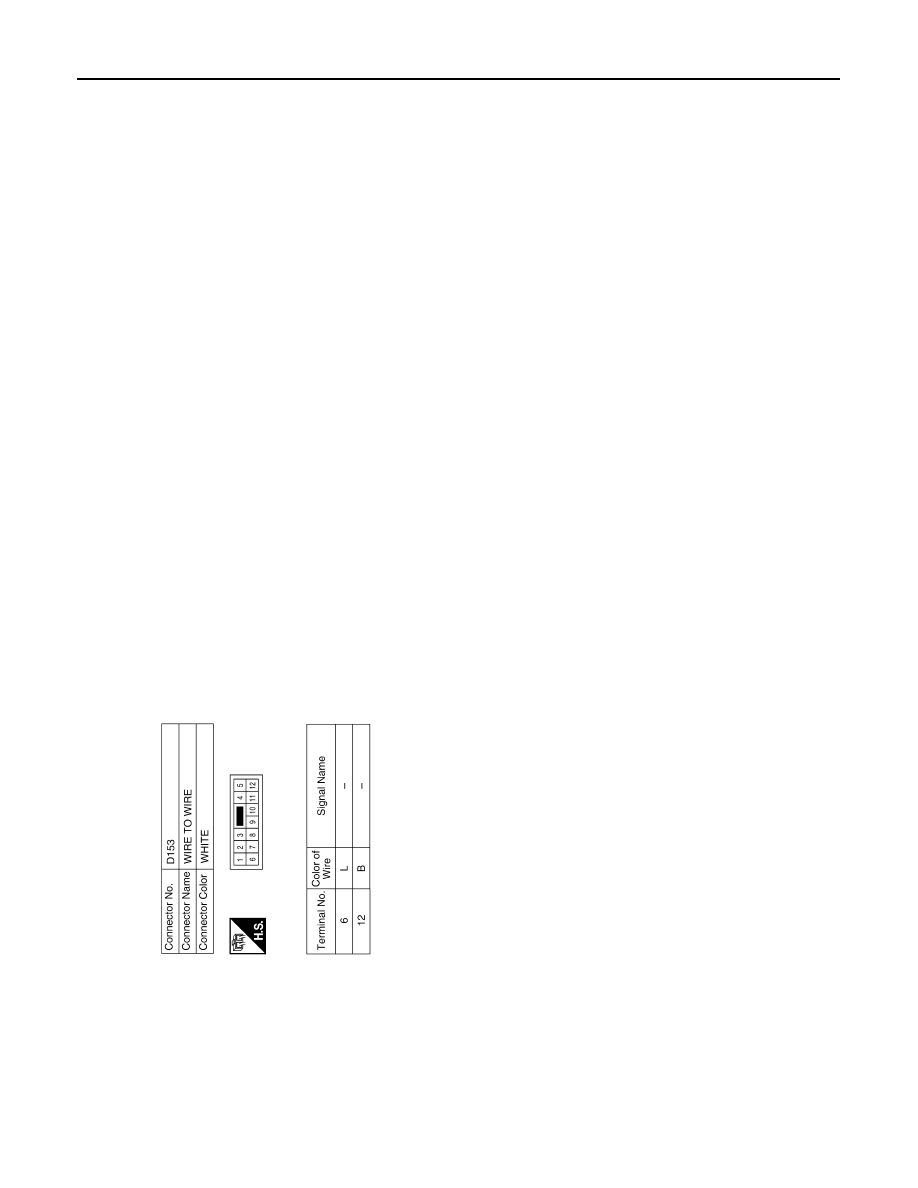

ABLIA5762GB

DEF-34

< WIRING DIAGRAM >

REAR WINDOW DEFOGGER

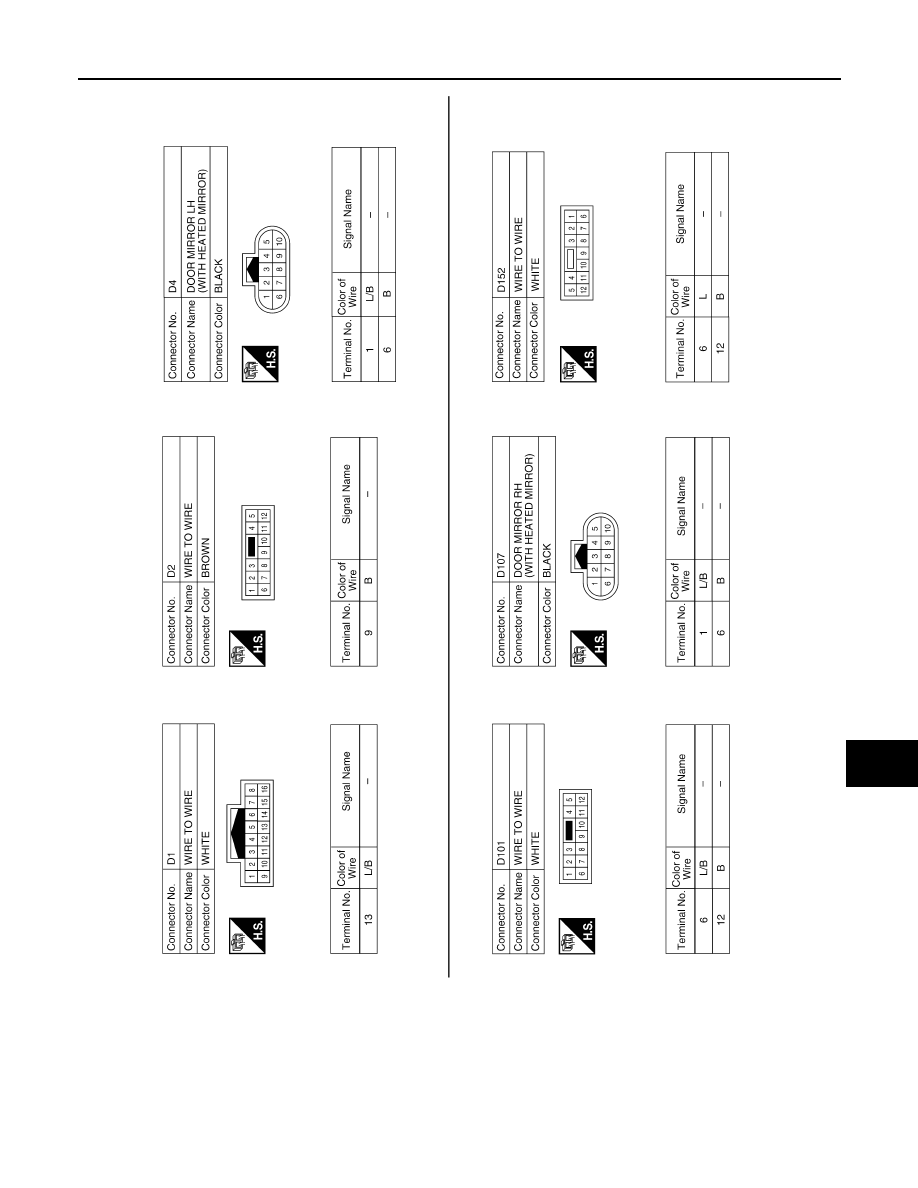

ABLIA5763GB

REAR WINDOW DEFOGGER DOES NOT OPERATE

DEF-35

< SYMPTOM DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

DEF

N

O

P

SYMPTOM DIAGNOSIS

REAR WINDOW DEFOGGER DOES NOT OPERATE

Diagnosis Procedure

INFOID:0000000010246906

1.

 CHECK REAR WINDOW DEFOGGER SWITCH

Check rear window defogger switch.

Refer to

DEF-8, "Component Function Check"

.

Is the inspection result normal?

YES

>> GO TO 2

NO

>> Repair or replace the malfunctioning parts.

2.

 CHECK REAR WINDOW DEFOGGER RELAY

Check rear window defogger relay.

Refer to

DEF-10, "Component Function Check"

.

Is the inspection result normal?

YES

>> GO TO 3

NO

>> Repair or replace the malfunctioning parts.

3.

 CHECK REAR WINDOW DEFOGGER POWER SUPPLY AND GROUND CIRCUIT

Check rear window defogger power supply and ground circuit.

Refer to

DEF-11, "Component Function Check"

.

Is the inspection result normal?

YES

>> Check intermittent incident. Refer to

GI-42, "Intermittent Incident"

.

NO

>> Repair or replace the malfunctioning parts.
