BODY CONSTRUCTION

BRM-25

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

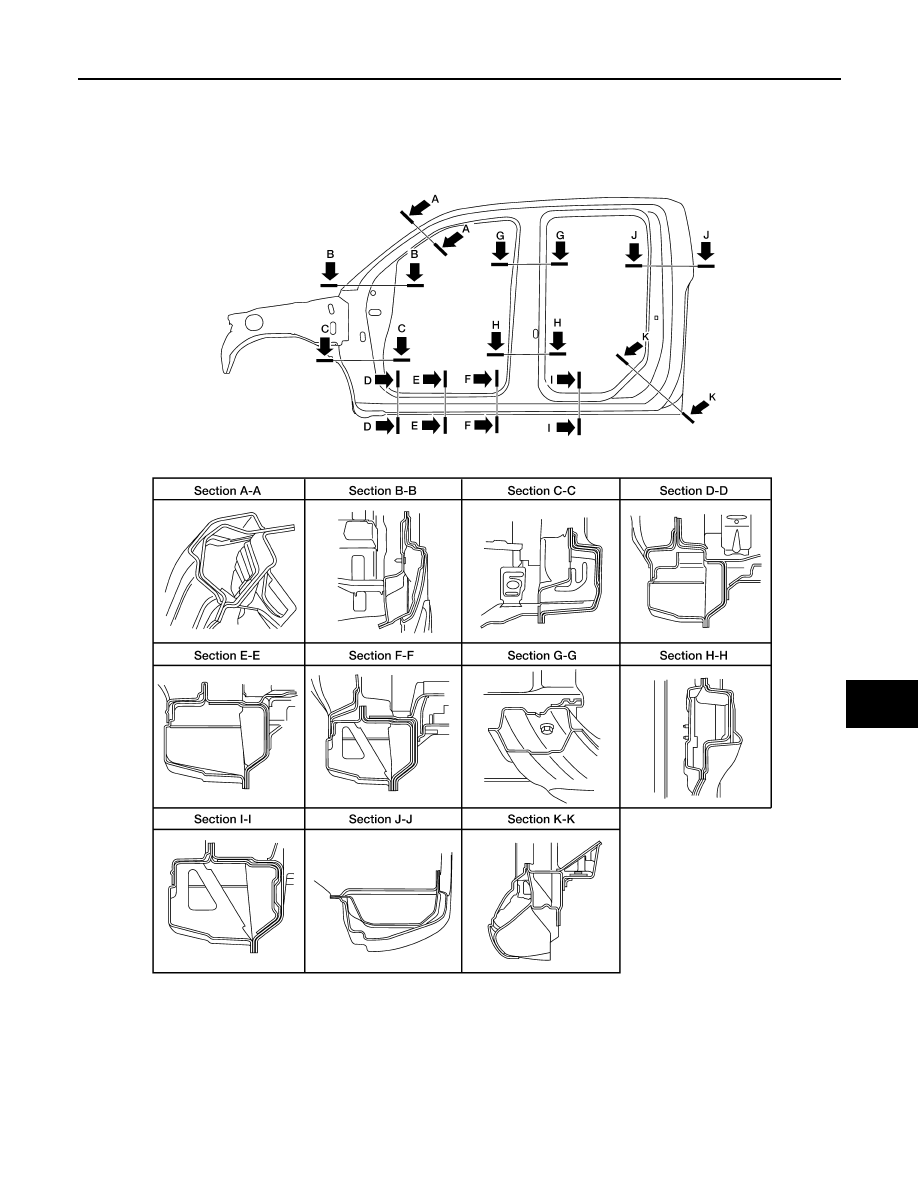

BODY CONSTRUCTION CREW CAB

LIIA2000E

BRM-26

< REMOVAL AND INSTALLATION >

BODY ALIGNMENT

BODY ALIGNMENT

Body Alignment

INFOID:0000000009478785

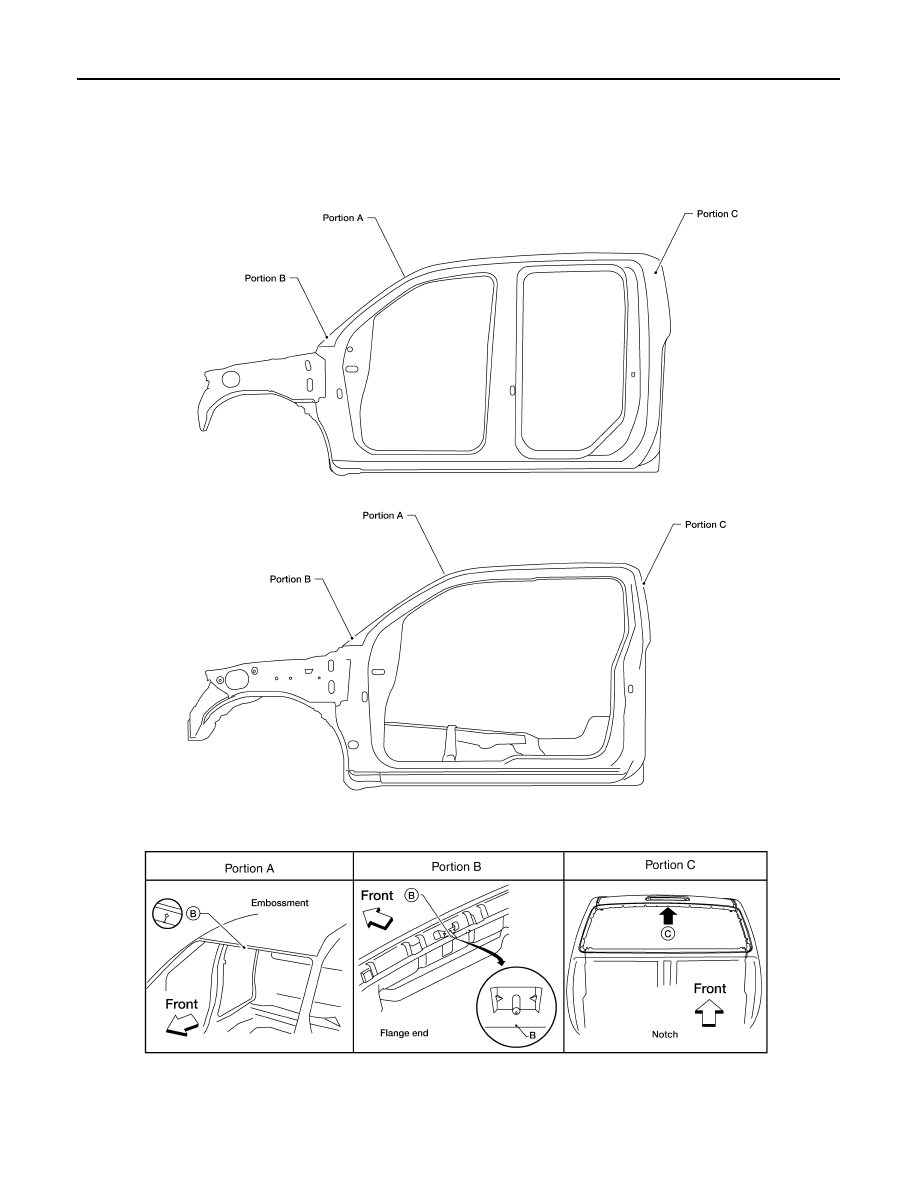

BODY CENTER MARKS

A mark has been placed on each part of the body to indicate the vehicle center. When repairing parts dam-

aged by an accident which might affect the vehicle frame (members, pillars, etc.), more accurate and effective

repair will be possible by using these marks together with body alignment specifications.

AWKIA1441GB

BODY ALIGNMENT

BRM-27

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

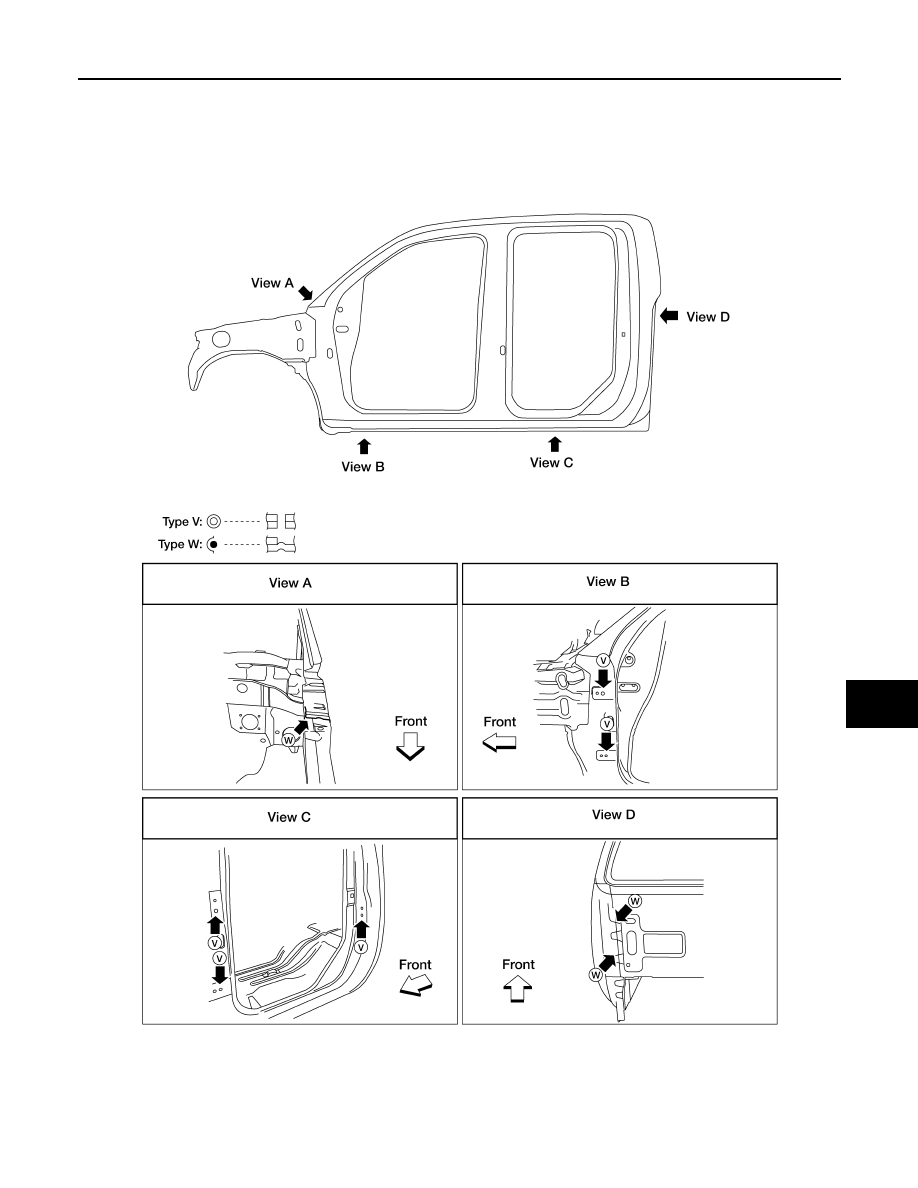

PANEL PARTS MATCHING MARKS

A mark has been placed on each body panel to indicate the parts matching positions. When repairing parts

damaged by an accident which might affect the vehicle structure (members, pillars, etc.), more accurate and

effective repair will be possible by using these marks together with body alignment specifications.

Crew Cab

AWKIA1442GB

BRM-28

< REMOVAL AND INSTALLATION >

BODY ALIGNMENT

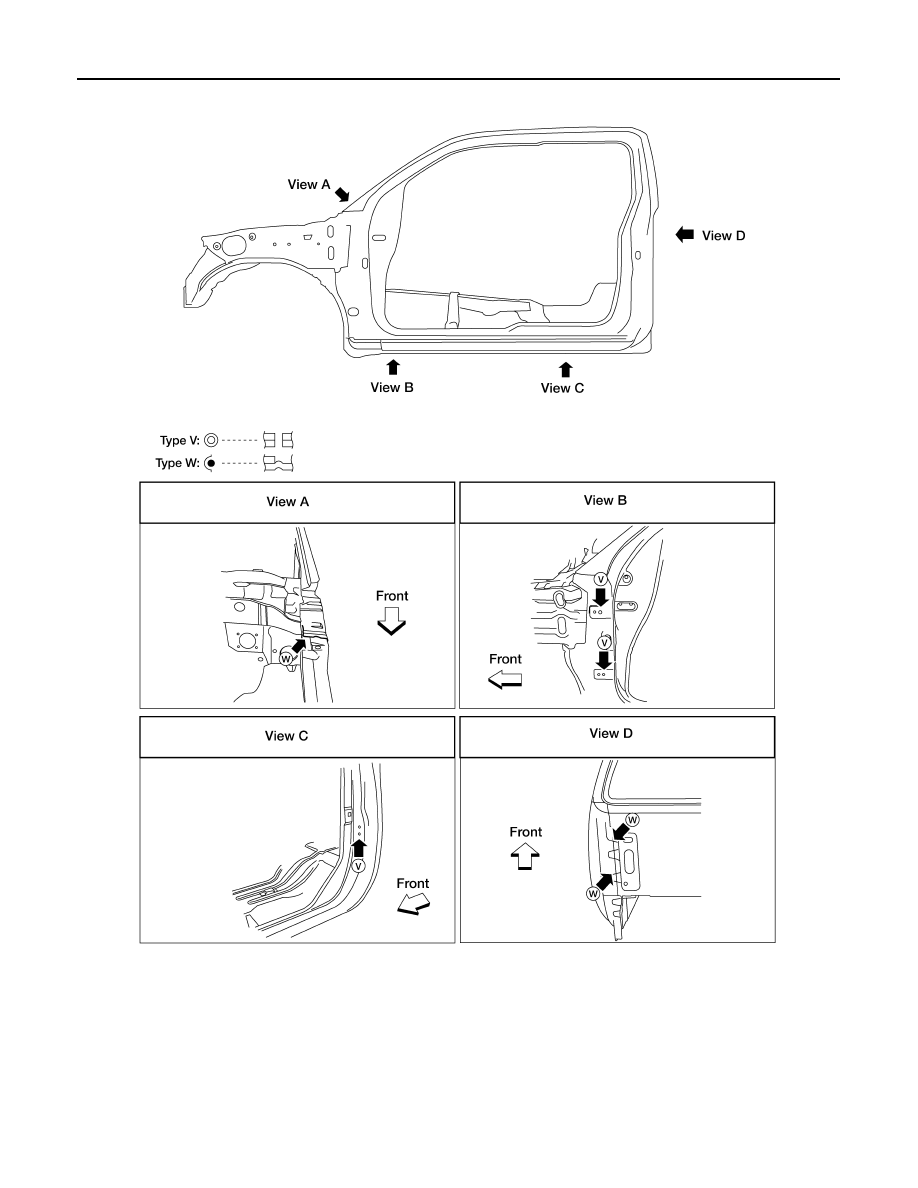

King Cab

DESCRIPTION

• All dimensions indicated in the figures are actual.

• When using a tracking gauge, adjust both pointers to equal length. Then check the pointers and gauge itself

to make sure there is no free play.

• When a measuring tape is used, check to be sure there is no elongation, twisting or bending.

• Measurements should be taken at the center of the mounting holes.

• An asterisk (*) following the value at the measuring point indicates that the measuring point on the other side

is symmetrically the same value.

AWKIA1443GB
