BRC-168

< DTC/CIRCUIT DIAGNOSIS >

[TYPE 2]

C1115 ABS SENSOR [ABNORMAL SIGNAL]

C1115 ABS SENSOR [ABNORMAL SIGNAL]

Description

INFOID:0000000009479448

When the sensor rotor rotates, the magnetic field changes. It converts the magnetic field changes to current

signals (rectangular wave) and transmits them to the ABS actuator and electric unit (control unit).

DTC Logic

INFOID:0000000009479449

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

1.

CHECK SELF-DIAGNOSIS RESULTS

Check the self-diagnosis results.

Is above displayed on the self-diagnosis display?

YES

>> Proceed to diagnosis procedure. Refer to

BRC-168, "Diagnosis Procedure"

.

NO

>> Inspection End

Diagnosis Procedure

INFOID:0000000009479450

Regarding Wiring Diagram information, refer to

BRC-213, "Wiring Diagram - VDC WITH HILL DESCENT

CONTROL/HILL START ASSIST"

.

CAUTION:

Do not check between wheel sensor terminals.

1.

CONNECTOR INSPECTION

1. Disconnect the ABS actuator and electric unit (control unit) connector and wheel sensor of malfunctioning

code.

2. Check the terminals for deformation, disconnection, looseness or damage.
Is the inspection result normal?

YES

>> GO TO 2

NO

>> Repair or replace as necessary.

2.

CHECK WHEEL SENSOR OUTPUT SIGNAL

1. Connect ABS active wheel sensor tester (J-45741) to wheel sensor using appropriate adapter.

2. Turn on the ABS active wheel sensor tester power switch.

NOTE:

The green POWER indicator should illuminate. If the POWER indicator does not illuminate, replace the

battery in the ABS active wheel sensor tester before proceeding.

3. Spin the wheel of the vehicle by hand and observe the red SENSOR indicator on the ABS active wheel

sensor tester. The red SENSOR indicator should flash on and off to indicate an output signal.

NOTE:

If the red SENSOR indicator illuminates but does not flash, reverse the polarity of the tester leads and

retest.

Does the ABS active wheel sensor tester detect a signal?

YES

>> GO TO 3

DTC

Display item

Malfunction detected condition

Possible cause

C1115

ABS SENSOR
[ABNORMAL SIGNAL]

When wheel sensor input signal is malfunctioning.

• Harness or connector
• Wheel sensor
• ABS actuator and electric unit

(control unit)

Self-diagnosis results

ABS SENSOR [ABNORMAL SIGNAL]

C1115 ABS SENSOR [ABNORMAL SIGNAL]

BRC-169

< DTC/CIRCUIT DIAGNOSIS >

[TYPE 2]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

NO

>> Replace the wheel sensor. Refer to

BRC-234, "Removal and Installation"

.

3.

CHECK TIRES

Check the inflation pressure, wear and size of each tire.
Is the inspection result normal?

YES

>> GO TO 4

NO

>> Adjust tire pressure or replace tire(s).

4.

CHECK WHEEL BEARINGS

Check wheel bearing axial end play. Refer to

FAX-5, "On-Vehicle Inspection and Service"

 (front),

RAX-6,

"Rear Axle Bearing"

 (C200 rear), or

RAX-18, "Rear Axle Bearing"

 (M226 rear).

Is the inspection result normal?

YES

>> GO TO 5

NO

>> Repair or replace as necessary. Refer to

FAX-8, "Removal and Installation"

 (front),

RAX-12,

"Removal and Installation"

 (C200 rear), or

RAX-23, "Removal and Installation"

 (M226 rear).

5.

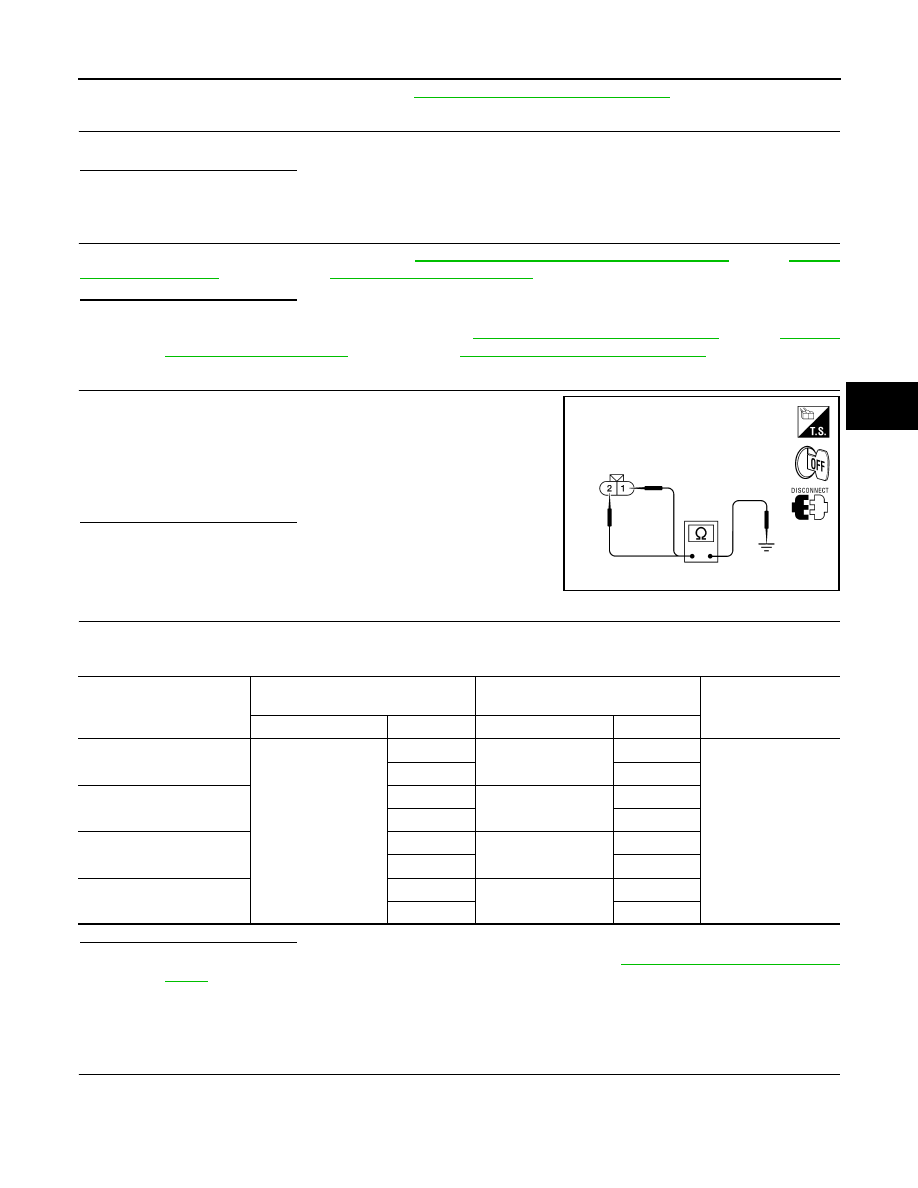

CHECK WIRING HARNESS FOR SHORT CIRCUIT

1. Disconnect ABS actuator and electric unit (control unit) connec-

tor and wheel sensor connector of malfunction code No.

2. Check continuity between wheel sensor connector terminals

and ground.

Is the inspection result normal?

YES

>> GO TO 6

NO

>> Repair the circuit.

6.

CHECK WIRING HARNESS FOR OPEN CIRCUIT

1. Check continuity between ABS actuator and electric unit (control unit) connector and the malfunctioning

wheel sensor connector.

Is the inspection result normal?

YES

>> Replace the ABS actuator and electric unit (control unit). Refer to

BRC-236, "Removal and Instal-

lation"

.

NO

>> Repair the circuit.

Component Inspection

INFOID:0000000009479451

1.

CHECK DATA MONITOR

On “DATA MONITOR”, select “FR LH SENSOR”, “FR RH SENSOR”, “RR LH SENSOR”, and “RR RH SEN-

SOR”, and check the vehicle speed.

Continuity should not exist.

AWFIA0188ZZ

Wheel sensor

ABS actuator and

electric unit (control unit)

Wheel sensor

Continuity

Connector

Terminal

Connector

Terminal

Front LH

E127

45

E18

1

Yes

46

2

Front RH

34

E117

1

33

2

Rear LH

36

C11

1

37

2

Rear RH

43

C10

1

42

2

BRC-170

< DTC/CIRCUIT DIAGNOSIS >

[TYPE 2]

C1115 ABS SENSOR [ABNORMAL SIGNAL]

Is the inspection result normal?

YES

>> Inspection End

NO

>> Go to diagnosis procedure. Refer to

BRC-168, "Diagnosis Procedure"

.

Special Repair Requirement

INFOID:0000000009479452

1.

ADJUSTMENT OF STEERING ANGLE SENSOR NEUTRAL POSITION

Always perform neutral position adjustment for the steering angle sensor when replacing the ABS actuator

and electric unit (control unit). Refer to

BRC-124, "ADJUSTMENT OF STEERING ANGLE SENSOR NEU-

TRAL POSITION : Description"

.

>> GO TO 2

2.

CALIBRATION OF DECEL G SENSOR

Always perform calibration of decel G sensor when replacing the ABS actuator and electric unit (control unit).

Refer to

BRC-125, "CALIBRATION OF DECEL G SENSOR : Description"

.

>> END

Wheel sensor

Vehicle speed (DATA MONITOR)

FR LH SENSOR

Nearly matches the speedometer dis-
play (

±10% or less)

FR RH SENSOR

RR LH SENSOR

RR RH SENSOR

C1116 STOP LAMP SWITCH

BRC-171

< DTC/CIRCUIT DIAGNOSIS >

[TYPE 2]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

C1116 STOP LAMP SWITCH

Description

INFOID:0000000009479453

The stop lamp switch transmits the stop lamp switch signal (ON/OFF) to the ABS actuator and electric unit

(control unit).

DTC Logic

INFOID:0000000009479454

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

1.

CHECK SELF-DIAGNOSIS RESULTS

Check the self-diagnosis results.

Is above displayed on the self-diagnosis display?

YES

>> Proceed to diagnosis procedure. Refer to

BRC-171, "Diagnosis Procedure"

.

NO

>> Inspection End

Diagnosis Procedure

INFOID:0000000009479455

Regarding Wiring Diagram information, refer to

BRC-213, "Wiring Diagram - VDC WITH HILL DESCENT

CONTROL/HILL START ASSIST"

.

1.

CONNECTOR INSPECTION

1. Disconnect the ABS actuator and electric unit (control unit) connector and stop lamp switch connector.

2. Check the terminals for deformation, disconnection, looseness or damage.
Is the inspection result normal?

YES

>> GO TO 2

NO

>> Repair or replace as necessary.

2.

STOP LAMP SWITCH INSPECTION

1. Connect the stop lamp switch connector.

2. Check the voltage between the ABS actuator and electric unit (control unit) connector E127 terminal 39

and body ground.

Is the inspection result normal?

YES

>> Perform self-diagnosis again. If the same results appear, replace ABS actuator and electric unit

(control unit). Refer to

BRC-236, "Removal and Installation"

.

NO

>> GO TO 3

3.

STOP LAMP SWITCH CIRCUIT INSPECTION

1. Disconnect the stop lamp switch connector.

DTC

Display item

Malfunction detected condition

Possible cause

C1116

STOP LAMP SW

When stop lamp switch circuit is open.

• Harness or connector
• Stop lamp switch
• ABS actuator and electric unit

(control unit)

Self-diagnosis results

STOP LAMP SW

Brake pedal depressed

: Battery voltage
(approx. 12V)

Brake pedal released

: Approx. 0V
