BRC-116

< UNIT REMOVAL AND INSTALLATION >

[TYPE 1]

ACTUATOR AND ELECTRIC UNIT (ASSEMBLY)

• If the ABS actuator and electric unit (control unit) is replaced, make sure to adjust position of steering angle

sensor. Refer to

BRC-12, "ADJUSTMENT OF STEERING ANGLE SENSOR NEUTRAL POSITION : Special

Repair Requirement"

.

CAUTION:

• All hoses and piping (tubes) must be free from excessive bending, twisting and pulling.

• Make sure there is no interference with other parts when turning steering both clockwise and coun-

terclockwise.

• The brake piping is an important safety part. If a brake fluid leak is detected, always disassemble the

parts. Replace applicable part with a new one, if necessary.

• Be careful not to splash brake fluid on painted areas; it may cause paint damage. If brake fluid is

splashed on painted areas, wash it away with water immediately.

• Do not bend or twist brake hose sharply, or strongly pull it.

• When removing components, cover connections so that no dirt, dust, or other foreign matter gets in.

• Do not reuse drained brake fluid.

• After installation of the ABS actuator and electric unit (control unit), refill brake system with new

brake fluid, then bleed the air from the brake system. Refer to

BR-18, "Bleeding Brake System"

.

ABS actuator and electric unit (control unit) bolt (LH side) : 7.0 N·m (0.7 kg-m, 62 in-lb)

STEERING ANGLE SENSOR

BRC-117

< UNIT REMOVAL AND INSTALLATION >

[TYPE 1]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

STEERING ANGLE SENSOR

Removal and Installation

INFOID:0000000009479382

REMOVAL

1. Remove the spiral cable. Refer to

SR-13, "Removal and Installation"

.

2. Remove the screws and remove the steering angle sensor from the spiral cable.

INSTALLATION

Installation is in the reverse order of removal.

• Reset the neutral position of the steering angle sensor. Refer to

BRC-12, "ADJUSTMENT OF STEERING

ANGLE SENSOR NEUTRAL POSITION : Special Repair Requirement"

.

CAUTION:

Any time the steering angle sensor is removed and installed or replaced, you must reset the neutral

position of the steering angle sensor. Refer to

BRC-12, "ADJUSTMENT OF STEERING ANGLE SEN-

SOR NEUTRAL POSITION : Special Repair Requirement"

.

BRC-118

< UNIT REMOVAL AND INSTALLATION >

[TYPE 1]

YAW RATE/SIDE/DECEL G SENSOR

YAW RATE/SIDE/DECEL G SENSOR

Removal and Installation

INFOID:0000000009479383

REMOVAL

1. Remove center console rear base. Refer to

IP-14, "Exploded View"

.

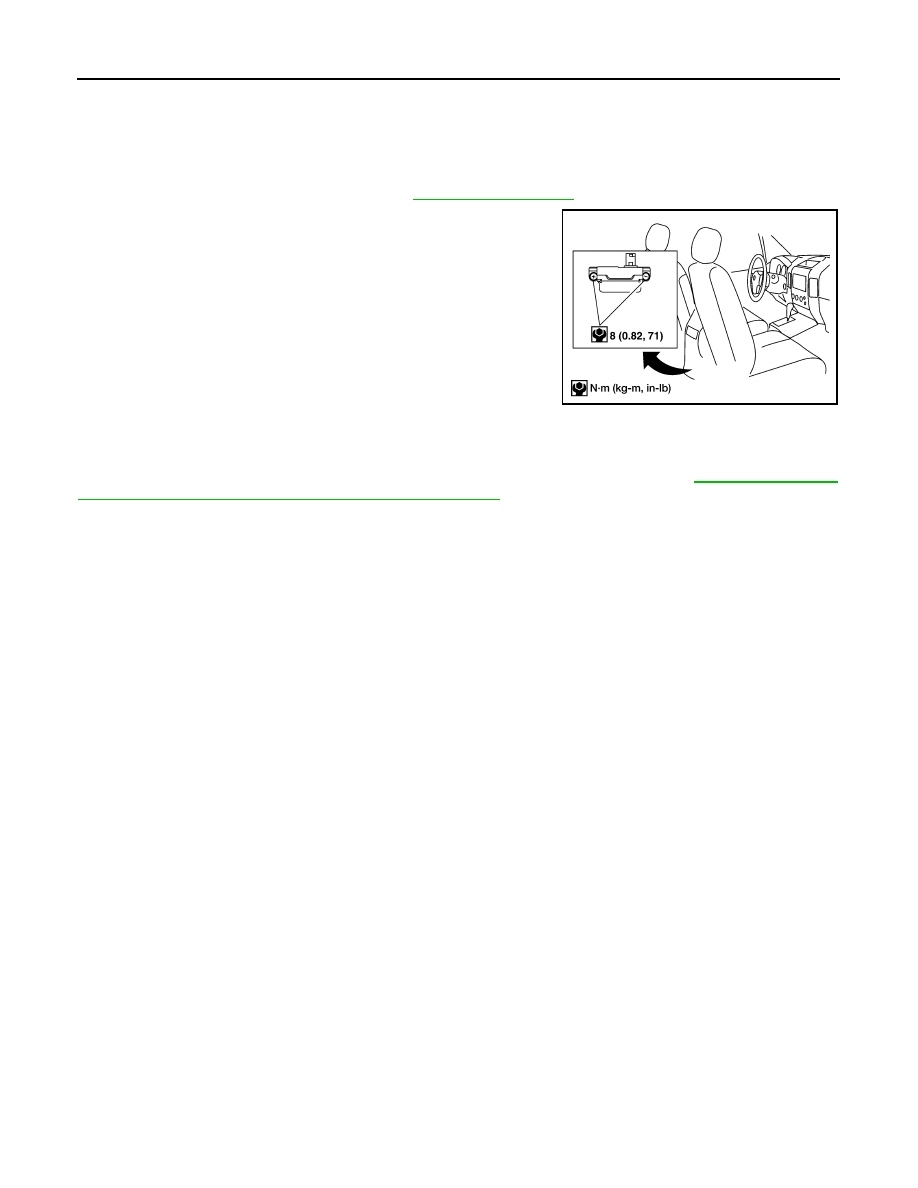

2. Remove yaw rate/side/decel G sensor attaching nuts as shown.

• The location of the yaw rate/side/decel G sensor is the same

for all models.

CAUTION:

• Do not use power tools to remove or install yaw rate/side/

decel G sensor.

• Do not drop or strike the yaw rate/side/decel G sensor.

3. Disconnect harness connector and remove the yaw rate/side/

decel G sensor.

INSTALLATION

Installation is in the reverse order of removal.

NOTE:

After performing the above work, calibrate the yaw rate/side/decel G sensor. Refer to

BRC-13, "CALIBRA-

TION OF DECEL G SENSOR : Special Repair Requirement"

.

WFIA0230E

APPLICATION NOTICE

BRC-119

< BASIC INSPECTION >

[TYPE 2]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

BASIC INSPECTION

APPLICATION NOTICE

Application Notice

INFOID:0000000009479384

Service information

Remarks

TYPE 1

VDC/TCS/ABS

TYPE 2

HILL DESCENT CONTROL/HILL START ASSIST/VDC/TCS/ABS
