FRONT WIPER DRIVE ASSEMBLY

WW-55

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

FRONT WIPER DRIVE ASSEMBLY

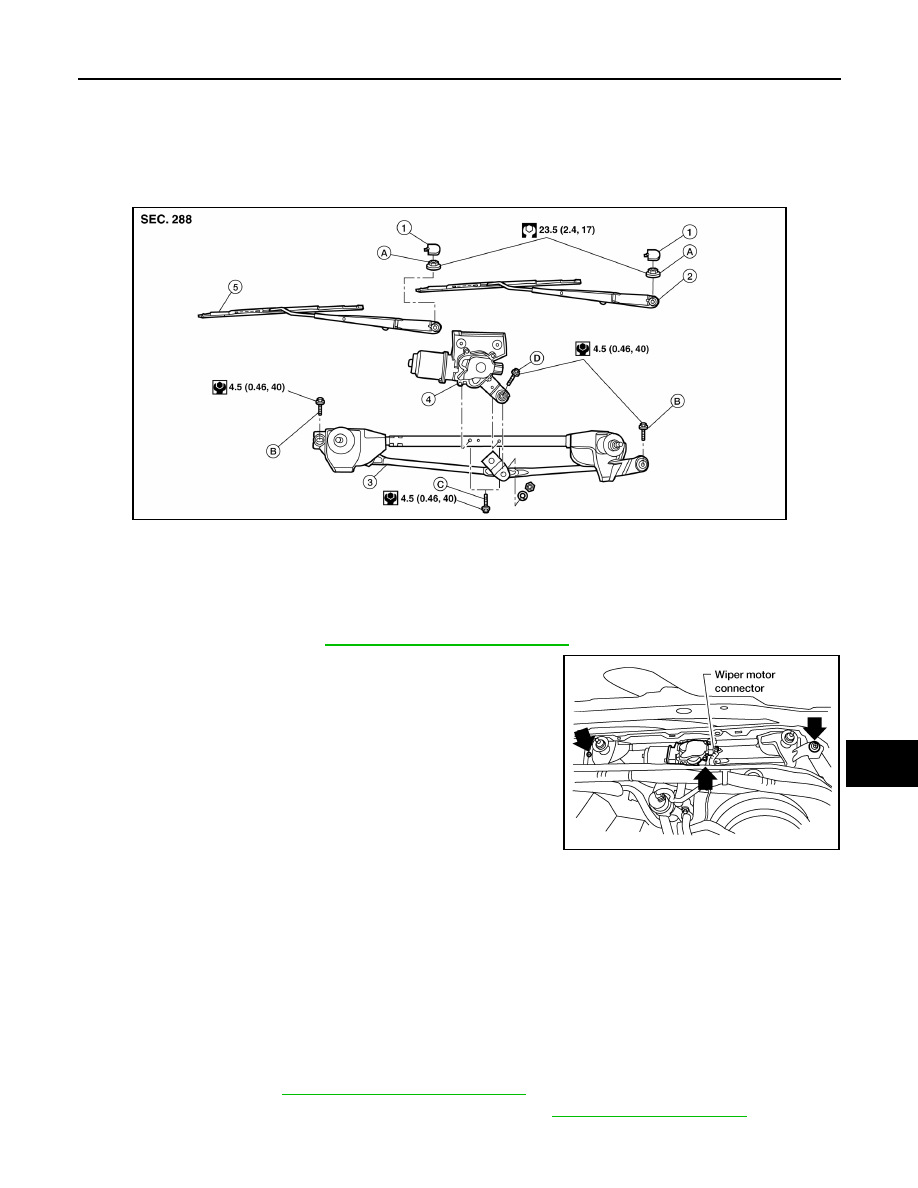

Wiper Motor and Linkage

INFOID:0000000009480088

REMOVAL AND INSTALLATION

Removal

1. Remove the cowl top. Refer to

EXT-24, "Removal and Installation"

.

2. Remove wiper frame bolts, disconnect the harness connector

from the wiper motor and remove wiper frame assembly.

3. Remove wiper motor from wiper frame assembly.

Installation

CAUTION:

• Do not drop the wiper motor or cause it to contact other parts.

• Check the grease conditions of the motor arm and wiper link joint(s). Apply grease if necessary.
1. Connect wiper motor to connector. Turn the wiper switch ON to operate wiper motor, then turn the wiper

switch OFF (auto stop).

2. Disconnect the harness connector from the wiper motor.
3. Install wiper motor to wiper frame assembly, and install wiper frame assembly.
4. Connect the harness connector to the wiper motor.
5. Install cowl top. Refer to

EXT-24, "Removal and Installation"

.

6. Ensure that wiper blades stop within proper clearance. Refer to

WW-54, "Front Wiper Arms"

.

AWLIA1817ZZ

1.

Wiper arm covers

2.

Front LH wiper arm and blade assembly

3.

Wiper frame assembly

4.

Wiper motor

5.

Front RH wiper arm and blade assembly

A.

Wiper arm nuts

B.

Wiper frame bolts

C.

Wiper motor bolts

D.

Wiper motor pivot arm bolt

LKIA0534E

WW-56

< REMOVAL AND INSTALLATION >

FRONT WASHER TUBE

FRONT WASHER TUBE

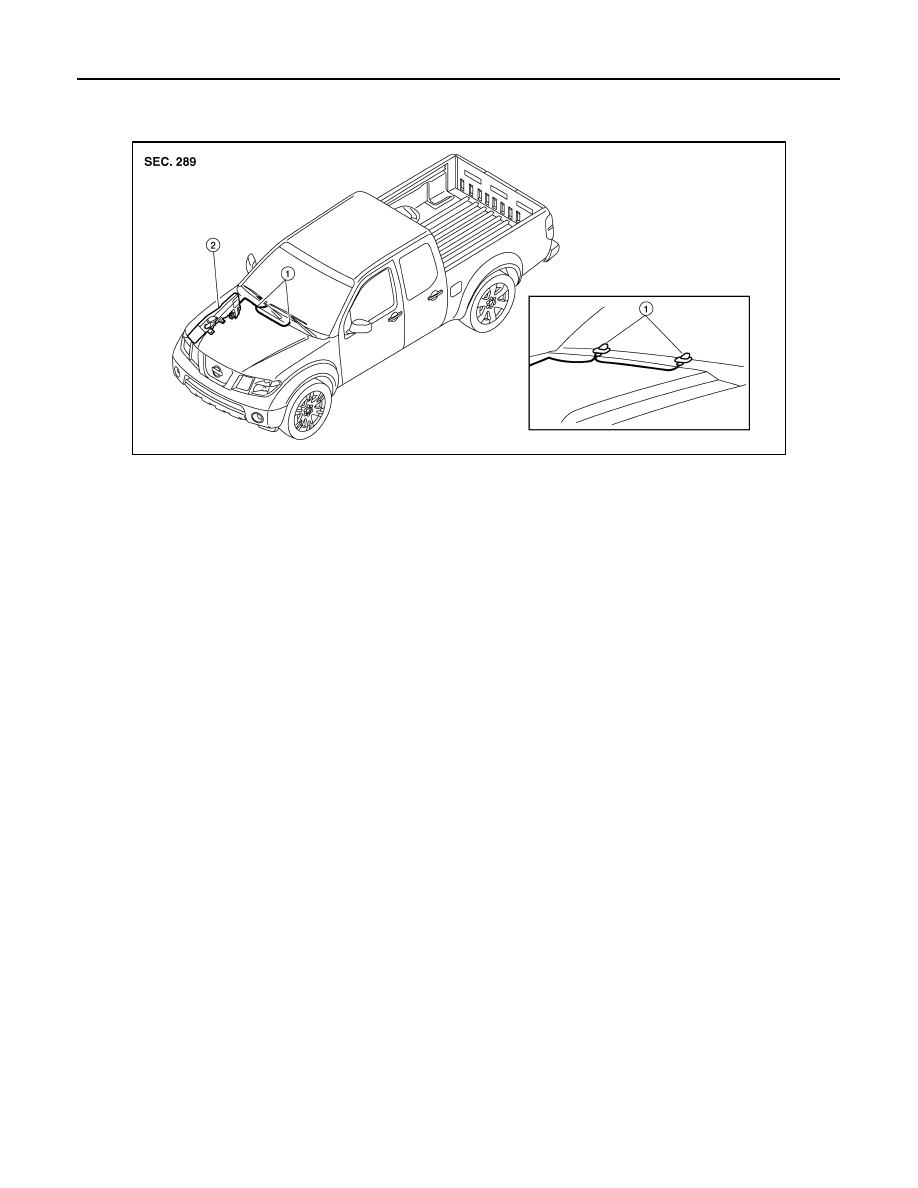

Washer Tube Layout

INFOID:0000000009480089

WKIA4886E

1. Washer

nozzles

2.

Washer

tube

FRONT WASHER NOZZLE

WW-57

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

FRONT WASHER NOZZLE

Removal and Installation

INFOID:0000000009480090

REMOVAL

1. Remove cowl top. Refer to

EXT-24, "Removal and Installation"

.

2. Remove washer nozzles.

INSTALLATION

Installation is in the reverse order of removal.

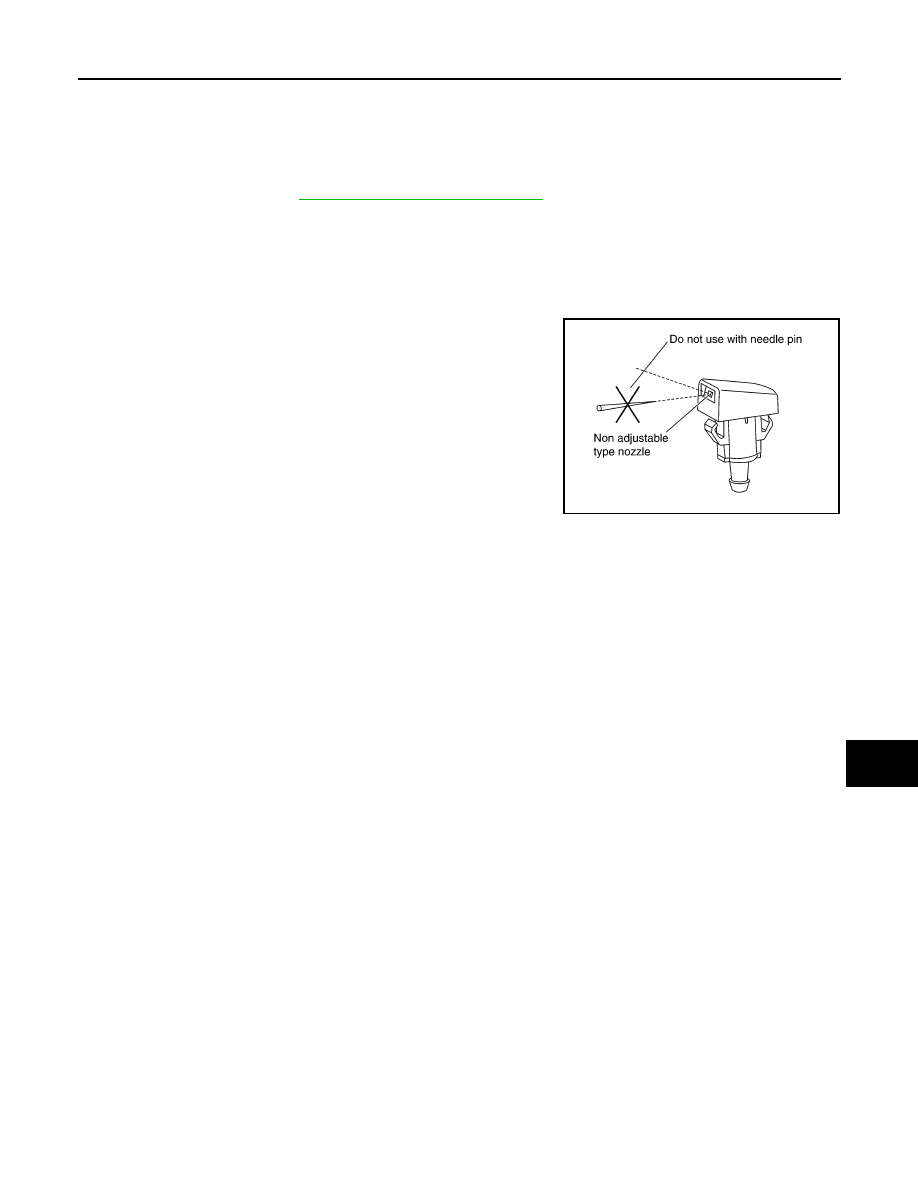

Washer Nozzle Adjustment

INFOID:0000000009480091

• This vehicle is equipped with non-adjustable washer nozzles.

• If not satisfied with washer fluid spray coverage, confirm that the

washer nozzle is installed correctly.

• If the washer nozzle is installed correctly, and the washer fluid

spray coverage is not satisfactory, replace washer nozzle.

PKIA2552E

WW-58

< REMOVAL AND INSTALLATION >

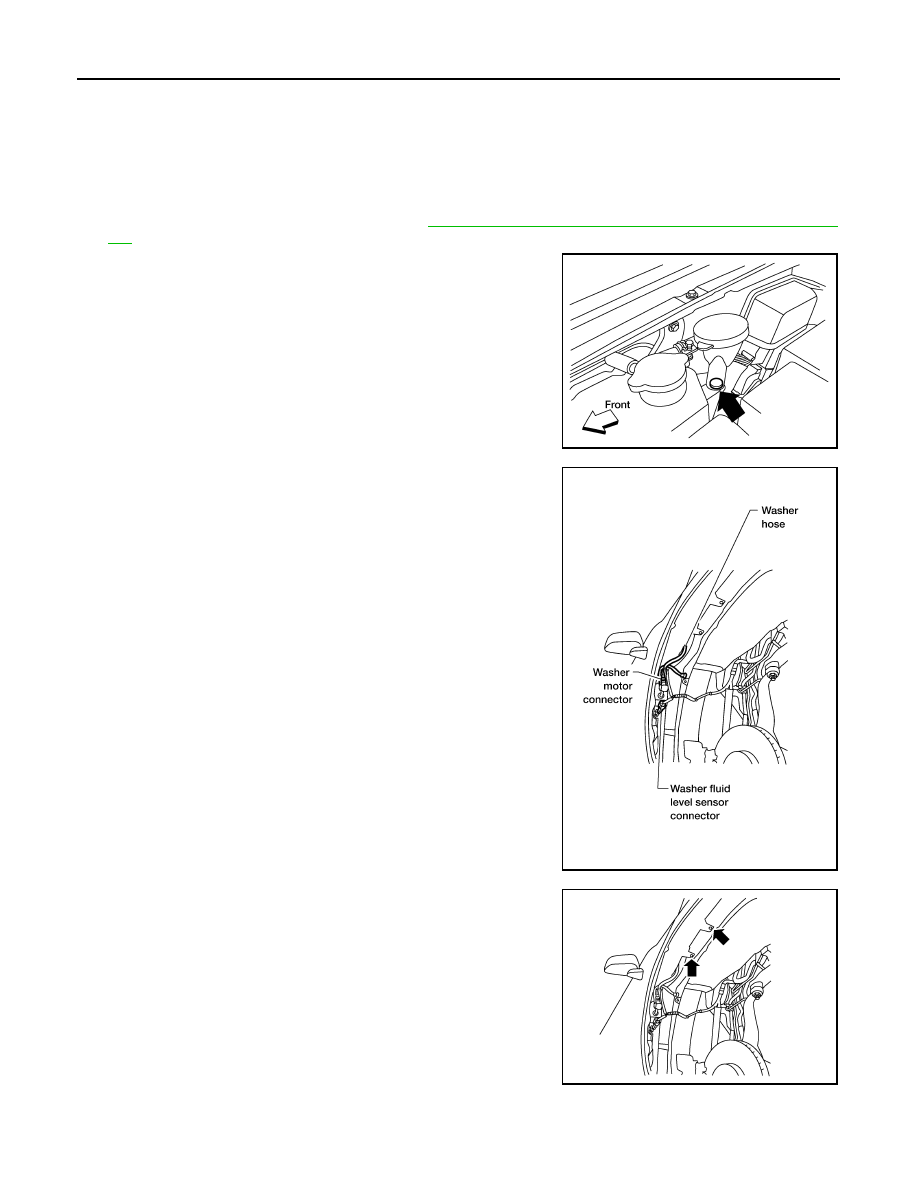

WASHER TANK

WASHER TANK

Washer Tank

INFOID:0000000009480092

REMOVAL AND INSTALLATION

Removal

1. Remove front fender protector (RH). Refer to

EXT-27, "Removal and Installation of Front Fender Protec-

tor"

.

2. Remove clip, then remove washer tank filler neck from washer

fluid reservoir.

3. Disconnect washer hose.
4. Disconnect the harness connector from the washer motor.
5. Disconnect the harness connector from the washer tank fluid

level sensor (if equipped).

6. Remove washer tank screws and the washer tank.

Installation

Installation is in the reverse order of removal.

CAUTION:

LKIA0538E
