WT-4

< BASIC INSPECTION >

DIAGNOSIS AND REPAIR WORKFLOW

3.

SELF-DIAGNOSIS

Perform self-diagnosis. Refer to

WT-32, "Self-Diagnosis (With CONSULT)"

 or

WT-13, "Self-Diagnosis (Without

CONSULT)"

.

>> GO TO 4

4.

SYMPTOM

Check for symptoms. Refer to

WT-38, "Symptom Table"

.

>> GO TO 5

5.

MALFUNCTIONING PARTS

Repair or replace the applicable parts.

>> GO TO 6

6.

DRIVE TEST

1. Perform a drive test.

2. Check the low tire pressure warning lamp.

>> GO TO 7

7.

SELF-DIAGNOSIS

Perform self-diagnosis. Refer to

WT-32, "Self-Diagnosis (With CONSULT)"

 or

WT-13, "Self-Diagnosis (Without

CONSULT)"

.

Are any DTCs displayed?

YES

>> GO TO 5

NO

>> Inspection End.

INSPECTION AND ADJUSTMENT

WT-5

< BASIC INSPECTION >

C

D

F

G

H

I

J

K

L

M

A

B

WT

N

O

P

INSPECTION AND ADJUSTMENT

Preliminary Check

INFOID:0000000009480240

NOTE:

The Signal Tech II Tool (J-50190) can be used to perform the following functions. Refer to the Signal Tech II

User Guide for additional information.

• Activate and display TPMS transmitter IDs

• Display tire pressure reported by the TPMS transmitter

• Read TPMS DTCs

• Register TPMS transmitter IDs

1.

TIRE PRESSURE

Check all tire pressures. Refer to

WT-53, "Tire"

.

Do tire pressures match specification?

YES

>> GO TO 2.

NO

>> Adjust tire pressures to specified value.

2.

LOW TIRE PRESSURE WARNING LAMP

Check low tire pressure warning lamp activation.
Does the low tire pressure warning lamp activate for one second when ignition switch is turned ON?

YES

>> GO TO 3.

NO

>> GO TO

WT-39, "Low Tire Pressure Warning Lamp Does Not Come On When Ignition Switch Is

Turned On"

.

3.

BCM CONNECTOR

1. Disconnect BCM harness connectors.

2. Check terminals for damage or loose connections.

3. Reconnect harness connectors.
Are BCM connectors damaged or loose?

YES

>> Repair or replace damaged parts.

NO

>> GO TO 4.

4.

TRANSMITTER ACTIVATION TOOL

Check battery in transmitter activation tool.
Is transmitter activation tool battery fully charged?

YES

>> Perform self-diagnosis. Refer to

WT-32, "Self-Diagnosis (With CONSULT)"

 or

WT-13, "Self-Diag-

nosis (Without CONSULT)"

NO

>> Replace battery in transmitter activation tool.

WT-6

< BASIC INSPECTION >

ID REGISTRATION PROCEDURE

ID REGISTRATION PROCEDURE

Description

INFOID:0000000009480241

This procedure must be performed after replacement of a transmitter, BCM or rotation of the wheels.

Work Procedure

INFOID:0000000009480242

TPMS ID registration can be performed using one of the following procedures:

• Transmitter Activation tool (J-45295-A) with CONSULT (preferred method)

• Signal Tech II tool (J-50190) with CONSULT (preferred method)

• Signal Tech II tool (J-50190) without CONSULT

• CONSULT only

TPMS REGISTRATION WITH TRANSMITTER ACTIVATION TOOL (J-45295-A)

 With CONSULT

1. Turn the ignition switch ON.

2. Using CONSULT, select “WORK SUPPORT” in BCM (AIR PRESSURE MONITOR). Then, select “ID

REGIST.”

3. Select “Start” on “ID REGIST” screen.

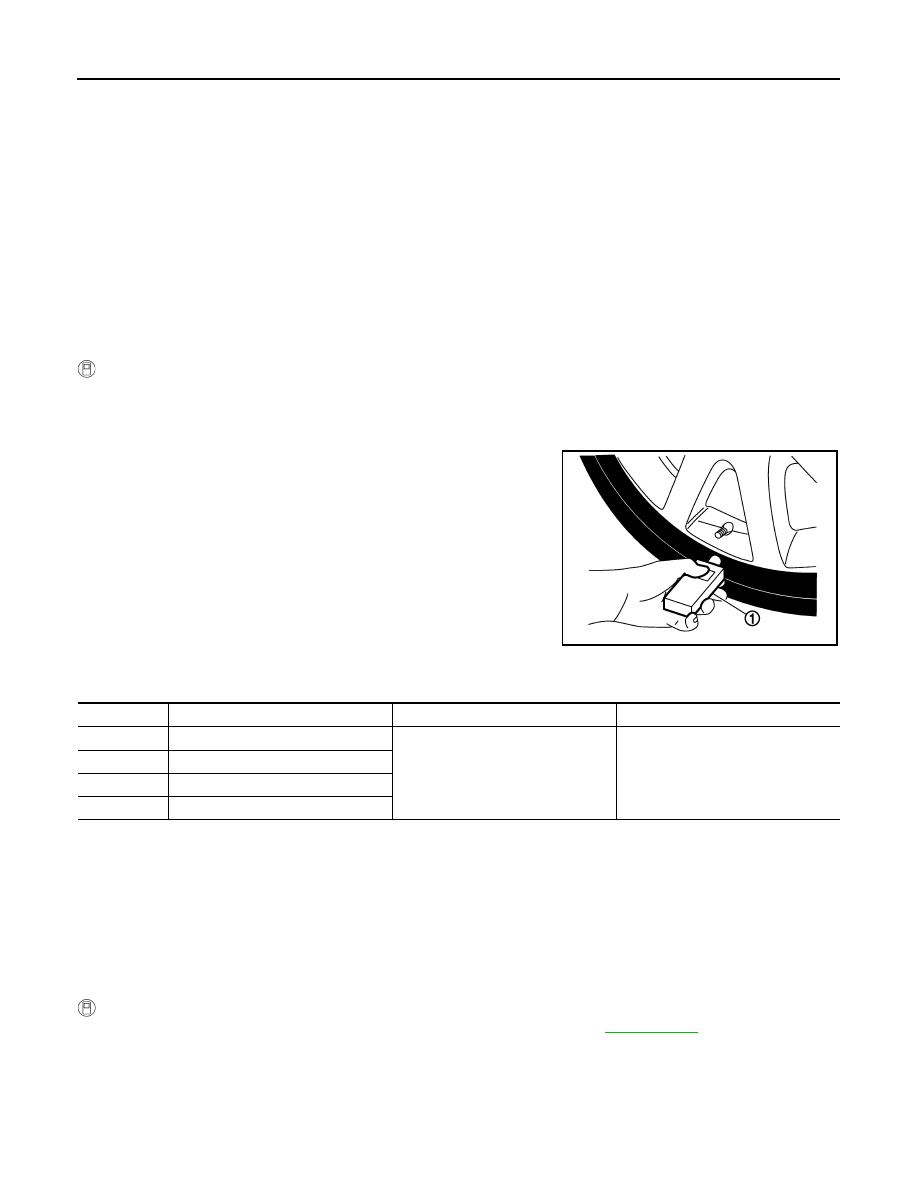

4. Hold the transmitter activation tool (J-45295-A) (1) against the

side of the left front tire, near the valve stem.

5. With the tool held at a 0 to 15 degree angle to the tire, press and

hold the transmitter activation tool button until the indicator lamp

turns OFF (approximately 5 seconds).

6. Repeat steps 4 and 5 for the remaining tires in this order: right

front, right rear and left rear.

7. When ID registration is complete, check the following pattern at each wheel.

8. After the ID registration procedure for all wheels is complete, press “End” on the CONSULT to finish ID

registration.

9. Test drive the vehicle to ensure that the TPMS lamp is OFF and no warning messages are present.

TPMS REGISTRATION WITH SIGNAL TECH II TOOL (J-50190)

NOTE:

The Signal Tech II must be updated with software version 1.1.48 or newer in order to perform the below proce-

dures. The Signal Tech II software updates can only be downloaded from a CONSULT unit with ASIST. Other

versions of ASIST will not show the updates.

 With CONSULT

1. Adjust the tire pressure for all tires to the recommended value. Refer to

WT-53, "Tire"

.

2. Turn the ignition switch ON.

3. Using CONSULT, select “WORK SUPPORT” in BCM (AIR PRESSURE MONITOR). Then, select “ID

REGIST.”

4. Select “Start” on “ID REGIST” screen.

5. Turn on the Signal Tech II tool (J-50190).

NNEIC0020ZZ

Sequence

ID registration position

Turn signal lamp

CONSULT

1

Front  LH

2 blinks

“Yet (red)”

↓

“Done (green)”

2

Front  RH

3

Rear  RH

4

Rear  LH

ID REGISTRATION PROCEDURE

WT-7

< BASIC INSPECTION >

C

D

F

G

H

I

J

K

L

M

A

B

WT

N

O

P

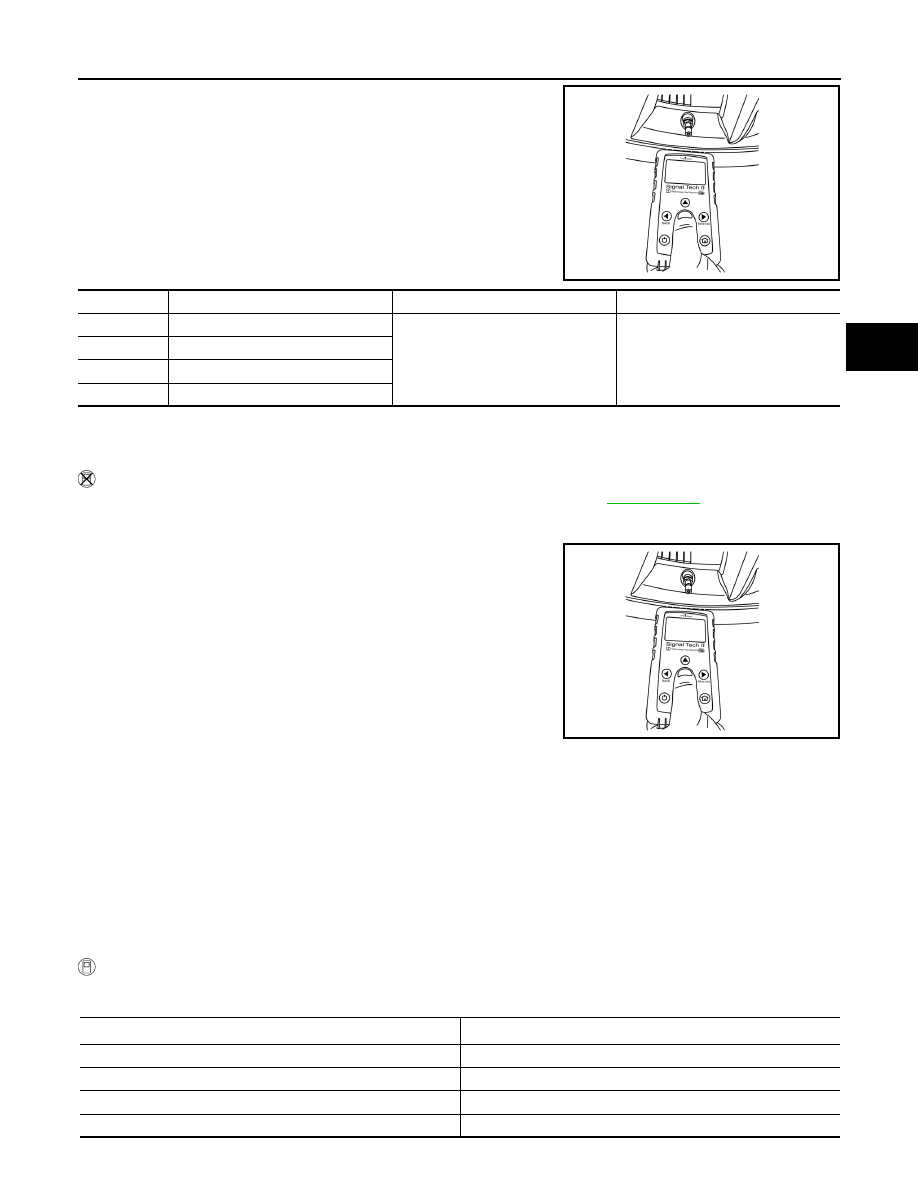

6. Hold the Signal Tech II against the side of the left front tire, near

the valve stem.

7. With the tool held at a 0 to 15 degree angle to the tire, select

“Activate Sensor” from the main menu, then press and release

the “OK” button to activate the sensor. Once the sensor is acti-

vated, the vehicle parking lamps will flash and the sensor ID will

appear on the CONSULT screen.

8. Repeat steps 6 and 7 for the remaining tires in this order: right

front, right rear and left rear.

9. When ID registration is complete, check the following pattern at

each wheel.

10. Once all sensors have been activated, select “End” on the CONSULT to finish ID registration.

11. Test drive the vehicle to ensure that the TPMS lamp is OFF and no warning messages are present.

 Without CONSULT

1. Adjust the tire pressure for all tires to the recommended value. Refer to

WT-53, "Tire"

.

2. Turn on the Signal Tech II tool (J-50190) and select “TPMS Check” from the main menu.

3. Select vehicle model and year.

4. When prompted, hold the Signal Tech II against the side of the

left front tire, near the valve stem.

5. With the tool held at a 0 to 15 degree angle to the tire, press and

release the “OK” button to activate the sensor. Once the sensor

is activated, the tool will sound a tone and the tire pressure will

be displayed.

6. Repeat steps 4 and 5 for the remaining tires in this order: right

front, right rear and left rear.

7. When prompted, connect the tool to the data link connector. The

tool will connect to the BCM, read the VIN, read sensor IDs and

check for TPMS DTCs. Along with DTCs detected, one of the

following will be displayed next to each wheel:

-

 N/A - Not applicable because no ID found by the tool

-

 OK - Wheel and sensor are in original position

-

 NEW - New ID found compared to BCM

-

 RT - Wheel has been rotated

-

 Low Press - Low tire pressure

8. If no DTC is present or the repair has been completed, press the “OK” button to register the IDs and clear

DTCs.

9. Test drive the vehicle to ensure that the TPMS lamp is OFF and no warning messages are present.

10. Print a Signal Tech II Audit Report for your records. Refer to the Signal Tech II User Guide for instructions.

TPMS REGISTRATION WITH CONSULT ONLY

 With CONSULT

1. Adjust the tire pressure for all wheels to match the list below.

ALEIA0177ZZ

Sequence

ID registration position

Turn signal lamp

CONSULT

1

Front LH

2 blinks

“Yet (red)”

↓

“Done (green)”

2

Front  RH

3

Rear RH

4

Rear LH

ALEIA0177ZZ

Tire position

Tire pressure kPa (kg/cm

2

, psi)

Front LH

240 (2.4, 35)

Front RH

220 (2.2, 32)

Rear RH

200 (2.0, 29)

Rear LH

180 (1.8, 26)
