BCM (BODY CONTROL MODULE)

WCS-35

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

1: King cab
2: Crew cab

Fail Safe

INFOID:0000000010217877

Fail-safe index

BCM performs fail-safe control when any DTC listed below is detected.

DTC Inspection Priority Chart

INFOID:0000000010217878

If some DTCs are displayed at the same time, perform inspections one by one based on the following priority

chart.

66

L

Front door lock actua-
tor RH, rear door lock
actuators LH/RH (un-
lock)

Output

OFF

OFF (neutral)

0V

ON (unlock)

Battery voltage

67

B

Ground

Input

ON

—

0V

68

1

O

Power window power
supply (RAP)

Output

—

Ignition switch ON

Battery voltage

Within 45 seconds after igni-
tion switch OFF

Battery voltage

More than 45 seconds after ig-
nition switch OFF

0V

When front door LH or RH is
open or power window timer
operates

0V

68

2

SB

Power window power
supply (RAP)

Output

—

Ignition switch ON

Battery voltage

Within 45 seconds after igni-
tion switch OFF

Battery voltage

More than 45 seconds after ig-
nition switch OFF

0V

When front door LH or RH is
open or power window timer
operates

0V

69

P

Power window power
supply (BAT)

Output

OFF

—

Battery voltage

70

W

Battery power supply

Input

OFF

—

Battery voltage

Terminal

Wire

color

Item

Signal

input/

output

Measuring condition

Reference value or waveform

(Approx.)

Ignition

switch

Operation or condition

Display contents of CONSULT

Fail-safe

Cancellation

U1000: CAN COMM CIRCUIT

Inhibit engine cranking

When the BCM re-establishes communication with the other mod-
ules.

Priority

DTC

1

• U1000: CAN COMM CIRCUIT

2

• B2190: NATS ANTENNA AMP
• B2191: DIFFERENCE OF KEY
• B2192: ID DISCORD BCM-ECM
• B2193: CHAIN OF BCM-ECM

WCS-36

< ECU DIAGNOSIS INFORMATION >

BCM (BODY CONTROL MODULE)

DTC Index

INFOID:0000000010217879

NOTE:

Details of time display

• CRNT: Displays when there is a malfunction now or after returning to the normal condition until turning igni-

tion switch OFF

→ ON again.

• 1 - 39: Displayed if any previous malfunction is present when current condition is normal. It increases like 1

→ 2 → 3...38 → 39 after returning to the normal condition whenever ignition switch OFF → ON. The counter

remains at 39 even if the number of cycles exceeds it. It is counted from 1 again when turning ignition switch

OFF

→ ON after returning to the normal condition if the malfunction is detected again.

3

• C1729: VHCL SPEED SIG ERR
• C1735: IGNITION SIGNAL

4

• C1704: LOW PRESSURE FL
• C1705: LOW PRESSURE FR
• C1706: LOW PRESSURE RR
• C1707: LOW PRESSURE RL
• C1708: [NO DATA] FL
• C1709: [NO DATA] FR
• C1710: [NO DATA] RR
• C1711: [NO DATA] RL
• C1712: [CHECKSUM ERR] FL
• C1713: [CHECKSUM ERR] FR
• C1714: [CHECKSUM ERR] RR
• C1715: [CHECKSUM ERR] RL
• C1716: [PRESSDATA ERR] FL
• C1717: [PRESSDATA ERR] FR
• C1718: [PRESSDATA ERR] RR
• C1719: [PRESSDATA ERR] RL
• C1720: [CODE ERR] FL
• C1721: [CODE ERR] FR
• C1722: [CODE ERR] RR
• C1723: [CODE ERR] RL
• C1724: [BATT VOLT LOW] FL
• C1725: [BATT VOLT LOW] FR
• C1726: [BATT VOLT LOW] RR
• C1727: [BATT VOLT LOW] RL

Priority

DTC

CONSULT display

Fail-safe

Low tire pressure
warning lamp ON

Reference page

No DTC is detected.
further testing
may be required.

—

—

—

U1000: CAN COMM CIRCUIT

—

—

BCS-26

B2190: NATS ANTTENA AMP

—

—

SEC-18

B2191: DIFFERENCE OF KEY

—

—

SEC-21

B2192: ID DISCORD BCM-ECM

—

—

SEC-22

B2193: CHAIN OF BCM-ECM

—

—

SEC-24

C1708: [NO DATA] FL

—

X

WT-15

C1709: [NO DATA] FR

—

X

WT-15

C1710: [NO DATA] RR

—

X

WT-15

C1711: [NO DATA] RL

—

X

WT-15

C1712: [CHECKSUM ERR] FL

—

X

WT-17

C1713: [CHECKSUM ERR] FR

—

X

WT-17

C1714: [CHECKSUM ERR] RR

—

X

WT-17

C1715: [CHECKSUM ERR] RL

—

X

WT-17

WCS

BCM (BODY CONTROL MODULE)

WCS-37

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

C1716: [PRESSDATA ERR] FL

—

X

WT-19

C1717: [PRESSDATA ERR] FR

—

X

WT-19

C1718: [PRESSDATA ERR] RR

—

X

WT-19

C1719: [PRESSDATA ERR] RL

—

X

WT-19

C1720: [CODE ERR] FL

—

X

WT-17

C1721: [CODE ERR] FR

—

X

WT-17

C1722: [CODE ERR] RR

—

X

WT-17

C1723: [CODE ERR] RL

—

X

WT-17

C1724: [BATT VOLT LOW] FL

—

X

WT-17

C1725: [BATT VOLT LOW] FR

—

X

WT-17

C1726: [BATT VOLT LOW] RR

—

X

WT-17

C1727: [BATT VOLT LOW] RL

—

X

WT-17

C1729: VHCL SPEED SIG ERR

—

X

WT-21

C1735: IGNITION SIGNAL

—

X

WT-22

CONSULT display

Fail-safe

Low tire pressure
warning lamp ON

Reference page

WCS-38

< WIRING DIAGRAM >

WARNING CHIME SYSTEM

WIRING DIAGRAM

WARNING CHIME SYSTEM

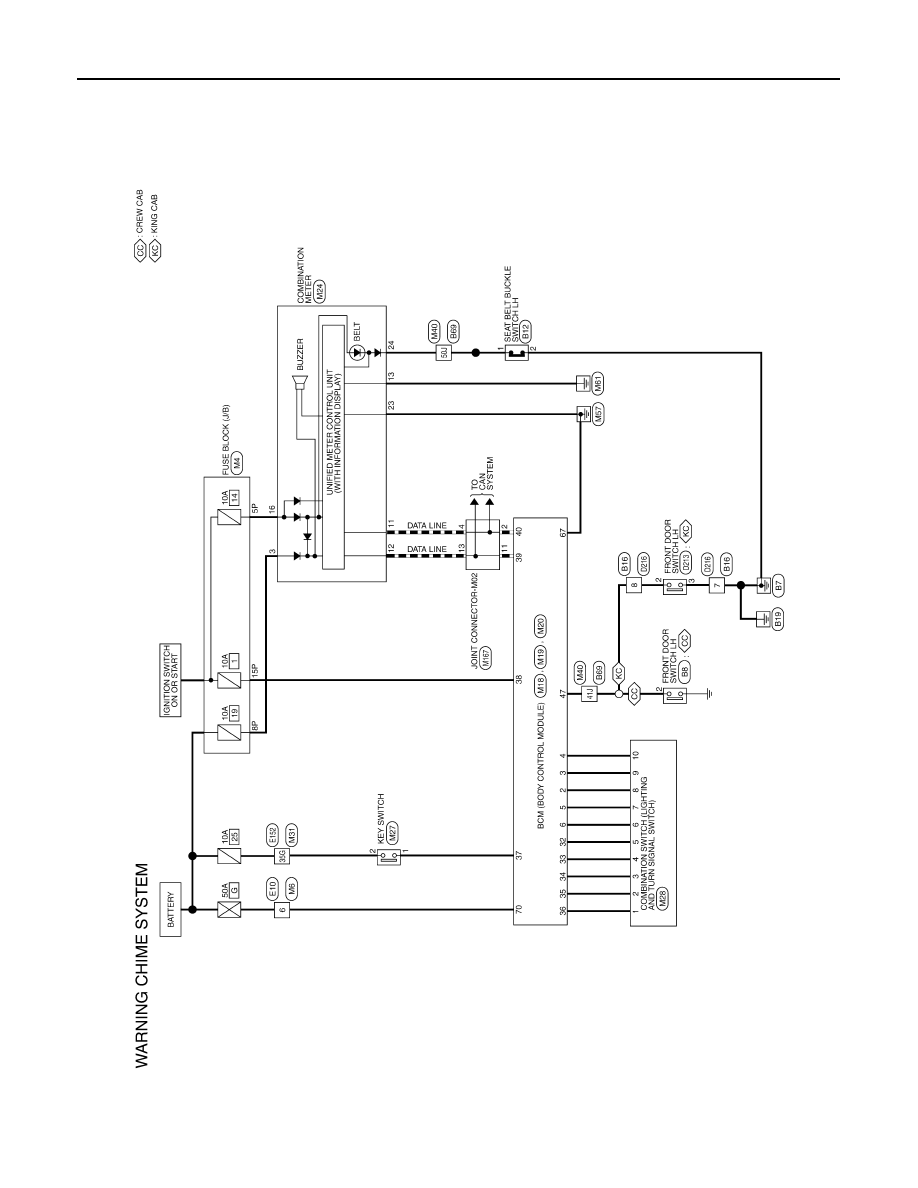

Wiring Diagram

INFOID:0000000009478019

ABNWA2061GB
