WCS

DIAGNOSIS SYSTEM (BCM)

WCS-15

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

DIAGNOSIS SYSTEM (BCM)

COMMON ITEM
COMMON ITEM : CONSULT Function (BCM - COMMON ITEM)

INFOID:0000000010217375

APPLICATION ITEM

CONSULT performs the following functions via CAN communication with BCM.

SYSTEM APPLICATION

BCM can perform the following functions.

BUZZER

Direct Diagnostic Mode

Description

ECU Identification

The BCM part number is displayed.

Self Diagnostic Result

The BCM self diagnostic results are displayed.

Data Monitor

The BCM input/output data is displayed in real time.

Active Test

The BCM activates outputs to test components.

Work support

The settings for BCM functions can be changed.

Configuration

• The vehicle specification can be read and saved.
• The vehicle specification can be written when replacing BCM.

CAN Diag Support Mntr

The result of transmit/receive diagnosis of CAN communication is displayed.

System

Sub System

Direct Diagnostic Mode

E

C

U Ide

nt

ifi

ca

tio

n

Se

lf Di

ag

no

st

ic Re

su

lt

Da

ta

 Mo

ni

tor

A

cti

ve

 T

est

W

o

rk support

Co

nf

igu

rat

ion

CA

N Diag

 Su

pp

ort Mn

tr

Door lock

DOOR LOCK

×

×

×

Rear window defogger

REAR DEFOGGER

×

×

Warning chime

BUZZER

×

×

Interior room lamp timer

INT LAMP

×

×

×

Remote keyless entry system

MULTI REMOTE ENT

×

×

×

Exterior lamp

HEAD LAMP

×

×

×

Wiper and washer

WIPER

×

×

×

Turn signal and hazard warning lamps FLASHER

×

×

Air conditioner

AIR CONDITIONER

×

Combination switch

COMB SW

×

BCM

BCM

×

×

×

×

×

Immobilizer

IMMU

×

×

×

Interior room lamp battery saver

BATTERY SAVER

×

×

×

Vehicle security system

THEFT ALM

×

×

×

RAP system

RETAINED PWR

×

×

×

Signal buffer system

SIGNAL BUFFER

×

×

TPMS

AIR PRESSURE MONITOR

×

×

×

×

Panic alarm system

PANIC ALARM

×

WCS-16

< SYSTEM DESCRIPTION >

DIAGNOSIS SYSTEM (BCM)

BUZZER : CONSULT Function (BCM - BUZZER)

INFOID:0000000010217843

DATA MONITOR

ACTIVE TEST

Monitor Item [Unit]

Description

DOOR SW-DR [On/Off]

Indicates condition of front door switch LH.

IGN ON SW [On/Off]

Indicates condition of ignition switch ON position.

KEY ON SW [On/Off]

Indicates condition of key switch.

LIGHT SW 1ST [On/Off]

Indicates condition of combination switch.

BUCKLE SW [On/Off]

Indicates condition of seat belt buckle switch.

Test Item

Description

SEAT BELT WARN TEST

This test is able to check seat belt warning operation [Off/On].

LIGHT WARN ALM

This test is able to check light reminder warning operation [Off/On].

IGN KEY WARN ALM

This test is able to check key warning chime operation [Off/On].

WCS

POWER SUPPLY AND GROUND CIRCUIT

WCS-17

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

DTC/CIRCUIT DIAGNOSIS

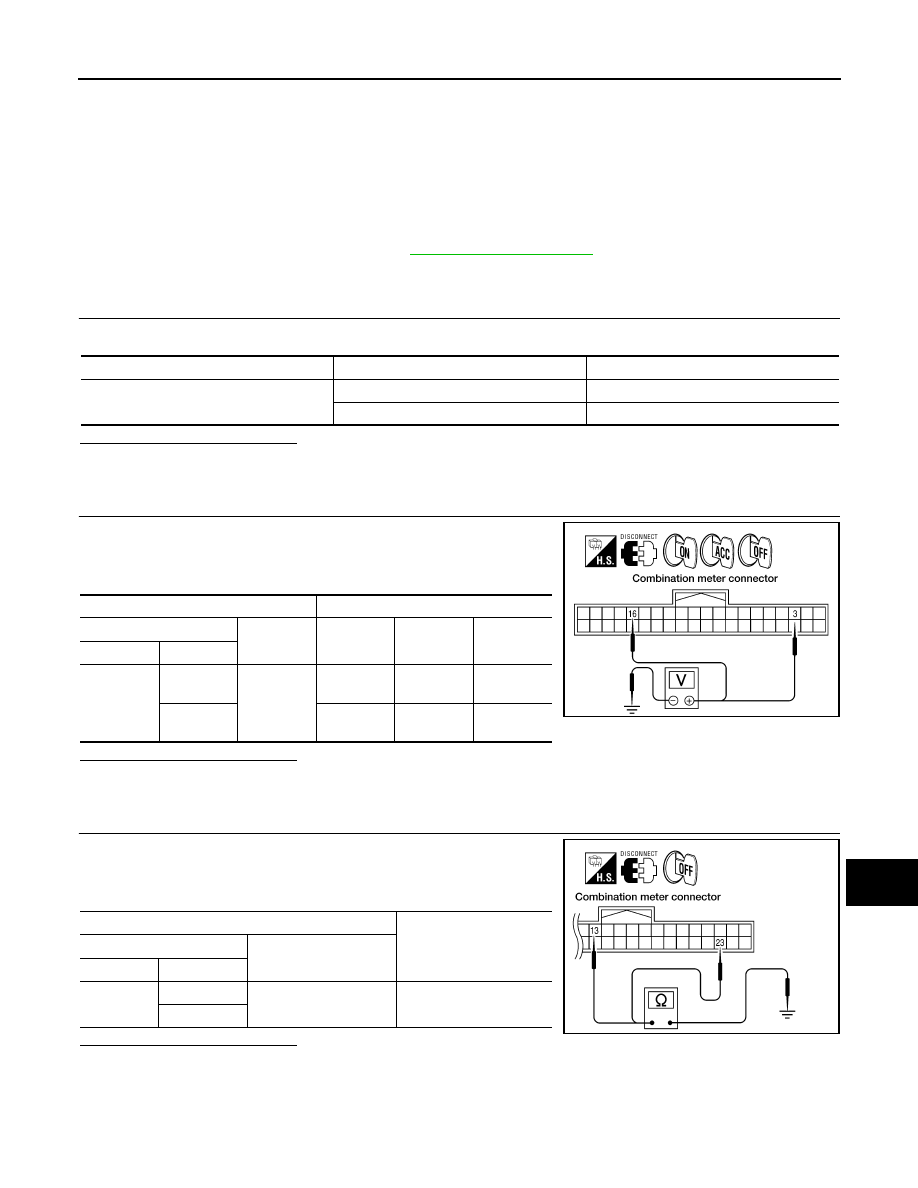

POWER SUPPLY AND GROUND CIRCUIT

COMBINATION METER
COMBINATION METER : Diagnosis Procedure

INFOID:0000000010217846

Regarding Wiring Diagram information, refer to

MWI-65, "Wiring Diagram"

.

1.

CHECK FUSES

Check for blown combination meter fuses.

Is the inspection result normal?

YES

>> GO TO 2

NO

>> If fuse is blown, be sure to eliminate cause of malfunction before installing new fuse.

2.

POWER SUPPLY CIRCUIT CHECK

1. Disconnect combination meter connector M24.

2. Check voltage between combination meter harness connector

M24 terminals 3, 16 and ground.

Is the inspection result normal?

YES

>> GO TO 3

NO

>> Check harness for open between combination meter and fuse.

3.

GROUND CIRCUIT CHECK

1. Turn ignition switch OFF.

2. Check continuity between combination meter harness connector

M24 terminals 13, 23 and ground.

Is the inspection result normal?

YES

>> Inspection End.

NO

>> Check ground harness.

BCM (BODY CONTROL MODULE)

Unit

Power source

Fuse No.

Combination meter

Battery 19

Ignition switch ON or START

14

Terminals

Ignition switch position

(+)

(–)

OFF

ACC

ON

Connector

Terminal

M24

3

Ground

Battery
voltage

Battery
voltage

Battery

 voltage

16

0V

0V

Battery
voltage

WKIA3279E

Terminals

Continuity

(+)

(–)

Connector

Terminal

M24

13

Ground

Yes

23

WKIA3280E

WCS-18

< DTC/CIRCUIT DIAGNOSIS >

POWER SUPPLY AND GROUND CIRCUIT

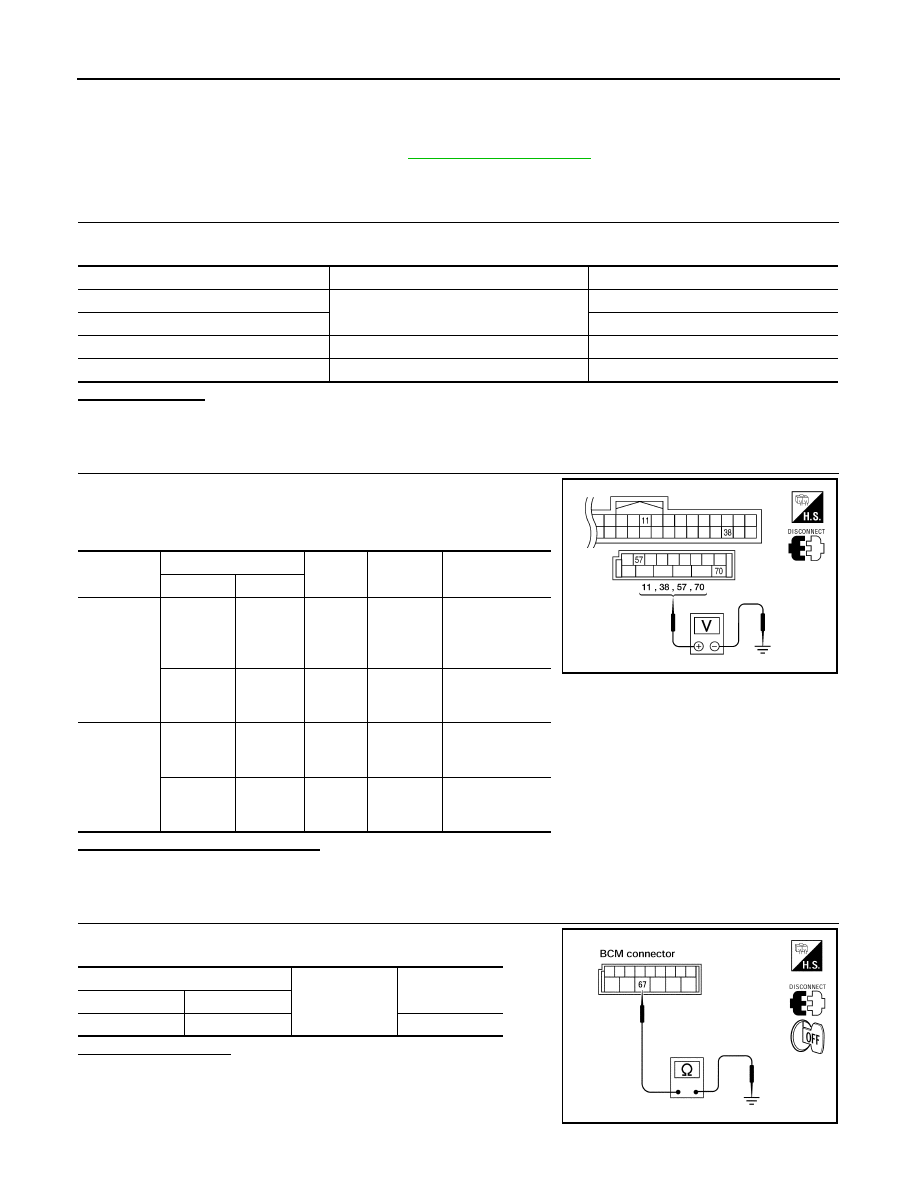

BCM (BODY CONTROL MODULE) : Diagnosis Procedure

INFOID:0000000010217847

Regarding Wiring Diagram information, refer to

BCS-43, "Wiring Diagram"

.

1.

 CHECK FUSES AND FUSIBLE LINK

Check that the following fuses and fusible link are not blown.

Is the fuse blown?

YES

>> Replace the blown fuse or fusible link after repairing the affected circuit.

NO

>> GO TO 2

2.

 CHECK POWER SUPPLY CIRCUIT

1. Turn ignition switch OFF.

2. Disconnect BCM.

3. Check voltage between BCM harness connector and ground.

Is the measurement value normal?

YES

>> GO TO 3

NO

>> Repair or replace harness.

3.

 CHECK GROUND CIRCUIT

Check continuity between BCM harness connector and ground.

Does continuity exist?

YES

>> Inspection End.

NO

>> Repair or replace harness.

Terminal No.

Signal name

Fuses and fusible link No.

57

Battery power supply

21 (10A)

70

G (50A)

11

Ignition ACC or ON

4 (10A)

38

Ignition ON or START

1 (10A)

Connector

Terminals

Power

source

Condition

Voltage (V) (Ap-

prox.)

(+)

(-)

M18

11

Ground

ACC

power

supply

Ignition

switch

ACC or

ON

Battery voltage

38

Ground

Ignition

power

supply

Ignition

switch ON

or START

Battery voltage

M20

57

Ground

Battery

power

supply

Ignition

switch

OFF

Battery voltage

70

Ground

Battery

power

supply

Ignition

switch

OFF

Battery voltage

LIIA2415E

BCM

Ground

Continuity

Connector

Terminal

M20

67

Yes

LIIA0915E
