2. Install the oil pan with new oil pan gasket.

CAUTION:

• Be sure the oil drain plug is located to the rear of the

transmission assembly.

• Before installing oil pan bolts, remove any traces of old

sealant from the sealing surfaces and threaded holes.

• Do not reuse old gasket, replace with a new one.

• Always replace the oil pan bolts as they are self-sealing.

• Partially install the oil pan bolts in a criss-cross pattern to

prevent dislocation of the gasket.

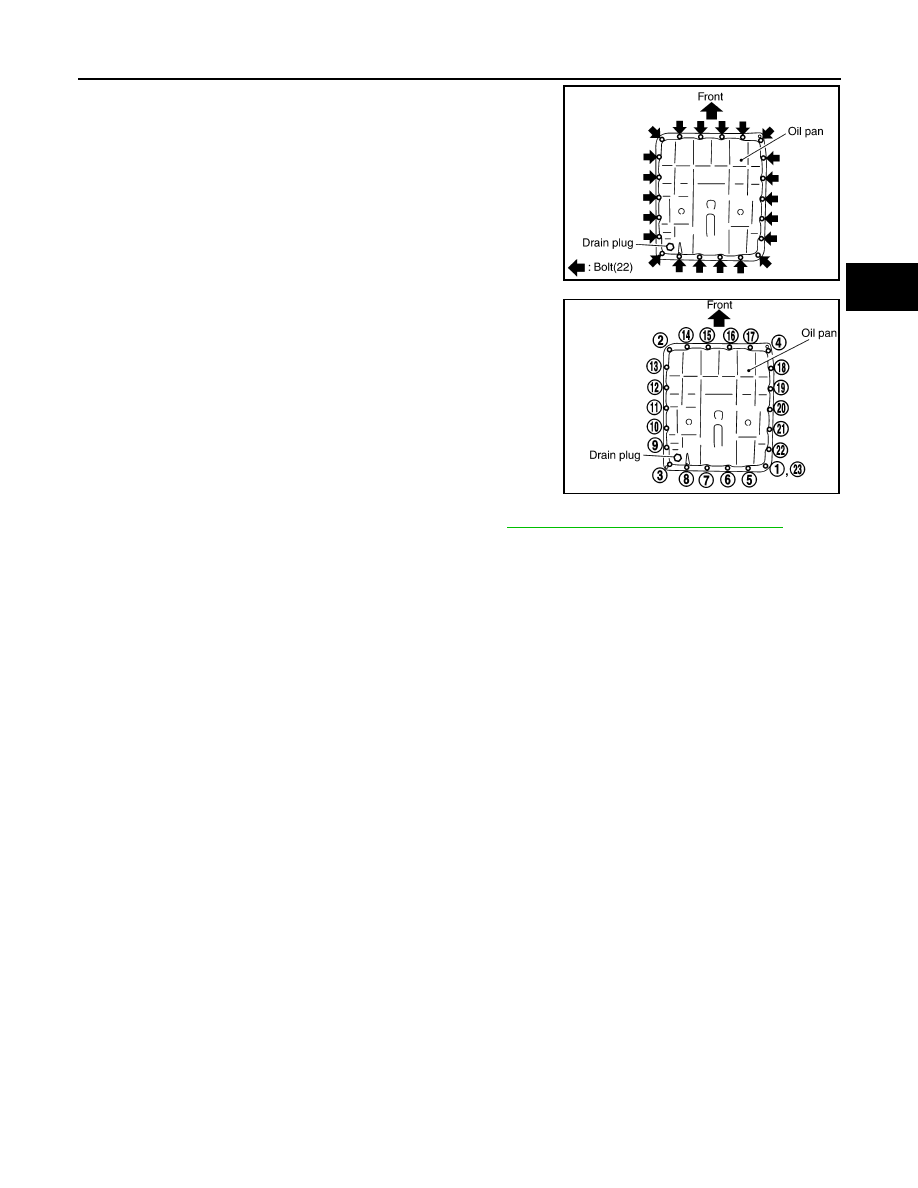

3. Tighten oil pan bolts in numerical order as shown.

4. Refill the A/T with fluid and check for fluid leaks. Refer to

TM-269, "Checking the A/T Fluid (ATF)"

.

SCIA2308E

Oil pan bolts

: 7.9 N·m (0.81 kg-m, 70 in-lb)

SCIA4113E

TM-288

< REMOVAL AND INSTALLATION >

[5AT: RE5R05A]

CONTROL VALVE WITH TCM

CONTROL VALVE WITH TCM

Removal and Installation

INFOID:0000000009480681

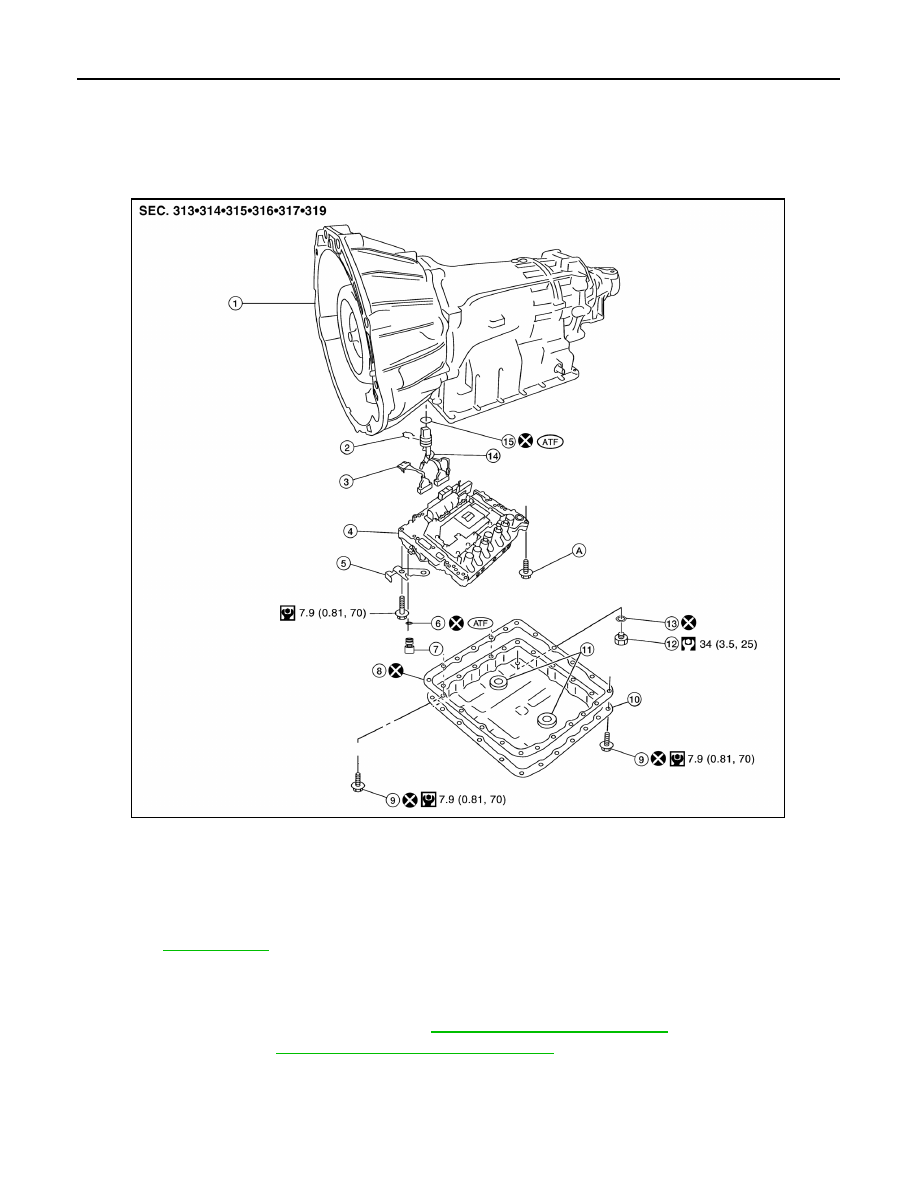

COMPONENTS

REMOVAL AND INSTALLATION OF CONTROL VALVE WITH TCM

Removal

1. Disconnect negative battery terminal. Refer to

PG-83, "Removal and Installation"

.

2. Drain A/T fluid. Refer to

TM-271, "Changing the A/T Fluid (ATF)"

.

3. Disconnect A/T assembly harness connector.

1.

Transmission

2.

Snap ring

3.

Sub-harness

4.

Control valve with TCM

5.

Bracket

6.

O-ring

7.

Plug

8.

Oil pan gasket

9.

Oil pan bolts

10. Oil pan

11. Magnet

12. Drain plug

13. Drain plug gasket

14. Terminal cord assembly

15.  O-ring

A.

Refer to

GI-4, "Component"

AWDIA0890GB

CONTROL VALVE WITH TCM

TM-289

< REMOVAL AND INSTALLATION >

[5AT: RE5R05A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

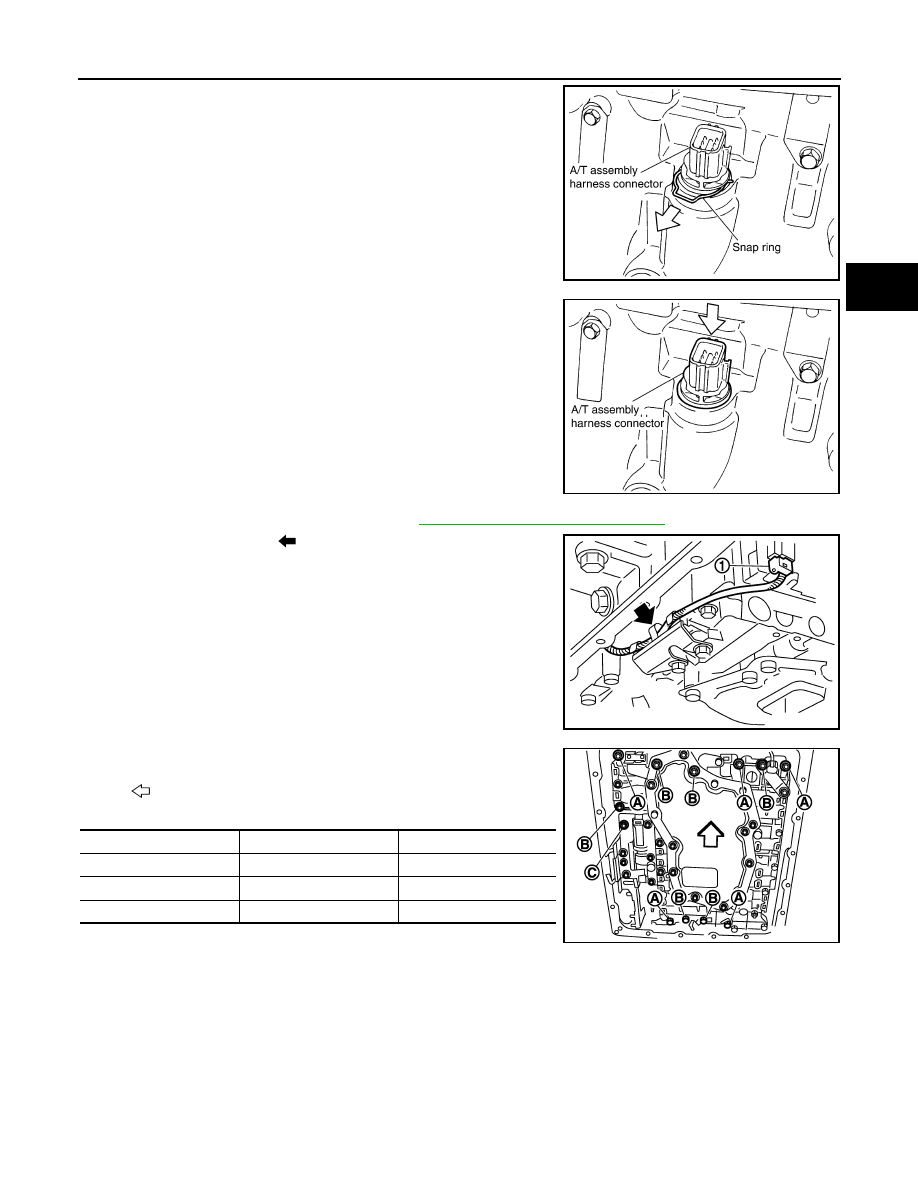

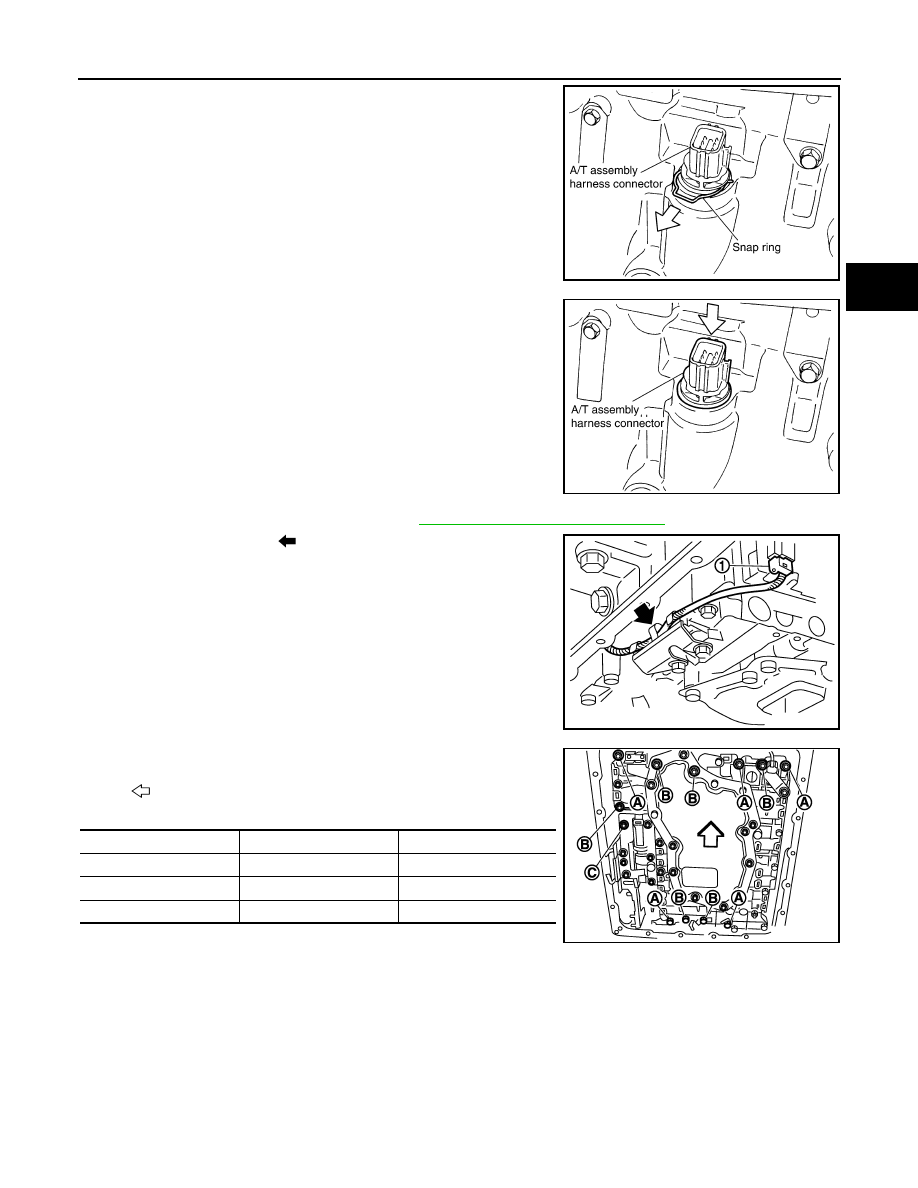

4. Remove snap ring from A/T assembly harness connector.

5. Push A/T assembly harness connector.

CAUTION:

Do not damage harness connector.

6. Remove oil pan and oil pan gasket. Refer to

TM-286, "Removal and Installation"

.

7. Straighten terminal clip (

) to free the output speed sensor har-

ness.

8. Disconnect output speed sensor harness connector (1).

CAUTION:

Do not damage harness connector.

9. Remove bolts (A), (B) and (C) from control valve with TCM.

SCIA5021E

SCIA5022E

JSDIA1316ZZ

: Front

Bolt symbol

Length mm (in)

Number of bolts

A

42 (1.65)

5

B

55 (2.17)

6

C

40 (1.57)

1

SCIA8074E

TM-290

< REMOVAL AND INSTALLATION >

[5AT: RE5R05A]

CONTROL VALVE WITH TCM

10. Remove control valve with TCM from transmission case.

CAUTION:

When removing, be careful with the manual valve notch and

manual plate height. Remove it vertically.

11. Remove plug (1) with bracket (2) from control valve with TCM.

•



:Bolt

12. Remove the bracket (1) from plug (2).

13. Remove O-ring (1) from plug (2).

CAUTION:

Do not reuse O-ring.

SCIA5142E

JSDIA1311ZZ

JSDIA1312ZZ

JSDIA1313ZZ
