A/T CONTROL SYSTEM

TM-239

< WIRING DIAGRAM >

[5AT: RE5R05A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

ABDIA1249GB

TM-240

< WIRING DIAGRAM >

[5AT: RE5R05A]

A/T SHIFT LOCK SYSTEM

A/T SHIFT LOCK SYSTEM

Wiring Diagram

INFOID:0000000009480656

ABDWA0553GB

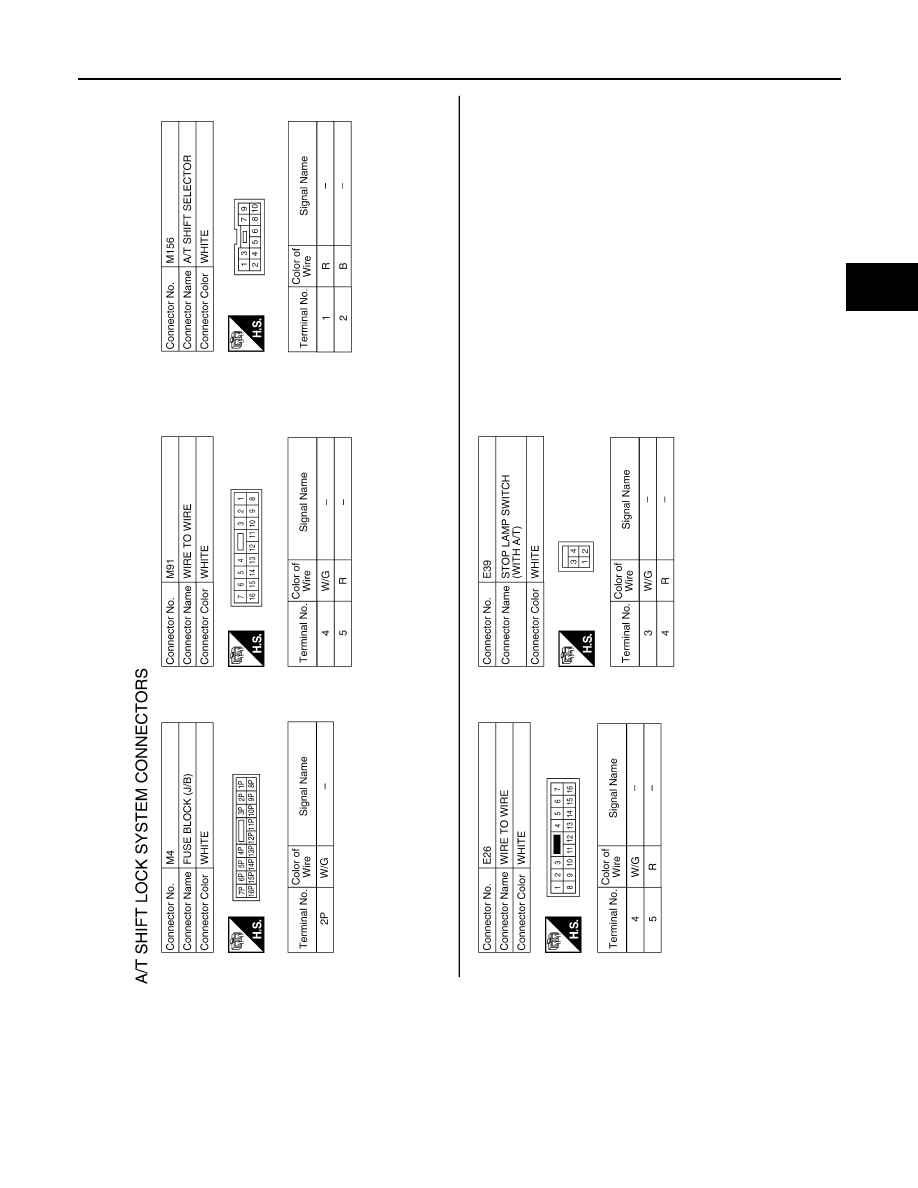

A/T SHIFT LOCK SYSTEM

TM-241

< WIRING DIAGRAM >

[5AT: RE5R05A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

ABDIA0411GB

TM-242

< SYMPTOM DIAGNOSIS >

[5AT: RE5R05A]

SYSTEM SYMPTOM

SYMPTOM DIAGNOSIS

SYSTEM SYMPTOM

Symptom Chart

INFOID:0000000009480657

• The diagnostics item numbers show the sequence for inspection. Inspect in order from item 1.

• Overhaul and inspect inside the A/T only if A/T fluid condition is NG. Refer to

TM-269, "Checking the

A/T Fluid (ATF)"

.

No.

Items

Symptom

Condition

Diagnostic Item

Reference

page

1

Shift
Shock

Large shock. (“N”

→“

D” position)

ON vehicle

1. Engine idle speed

EC-121



(QR25DE),

EC-588



(VQ40DE)

2. Engine speed signal

TM-177

3. Accelerator pedal position sensor

TM-195

4. Control cable adjustment

TM-285

5. ATF temperature sensor

TM-197

6. Front brake solenoid valve

TM-208

7. CAN communication line

TM-166

8. Fluid level and state

TM-269

9. Line pressure test

TM-276

10. Control valve with TCM

TM-288

OFF vehicle

11. Forward brake (Parts behind drum support is impossible
to perform inspection by disassembly. Refer to

TM-132

.)

TM-313

2

Shock is too large
when changing D

1

→

D

2

.

ON vehicle

1. Accelerator pedal position sensor

TM-195

2. Control cable adjustment

TM-285

3. Direct clutch solenoid valve

TM-210

4. CAN communication line

TM-166

5. Engine speed signal

TM-177

6. Input speed sensor

TM-172

7. Output speed sensor and vehicle speed signal

TM-174

,

TM-200

8. Fluid level and state

TM-269

9. Control valve with TCM

TM-288

OFF vehicle

10. Direct clutch

TM-360

3

Shock is too large
when changing D

2

→

D

3

.

ON vehicle

1. Accelerator pedal position sensor

TM-195

2. Control cable adjustment

TM-285

3. High and low reverse clutch solenoid valve

TM-212

4. CAN communication line

TM-166

5. Engine speed signal

TM-177

6. Input speed sensor

TM-172

7. Output speed sensor and vehicle speed signal

TM-174

,

TM-200

8. Fluid level and state

TM-269

9. Control valve with TCM

TM-288

OFF vehicle

10. High and low reverse clutch

TM-358
