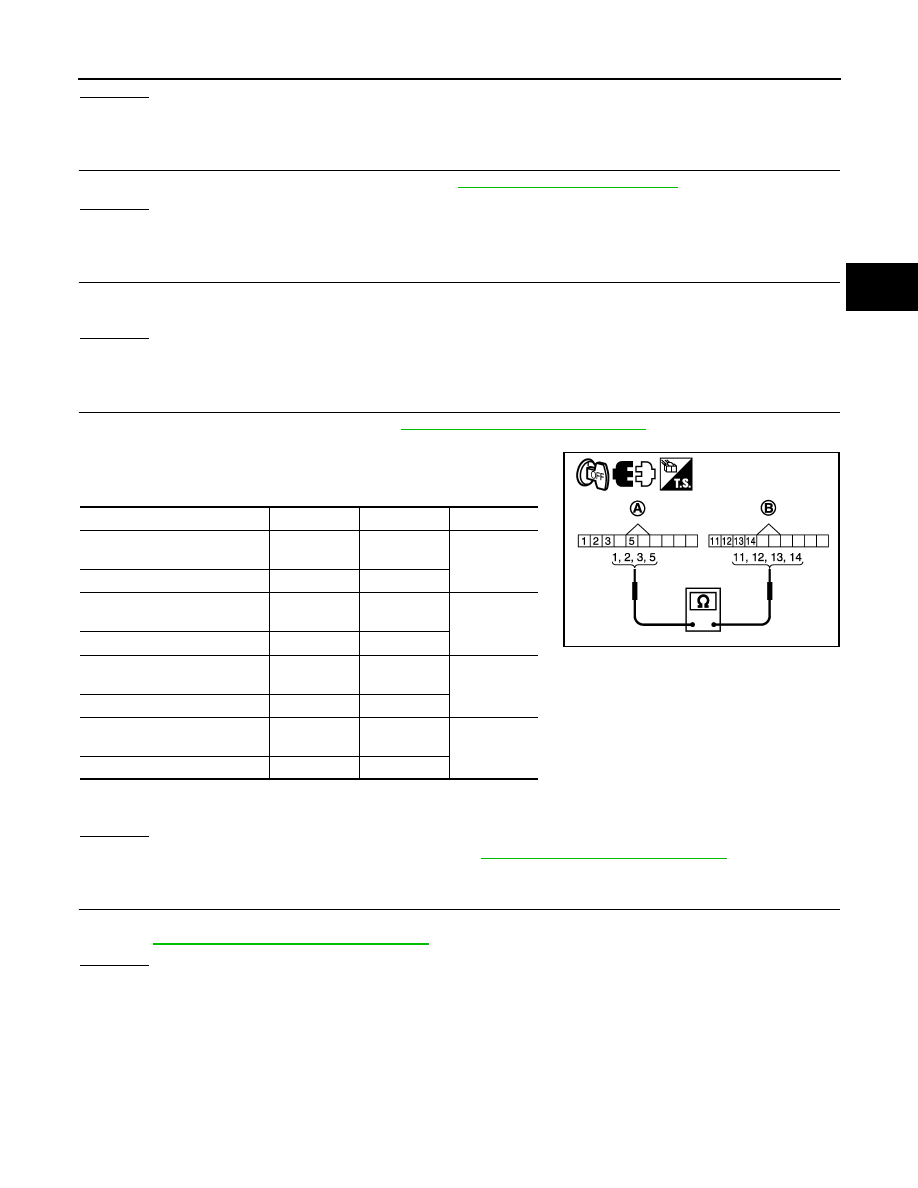

P0705 TRANSMISSION RANGE SENSOR A TM-171 < DTC/CIRCUIT DIAGNOSIS > [5AT: RE5R05A] C E F G H I J K L M A B TM N O P OK or NG OK >> GO TO 5. NG >> GO TO 2. 2. CHECK TCM POWER SUPPLY AND GROUND CIRCUIT Check TCM power supply and ground circuit. Refer to OK or NG OK >> GO TO 3. NG >> Repair or replace damaged parts. 3. DETECT MALFUNCTIONING ITEM Check the following. • A/T assembly harness connector pin terminals for damage or loose connection with harness connector. OK >> GO TO 4. NG >> Repair or replace damaged parts. 4. CHECK SUB-HARNESS 1. Remove control valve with TCM. Refer to TM-288, "Removal and Installation" . 2. Disconnect transmission range switch connector and TCM connector. 3. Check continuity between transmission range switch connector (A) terminals and TCM connector (B) terminals. 4. If OK, check harness for short to ground and short to power. 5. Reinstall any part removed. OK >> Replace the control valve with TCM. Refer to TM-288, "Removal and Installation" NG >> Replace open circuit or short to ground and short to power in harness or connectors. 5. CHECK DTC Perform “DTC Confirmation Procedure”. • Refer to TM-170, "DTC Confirmation Procedure" . OK or NG OK >> INSPECTION END NG >> GO TO 2. Item Connector Terminal Continuity Transmission range switch con- F505 1 Yes TCM connector F503 13 Transmission range switch con- F505 2 Yes TCM connector F503 11 Transmission range switch con- F505 3 Yes TCM connector F503 12 Transmission range switch con- F505 5 Yes TCM connector F503 14 JSDIA1328GB |
