BRC-24

< SYSTEM DESCRIPTION >

[TYPE 1]

ABS

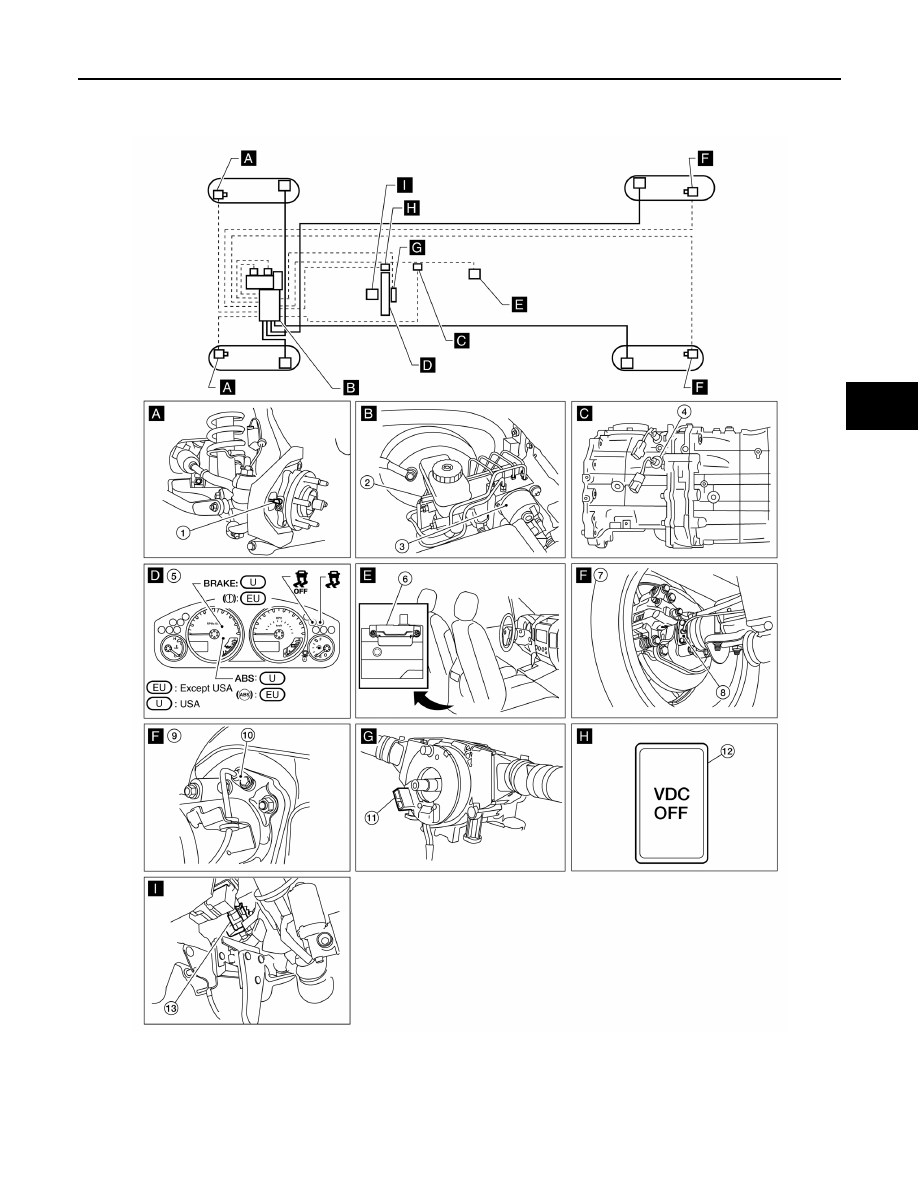

Component Parts Location

INFOID:0000000009479246

AWFIA0841GB

1.

Front wheel sensor LH E18
Front wheel sensor RH E117

2.

Brake fluid level switch E21

3.

ABS actuator and electric unit (control unit)
E127

4.

Back-up lamp switch F69

5.

Combination meter M24

6.

Yaw rate/side/decel G sensor B73

7.

C200 rear axle

8.

Rear wheel sensor LH C11
Rear wheel sensor RH C10

9.

M226 rear axle

ABS

BRC-25

< SYSTEM DESCRIPTION >

[TYPE 1]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

Component Description

INFOID:0000000009479247

10. Rear wheel sensor LH C11

Rear wheel sensor RH C10

11.

Steering angle sensor (behind spiral ca-
ble) M47
(Steering wheel removed for clarity)

12. VDC OFF switch M154

13. Stop lamp switch (with M/T) E38

Stop lamp switch (with A/T) E39

Component parts

Reference

ABS actuator and electric unit (control unit)

Pump

BRC-46, "Description"

Motor

Actuator relay

BRC-62, "Description"

Solenoid valve

BRC-55, "Description"

VDC switch-over valve
(CV1, CV2, SV1, SV2)

BRC-73, "Description"

Wheel sensor

BRC-50, "Description"

Yaw rate/side/decel G sensor

BRC-48, "Description"

Stop lamp switch

BRC-53, "Description"

Steering angle sensor

BRC-64, "Description"

Brake fluid level switch

BRC-67, "Description"

VDC OFF switch

BRC-78, "Description"

ABS warning lamp

BRC-80, "Description"

Brake warning lamp

BRC-81, "Description"

VDC OFF indicator lamp

BRC-82, "Description"

SLIP indicator lamp

BRC-84, "Description"

BRC-26

< SYSTEM DESCRIPTION >

[TYPE 1]

EBD

EBD

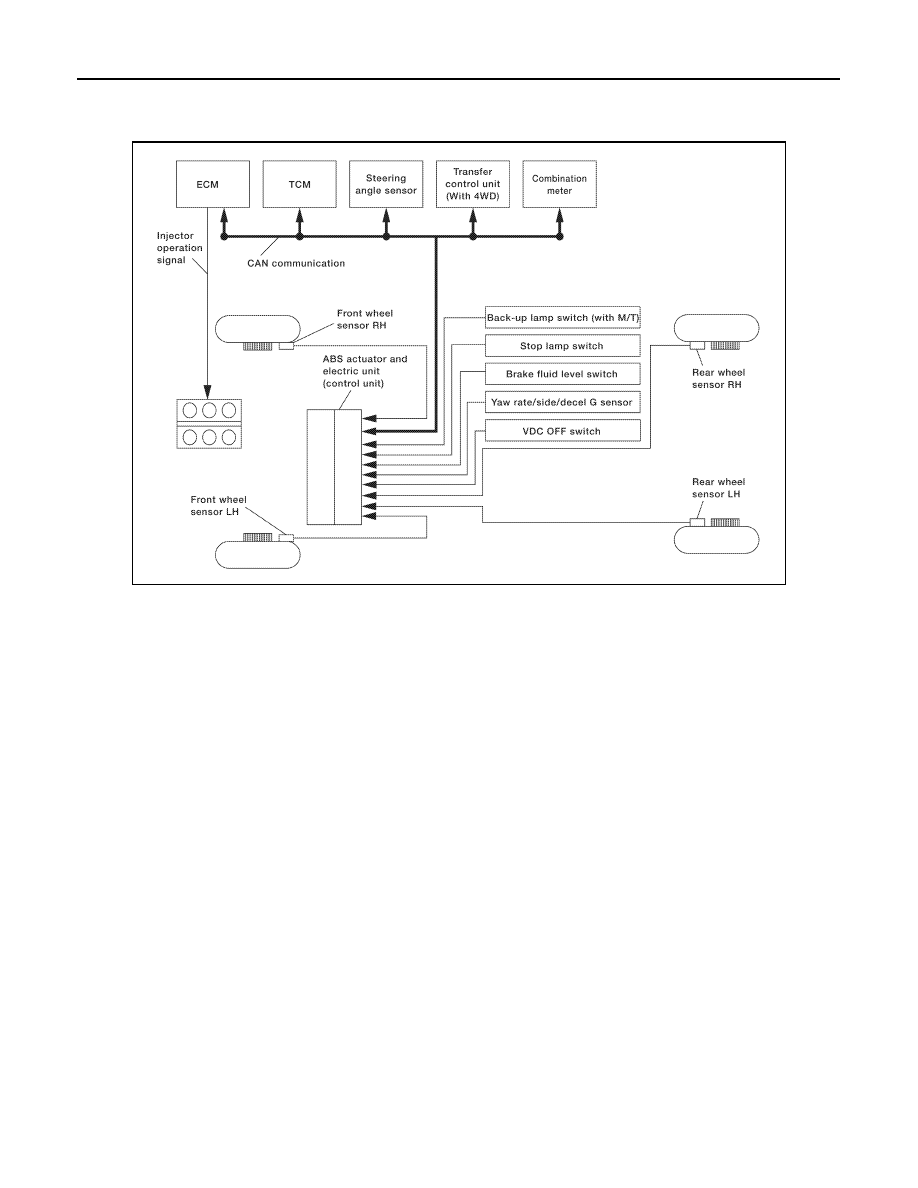

System Diagram

INFOID:0000000009479248

System Description

INFOID:0000000009479249

• Electric Brake force Distribution is a following function. ABS actuator and electric unit (control unit) detects

subtle slippages between the front and rear wheels during braking. Then it electronically controls the rear

braking force (brake fluid pressure) to reduce rear wheel slippage. Accordingly, it improves vehicle stability.

• Electrical system diagnosis by CONSULT is available.

AWFIA0589GB

EBD

BRC-27

< SYSTEM DESCRIPTION >

[TYPE 1]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

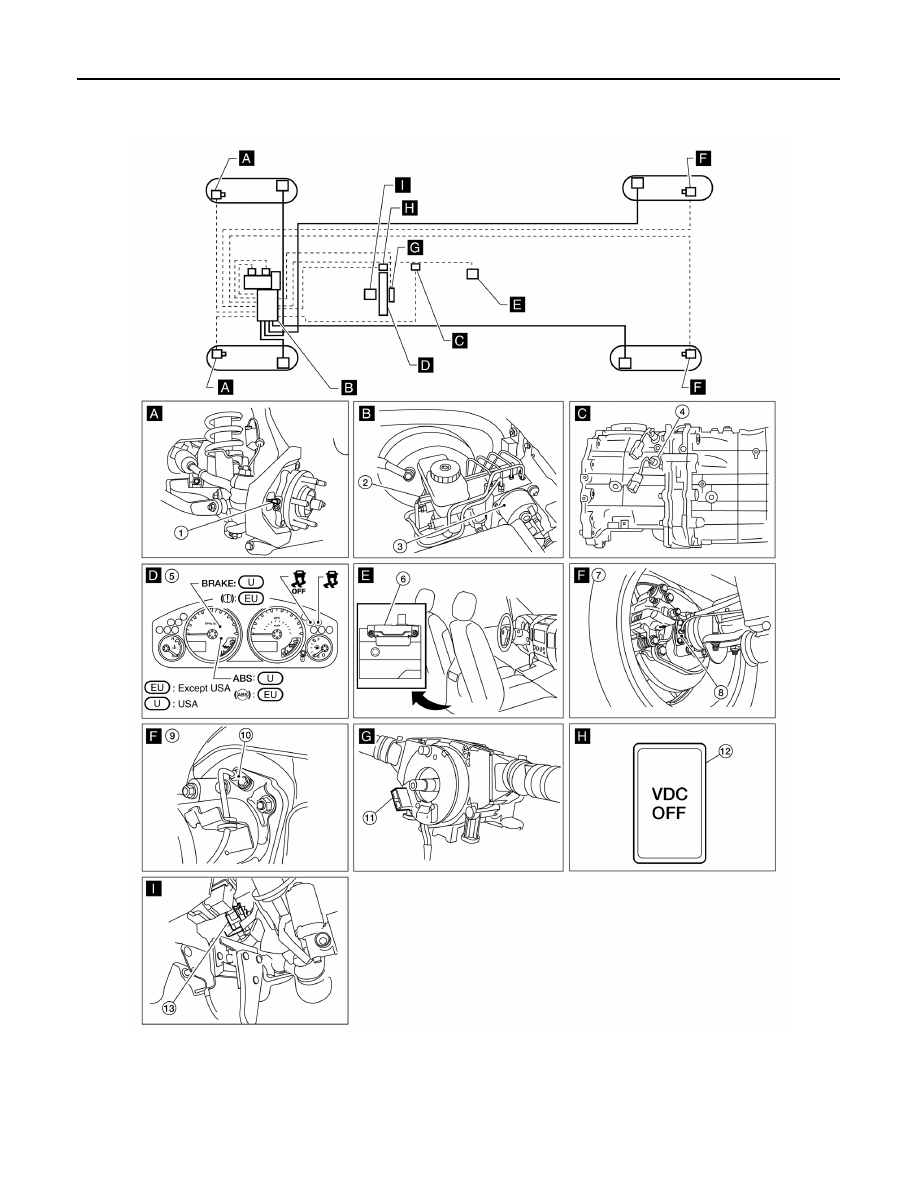

Component Parts Location

INFOID:0000000009479250

AWFIA0841GB

1.

Front wheel sensor LH E18
Front wheel sensor RH E117

2.

Brake fluid level switch E21

3.

ABS actuator and electric unit (control unit)
E127

4.

Back-up lamp switch F69

5.

Combination meter M24

6.

Yaw rate/side/decel G sensor B73

7.

C200 rear axle

8.

Rear wheel sensor LH C11
Rear wheel sensor RH C10

9.

M226 rear axle
