Nissan Frontier. Manual - part 1190





STR-8

< BASIC INSPECTION >

DIAGNOSIS AND REPAIR WORKFLOW

Perform the starting system test with Multitasking battery and electrical diagnostic station GR8-1200 NI. For

details and operating instructions, refer to diagnostic station Instruction Manual.
Test result

CRANKING NORMAL>>GO TO 2.

LOW VOLTAGE>>GO TO 5.

CHARGE BATTERY>>Perform  the  slow  battery charging procedure. (Initial rate of charge is 10A for 12

hours.) Perform battery test again. Refer to diagnostic station instruction manual.

REPLACE BATTERY>>Before replacing battery, clean the battery cable clamps and battery posts. Perform

battery test again. Refer to diagnostic station instruction manual. If second test result is

“REPLACE BATTERY”, then do so. Perform battery test again to confirm repair.

2.

CRANKING CHECK

Check that the starter motor operates properly.
Does the engine crank normally?

YES

>> GO TO 3.

NO

>> GO TO 4.

3.

ENGINE START CHECK

Check that the engine starts.
Does the engine start?

YES

>> Inspection End.

NO

>> Perform further diagnosis of engine mechanical or engine control system. Refer to EM and EC

sections. Once resolved, perform battery test again.

4.

STARTER MOTOR ACTIVATION

Check that the starter motor operates.
Does the starter motor turn?

YES

>> Check ring gear and starter motor drive pinion. Once resolved, perform battery test again.

NO

>> GO TO 7.

5.

COMPARISON BETWEEN ENGINE COOLANT AND CRANKING VOLTAGE

Compare the engine coolant temperature and verify the cranking voltage is within specifications.

Minimum Specification of Cranking Voltage Referencing Coolant Temperature

Is the voltage less than the specified value?

YES

>> GO TO 7.

NO

>> GO TO 6.

6.

STARTER OPERATION

Check the starter operation.
Does the starter motor turn smoothly?

YES

>> Inspection End.

NO

>> GO TO 7.

7.

“B” TERMINAL CIRCUIT INSPECTION

Check “B” terminal circuit. Refer to

STR-17, "Diagnosis Procedure"

.

Is “B” terminal circuit normal?

YES

>> GO TO 8.

NO

>> Repair as needed.

8.

“S” CONNECTOR CIRCUIT INSPECTION

Check “S” connector circuit. Refer to

STR-19, "Diagnosis Procedure"

.

Engine coolant temperature [

°C (°F)]

Voltage [V]

−30 to −20 (−22 to −4)

8.6

−19 to −10 (−2 to 14)

9.1

−9 to 0 (16 to 32)

9.5

More than 1 (More than 34)

9.9

DIAGNOSIS AND REPAIR WORKFLOW

STR-9

< BASIC INSPECTION >

C

D

E

F

G

H

I

J

K

L

M

A

STR

N

P

O

Is “S” connector circuit normal?

YES

>> GO TO 9.

NO

>> Repair as needed.

9.

ENGINE ROTATION STATUS

Check that the engine can be rotated by hand.
Does the engine turn freely by hand?

YES

>> Replace starter motor.

NO

>> Perform further diagnosis of engine mechanical or powertrain mechanism. Once resolved, per-

form battery test again using Multitasking battery and electrical diagnostic station GR8-1200 NI.

Refer to the diagnostic station Instruction Manual for proper testing procedures.

STR-10

< BASIC INSPECTION >

DIAGNOSIS AND REPAIR WORKFLOW

Work Flow (Without GR8-1200 NI)

INFOID:0000000009482283

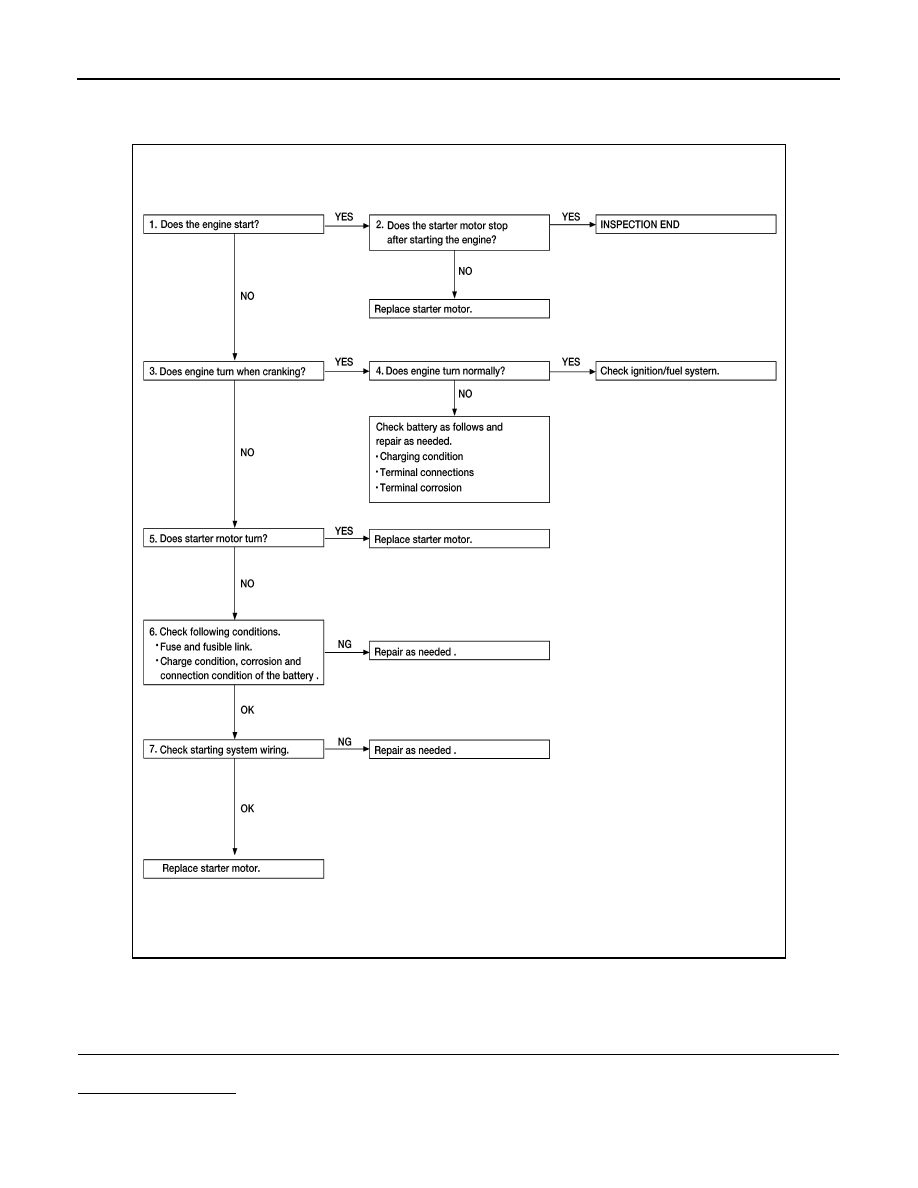

OVERALL SEQUENCE

DETAILED FLOW

NOTE:

If any malfunction is found, immediately disconnect the battery cable from the negative terminal.

1.

CHECK ENGINE START

Crank the engine and check that the engine starts.
Does the engine start?

YES

>> GO TO 2.

NO

>> GO TO 3.

AWBIA1303GB

DIAGNOSIS AND REPAIR WORKFLOW

STR-11

< BASIC INSPECTION >

C

D

E

F

G

H

I

J

K

L

M

A

STR

N

P

O

2.

CHECK THAT THE STARTER MOTOR STOPS

Check that the starter motor stops after starting the engine.
Does the starter motor stop?

YES

>> Inspection End.

NO

>> Replace starter motor. Refer to

STR-35, "Removal and Installation (QR25DE)"

 or

STR-36,

"Removal and Installation (VQ40DE)"

.

3.

CHECK THAT THE ENGINE TURNS WHEN CRANKING

Check that the engine turns when cranking.
Does engine turn when cranking?

YES

>> GO TO 4.

NO

>> GO TO 5.

4.

CHECK THE ENGINE SPEED WHEN CRANKING

Check that the engine speed is not low when cranking.
Does engine turn normally?

YES

>> Check ignition/fuel system.

NO

>> Check charge condition, corrosion and connection condition of the battery.

5.

CHECK STARTER MOTOR ACTIVATION

Check that the starter motor runs at cranking.
Does starter motor turn?

YES

>> Replace starter motor. Refer to

STR-35, "Removal and Installation (QR25DE)"

 or

STR-36,

"Removal and Installation (VQ40DE)"

.

NO

>> GO TO 6.

6.

CHECK POWER SUPPLY CIRCUIT

Check the following conditions:

• Fuse and fusible link

• Charge condition, corrosion and connection of the battery.
Are these inspection results normal?

YES

>> GO TO 7.

NO

>> Repair as needed.

7.

CHECK STARTING SYSTEM WIRING

Check the following:

• “B” terminal circuit. Refer to

STR-17, "Diagnosis Procedure"

.

• “S” terminal circuit. Refer to

STR-19, "Diagnosis Procedure"

.

Are the inspection results normal?

YES

>> Replace starter motor. Refer to

STR-35, "Removal and Installation (QR25DE)"

 or

STR-36,

"Removal and Installation (VQ40DE)"

.

NO

>> Repair as needed.
