STEERING GEAR AND LINKAGE

ST-27

< UNIT DISASSEMBLY AND ASSEMBLY >

C

D

E

F

H

I

J

K

L

M

A

B

ST

N

O

P

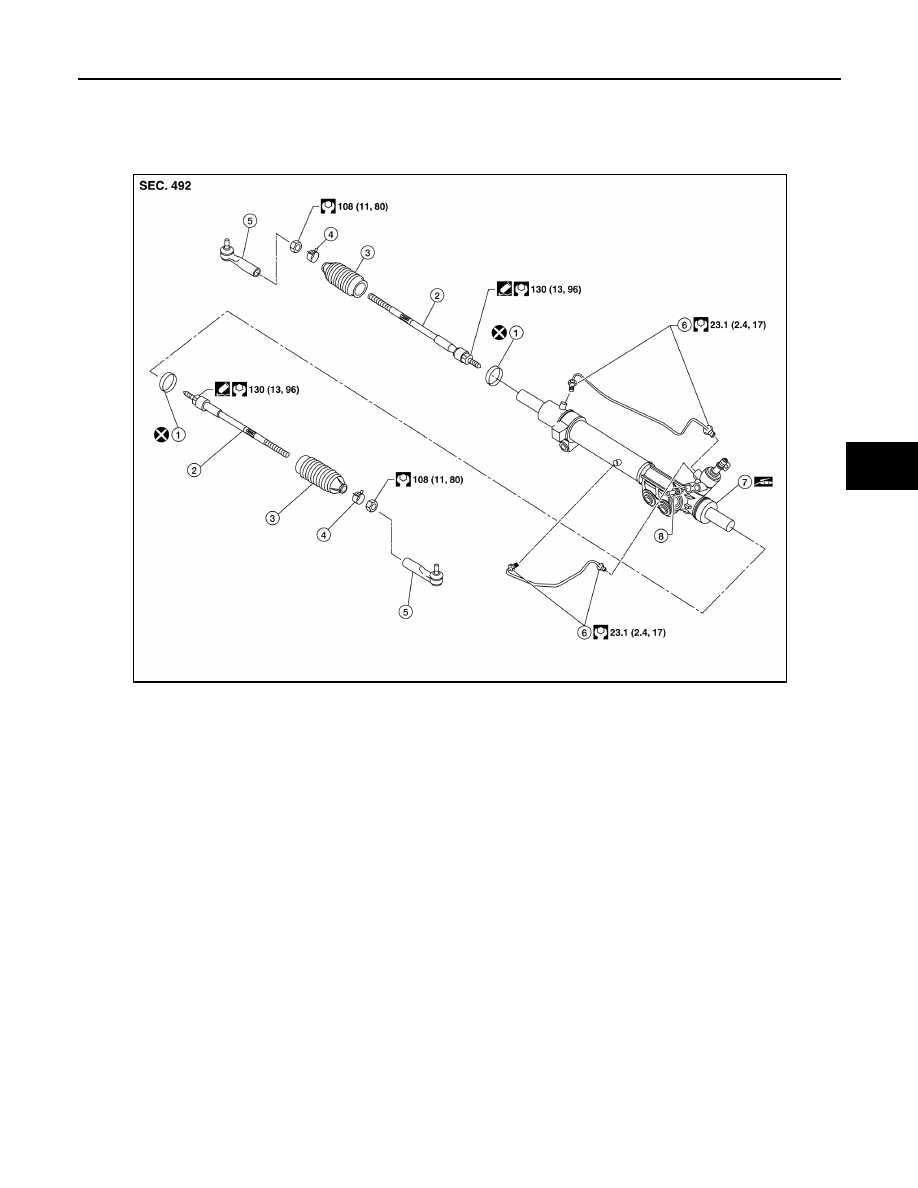

STEERING GEAR AND LINKAGE

Disassembly and Assembly

INFOID:0000000009479929

CAUTION:

• Secure the gear housing assembly with a vise. Use copper plates or equivalent to prevent it from

being damaged. Do not grip the cylinder with a vise.

• Before performing disassembly, clean the gear housing assembly. Be careful not to allow any

cleaner to contact the discharge and return port connectors.

DISASSEMBLY

1. Remove the cylinder tubes from the gear housing assembly.
2. Loosen the lock nuts of the outer sockets, then remove the outer sockets from the inner sockets.
3. Remove the boot clamps from the boots, then remove the boots from the inner sockets and gear housing

assembly.

CAUTION:

• Do not reuse the large-diameter boot clamps.

• Do not damage the boots, inner socket or gear housing assembly. If they are damaged, replace

them.

4. Remove the inner sockets.

INSPECTION AFTER DISASSEMBLY

Boot

Check boot for tears, cracks and deformation. Replace if necessary.

1.

Boot clamp

2.

Inner socket

3.

Boot

4.

Boot clamp

5.

Outer socket

6.

Cylinder tubes

7.

Gear housing assembly

8.

Connector

AWGIA0139GB

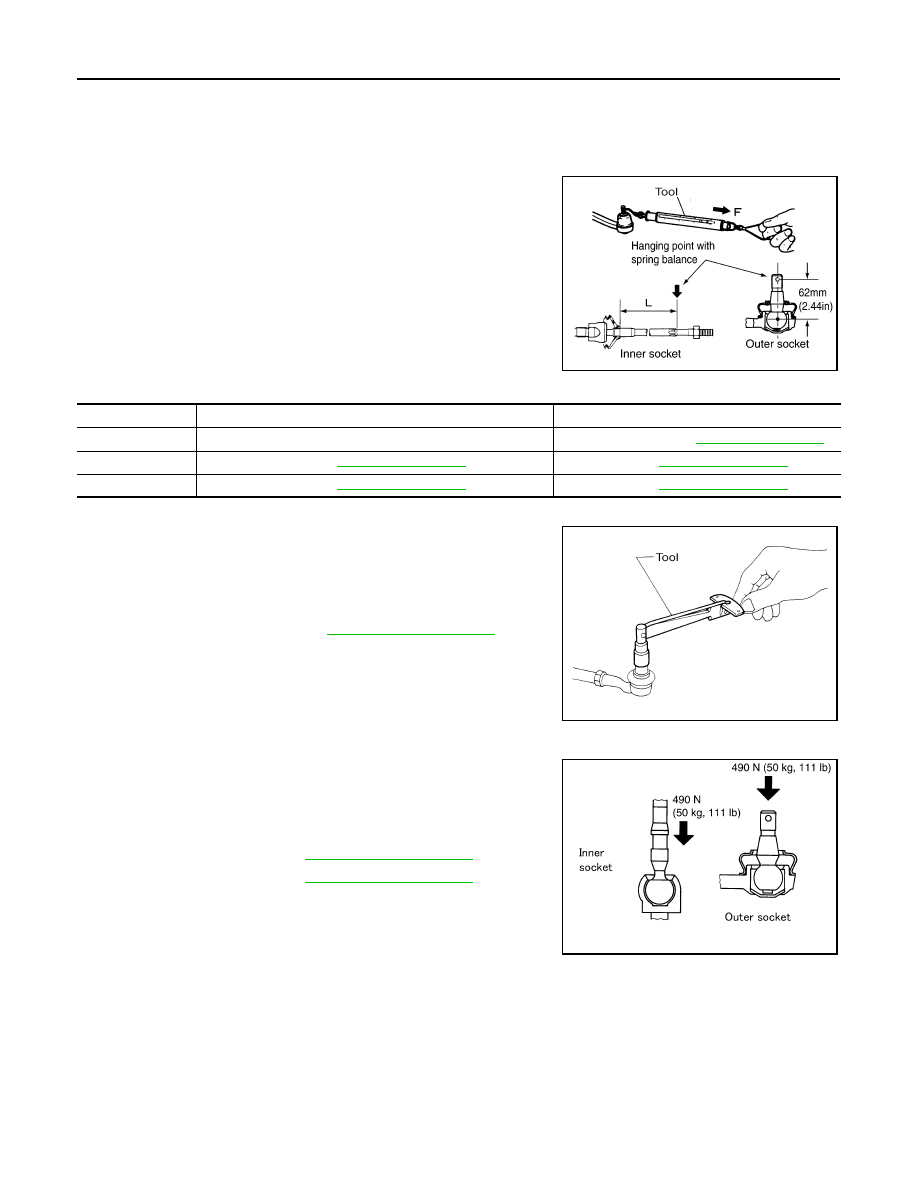

ST-28

< UNIT DISASSEMBLY AND ASSEMBLY >

STEERING GEAR AND LINKAGE

Gear Housing Assembly

Check gear housing assembly for dents, cracks or damage. Replace as an assembly if necessary.

Outer Socket and Inner Socket

SWING TORQUE

• Measure the swing torque, using Tool. When ball stud and inner

socket start moving the measured value must be within the specifi-

cation. If the reading is outside the specification, replace the

socket.

ROTATING TORQUE

• Measure the rotating torque, using Tool. If the value is outside the

specification, replace the outer sockets.

AXIAL END PLAY

• Apply a load of 490 N (50 kg-f, 110 lb-f) to the ball stud axially. Use

a dial gauge to measure the amount of the movement that the stud

makes. If the value is outside the specification, replace the sock-

ets.

ASSEMBLY

1. Install the inner sockets.

Tool number

:

(J-44372)

WGIA0131E

Item

Outer socket

Inner socket

Measuring point

Cotter pin hole of stud

Shown as L: Refer to

ST-30, "Steering Gear"

Swing torque

Refer to

ST-30, "Steering Gear"

Refer to

ST-30, "Steering Gear"

Measuring value

Refer to

ST-30, "Steering Gear"

Refer to

ST-30, "Steering Gear"

Tool number

: ST3127S000 (J-25765-A)

Outer socket
rotating torque

Refer to

ST-30, "Steering Gear"

WGIA0132E

Outer socket Refer to

ST-30, "Steering Gear"

Inner socket

Refer to

ST-30, "Steering Gear"

SGIA0057E

STEERING GEAR AND LINKAGE

ST-29

< UNIT DISASSEMBLY AND ASSEMBLY >

C

D

E

F

H

I

J

K

L

M

A

B

ST

N

O

P

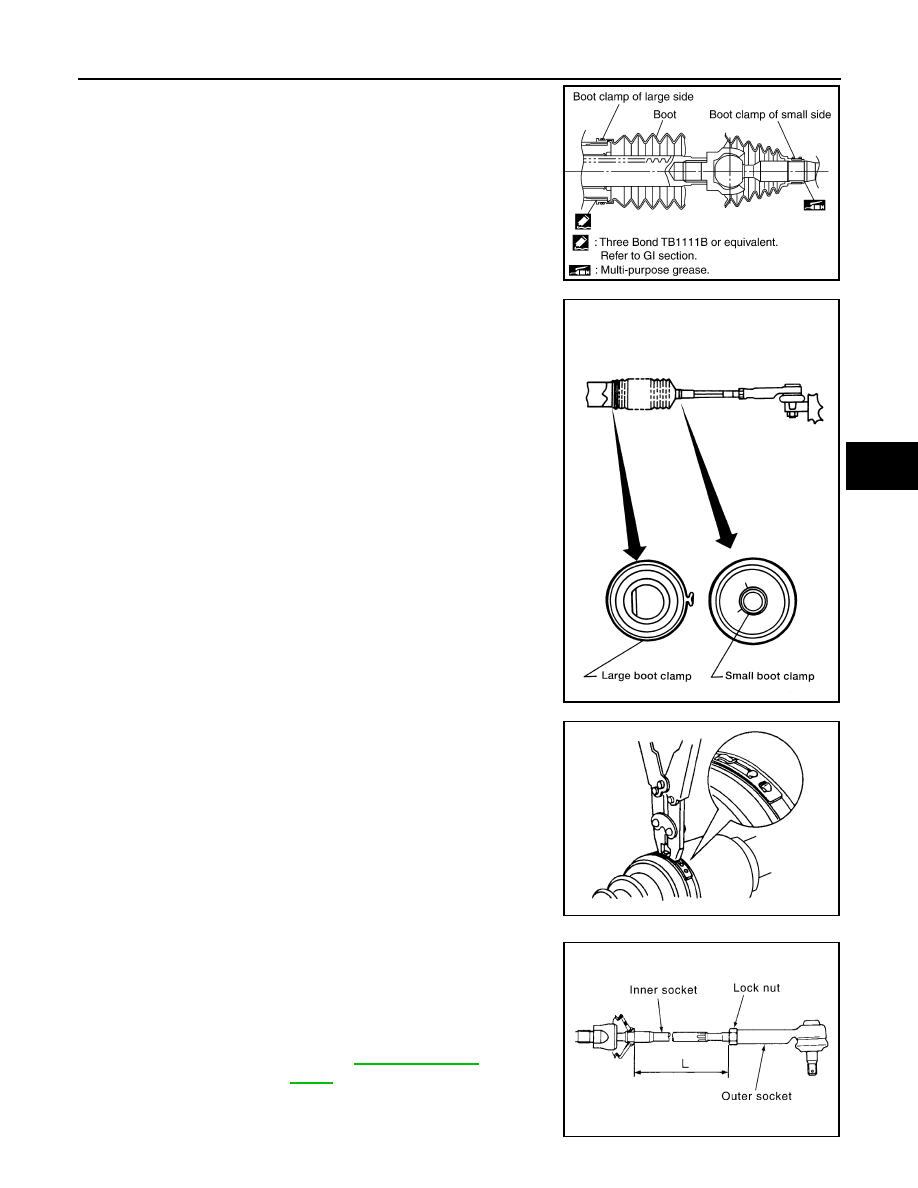

2. Install the large-diameter side of the boots to the gear housing

assembly.

3. Install the small-diameter side of the boots to the groove of the

inner sockets.

4. Install the boot clamps to the boots, as shown.

CAUTION:

Do not reuse the large boot clamps.

5. Crimp the large boot clamps, using Tool.

6. Install the cylinder tubes to the gear housing assembly.
7. Install the lock nuts and outer sockets to the inner sockets.

8. Thread the outer sockets onto the inner sockets to the specified

length (L) and a minimum thread depth of 18 threads, then

tighten the lock nuts to the specified torque. Refer to "Disassem-

bly and Assembly". Reconfirm that the tie-rod length (L) is within

specification.

SGIA0550E

AST139

Tool number : KV40107300 ( — )

RAC1133D

Maximum inner
socket length (L)

Refer to

ST-30, "Steering

Gear"

SGIA0167E

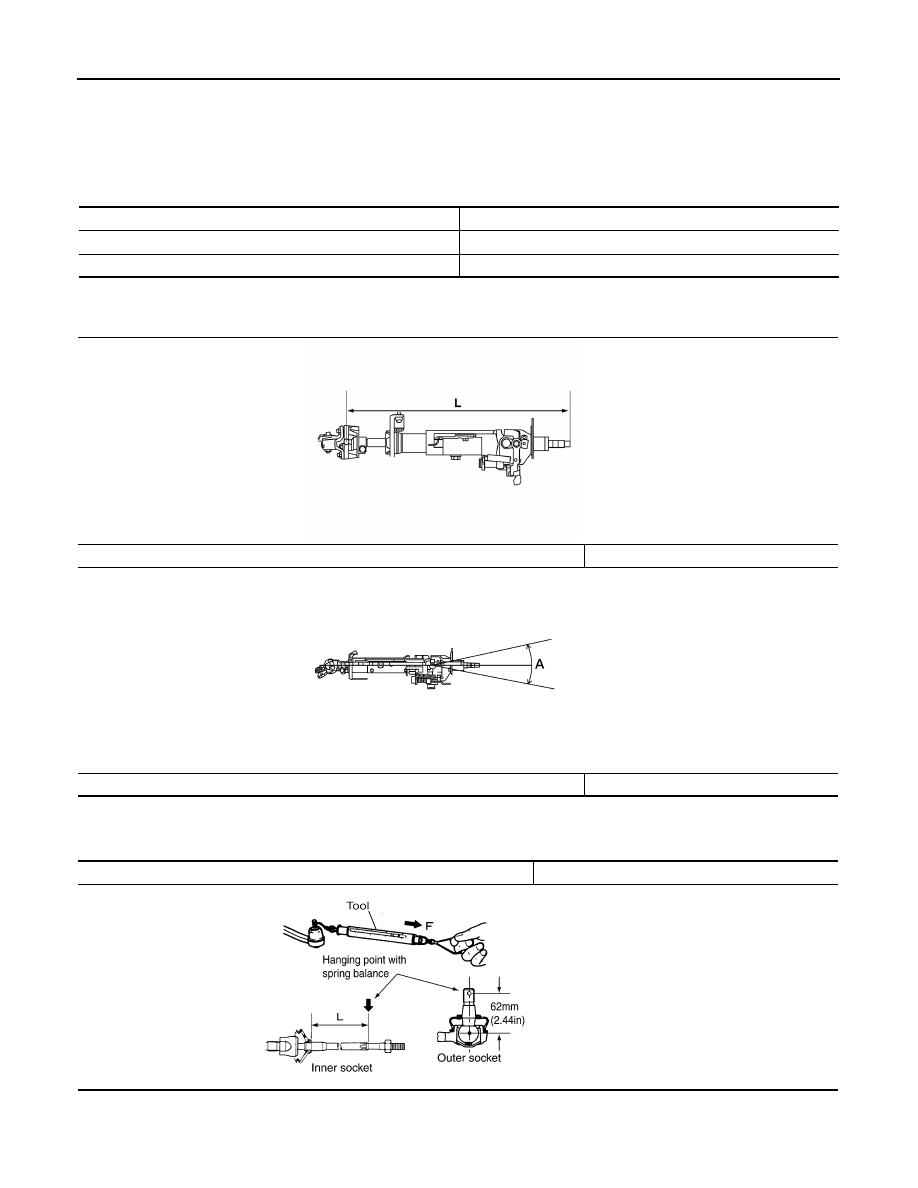

ST-30

< SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Steering Wheel

INFOID:0000000009479930

Steering Column

INFOID:0000000009479931

Steering Gear

INFOID:0000000009479932

End play of the axle direction for steering wheel

0 mm (0 in)

Steering wheel turning force

39 N (4 kg-f, 9 lb-f) or less

Steering wheel play on the outer circumference

− 35 mm (0 − 1.38 in)

Steering column length (L)

553.0 mm (21.77 in)

Tilt range (A)

18

° - 21° of tilt range

AWGIA0147ZZ

WGIA0083E

Steering gear type

PR26AM

WGIA0131E
