PREPARATION

ST-3

< PREPARATION >

PREPARATION

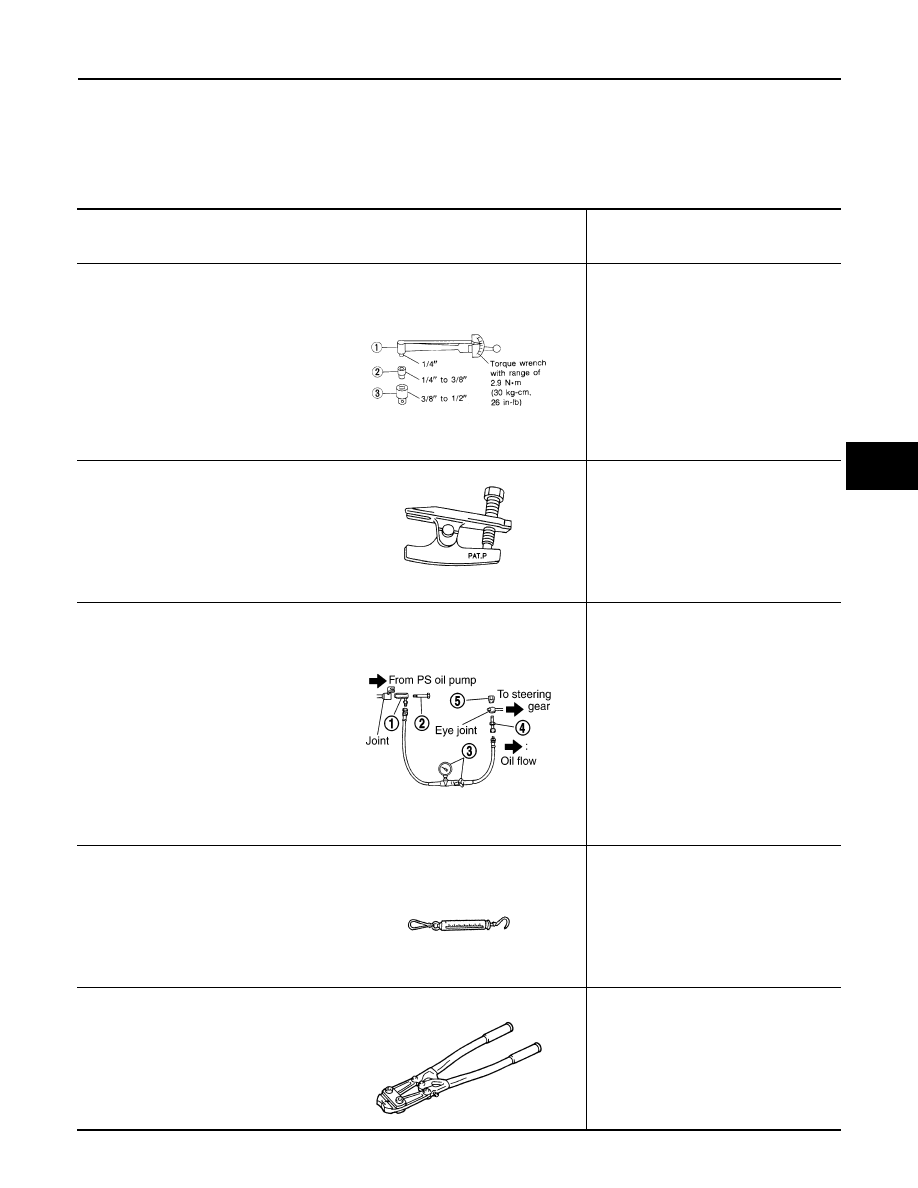

Special Service Tool

INFOID:0000000009479912

The actual shape of the tools may differ from those illustrated here.

Tool number
(TechMate No.)
Tool name

Description

ST3127 S000
(J-25765-A)
Preload gauge
1. GG9103000
(J-25765-A)
Torque wrench
2. HT62940000
(

—

)

Socket adapter
3. HT62900000
(

—

)

Socket adapter

Inspecting of pinion rotating torque and
rotational torque for ball joint

HT72520000
(J-25730-A)
Ball joint remover

Removing steering outer socket

1. KV48105300-4 and 5295262U10
(

—

)

Connector A and O-ring
2. KV48105300-3 and 5295262U00
(

—

)

Eye-bolt and O-ring
3. KV48103500
(J-26357 and J-26357-10)
Pressure gauge and shut-off valve
4. KV48105300-1 and 5295262U00
(

—

)

Connector B and O-ring
5. KV48105300-2
(

—

)

Nut

Measuring oil pump relief pressure

—

(J-44372)
Spring gauge

Measuring steering wheel turning force

KV40107300
(

—

)

Boot band crimping tool

Crimping boot bands

S-NT541

NT146

SGIA0427E

LST024

ZZA1229D

ST-4

< PREPARATION >

PREPARATION

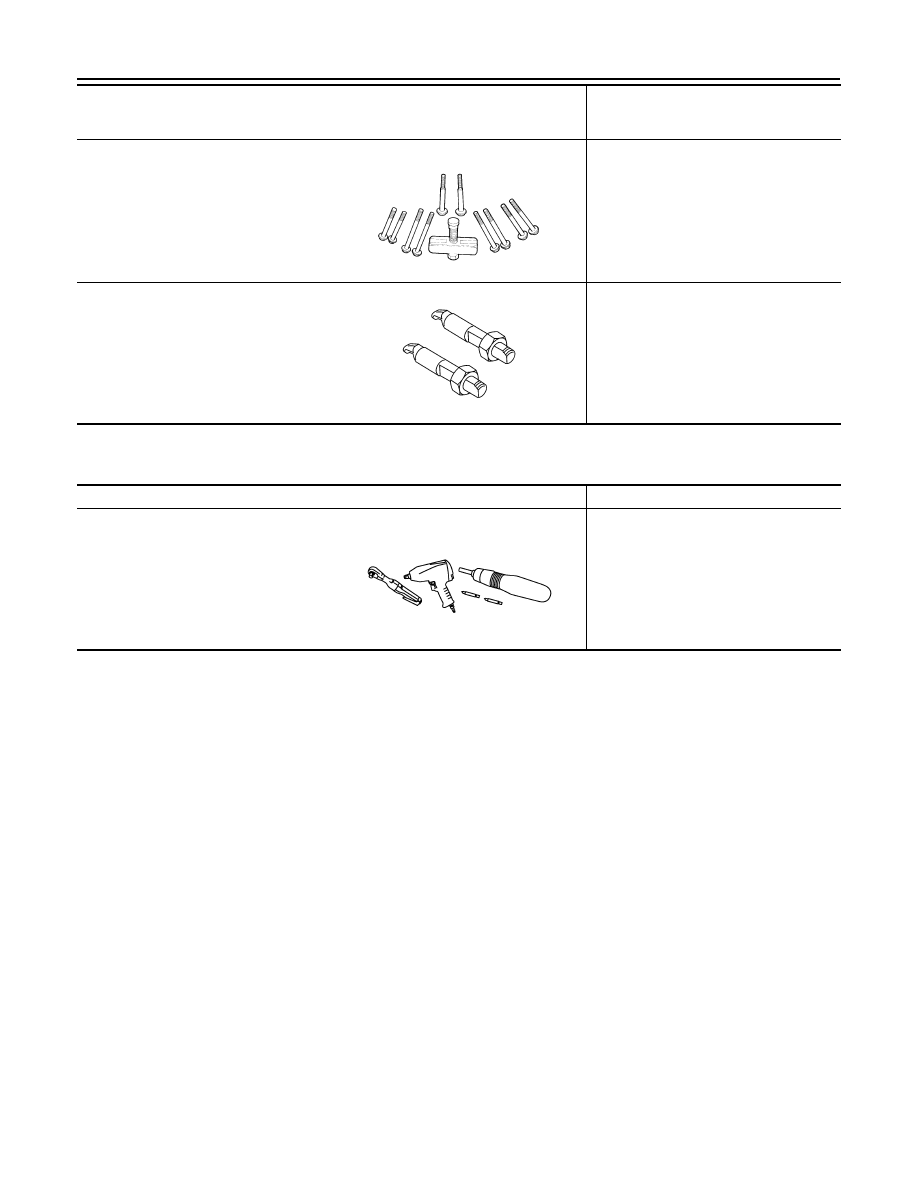

Commercial Service Tool

INFOID:0000000009479913

KV481J0010
(J-1859A)
Steering wheel puller

Removing steering wheel

KV481J0020
(J-42578)
Steering wheel puller legs

Removing steering wheel

Tool number
(TechMate No.)
Tool name

Description

LHIA0043E

LHIA0044E

Tool name

Description

Power tool

Loosening nuts, screws and bolts

PIIB1407E

NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING

ST-5

< SYMPTOM DIAGNOSIS >

SYMPTOM DIAGNOSIS

NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING

NVH Troubleshooting Chart

INFOID:0000000009479914

Use chart below to help you find the cause of the symptom. If necessary, repair or replace these parts.

×: Applicable

Reference page

R25DE

(VQ

0DE

)

Possible cause and suspected parts

lui

d l

r i

dra

lic sy

ter

joi

swi

ing

rce

ter

cket

joi

rot

ting

torq

ter

joi

d p

eri

ring

whe

l pl

ring

ar rac

k sl

g fo

rce

Dri

loo

sen

pro

ring

rop

er i

tal

tio

n o

r lo

s of

til

t lo

sula

r de

riora

tio

tee

rin

g c

lum

form

ion

r da

rop

er i

tal

tio

n o

r lo

s of

ring

olu

eri

e l

OPE

LLE

R SHAFT

DIFFERENTIAL

PENSION

ROAD W

EEL

DRIV

E SHAFT

Symptom

Noise

× × × × ×

× × × × × × ×

Shake

× × ×

× × × × ×

Vibration

× × × × ×

× × ×

Shimmy

× × ×

× × × ×

Shudder

× × × ×

ST-6

< PERIODIC MAINTENANCE >

POWER STEERING FLUID

PERIODIC MAINTENANCE

POWER STEERING FLUID

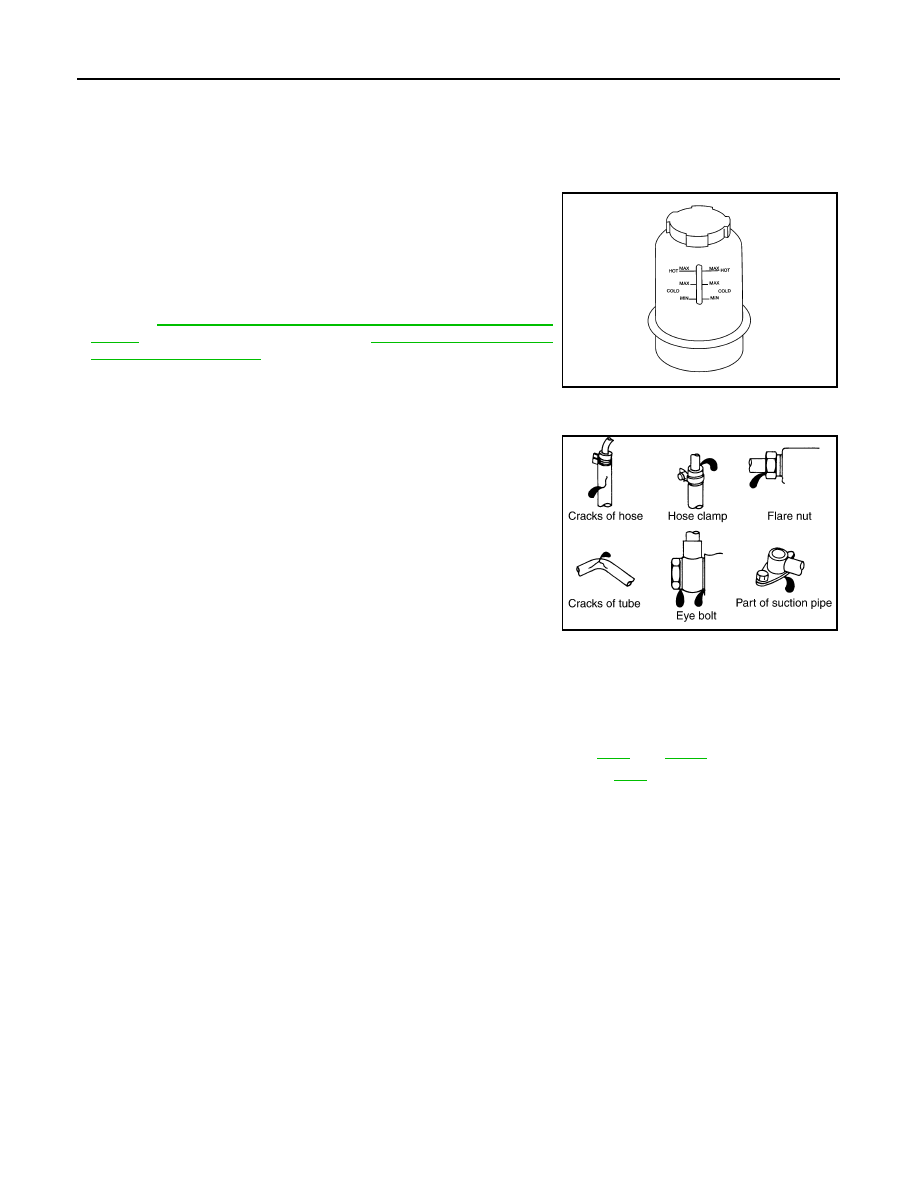

Checking Fluid Level

INFOID:0000000009479915

Check fluid level, referring to the scale on the reservoir tank.

Use HOT range for fluid temperatures of 50

°– 80°C (122°– 176°F).

Use COLD range for fluid temperatures of 0

°– 30°C (32°– 86°F).

CAUTION:

• Do not overfill.

• Do not reuse any power steering fluid.

• Recommended fluid is Genuine NISSAN PSF or equivalent.

Refer to

MA-16, "FOR USA AND CANADA : Fluids and Lubri-

cants"

(United States and Canada),

MA-18, "FOR MEXICO :

Fluids and Lubricants"

(Mexico).

Checking Fluid Leakage

INFOID:0000000009479916

Check the hydraulic piping lines for improper attachment, leaks,

cracks, damage, loose connections, chafing and deterioration.

CAUTION:

Do not reuse copper sealing washers.
1. Run the engine until the fluid temperature reaches 50

°– 80°C

(122

°– 176°F) in the reservoir tank. Keep engine speed idle.

CAUTION:

Do not allow steering fluid in the reservoir tank to go below

the MIN level line. Check tank frequently and add fluid as

needed.

2. Turn the steering wheel to the right and left several times.
3. Hold the steering wheel at each “locked” position for five sec-

onds to check for fluid leakage.

CAUTION:

Do not hold steering wheel in the locked position for more than 10 seconds. (There is the possibil-

ity that the oil pump may be damaged.)

4. If fluid leakage at a connection is noticed, loosen the connection and then retighten. Do not over-tighten

connector as this can damage O-ring, washer and connector. Refer to

ST-8

and

ST-20

5. If fluid leakage from the oil pump is noticed, check the oil pump. Refer to

ST-8

6. Check steering gear boots for accumulation of fluid, indicating a leak from the steering gear.

Air Bleeding Hydraulic System

INFOID:0000000009479917

Incomplete air bleeding causes the following:

• Air bubbles in reservoir tank

• Clicking noise in oil pump

• Excessive buzzing in oil pump

When this happens bleed the air again.
1. With engine not started, turn steering wheel fully right to left several times. when fluid level is lowered,

refill reservoir. Repeat process until fluid level is stabilized.

2. Start the engine and turn the steering wheel fully to the right and left several times.

CAUTION:

Do not allow steering fluid in the reservoir tank to go below the MIN level line. Check tank fre-

quently and add fluid as needed.

NOTE:

When the vehicle is stationary or while the steering wheel is being turned slowly, some noise may be

heard from the oil pump or gear. This noise is normal and does not affect any system.

3. Run the engine at idle speed. Hold the steering wheel at each "locked" position for three seconds and

check for leakage.

LGIA0021E

SGIA0506E
