Trouble Diagnosis without CONSULT
INFOID:0000000009480014

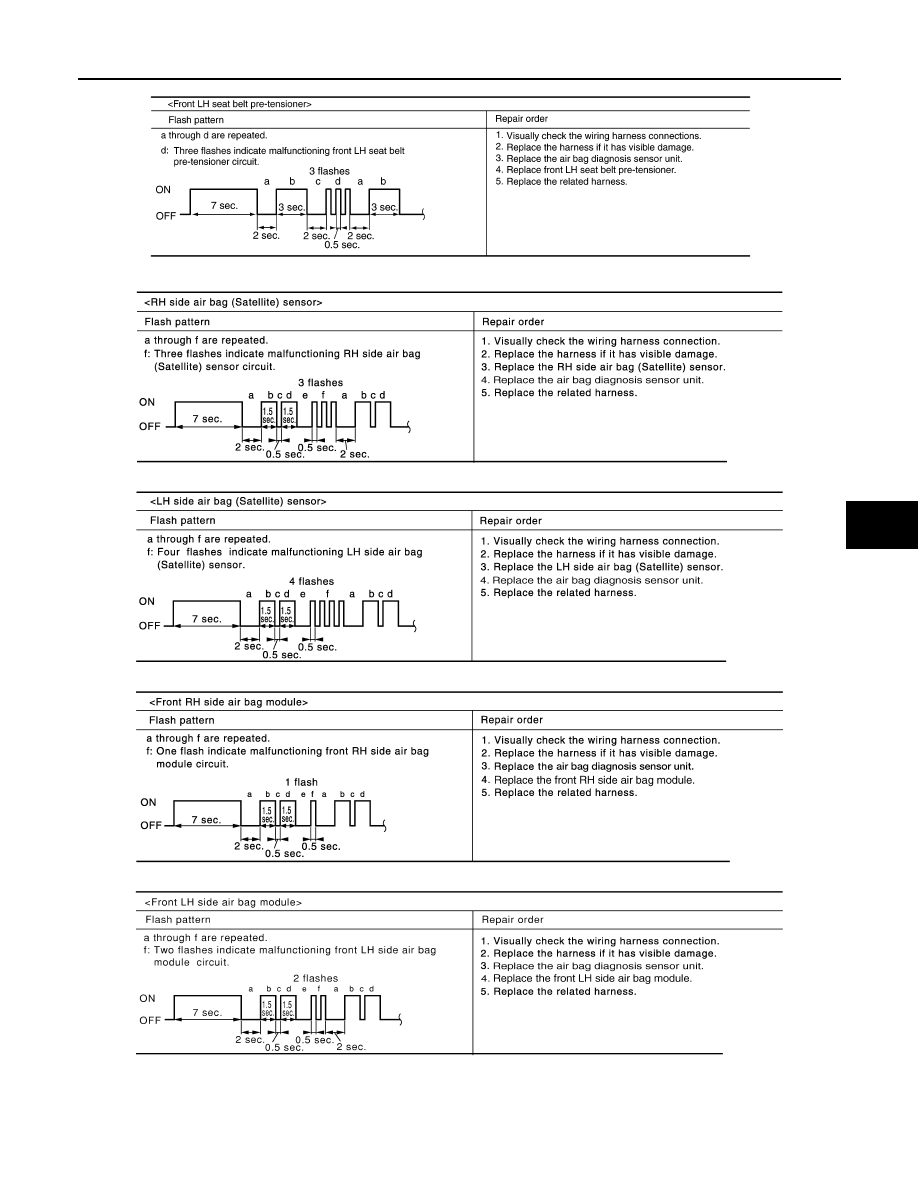

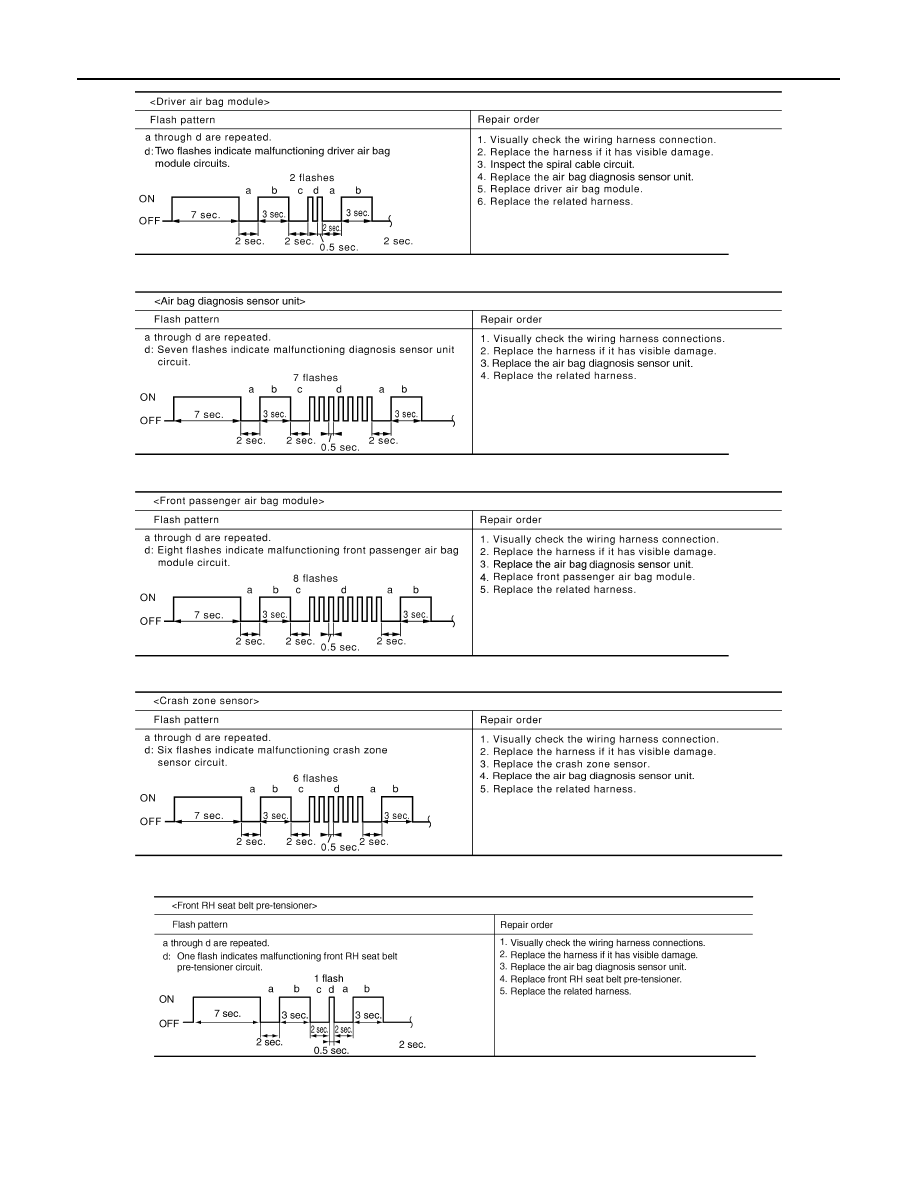

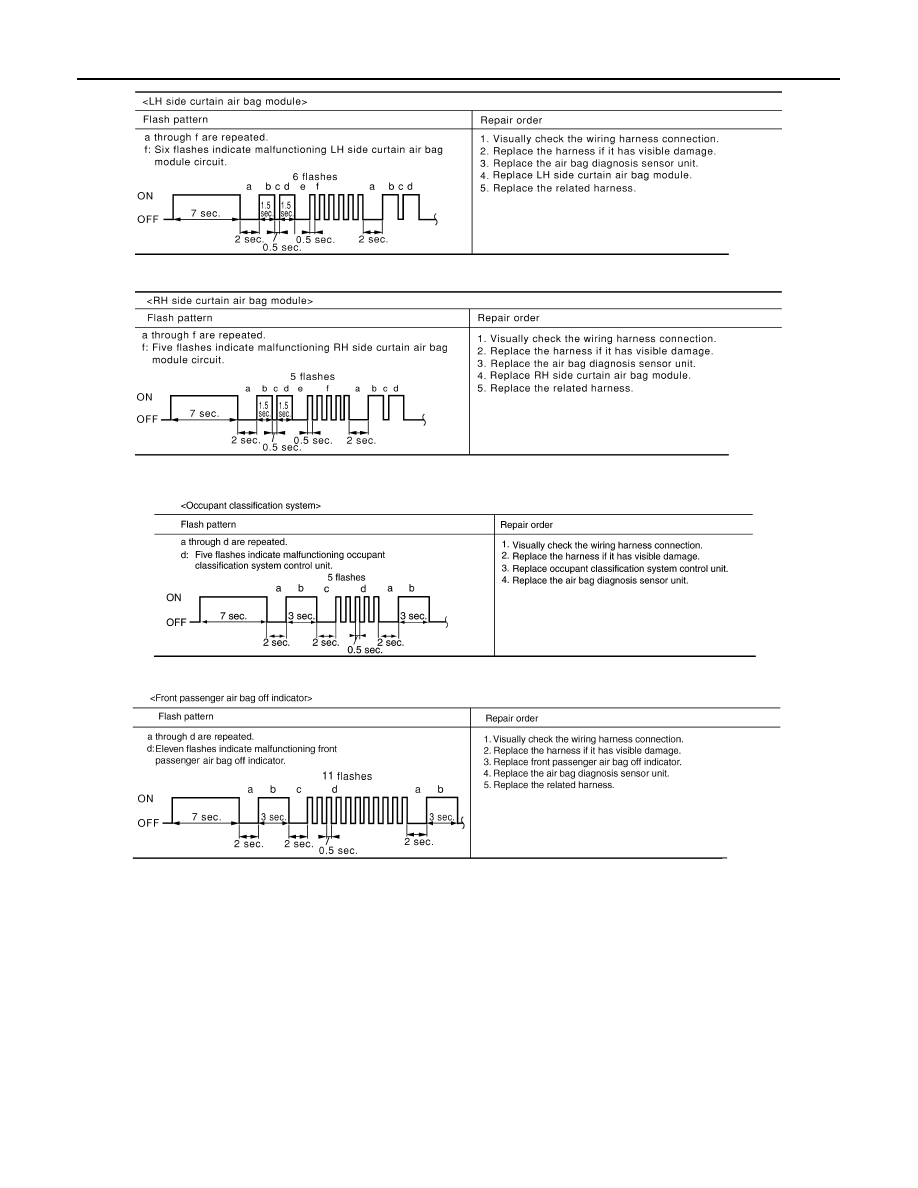

WARNING LAMP FLASH CODE CHART
NOTE:
Follow the procedures in numerical order when repairing malfunctioning parts. Confirm whether malfunction is
eliminated using air bag warning lamp each time repair is finished. If malfunction is still observed, proceed to
the next step. When malfunction is eliminated, further repair work is not required.
SATELLITE SENS LH
[UNIT FAIL]
B1118
LH side air bag satellite sensor has mal-
functioned.
1.
Visually check the wiring harness connection.
2.
Replace the harness if it has visible damage.
3.
Replace the LH side air bag satellite sensor.
4.
Replace the air bag diagnosis sensor unit.
5.
Replace the related harness.
B1119
SATELLITE SENS LH
[COMM FAIL]
B1120
LH side air bag satellite sensor commu-
nication error.
SATELLITE SENS RH
[UNIT FAIL]
B1113
RH side air bag satellite sensor has mal-
functioned.
1.
Visually check the wiring harness connection.
2.
Replace the harness if it has visible damage.
3.
Replace the RH side air bag satellite sensor.
4.
Replace the air bag diagnosis sensor unit.
5.
Replace the related harness.
B1114
SATELLITE SENS RH
[COMM FAIL]
B1115
RH side air bag satellite sensor commu-
nication error.
OCCUPANT SENS C/U
[UNIT FAIL]
B1017
The OCS control unit is malfunctioning.
1.
Replace the OCS control unit.
B1020
B1021
OCCUPANT SENS
[UNIT FAIL]
B1018
The OCS sensor mat is malfunctioning.
OCCUPANT SENS
[OTHER FAIL]
B1019
The OCS is malfunctioning.
OCCUPANT SENS C/U
[COMM FAIL]
B1022
Communication between the OCS con-
trol unit and the air bag diagnosis sensor
unit is interrupted.
1.
Visually check the wiring harness connection.
2.
Replace the harness if it has visible damage.
3.
Replace the OCS control unit.
4.
Replace the air bag diagnosis sensor unit.
PASS A/B INDCTR CKT
B1023
Front passenger air bag OFF indicator is
malfunctioning.
1.
Visually check the wiring harness connection.
2.
Replace the harness if it has visible damage.
3.
Replace the front passenger air bag OFF in-
dicator.
4.
Replace the air bag diagnosis sensor unit.
5.
Replace the related harness.
FRONTAL COLLISION DE-
TECTION
B1209
Driver and/or front passenger air bag
modules are deployed.
SIDE COLLISION DETEC-
TION
B1210
Side and/or curtain air bag modules are
deployed.
SR-5, "For Side and Rollover Collision"
ROLLOVER DETECTION
B1211
Curtain air bag module and seat belt
pre-tensioner are deployed.

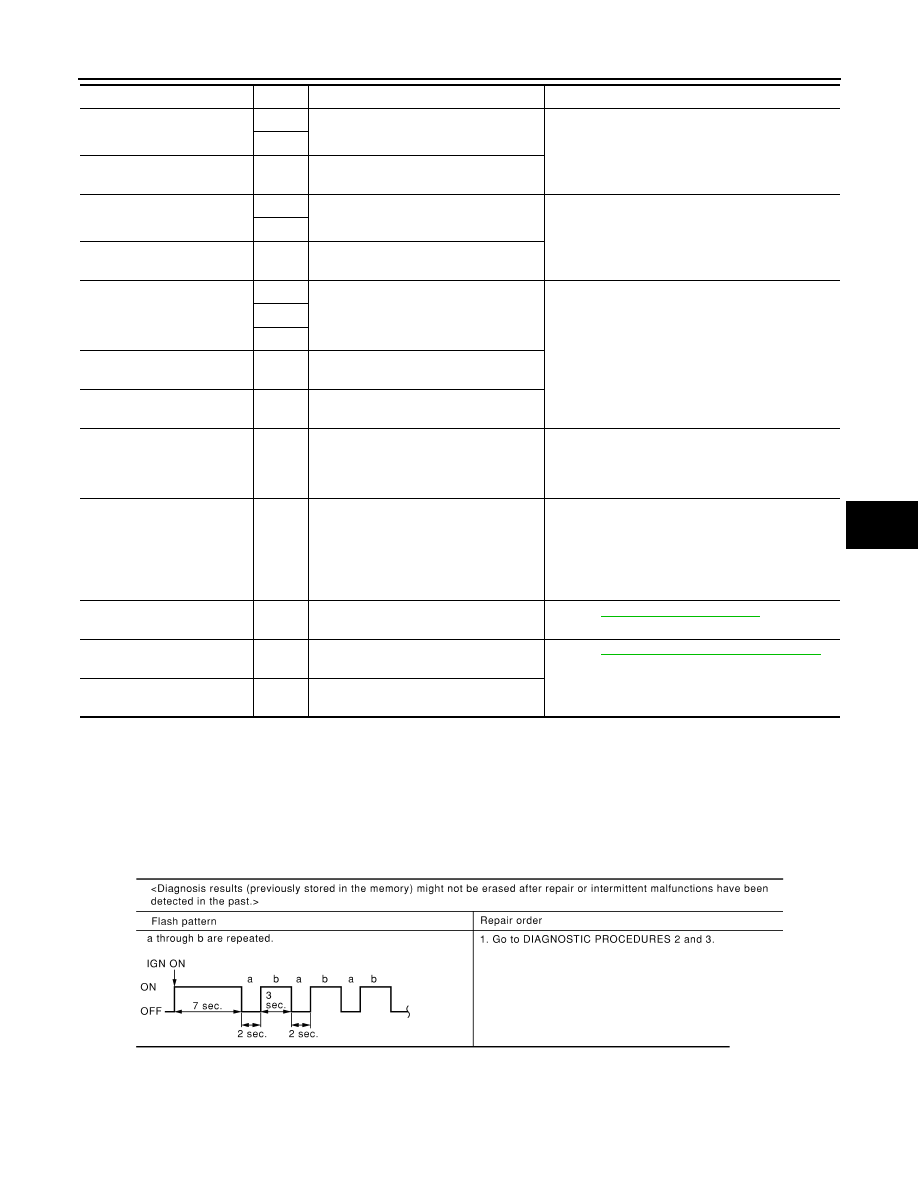

CONSULT name
DTC
DTC detecting condition
Repair order
SHIA0026E
